revmox
#351
Posted :
17 January 2024 11:18:15(UTC)
Retweet
Joined: 26/05/2021(UTC)
Posts: 167
Location: Australia, East Maitland, NSW
What is the minimum desirable spacing between straight C-track? Could the roadbeds of adjacent tracks touch or, in other words, is there much/any Marklin rolling stock that is wider than the base of C-track?
Thinking here of hidden storage tracks and getting the maximum into a small space.
Yes, there would be clearance issues entering and leaving the parallel sidings and some severely hacked track pieces ... but if they don't sell it, you've got make it.
User Profile
View All Posts by User
View Thanks
Alsterstreek
#352
Posted :
17 January 2024 12:08:57(UTC)
Retweet
Joined: 16/11/2011(UTC)
Posts: 5,770
Location: Hybrid Home
According to MOROP, the European association that federates national associations of railroad and model railroad enthusiasts, the distances between straight standard H0 gauge tracks - measured from track centre to track centre - should not fall below the following values:
open track: 46 mm
yards: 52 mm
Source (see point #2):
https://www.morop.org/do...oads/nem/de/nem112_d.pdf
Greetz - Ak
My current "layout":
https://www.marklin-user...aigne-Project#post592818
4 users liked this useful post by Alsterstreek
Jimmy Thompson
,
TrainIride
,
kimballthurlow
,
dlwestphalen
User Profile
View All Posts by User
View Thanks
revmox
#353
Posted :
17 January 2024 21:53:18(UTC)
Retweet
Joined: 26/05/2021(UTC)
Posts: 167
Location: Australia, East Maitland, NSW
Originally Posted by: Alsterstreek
According to MOROP, the European association that federates national associations of railroad and model railroad enthusiasts, the distances between straight standard H0 gauge tracks - measured from track centre to track centre - should not fall below the following values:
open track: 46 mm
yards: 52 mm
Source (see point #2):
https://www.morop.org/do...oads/nem/de/nem112_d.pdf
Thanks Ak,
Centre to centre distance of two C-track straights pushed together is 40mm. The rolling stock envelope specified in NEM 301 is 40mm (kinematic for new stuff, static for old stuff). So 46mm should pretty much ensure 6mm clearance between rolling stock IF your rolling stock is compliant.
https://morop.org/images...NEM_E/nem301_en_2018.pdf
4 users liked this useful post by revmox
Alsterstreek
,
marklinist5999
,
TrainIride
,
kimballthurlow
User Profile
View All Posts by User
View Thanks
Alsterstreek
#354
Posted :
20 January 2024 15:00:48(UTC)
Retweet
Joined: 16/11/2011(UTC)
Posts: 5,770
Location: Hybrid Home

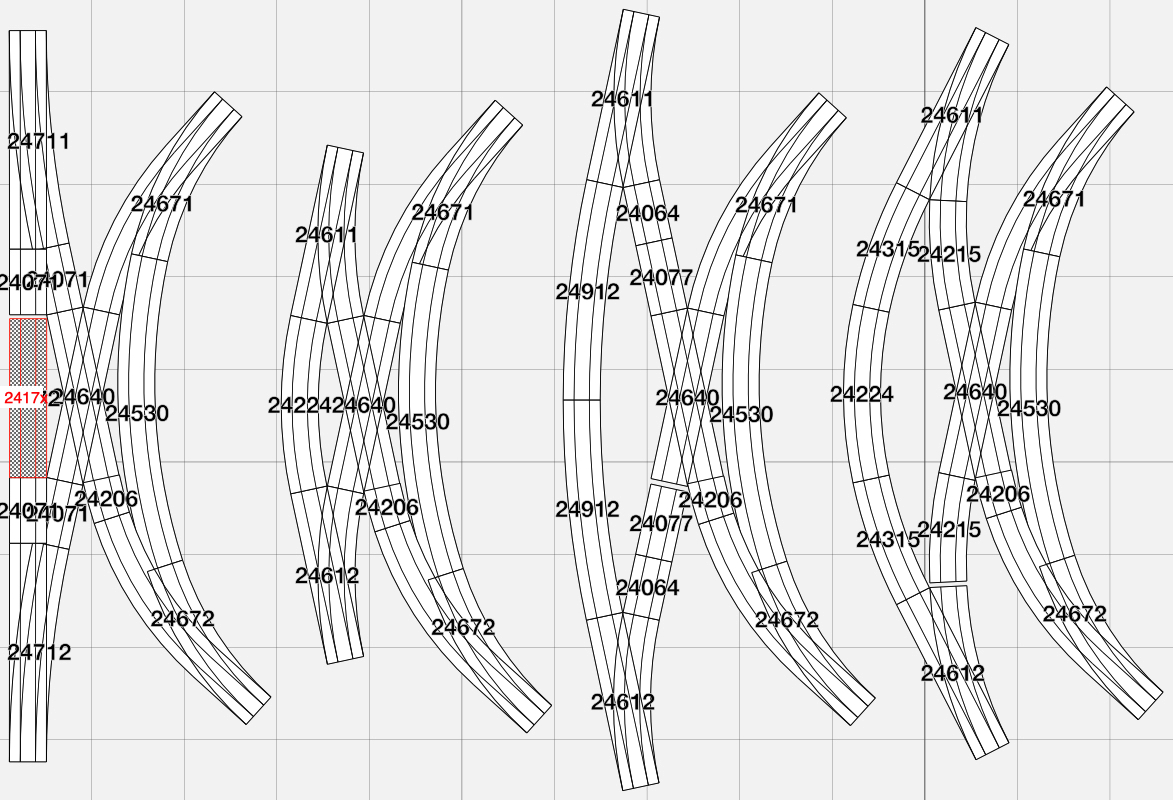

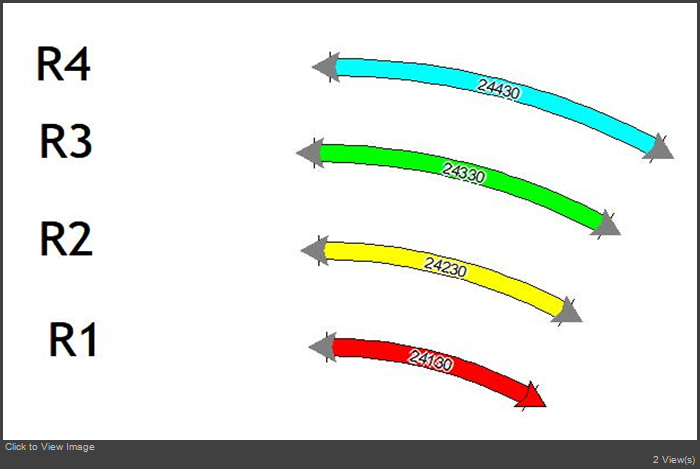

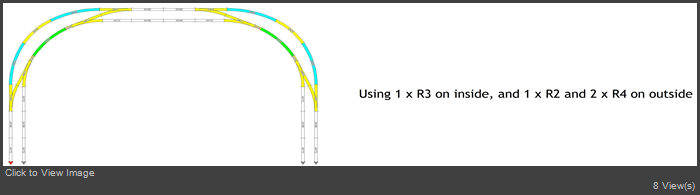

Special Hosenträger variations
See post #320 for red track "2417x"
Greetz - Ak
My current "layout":
https://www.marklin-user...aigne-Project#post592818
4 users liked this useful post by Alsterstreek
rbw993
,
dickinsonj
,
kimballthurlow
,
TrainIride
User Profile
View All Posts by User
View Thanks
rbw993
#355
Posted :
20 January 2024 16:35:32(UTC)
Retweet
Joined: 19/08/2008(UTC)
Posts: 978
Large version with no R1. Don't know how to attach a scarm file as an image, sorry.
Large Hosentrager.pdf
(106kb) downloaded
44
time(s).
1 user liked this useful post by rbw993
Alsterstreek
User Profile
View All Posts by User
View Thanks
kimballthurlow
#356
Posted :
29 February 2024 02:31:01(UTC)
Retweet
Joined: 18/03/2007(UTC)
Posts: 6,705
Location: Brisbane, Australia

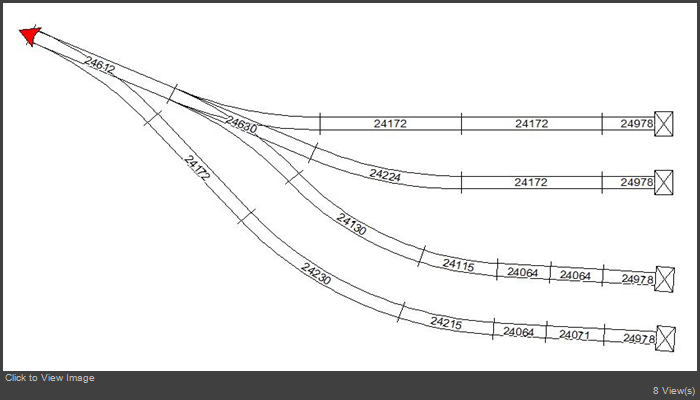

4 short sidings with alternatives
-
Some ideas borrowed from this topic

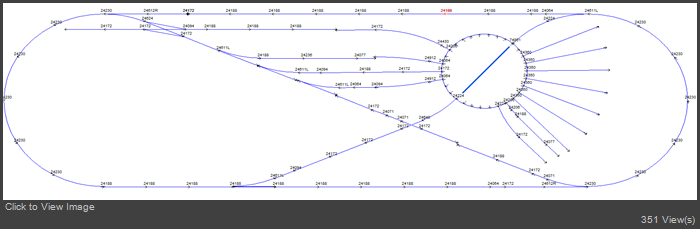

Sidings geometry.
Posted by Alex H

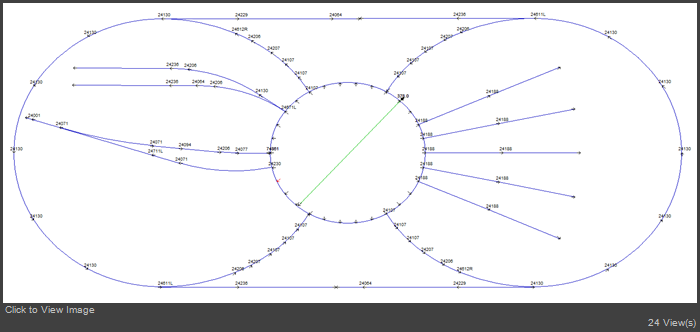

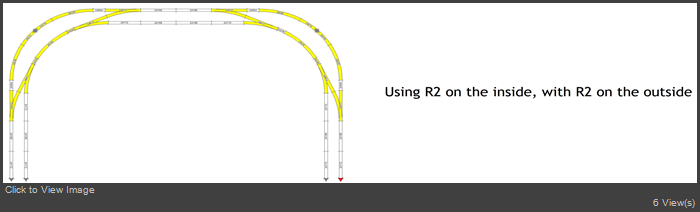

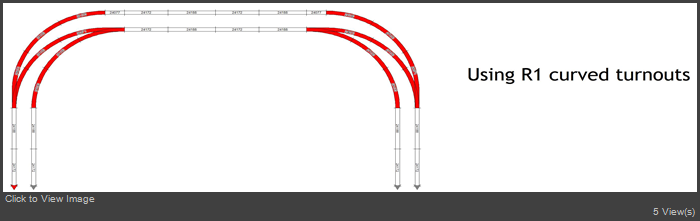

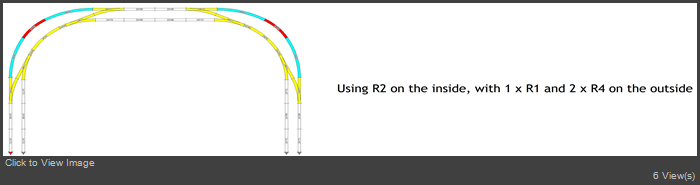

Next two images posted by PacoM
Kimball
HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
WWW
5 users liked this useful post by kimballthurlow
TrainIride
,
marklinist5999
,
Alsterstreek
,
hvc
,
mbarreto
User Profile
View All Posts by User
View Thanks
Alsterstreek
#357
Posted :
01 November 2024 00:06:06(UTC)
Retweet
Joined: 16/11/2011(UTC)
Posts: 5,770
Location: Hybrid Home
Mental game on 110x190 cm.
Greetz - Ak
My current "layout":
https://www.marklin-user...aigne-Project#post592818
8 users liked this useful post by Alsterstreek
dickinsonj
,
TrainIride
,
kimballthurlow
,
amartinezv
,
mbarreto
,
Martti Mäntylä
,
PacoM
,
hxmiesa
User Profile
View All Posts by User
View Thanks
kiwiAlan
#358
Posted :
01 November 2024 00:17:21(UTC)
Retweet
Joined: 23/07/2014(UTC)
Posts: 8,267
Location: ENGLAND, Didcot
Originally Posted by: Alsterstreek
Mental game on 110x190 cm.
Now try the exercise of interlocking all those diamond crossings ...
2 users liked this useful post by kiwiAlan
Alsterstreek
,
kimballthurlow
User Profile
View All Posts by User
View Thanks
Alsterstreek
#359
Posted :
01 November 2024 00:24:01(UTC)
Retweet
Joined: 16/11/2011(UTC)
Posts: 5,770
Location: Hybrid Home

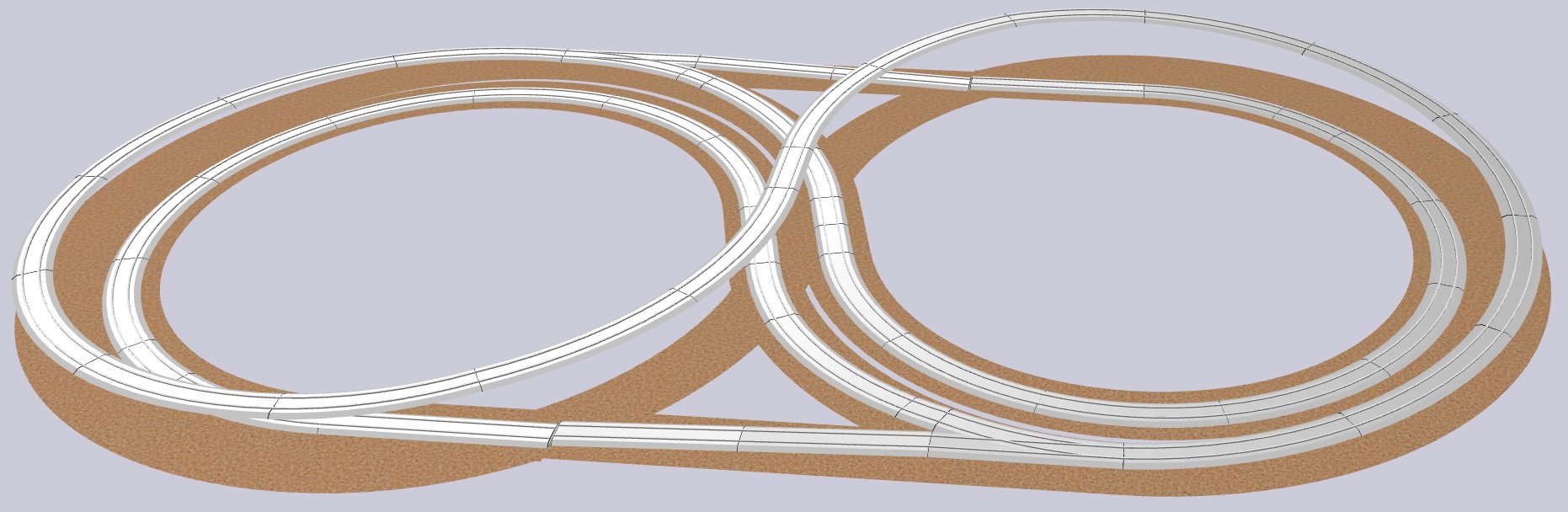

... and on 94x174 cm.
3.5% incline & defused S-curves.
Greetz - Ak
My current "layout":
https://www.marklin-user...aigne-Project#post592818
8 users liked this useful post by Alsterstreek
dickinsonj
,
TrainIride
,
kimballthurlow
,
amartinezv
,
mbarreto
,
PacoM
,
Mark5
,
hxmiesa
User Profile
View All Posts by User
View Thanks
rbw993
#360
Posted :
01 November 2024 02:36:46(UTC)
Retweet
Joined: 19/08/2008(UTC)
Posts: 978
I think you bypassed the exercise request.
1 user liked this useful post by rbw993
Alsterstreek
User Profile
View All Posts by User
View Thanks
Alsterstreek
#361
Posted :
01 November 2024 14:21:27(UTC)
Retweet
Joined: 16/11/2011(UTC)
Posts: 5,770
Location: Hybrid Home
There, it works perfectly with one train at a time.
Greetz - Ak
My current "layout":
https://www.marklin-user...aigne-Project#post592818
5 users liked this useful post by Alsterstreek
TrainIride
,
marklinist5999
,
mbarreto
,
dickinsonj
,
Mark5
User Profile
View All Posts by User
View Thanks
