Hi,
I want to be able to see a concentration of knowledge and ideas on Marklin C track in this forum.

It is such a marvellous product, it deserves a topic on its own.
And also, many members here have some innovative, bright, and unique ways to use C track.

I will start the ball rolling, by reference to a previous topic.
https://www.marklin-users.net/forum/yaf_postst9281_Transitation-curves--or-How-to-fit-R9-on-75-cm.aspx

Member LeoArietis had some good posts in that topic, and recently regarding the announcement of 2015 New Items from Marklin he says:
"Disapointing the expansion of C-track isn't there.
24906, 24032, 24724, and so on, where are they?"

Let us hope Marklin announce them sometime in the future.

regards
Kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 5 users liked this useful post by kimballthurlow
Offline kimballthurlow
#2 Posted : 21 January 2015 10:32:51(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
I inadvertently created a short on my layout, when using C track.

The metal tongue for the overhead catenary mast in this location, just happened to bridge (and short) the wire connectors under the track.
The photos explain the solution.

http://www.qldrail.net/altkloster/electricalshort800.jpg

http://www.qldrail.net/altkloster/electricshortfix800.jpg

regards
Kimball

Edited by user 21 January 2015 21:14:33(UTC)  | Reason: added "metal"

HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 5 users liked this useful post by kimballthurlow
Offline Alsterstreek
#3 Posted : 21 January 2015 11:37:53(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Good initiative. I allow myself to place a link to my recent deliberations on C track easements:

https://www.marklin-user...-C-Track.aspx#post475098

:-)
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 3 users liked this useful post by Alsterstreek
Offline Alsterstreek
#4 Posted : 21 January 2015 15:00:15(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Several C track design tips and tricks by forum member hxmiesa:

http://hoexbroe.tripod.com/train/id36.html
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 6 users liked this useful post by Alsterstreek
Offline kimballthurlow
#5 Posted : 21 January 2015 21:22:13(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Hi Ak,

We ought to borrow some images from those topics.

Here is a start.

Wye or Y are a great use of space (probably about the same as a turntable without storage).
Why do we use them?? (sorry could not help that one).
You get to easily turn a loco, and so simple to set up in the Marklin system.

This is the wye usually used. It is not symmetrical but works.

https://www.marklin-users.net/upload/community/Layoutconst/kimballthurlow/yctrackset.gif

This one is symmetrical off a straight section, but uses a 3 way turnout. I have not tried this configuration.

https://www.marklin-users.net/upload/community/Layoutconst/kimballthurlow/ctrackyonstraight.png

regards
Kimball.
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 7 users liked this useful post by kimballthurlow
Offline Alsterstreek
#6 Posted : 22 January 2015 16:28:45(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Originally Posted by: kimballthurlow Go to Quoted Post
This is the wye usually used. It is not symmetrical but works.

https://www.marklin-users.net/upload/community/Layoutconst/kimballthurlow/yctrackset.gif


And the 3 x 24230 can be exchanged for 3 x 24130/24330/24430/25330, respectively.

In this spirit I attach the most compact 90º wye I can think of.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 4 users liked this useful post by Alsterstreek
Offline Alsterstreek
#7 Posted : 23 January 2015 00:11:18(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Alternative space-saving "Hosentraeger"-crossing for layout corner? Another idea for the undervalued R1 curved layouts 24671/2 in combination with a 24530 on the inside and a 24640 plus a 24206 on the outside. One day I might exploit this idea...
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 4 users liked this useful post by Alsterstreek
Offline Alsterstreek
#8 Posted : 23 January 2015 00:16:42(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
A space-saving and daring combination which I employed in the shadow station area of my former layout Humbug-Dummtor. Actually an iteration of the asymmetrical wye presented by Kimball above.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 5 users liked this useful post by Alsterstreek
Offline Alsterstreek
#9 Posted : 23 January 2015 00:27:20(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost

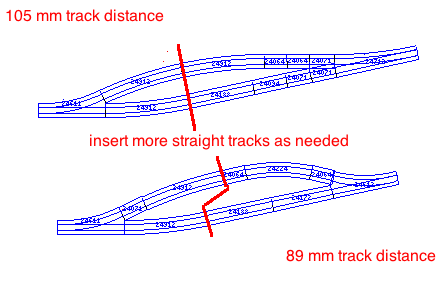

A different way of reducing clearances between parallel tracks:

- On the left: 24711/2 slim turnout with two 24206 instead of a 24912.

- On the right: 246711/2 curved turnout with two pieces of 24912 which - as a bonus - offers elegant easements at the end of a curve; like that even coaches have a nice appearance despite the use of R1 based turnouts.

Edited by user 27 January 2015 18:21:02(UTC)  | Reason: typos

Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 4 users liked this useful post by Alsterstreek
Offline Alsterstreek
#10 Posted : 23 January 2015 00:47:29(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost

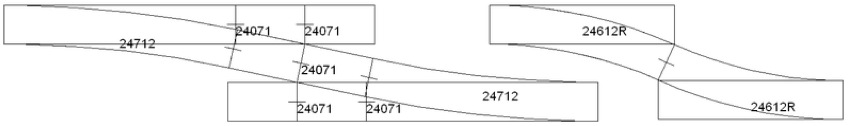

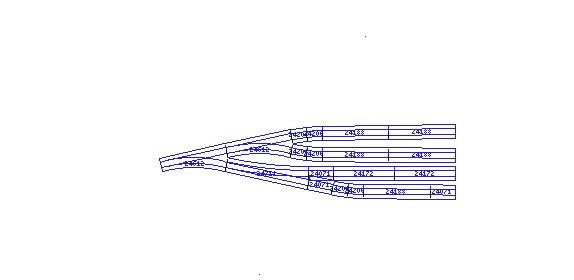

Building a yard ladder with reduced clearances between tracks by combining 24611/2 with 24711/2 turnouts and double 24206 combinations introduced above.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 3 users liked this useful post by Alsterstreek
Offline kimballthurlow
#11 Posted : 23 January 2015 04:50:59(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Hi
All elegant solutions.

Regarding member LeoArietis.
He had a comment regarding the announcement of 2015 New Items from Marklin, and he says:
"Disapointing the expansion of C-track isn't there.
24906, 24032, 24724, and so on, where are they?"

Here is some explanation.
24906 - this is half (6°) of the large radius curve 24912 (12°). This half curve will allow you to complete 30° of a large radius curve, with 2x24912 + 1x24906.
By extension you can complete a corner (90°) with 7x24912 + 1x24906.
30° is the most useful curve, because it fits with all other radii (30° in R1 through R5) made by Marklin.
Therefore it can be used as a transition for the smaller radii in a 60° or longer curve.
(Note: in my opinion a 24903 (3°) might be more useful, allowing short transitions for R1 and R2 where you have 15° sections available.
Hence, 1x24903 + 1x24912 = 15°)

24032 - this is half the shortest straight piece currently available (24064), and will assist in many areas of widening distance from turnouts, between parallel tracks.
For example, for a station platform.

24724 - I am not sure what Leo has in mind here, perhaps he will join this topic at some point.

regards
Kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 1 user liked this useful post by kimballthurlow
Offline kimballthurlow
#12 Posted : 23 January 2015 04:57:19(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Originally Posted by: Alsterstreek Go to Quoted Post

https://www.marklin-users.net/upload/community/Layoutconst/kimballthurlow/yctrackset.gif
And the 3 x 24230 can be exchanged for 3 x 24130/24330/24430/24530, respectively......


Interesting Ak,
And from a pure mathematical point of view, a Wye is a triangle, and all the angles subtending the curve pieces add up to 180°.
And it does not matter which radius curves you use!
In this example we have 60° for each side of the Wye.

regards
Kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 2 users liked this useful post by kimballthurlow
Offline kimballthurlow
#13 Posted : 25 January 2015 02:05:03(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Moderator David (member Bigdaddynz) posted this in another topic, regarding possible Marklin releases this year.
Articles are slim (R9 large radius) double-slip turnout, and R4 curved turnout.

"The following article numbers were far each briefly displayed only when an online retailer. These data, however, are probably already deleted or banned again. Since I assumed that other traders follow suit, I have this merchant unfortunately not noticed. The text of the item numbers but I have copied:
24072
Straight Track with removable embankments. Is required as a balancing item for the slim double slip switch 24720. - Price: N. E.

24720
Slender double slip switch, length 236.1 mm, diverging track radius 1,114.6 mm, The turnout 12.1 mm, 10 ° centerpiece of metal. At each end of the switch, the track is 24071 or 24072 requires each. Two matching slope parts are included. Retrofitted with electric drive and illuminated Weichenlaterne, digital decoder - Price: nE

24470
Deflectors pair, each R4 = 579.3 mm / 30 °. Outside bend 30 ° at a parallel distance 64.3 mm. Manual hand lever. 74491 Electric drive, digital decoder 74461 and 74470 respectively Weichenlaterne retrofitted - Price: nE

24471
Left Curved Turnout, R4 = 579.3 mm / 30 °. Outside bend 30 ° at a parallel distance 64.3 mm. Manual hand lever. Electric drive 74491, 74461 digital decoder and Weichenlaterne 74470 - Price: nE

24472
Right Curved Turnout, R4 = 579.3 mm / 30 °. Outside bend 30 ° at a parallel distance 64.3 mm. Manual hand lever. Electric drive 74491, 74461 digital decoder and Weichenlaterne 74470 - Price: nE"

regards
kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 3 users liked this useful post by kimballthurlow
Offline Alsterstreek
#14 Posted : 27 January 2015 12:14:29(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
A R2 based wye by forum member Leo Arietis. When replacing the upper 24611 by a 24612 turnout, it becomes a 90° wye. Source: http://www.svensktmjforu...index.php?topic=10990.50
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 2 users liked this useful post by Alsterstreek
Offline Alsterstreek
#15 Posted : 27 January 2015 18:07:07(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost

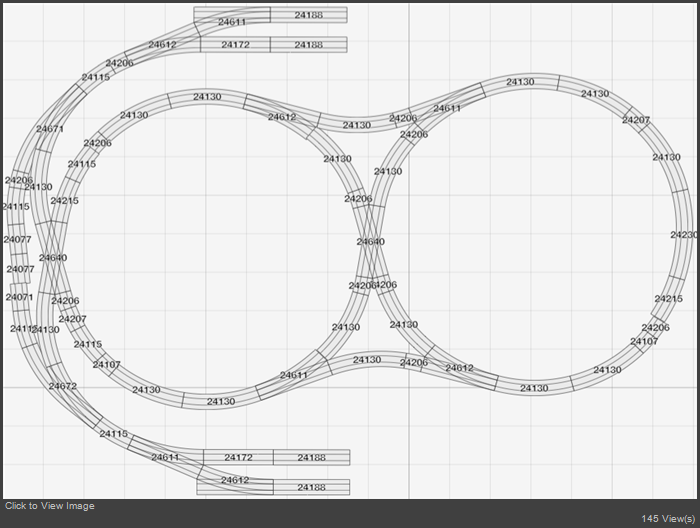

Why not another wye? Here a practical application for the gent with lack of space: In the most compressed version, the two mainlines could be connected by closing a simple circle. And the inside of the circle could be filled with track, too, thanks to the 24649 crossing.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 5 users liked this useful post by Alsterstreek
Offline black_pete
#16 Posted : 01 February 2015 07:40:25(UTC)
black_pete

Australia
Joined: 09/04/2007(UTC)
Posts: 145
Location: Melbourne, Victoria
Is there any news from the Nuremberg Messe regarding the new wide radius C-Track items Confused

I'm currently sketching a new layout proposal and am "busting" for new design elements BigGrin
Regards
Pete

expat Kiwi - now living in Melbourne

SBB Era IV & V - Digital - CS1 - C Track
Offline kiwiAlan
#17 Posted : 01 February 2015 13:34:00(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 4,148
Location: ENGLAND, Didcot
Originally Posted by: black_pete Go to Quoted Post
Is there any news from the Nuremberg Messe regarding the new wide radius C-Track items Confused

I'm currently sketching a new layout proposal and am "busting" for new design elements BigGrin


I thought there was some mention of this in the Messe thread, something about possibly later in the year.

thanks 1 user liked this useful post by kiwiAlan
Offline Alsterstreek
#18 Posted : 05 February 2015 11:55:22(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
DIY "flexible" C track - German step-by-step description for the example of a radius > 2000 mm by using M* 24236:

http://www.thkas-moba.de/mucis/c-flex.html

The author proposes to use M* 24236 for a radius >= 2000 mm and M*24912 for radius between 900 mm and 2000 mm.
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 1 user liked this useful post by Alsterstreek
Offline Alsterstreek
#19 Posted : 05 February 2015 15:25:25(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Illustrated DIY guidance for constructing C track scissors crossover:

1) slim turnouts
http://www.thkas-moba.de/mucis/baubericht.html

2) regular turnouts
http://www.thkas-moba.de/html/hosentraeger-r2.html
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
Offline kimballthurlow
#20 Posted : 05 February 2015 23:30:22(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Originally Posted by: Alsterstreek Go to Quoted Post
DIY "flexible" C track - German step-by-step description for the example of a radius > 2000 mm by using M* 24236:
....
The author proposes to use M* 24236 for a radius >= 2000 mm and M*24912 for radius between 900 mm and 2000 mm.


Hmmmm.... I cannot see the efficacy in doing this.
A lot of work for very little return, compared to the use of K flex track, or even Peco track with centre studs.

regards
Kimball

HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 1 user liked this useful post by kimballthurlow
Offline Dangermouse
#21 Posted : 24 February 2015 23:16:57(UTC)
Dangermouse

United Kingdom
Joined: 01/07/2014(UTC)
Posts: 115
Location: Wales
A thought which occurred to me recently:

Why don't Marklin take a leaf out of Kato's N scale book and make some structures which are specifically designed to work with C track?

I know you can buy stations, engine sheds and so on from multiple manufacturers, but every time you have to build a base to lift them up to the C track rail level.

If you look at Kato they sell a station pack which is specifically designed to be used with their track system. The basic one will fit inside the passing loop expansion pack (like C2), you can buy extra platform sections, a ticket office which sits above the line, and assorted other bits to build precisely what you want. It all clips together (the Japanese model railway culture is based around carpet layouts, they don't generally have the space for a fixed one) and you can make it look very realistic with painting and figures.

Start with platform segments which equate to 24188/24172 and a ramp for each end (make a left and right hand curve to fit at the ends of a loop using the R2 points, and make the segments the right width to fit between the straights), a canopy and basic details like name boards, bike racks, and posters. Have an "underpass" entrance to explain how people get to the island platform.

I have seen the "My World" range but it's obviously aimed at the toy market, with chunky overscale components. I'm thinking something which can be used as-is or made to look much better with some work.
You can never have too many Silberlinge
thanks 5 users liked this useful post by Dangermouse
Offline kiwiAlan
#22 Posted : 25 February 2015 14:27:13(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 4,148
Location: ENGLAND, Didcot
Originally Posted by: Dangermouse Go to Quoted Post
A thought which occurred to me recently:

Why don't Marklin take a leaf out of Kato's N scale book and make some structures which are specifically designed to work with C track?

I know you can buy stations, engine sheds and so on from multiple manufacturers, but every time you have to build a base to lift them up to the C track rail level.


I think that is seen as 'operating outside their core business' which is the trains themselves. There are enough manufacturers (of the accessories) in Europe for everyone to have a slice of the pie without going outside the core business. There is only so much a company can do with its R&D effort.

And then when it comes to using other manufacturers items with C track, there are some items specifically designed for C track, but they are limited, as the manufacturers have to make the models fit a wide range of model railway track systems, wether it is C track, M track, K track, Roco, Fleischmann, Bemo HOe, Lilliput, etc which all have varying heights for their track system. So the only way they can operate economically is to design for the lowest profile track and have the modeller set up the model to suit the track system they are using.

Besides which, having a station building a bit higher than the surrounding land level would not look out of place, in most places, especially in Europe, the ground undulates to some degree.

So as I have often said - you cannot make a mistake with scenery, whatever you do there will be a prototype for it somewhere.
Offline Alsterstreek
#23 Posted : 06 March 2015 17:21:26(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Now back on track:

Introducing the (DIY) C track 24157 = 157 mm long straight track:

31 mm = 4 sleepers and 4 spacings cut out before joining the remainders with hot glue

http://www.michaelsen-el...e_fehlt/lange_fehlt.html
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
Offline Alsterstreek
#24 Posted : 06 March 2015 17:49:25(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Now brainstorming without sawing:
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
Offline Alsterstreek
#25 Posted : 01 April 2015 01:04:10(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost

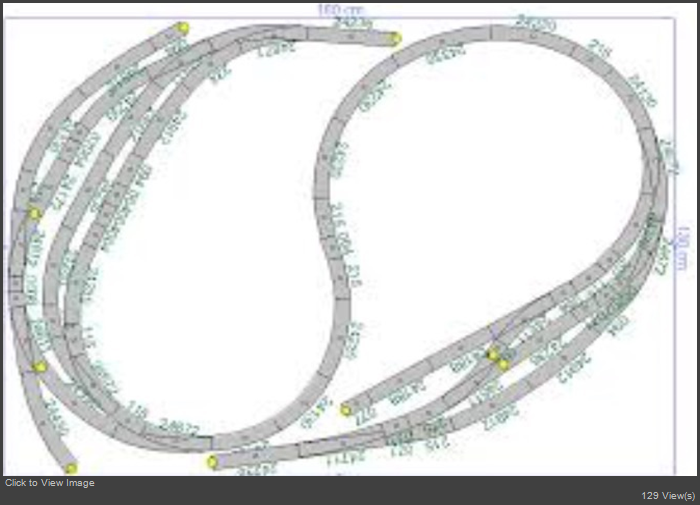

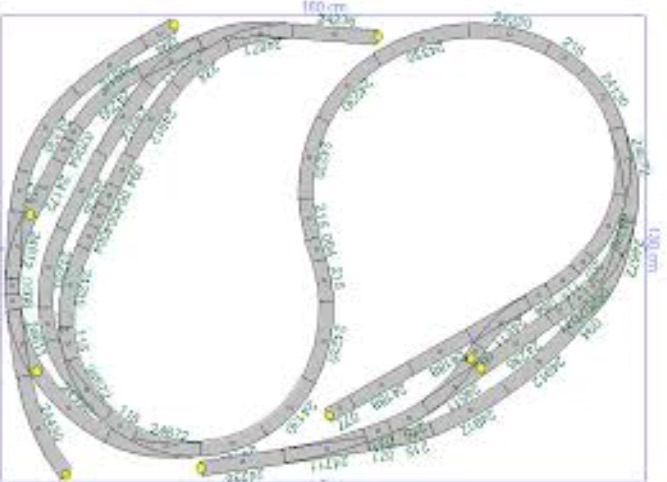

C-track point-to-point on 130 x 160 cm - just for inspiration. Sorry for the lousy resolution.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 1 user liked this useful post by Alsterstreek
Offline Alsterstreek
#26 Posted : 01 April 2015 14:53:11(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Elegant double wye.

When used to connect terminus to mainline, replacing 24640 on terminus leg by 24620/24624 allows to reach all terminus tracks from mainline.
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 6 users liked this useful post by Alsterstreek
Offline Alsterstreek
#27 Posted : 03 April 2015 12:39:38(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Q: Now what might be useful for?
Alsterstreek attached the following image(s):
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
Offline Alsterstreek
#28 Posted : 03 April 2015 12:48:50(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost

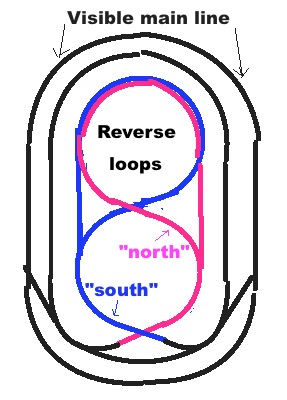

A: For creating a "internal" twisted return loop layout allowing to turn a train in any direction, in fact a twisted dog bone design; employing sprung turnouts, the return blobs can be used without switching - see sketch.

This is the underlying principle of my former layout Humbug-Dummtor, where the central colored core area was hidden from view, resulting in realistic looking train runs:
https://www.marklin-user...n-Layout.aspx#post323270
Alsterstreek attached the following image(s):
figure 8.png
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 2 users liked this useful post by Alsterstreek
Offline Alsterstreek
#29 Posted : 26 June 2016 12:06:18(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Ensuring harmonic appearance of coach consists moving through a station throat by combining „normal“ 246xx series turnouts with wide radius 24912 curves:
Track length to be extended by inserting further pieces of straight tracks. Same applies to ladder by inserting further 246xx turnouts. The depicted arrangement requires a 30 x 200 cm surface.
:o)
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 3 users liked this useful post by Alsterstreek
Offline Alsterstreek
#30 Posted : 14 September 2016 07:47:52(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Elaborating on posts 27 & 28:

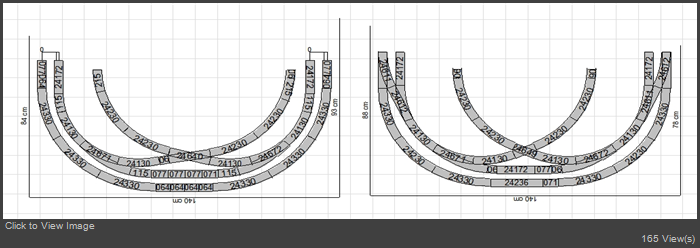

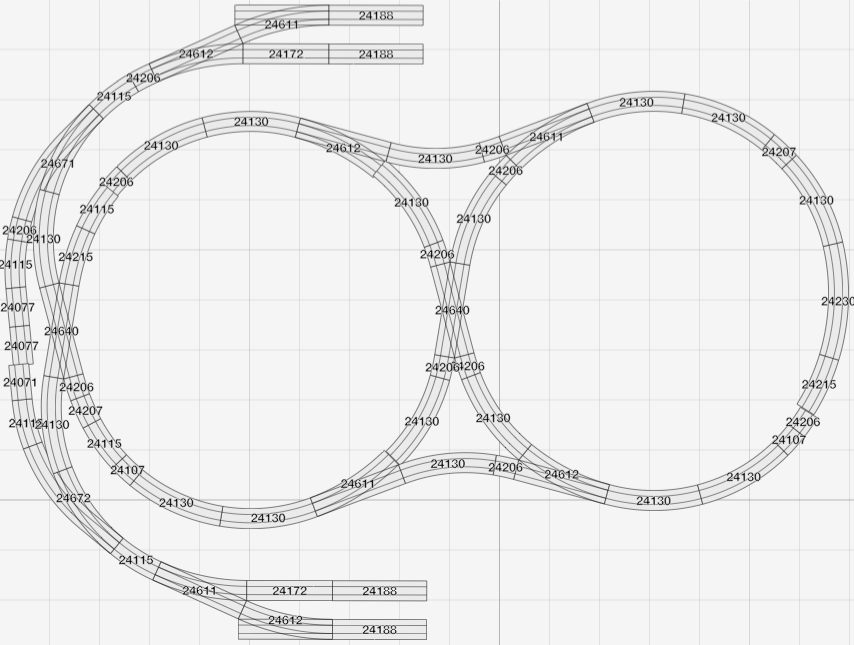

AEB v2.pngAEB v2a.png
Space requirement for this nucleus: 171 x 130 cm.
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 2 users liked this useful post by Alsterstreek
Online Jabez
#31 Posted : 17 September 2016 01:16:04(UTC)
Jabez

Belgium
Joined: 30/08/2016(UTC)
Posts: 489
Location: Brussels
Originally Posted by: kimballthurlow Go to Quoted Post
Hi,
I want to be able to see a concentration of knowledge and ideas on Marklin C track in this forum.

It is such a marvellous product, it deserves a topic on its own.

Kimball


Hear, Hear. I think a thread dealing specifically with C track should be a sticky at least if not a separate topic.
I heard that lonesome whistle blow. Hank Williams
thanks 1 user liked this useful post by Jabez
Offline Alsterstreek
#32 Posted : 18 September 2016 12:08:42(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Ad #30:
Extending the nucleus to 181 x 130 cm allows putting the inside of one of the circles to good use.

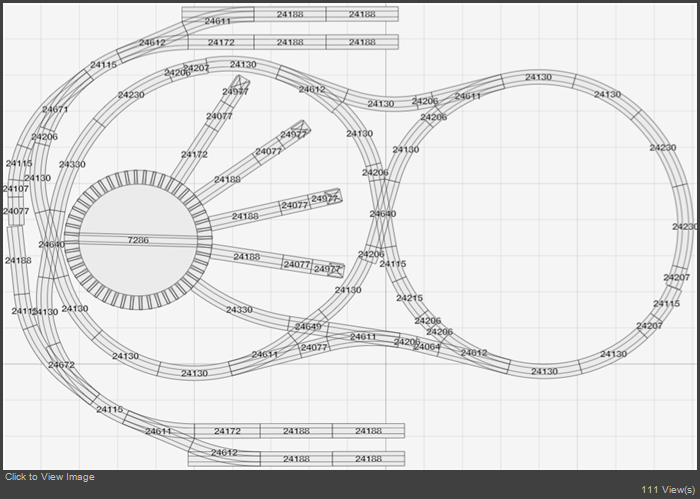

pretzelv1a 15092016.png
On a layout, the idea is to hide at least some of the inward pretzel to fool the eye about trains being turned around.
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 3 users liked this useful post by Alsterstreek
Offline Alsterstreek
#33 Posted : 14 October 2016 15:26:23(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
I publish this innovative "Teppichbahning" helix here, as the below can only be done with C-track.Translation of German description:

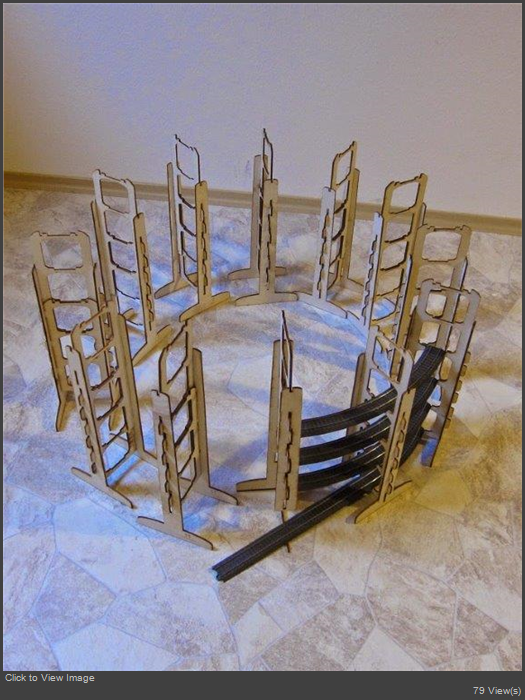

"Pictures of the height adjustable track helix
Aufbau.jpgGleiswendel%2Bfast%2Bfertig.jpgModellbahn-Technik-Blog Bilder von der Hohenverstellbaren Gleiswendel.jpg
After the prototype, a complete height-adjustable track helix has now been created. Time for a few pictures of the construction: The image shows six levels, a maximum of seven is possible. The helix climbs a height difference of 25 cm to 55.7 cm. The basic structure of the pillars is already known from a prototype. I only made cosmetic changes. New is the entrance with its opening [editor - see pic below].
During construction, all the pillars are put together. Then you start with the entrance and build sector by sector, always working from the bottom to the top. A sector comprises 60 ° or 90 °. As soon as the circle is closed, the twelve pillars stabilize each other. It is therefore important that the tracks are in good condition. Those with damaged trackbed are completely unsuitable. At the top, the track is exits via a bridge. Here we see an older design which has not yet been constructed as a half-timbered bridge. Where another pillar is visible in the picture, a table or other piece of furniture could be found during "Teppichbahning". The bridge can be hinged into any pillar. The height difference can be set in steps of 6.6 mm. The cutting sheets have been reworked by me. A few detail errors had to be corrected. In addition, all of the connecting members were shaped differently so as to slide more easily into each other. The finished files can be found in the download area."

Source:
http://mobatechnikblog.b...nverstellbaren.html#more
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
thanks 11 users liked this useful post by Alsterstreek
Offline kiwiAlan
#34 Posted : 14 October 2016 16:51:01(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 4,148
Location: ENGLAND, Didcot
Originally Posted by: Alsterstreek Go to Quoted Post
I publish this innovative "Teppichbahning" helix here, as the below can only be done with C-track.Translation of German description:


Neat solution. I also liked his little bit to fit to points to stop wheels shorting to the studs.

thanks 1 user liked this useful post by kiwiAlan
Offline kimballthurlow
#35 Posted : 15 October 2016 11:53:48(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 5,761
Location: Brisbane, Australia
Ha ha....
So I guess the radius (R1, R2... whatever) is immaterial to the success of the structure.
Ingenious and very tantalising.

regards
Kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
thanks 1 user liked this useful post by kimballthurlow
Online Jabez
#36 Posted : 22 October 2016 02:53:45(UTC)
Jabez

Belgium
Joined: 30/08/2016(UTC)
Posts: 489
Location: Brussels
Originally Posted by: kimballthurlow Go to Quoted Post
Hi,
I want to be able to see a concentration of knowledge and ideas on Marklin C track in this forum.
regards
Kimball

I have just spent a profitable hour hunting down and studying old posts and threads here dealing with C-track return loops, a subject which is of current practical interest to me.
This leads me to repeat my support for your suggestion of a separate topic or even sticky on C-Track Geometry, Problems and Solutions, where all this great information could be concentrated in one place.
Jabez

I heard that lonesome whistle blow. Hank Williams
Offline cookee_nz
#37 Posted : 22 October 2016 08:23:00(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 2,896
Location: Paremata, Wellington
Originally Posted by: Jabez Go to Quoted Post
Originally Posted by: kimballthurlow Go to Quoted Post
Hi,
I want to be able to see a concentration of knowledge and ideas on Marklin C track in this forum.
regards
Kimball

I have just spent a profitable hour hunting down and studying old posts and threads here dealing with C-track return loops, a subject which is of current practical interest to me.
This leads me to repeat my support for your suggestion of a separate topic or even sticky on C-Track Geometry, Problems and Solutions, where all this great information could be concentrated in one place.
Jabez



A good start could be to post links to all those topics? - grab them from your history while you can ThumpUp
Cookee
Wellington
NZ image
Online Jabez
#38 Posted : 22 October 2016 23:23:45(UTC)
Jabez

Belgium
Joined: 30/08/2016(UTC)
Posts: 489
Location: Brussels
Originally Posted by: cookee_nz Go to Quoted Post

A good start could be to post links to all those topics? - grab them from your history while you can ThumpUp

The drawback of that suggestion, IMHO, is that it would just add another link to a chain of links which I have found at this time, and which in its turn would have to be dug out individually by some future searcher for such info. If there were a separate topic or a sticky the searcher could home in on the relevant info immediately.
I heard that lonesome whistle blow. Hank Williams
thanks 1 user liked this useful post by Jabez
Offline H0
#39 Posted : 23 October 2016 08:53:21(UTC)
H0


Joined: 16/02/2004(UTC)
Posts: 13,396
Location: DE-NW
Originally Posted by: Jabez Go to Quoted Post
If there were a separate topic or a sticky the searcher could home in on the relevant info immediately.
I think sticky topics are over-estimated. If there are more than 10 stickies in a forum, most people will ignore them anyway.

It is difficult to find a specific post in a single thread with 1000+ posts.
A single post with 100 uncommented links is not better.

In both cases, an index post with links and descriptions would be helpful. But such an index requires a maintainer, a volunteer who does it manually.
Regards
Tom
---
"In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
UserPostedImage
thanks 2 users liked this useful post by H0
Offline Minok
#40 Posted : 24 October 2016 19:58:02(UTC)
Minok

United States
Joined: 15/10/2006(UTC)
Posts: 1,851
Location: Washington, Pacific Northwest
Agreed - for a good topic coverage post, one needs a curator that will go back and edit their main post to include the information gathered and submitted into the thread, such that the top post or two become the definitive table of contents and synopsis of what a link points to at a minimum, if not links to other posts in the same thread with the details.
Toys of tin and wood rule!
---
My Layout Thread on marklin-users.net: InterCity 1-3-4
My YouTube Channel: https://www.youtube.com/user/Minok1217/
Online Jabez
#41 Posted : 25 October 2016 23:28:00(UTC)
Jabez

Belgium
Joined: 30/08/2016(UTC)
Posts: 489
Location: Brussels
Originally Posted by: H0 Go to Quoted Post
I think sticky topics are over-estimated. If there are more than 10 stickies in a forum, most people will ignore them anyway.

Fair enough, I don't know how it would be best done. But since track is so fundamental to all MRR, and I have found much useful information on track here, I just wanted to suggest it would be a good idea if it could be grouped in some way for easier reference. I don't want to harp on about it.

I heard that lonesome whistle blow. Hank Williams
thanks 1 user liked this useful post by Jabez
Offline Timnomads
#42 Posted : 27 October 2016 15:09:31(UTC)
Timnomads

Switzerland
Joined: 16/09/2015(UTC)
Posts: 141
Location: Grandvaux - Lausanne - Switzerland
Hi All
I have offered to do a website or use the proposed wiki in a link below

https://www.marklin-user...rack-Tips-Tricks-website

Tim
thanks 1 user liked this useful post by Timnomads
Offline Webmaster
#43 Posted : 27 October 2016 17:45:34(UTC)
Webmaster


Joined: 25/07/2001(UTC)
Posts: 10,781
The wiki idea has been put to sleep since a while...

Of course I can host a website within the "limits" of marklin-users.net.

In fact, members can have their own sites hosted here since 2011...
https://www.marklin-user...ffer-in-2-different-ways

The only restriction is that PHP is not supported since the site resides on a Windows server that I do not own, I rent the space and an IP address for a rather reasonable price.
Means that html, javascript, ASP & ASP.Net 4.xx (not .Net Core) can be used.

The few site pages that are not forum pages are Asp.Net MVC 3, but are in the process of being upgraded to MVC 5.

Juhan - "Webmaster", at your service...
He who asks a question is a fool for five minutes. He who does not ask a question remains a fool forever. [Old Chinese Proverb]
thanks 4 users liked this useful post by Webmaster
Offline Timnomads
#44 Posted : 28 October 2016 10:05:39(UTC)
Timnomads

Switzerland
Joined: 16/09/2015(UTC)
Posts: 141
Location: Grandvaux - Lausanne - Switzerland
Hi all

I have the green light, so I will start work on the website during November, please email me the track diagrams, tips and tricks to an email address I have set up specifically for this.

tim-marklin-c-track@hotmail.com

I will convert the pieces into SCARM (as I am most familiar with this) and place them on the web pages.

I think we should just use it for tips and tricks with C track, so no complete layouts please.

Anything to do with C track though is OK.

I will of course go through the User group site (and links) and collect C Track examples.

Tim
thanks 9 users liked this useful post by Timnomads
Offline Alsterstreek
#45 Posted : 28 October 2016 14:22:01(UTC)
Alsterstreek

Portugal
Joined: 16/11/2011(UTC)
Posts: 4,347
Location: westernmost
Excellent initiative. SCARM does not run on my Mac. Would you consider to publish something mortals like me could admire, too?
Greetz - Ak
UserPostedImage
My current layout(s): https://www.marklin-user...d-and-Hi-Land#post462389
Offline Timnomads
#46 Posted : 28 October 2016 14:46:29(UTC)
Timnomads

Switzerland
Joined: 16/09/2015(UTC)
Posts: 141
Location: Grandvaux - Lausanne - Switzerland
Originally Posted by: Alsterstreek Go to Quoted Post
Excellent initiative. SCARM does not run on my Mac. Would you consider to publish something mortals like me could admire, too?


I will only use scarm to do the track design in a easily visible standard form. Then I will put it into a JPEG to display the design on the webpage. So this will not be a problem for mac users.
thanks 1 user liked this useful post by Timnomads
Online Jabez
#47 Posted : 28 October 2016 19:29:54(UTC)
Jabez

Belgium
Joined: 30/08/2016(UTC)
Posts: 489
Location: Brussels
Yessir, that's a great initiative. I will forward the C-track posts that have interested me, and I trust you will bear with many items that only duplicate what your own researches have already turned up.
Jabez
I heard that lonesome whistle blow. Hank Williams
Offline Minok
#48 Posted : 28 October 2016 20:10:19(UTC)
Minok

United States
Joined: 15/10/2006(UTC)
Posts: 1,851
Location: Washington, Pacific Northwest
Awesome. Comes just in time for my layout build in 2017.
Toys of tin and wood rule!
---
My Layout Thread on marklin-users.net: InterCity 1-3-4
My YouTube Channel: https://www.youtube.com/user/Minok1217/
Offline TrainIride
#49 Posted : 30 October 2016 13:44:03(UTC)
TrainIride

France
Joined: 23/10/2010(UTC)
Posts: 1,499
Location: FRANCE
Originally Posted by: Timnomads Go to Quoted Post
Hi all

I have the green light, so I will start work on the website during November, please email me the track diagrams, tips and tricks to an email address I have set up specifically for this.

tim-marklin-c-track@hotmail.com
....

Tim


Hi Tim,

I've sent you two tips to see if it's OK.

Best regards
Joël
thanks 1 user liked this useful post by TrainIride
Offline Hackcell
#50 Posted : 30 October 2016 16:36:39(UTC)
Hackcell

Costa Rica
Joined: 21/11/2013(UTC)
Posts: 520
Will you receive anyrail-based files?
Danilo Jiménez
Union Pacific and DB Cargo H0 models.
Märklin, Brawa, MTH and some Walthers cars (nobody is perfect!)
Pinball machines, jukeboxes and Horses.
Costa Rica, pura vida!!
Users browsing this topic
OceanSpiders 2.0
3 Pages123>
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2019, Yet Another Forum.NET
This page was generated in 1.210 seconds.
