6080 decoder - tandem drive
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline cintrans
#1 Posted : 12 July 2025 18:03:29(UTC)
Retweet
cintrans

Aruba
Joined: 11/07/2018(UTC)
Posts: 218
Location: Aruba (general), Oranjestad
Hi all

I have some NOS 6080 decoders laying around and was thinking of building up a tandem (double drive) F7 using spare parts.
I would use the original 3 pole motor with either one or 2 6080 decoders but only one common slider.
Anyone ever done that with decent results?

Regards
Jean-Pierre
Back to top

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline JohnjeanB
#2 Posted : 12 July 2025 19:33:41(UTC)
Retweet
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,586
Location: Paris, France
Hi Jean-Pierre
The 6080 Märklin decoders are of the very first generation dealing with Motorola (Not MM2) so the direction bit is not decoded.
Long story short: you cannot use independent 6080 decoders even with the same slider to drive 2 motors as you run the risk they could run in opposite directions.
Märklin never used 6080 decoders to drive two-motor units (M. used stronger drivers instead).
I think some Märklin fans did try to drive 2 motors with one 6080 and it would probably work as long as you avoid peak currents caused by stalled motors
Note: driving a twin motor unit with a 60906 all-current decoder, capable of 1.6 A motor current would do it probably better
Cheers
Jean
My layout videos
latest vid
marshalling yard
My Layout
Back to top
thanks 1 user liked this useful post by JohnjeanB
Offline kiwiAlan
#3 Posted : 12 July 2025 21:13:45(UTC)
Retweet
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,512
Location: ENGLAND, Didcot
Originally Posted by: JohnjeanB Go to Quoted Post

Märklin never used 6080 decoders to drive two-motor units (M. used stronger drivers instead).


The decoder used in the original 3649 ENMD F7 Demonstrator loco is certainly based on the 6080 decoder, but I haven't checked what they have done to drive the two motors compared to a standard 6080. The decoder uses the original LME07 chip which predates the 717.xx series chips used in the 6090 and later decoders.
Back to top
Offline JohnjeanB
#4 Posted : 13 July 2025 13:04:46(UTC)
Retweet
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,586
Location: Paris, France
Hi

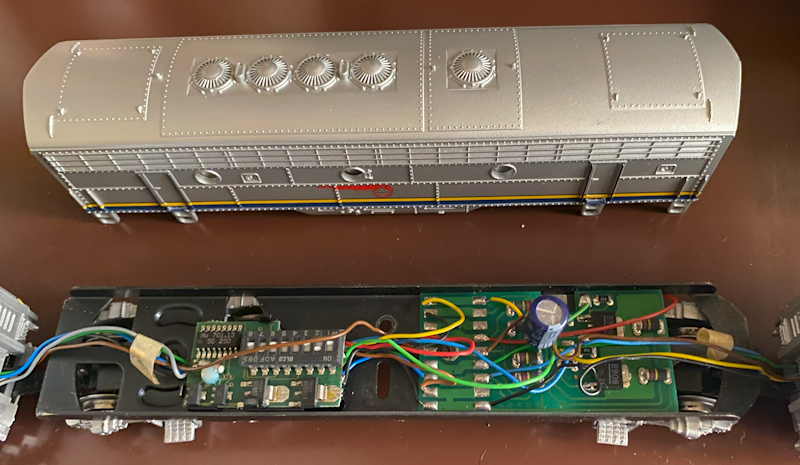

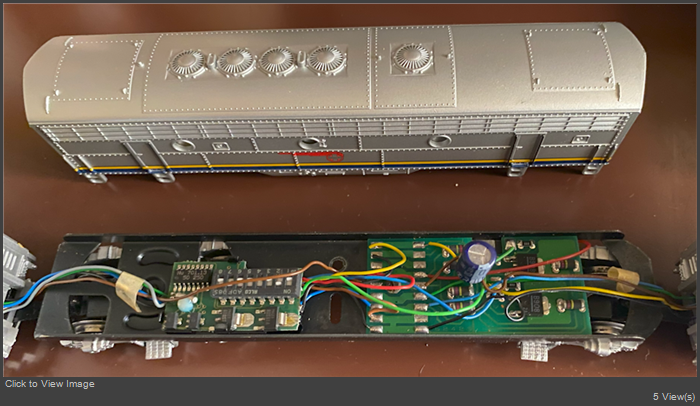

Here is an example of Märklin's way of driving two A/C motors in parallel
Here on a 2-motors A-B-A GM EMD F7 unit where you may see the separate stronger drivers for the motors

Sans titre.png

Cheers
Jean
My layout videos
latest vid
marshalling yard
My Layout
Back to top
thanks 1 user liked this useful post by JohnjeanB
