Being restricted to a small room in the house my layout ws 21.M X 1.2 m and a Single Level. as the trains were breading like flies a decision was made some time ago to "design" and Build a New Table.

DImensions are 2.1M X 1.65M. and be a 3 level (well almost) layout.
there will be 300mm height difference between the storage and the working area and a one track Helix.
The bottom layer will be for storage, Hidden Staging yard). the working part of the layout will be loosly based on the Noch 81660 layout (it will be a bit fatter)

This layout is 3 levels, but the top and bottom level are about 60mm difference from the middle layout.

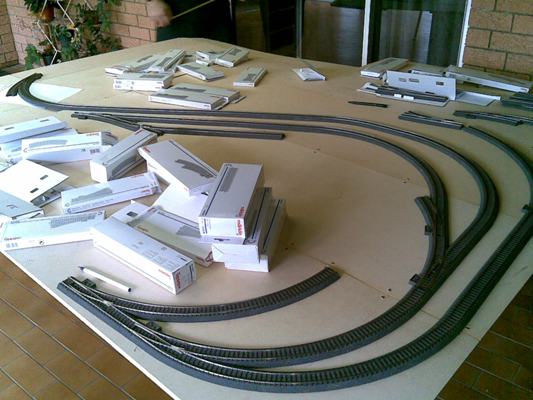

I mocked up a 2.1X1.65 top and with xxup's (Adrian ) held we began to mock up some track laying to get an idea of how much storage we may get. we got a good idea but then ran out of Switches and Curves, but we now have a good idea of where we are going.

The track down will come down the Helix on the Right-hand side, along the back and be flat at the front Left. on front right we start the staging lines. Photo attached of how far we got in our mock up.

Nothing will be done until after Christmas when I will start to dismantle the Current layout. In the meantime have to draw the plan and purchase a lot of R1 or R2 track and more switches (Points).

anyway a start was made.
