HO Collector		#1 Posted : 24 November 2025 21:29:21(UTC) Retweet

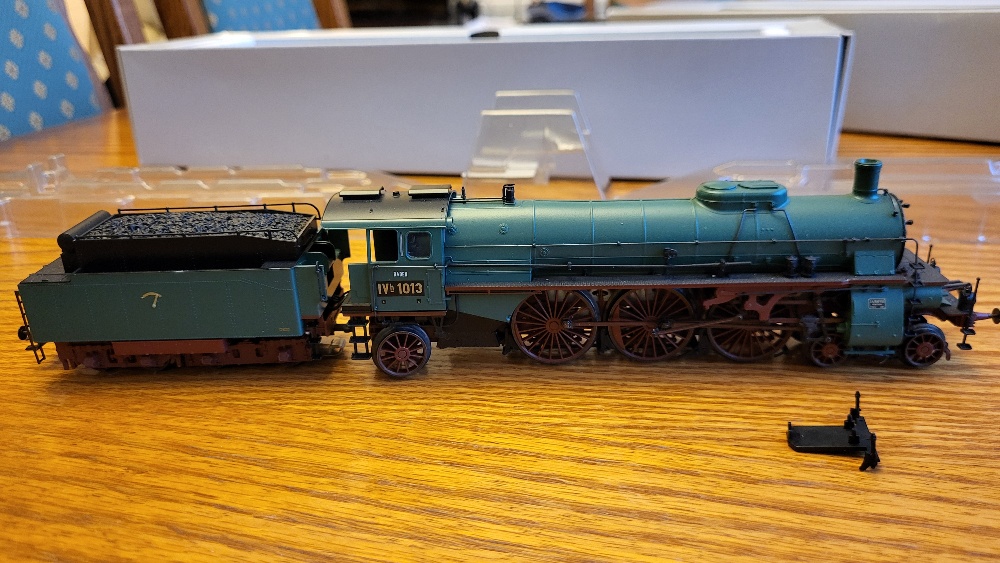

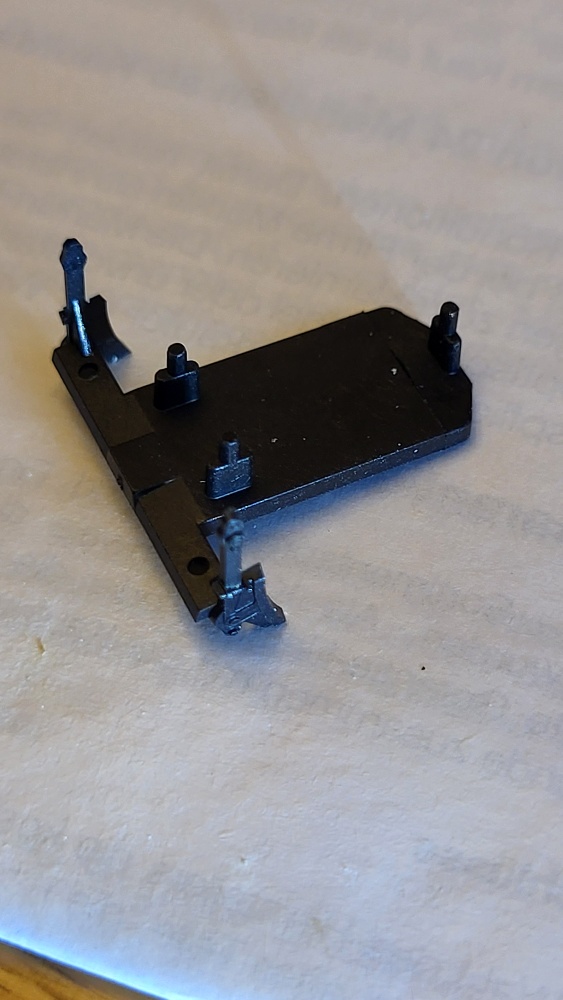

Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Hi All Today the box arrived with this lovely model (# 39022). The model is in a near mint condition, however, I found this piece of plastic and I can't find where it came from. Any idea? Thanks Ben
2 users liked this useful post by HO Collector		Jimmy Thompson, marklinist5999
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

osoraku		#2 Posted : 24 November 2025 22:50:31(UTC) Retweet
Joined: 22/01/2025(UTC) Posts: 84 Location: Setubal, Palmela		Underneath, somewhere. Or maybe a firebox moulding/fitting in the cab? Puzzled as you are, Osoraku
2 users liked this useful post by osoraku		Jimmy Thompson, marklinist5999
User Profile View All Posts by User View Thanks

Purellum		#3 Posted : 25 November 2025 00:33:21(UTC) Retweet
Joined: 08/11/2005(UTC) Posts: 3,537 Location: Mullerup, 4200 Slagelse		Somewhere under the loco, I think under the wheels under the cab I'm 99% sure the two "half-moons" are brake shoes Per.
		If you can dream it, you can do it! I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide. In case this is not legally possible: I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.
4 users liked this useful post by Purellum		dickinsonj, Jimmy Thompson, marklinist5999, DaleSchultz
User Profile View All Posts by User View Thanks

ccranium		#4 Posted : 25 November 2025 01:41:12(UTC) Retweet
Joined: 30/11/2011(UTC) Posts: 150 Location: Seattle area		The 39022 Operation Manual (p. 29) on the M site shows an underside view which has an outline like this part underneath the rear-most wheelset. Like Purellum suggested, it's likely the brake shoes. The image of the lok on the M site shows shoes on the front side of those wheels while the image in Ben's post doesn't seem to have them. Good luck! Brian
2 users liked this useful post by ccranium		Jimmy Thompson, marklinist5999
User Profile View All Posts by User View Thanks

mike c		#5 Posted : 25 November 2025 05:21:21(UTC) Retweet

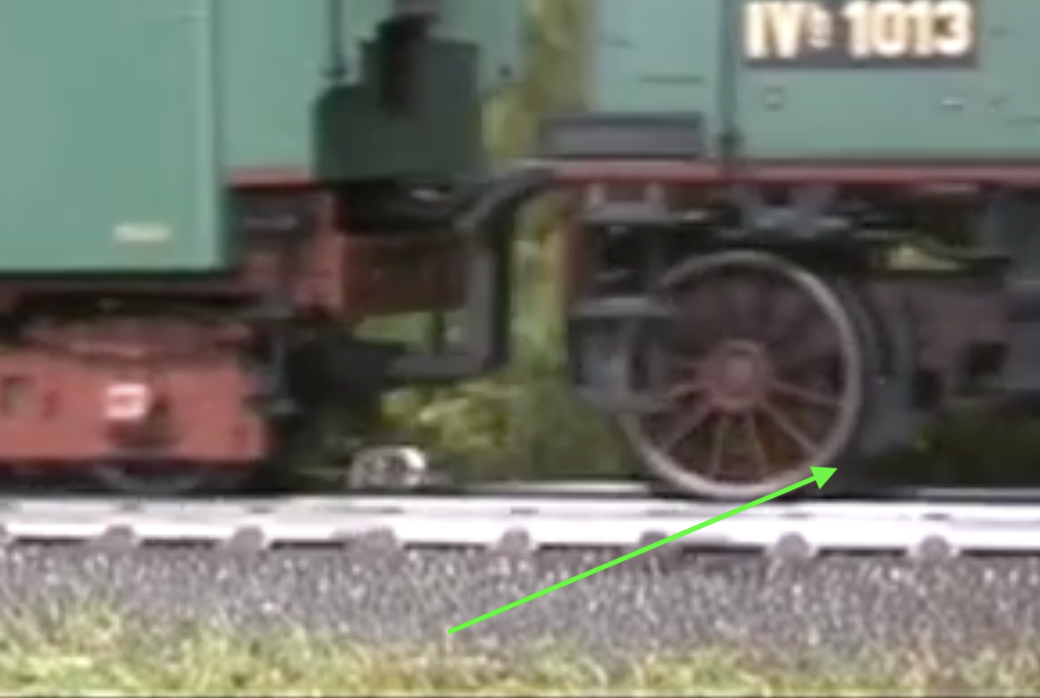

Joined: 28/11/2007(UTC) Posts: 8,327 Location: Montreal, QC		My guess is that the part comes from the trailing wheel under the cab, which should have a brake shoe on the forward side. The piece should pop in under the trailing wheel as can be seen in this screenshot from Brunellorosso's video. Video here: Regards Mike C
2 users liked this useful post by mike c		Jimmy Thompson, marklinist5999
User Profile View All Posts by User View Thanks

Jimmy Thompson		#6 Posted : 25 November 2025 11:45:54(UTC) Retweet
Joined: 26/03/2019(UTC) Posts: 859 Location: Florida Classic but Successful Swampland City		Here is the Spare Parts list/exploded view https://static.maerklin....3710736aef1434542286.pdf part of Item 63??
		Jimmy T Analogue; M-track; KLVM; Wine Barrels; Primex Dr Dirt's Rule #1 and There is a Prototype For Everything
2 users liked this useful post by Jimmy Thompson		marklinist5999, mike c
User Profile View All Posts by User View Thanks

Goofy		#7 Posted : 25 November 2025 14:48:48(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,344		Originally Posted by: HO Collector Hi All Today the box arrived with this lovely model (# 39022). The model is in a near mint condition, however, I found this piece of plastic and I can't find where it came from. Any idea? Thanks Ben Can you turn your locomotive upside down?
		H0 DCC = Digital Command Control
2 users liked this useful post by Goofy		marklinist5999, Jimmy Thompson
User Profile View All Posts by User View Thanks

steventrain		#8 Posted : 25 November 2025 16:36:19(UTC) Retweet

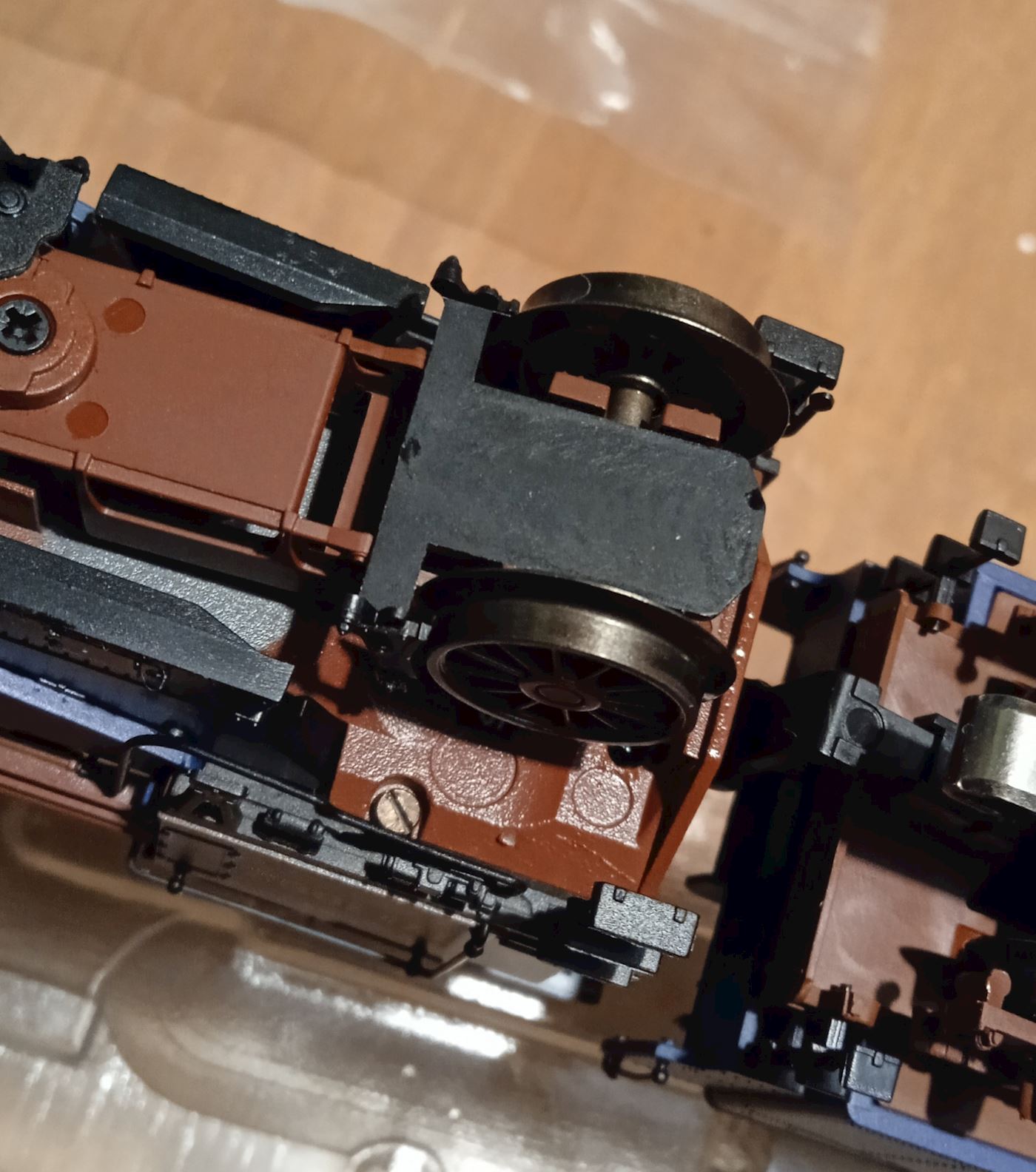

Joined: 21/10/2004(UTC) Posts: 31,754 Location: United Kingdom		I have the 39021 loco and look underside of poly truck. Please note your loco was 39021 blue livery (39022 green livery) Both are same number on cab side.
		Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
5 users liked this useful post by steventrain		Jimmy Thompson, marklinist5999, Purellum, Bent, roberts
User Profile View All Posts by User View Thanks

HO Collector		#9 Posted : 26 November 2025 22:54:42(UTC) Retweet
Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Originally Posted by: Purellum Somewhere under the loco, I think under the wheels under the cab I'm 99% sure the two "half-moons" are brake shoes Per. That is what I thought but couldn't see where it can be attached.
1 user liked this useful post by HO Collector		Jimmy Thompson
User Profile View All Posts by User View Thanks

HO Collector		#10 Posted : 26 November 2025 22:56:36(UTC) Retweet
Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Originally Posted by: steventrain I have the 39021 loco and look underside of poly truck. Please note your loco was 39021 blue livery (39022 green livery) Both are same number on cab side. Thank you. Will look at it tomorrow. Ben
1 user liked this useful post by HO Collector		Jimmy Thompson
User Profile View All Posts by User View Thanks

HO Collector		#11 Posted : 26 November 2025 23:04:56(UTC) Retweet
Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Originally Posted by: ccranium The 39022 Operation Manual (p. 29) on the M site shows an underside view which has an outline like this part underneath the rear-most wheelset. Like Purellum suggested, it's likely the brake shoes. The image of the lok on the M site shows shoes on the front side of those wheels while the image in Ben's post doesn't seem to have them. Good luck! Brian Thank you, I was looking at the front and couldn't understand what is going on.
1 user liked this useful post by HO Collector		Jimmy Thompson
User Profile View All Posts by User View Thanks

HO Collector		#12 Posted : 26 November 2025 23:13:25(UTC) Retweet
Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Originally Posted by: mike c My guess is that the part comes from the trailing wheel under the cab, which should have a brake shoe on the forward side. The piece should pop in under the trailing wheel as can be seen in this screenshot from Brunellorosso's video. Video here: Regards Mike C Thank you. I guess that you are correct.
1 user liked this useful post by HO Collector		Jimmy Thompson
User Profile View All Posts by User View Thanks

HO Collector		#13 Posted : 26 November 2025 23:15:53(UTC) Retweet
Joined: 21/02/2016(UTC) Posts: 233 Location: Just north of London		Originally Posted by: Jimmy Thompson Here is the Spare Parts list/exploded view https://static.maerklin....3710736aef1434542286.pdf part of Item 63?? I think that #63 is the wheel assembly, not the plastic. Thanks for the effort.
1 user liked this useful post by HO Collector		Jimmy Thompson
