Automatic train operation - Reversing train direction Share  Email this topic  LinkBack Topic URL  Retweet this Topic  Share Topic on Google+  Like this Topic  Share on Facebook  Digg this Topic  Reddit this Topic  Share on Tumblr Options  Watch this topic  Print this topic View » Normal Threaded

Previous Topic Next Topic

Ross		#51 Posted : 12 November 2018 02:42:11(UTC) Retweet

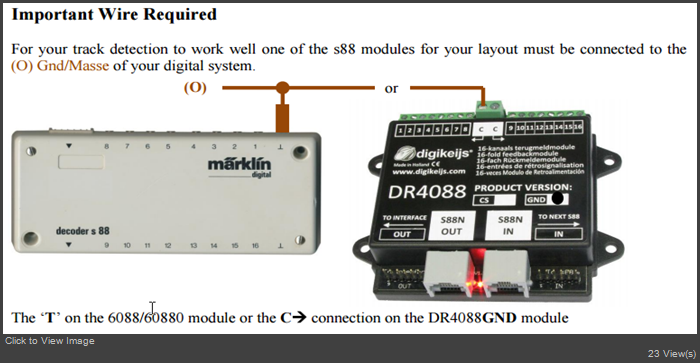

Joined: 25/09/2006(UTC) Posts: 945 Location: Sydney, NSW		Hello Mmagda, This wire to the "T" terminal is a ground reference point only and is only required on one s88 unit usually the first s88 unit and all other units in the chain don't require this connection. The above information is copied from my article below s88 Master The above text is extracted from the 0303 Marklin digital book page 90 and is a method I use to monitor my turntable/transfer table bridges as well as using a home made track location via the collector shoe. see below s88 contact switch via the 3rd /middle rail Please read my article below which will improve loco power requirements for locos with few wheels, the worst case only 4 wheels. Diode Trick Links corrected 01-01-2025 Edited by user 01 January 2025 04:52:01(UTC)  | Reason: Not specified
		Ross
		WWW
1 user liked this useful post by Ross		Mmagda
User Profile View All Posts by User View Thanks

Mmagda		#52 Posted : 12 November 2018 06:29:17(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Wow! I never would've thought of that! Looks like I have plenty of work to do tonight. I'll let you know how that went. Thank you very much!
User Profile View All Posts by User View Thanks

PeFu		#53 Posted : 12 November 2018 06:59:53(UTC) Retweet
Joined: 30/08/2002(UTC) Posts: 1,289		One advise: Don’t go ahead with the diode trick now. First, make the contacts work with the S88 and the CS1. I have the impression that you have an error in the basic wiring. It would probably not help to replace the CS1 with a CS2 or CS3. The "_|_" port on the S88 must be on the same ground circuit as the black cable from the CS1. There is no need to insulate the center rail now. That’s only needed if you add further boosters/transformers. The S88 inputs (1, 2, 3 etc.) have to be connected to insulated outer rails, as it look like you have. Once you have identified working S88 contacts in the CS1, you can go ahead with automation, shuttle trains etc. Finally, you could add the diode trick.
		Andreasburg-Mattiasberg Bahn is inspired by Swiss railways |Forum Thread |Track Plan |Youtube Channel | C and K track | CS2 | TrainController Gold
1 user liked this useful post by PeFu		Mmagda
User Profile View All Posts by User View Thanks

Mmagda		#54 Posted : 12 November 2018 07:19:31(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		I’ll do that when I get back home. Really curious how that will work
User Profile View All Posts by User View Thanks

H0		#55 Posted : 12 November 2018 08:07:17(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,466 Location: DE-NW		Originally Posted by: Mmagda But that would mean to connect the GND from the contact track with the GND from the rail. That would make no sense because it will not trigger anything. Connect it as you should and try again. And maybe you suddenly see checkmarks or X on the s88 screen. Electricity flows in closed circuits - and a common ground could be the missing link that closes the circuits.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

sjlauritsen		#56 Posted : 12 November 2018 10:13:34(UTC) Retweet
Joined: 18/08/2007(UTC) Posts: 1,081 Location: Denmark		Originally Posted by: JoeB I'm going to have a track seperate from my main layout that will run down the center of my city. I want to have the loco go to one end of the run and automatically reverse direction, travel the other end, stop and reverse direction and continue this operation back and forth. I have the CS3 and was wondering what would be the best way to accomplish this. Thanks Hey Joe Looks like no one actually answered your original question. I wrote this article, explaining to how you build a shuttle train with the CS3: http://railway.zone/post...arklin-central-station-3 Hope it helps you!
		Søren from Denmark Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
		WWW Twitter
3 users liked this useful post by sjlauritsen		Piper, Moris, TEEWolf
User Profile View All Posts by User View Thanks

David Dewar		#57 Posted : 12 November 2018 11:30:24(UTC) Retweet
Joined: 01/02/2004(UTC) Posts: 7,466 Location: Scotland		I am lost here. Why are you insulating a rail which is not part of the contact track. All you need is 24994 connected to the S88. The ground on the S88 I suppose should be connected but I don't use it on my layout with the CS2. All you need is your 24188s with the 24994 at the end (plus a 24188 or two) added on after the 24994 to stop the loco going off the track) No rails should be insulated ...why are you doing that.
		Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
User Profile View All Posts by User View Thanks

Mmagda		#58 Posted : 12 November 2018 11:41:14(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Originally Posted by: Mmagda I am using the 24994 Hello, I have already tried it but it didn’t work...
User Profile View All Posts by User View Thanks

Mmagda		#59 Posted : 12 November 2018 12:44:10(UTC) Retweet

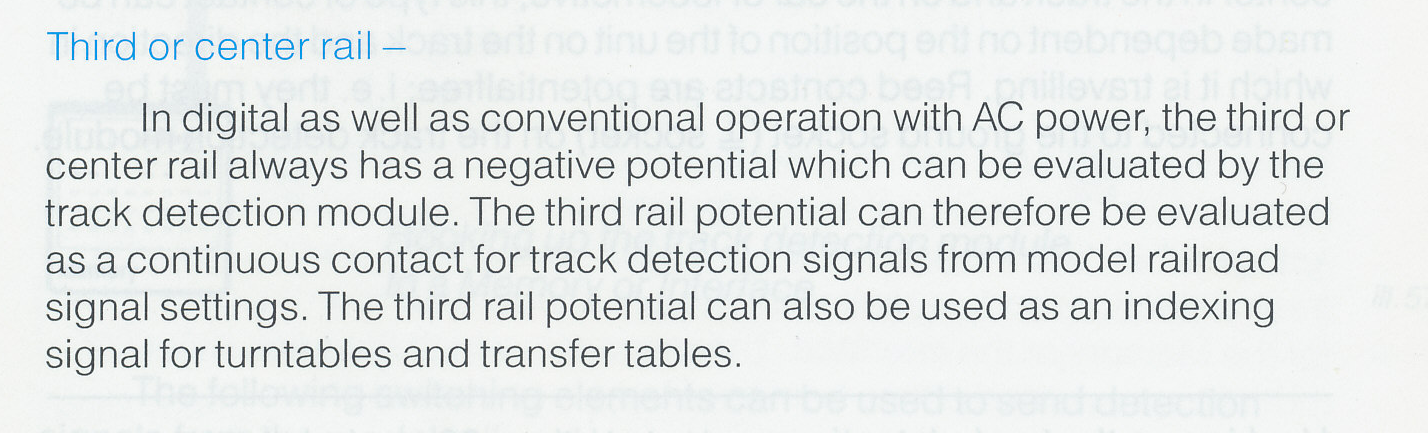

Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Hello, Starting from Ross’s idea to take the signal from the center rail, I came up with this. Did someone used this before? Did it work?
User Profile View All Posts by User View Thanks

Purellum		#60 Posted : 12 November 2018 13:05:28(UTC) Retweet
Joined: 08/11/2005(UTC) Posts: 3,528 Location: Mullerup, 4200 Slagelse		Originally Posted by: Mmagda Did someone used this before? Did it work? I think you should get your s88 to work with your CS1 before you go any further Forget about tracks and trains for a while, just connect your CS1 to the s88, and use small pieces of wire, shorting them to each other, and test until you get a confirmation from the CS1 that i can read what's going on in the s88. If you can't make that work, cutting tracks and running trains is just complicating things for you. Per.
		If you can dream it, you can do it! I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide. In case this is not legally possible: I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.
2 users liked this useful post by Purellum		David Dewar, Minok
User Profile View All Posts by User View Thanks

David Dewar		#61 Posted : 12 November 2018 13:06:35(UTC) Retweet
Joined: 01/02/2004(UTC) Posts: 7,466 Location: Scotland		All I can say is you are making things far to complicated. All I use is the 24994 with one wire to the S88 then put loco on on track and tell it which S88 port it is connected to. That should be all you need and no rails should be insulated. Why would you want to cut the track. The leaflet that comes with the 24994 shows how to do it with that track on page three.
		Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
User Profile View All Posts by User View Thanks

sjlauritsen		#62 Posted : 12 November 2018 13:50:27(UTC) Retweet
Joined: 18/08/2007(UTC) Posts: 1,081 Location: Denmark		Originally Posted by: David Dewar I am lost here. Why are you insulating a rail which is not part of the contact track. All you need is 24994 connected to the S88. The ground on the S88 I suppose should be connected but I don't use it on my layout with the CS2. Unsure if you answered my post, but in case you did: I think you missed the point: I am not using any 24994 contact tracks. I simply use the left (or right) rail to detect trains. The power of the 3 rail system! It works because the axles bridges the gap between the two rails and thus the feedback module sees, not just the loco, but any wagon on the track. This is a great way of doing feedback, it is very stable and does not rely on a slider to hit anything. Also, the station track will be occupied as long as the train is there. This gives me a nice occupancy detection as well. Win/Win. I never use contact tracks or reed contacts. Isolating rails is the only way I do it. So, no use for the 24994 contact track, simply cut some standard C track, it allows you to do feedback where ever YOU like, and not where a special piece of track will fit in your layout. I find that to be much more flexible. You need to connect the ground (T), otherwise the feedback module will not work.
		Søren from Denmark Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
		WWW Twitter
User Profile View All Posts by User View Thanks

sjlauritsen		#63 Posted : 12 November 2018 13:53:17(UTC) Retweet
Joined: 18/08/2007(UTC) Posts: 1,081 Location: Denmark		Originally Posted by: David Dewar All I can say is you are making things far to complicated. All I use is the 24994 with one wire to the S88 then put loco on on track and tell it which S88 port it is connected to. That should be all you need and no rails should be insulated. Why would you want to cut the track. The leaflet that comes with the 24994 shows how to do it with that track on page three. It depends on your personal opinion. I do not want special contact tracks, I want permanent feedback and I want the system to be able to detect wagons. Using the contact track will not do that. Getting feedback by isolating one rail, is one of the most commonly used, so I am not making things complicated. This is just standard (and basic) stuff.
		Søren from Denmark Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
		WWW Twitter
User Profile View All Posts by User View Thanks

David Dewar		#64 Posted : 12 November 2018 15:18:58(UTC) Retweet
Joined: 01/02/2004(UTC) Posts: 7,466 Location: Scotland		Originally Posted by: sjlauritsen Originally Posted by: David Dewar All I can say is you are making things far to complicated. All I use is the 24994 with one wire to the S88 then put loco on on track and tell it which S88 port it is connected to. That should be all you need and no rails should be insulated. Why would you want to cut the track. The leaflet that comes with the 24994 shows how to do it with that track on page three. It depends on your personal opinion. I do not want special contact tracks, I want permanent feedback and I want the system to be able to detect wagons. Using the contact track will not do that. Getting feedback by isolating one rail, is one of the most commonly used, so I am not making things complicated. This is just standard (and basic) stuff. I am talking to Mmagda who is using 24994. Quite frankly this thread is just out of control with two people using different methods to run a shuttle or something. I have not discussed the 24995 which Mmagda is not using as is clear from his posts. Mmagda is using a 24994 which is wired properly and runs a shuttle route but for some reason he is isolating trackes which the 24994 does not need. Must be time to close this thread and each indivudual who needs help to open their own thread.
		Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
User Profile View All Posts by User View Thanks

sjlauritsen		#65 Posted : 12 November 2018 16:29:47(UTC) Retweet
Joined: 18/08/2007(UTC) Posts: 1,081 Location: Denmark		Originally Posted by: David Dewar Must be time to close this thread and each indivudual who needs help to open their own thread. I completely agree. This is what unhandled thread hijacking does. Perhaps the moderators can split the thread into two separate threads.
		Søren from Denmark Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
		WWW Twitter
User Profile View All Posts by User View Thanks

TEEWolf		#66 Posted : 12 November 2018 17:43:03(UTC) Retweet
Joined: 01/06/2016(UTC) Posts: 2,465		Originally Posted by: Mmagda Originally Posted by: David Dewar I would try to sell the CS1 and pick up a CS2 which is excellent... Didn't want to throw hundreds of euros for a CS2. For a layout of 4m x 2m I figured the CS1 can handle a few routes and shuttle trains. Guess I was wrong picking the CS1 on E Bay. 100 euros down the drain... Well, last week I saw a used CS 2 for 117 € (incl. shipping costs) on eBay. I was astonished about this low price, because even a used, not longer as a controller used CS 2 has in my opinion a higher value, because you always can use it as a booster. A new booster with power supply costs in Märklins shop 285 €. So a used CS 2 for 117 € is always minimum a very good and cheap booster. But I have to confess I also saw a CS 2 for 400 € at eBay. For me too expensive. It is always worthwhile surfing through the internet comparing prices. When did you buy your CS 1?
		WWW
User Profile View All Posts by User View Thanks

Mmagda		#67 Posted : 12 November 2018 19:24:47(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Originally Posted by: TEEWolf When did you buy your CS 1? A few weeks ago. I think I'm going to listen to your advice and go for a CS3 or an ESU Commander. I'm already in that vicious circle when one item needs another item in order to work properly. I just finished a simple test: I connected the "O" wire to the _!_ port and moved the "B" wire trough all the sixteen ports of the s88. Nothing happened. I then took another "O" wire and moved it trough all the ports. Again, nothing happened. No square on my CS1 lit up. I don't know if my CS1 with software type 2.0.3 should light up any of those sqares. If it should, then the CS1 doesn't read the s88 imputs. If it souldn't light up, then there is no way that I can tell if the CS1 receives/reads any signal from the s88.
User Profile View All Posts by User View Thanks

Ross		#68 Posted : 12 November 2018 20:25:44(UTC) Retweet
Joined: 25/09/2006(UTC) Posts: 945 Location: Sydney, NSW		Hello Mmagda, Until you get the CS? being able to read s88 contacts it is useless to implement techniques to use different methods of detection. My suggestions will be useful once you have the basics sorted out. I would also suggest you try and find someone living close to you that might be able to help in a direct way. Originally Posted by: Mmagda Originally Posted by: TEEWolf When did you buy your CS 1? A few weeks ago. I think I'm going to listen to your advice and go for a CS3 or an ESU Commander. I'm already in that vicious circle when one item needs another item in order to work properly. I just finished a simple test: I connected the "O" wire to the _!_ port and moved the "B" wire trough all the sixteen ports of the s88. Nothing happened. I then took another "O" wire and moved it trough all the ports. Again, nothing happened. No square on my CS1 lit up. I don't know if my CS1 with software type 2.0.3 should light up any of those sqares. If it should, then the CS1 doesn't read the s88 imputs. If it souldn't light up, then there is no way that I can tell if the CS1 receives/reads any signal from the s88.
		Ross
		WWW
User Profile View All Posts by User View Thanks

TEEWolf		#69 Posted : 12 November 2018 20:52:14(UTC) Retweet
Joined: 01/06/2016(UTC) Posts: 2,465		Originally Posted by: H0 AIUI the CS2 60213 has more problems with the lack of galvanic insulation than the CS 60212. And AIUI there are no problem with a 60212 with respect to S88 when no boosters are in use. And there shouldn't be any problems AFAIK when using the ECoSboost boosters from ESU. ESU made the 60212 for Märklin. And AFAIK ESU know what they are doing. Things got really mad when Märklin came up with the 60213 and the 60173 booster (which has such a bad design that you can swap it for a 60174 without extra costs). And now they make the CS3 without galvanic insulation again. Did they learn their lesson? Indeed on a first sight, you get the idea they have not learned their lesson. But a CS 3 60226 has no CAN-bus input port. This makes it impossible using a 60226 as a slave and cannot be taken for building a CAN-bus. As long as it is used as a master, a galvanic isolation is not necessary. In the opposite to a CS 1 (and CS 2) which has a CAN-bus input port, Märklin enforces the users of a 60226 attaching further devices only with an inside galvanic seperation. But many users of a CS 3 have no need for a second CS 3 (then this 2nd one must be in all cases a CS 3 plus 60216) and get with a 60226 a cheaper CS 3 possibility. Also Märklin will offer starter-sets only with a CS 3 inside for calculating a lower package price in the future.
		WWW
1 user liked this useful post by TEEWolf		David Dewar
User Profile View All Posts by User View Thanks

Mmagda		#70 Posted : 12 November 2018 21:40:26(UTC) Retweet

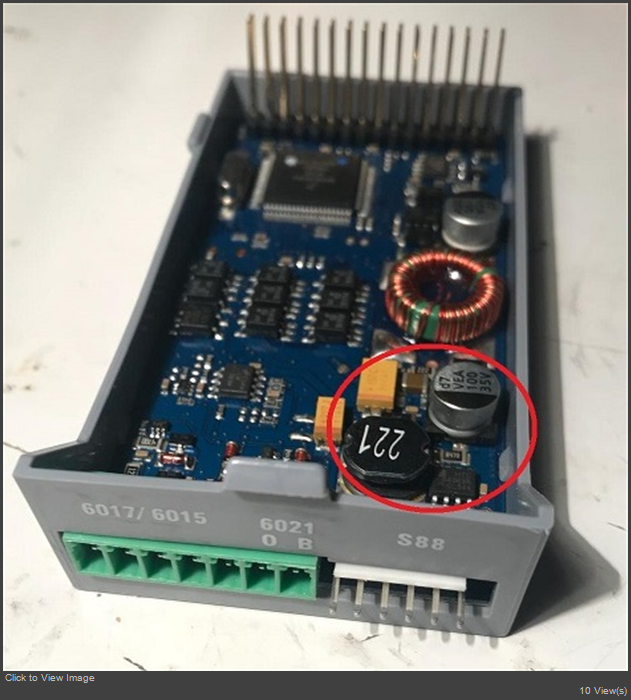

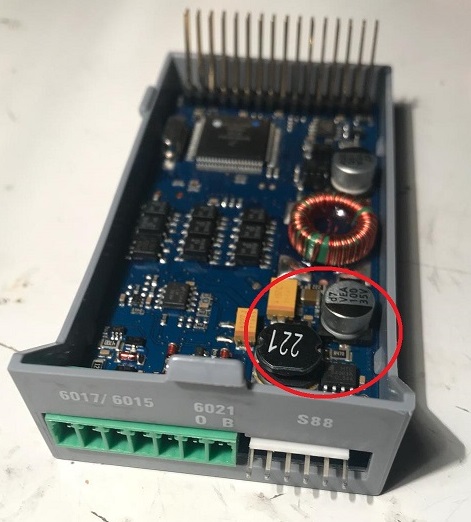

Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Hello, I think I figured the problem. This part, during operation, gets abnormally hot, even if there is nothing connected to it. Especially in the highlighted area. Does anyone know the German term so I can search for it? Thank you!
User Profile View All Posts by User View Thanks

TEEWolf		#71 Posted : 12 November 2018 21:44:50(UTC) Retweet
Joined: 01/06/2016(UTC) Posts: 2,465		Originally Posted by: Mmagda Hello, I think I figured the problem. This part, during operation, gets abnormally hot, even if there is nothing connected to it. Especially in the highlighted area. Does anyone know the German term so I can search for it? Thank you! It looks like the update for a CS 1 https://www.maerklin.de/...ts/details/article/60212 https://static.maerklin....9142ef3f311434541998.pdf
		WWW
User Profile View All Posts by User View Thanks

amartinezv		#72 Posted : 14 November 2018 16:48:44(UTC) Retweet
Joined: 25/08/2004(UTC) Posts: 332 Location: Madrid,		Hello A video showing a loco in push-pull, pendelzug, shuttle operation [YOUTUBE] [/YOUTUBE] At the end of the video you can see one of the detection track, selfmade, the two rail cuts and the connection. Best regards
		Antonio Martínez marklin, IB, era 3, Train controller www.raildigital.es/davidruso
		WWW
1 user liked this useful post by amartinezv		Mmagda
User Profile View All Posts by User View Thanks

Mmagda		#73 Posted : 14 November 2018 17:14:46(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Thank you! First I gotta take care of my s88 bus which is broken. After that I can start building the detection tracks. Regards :)
User Profile View All Posts by User View Thanks

Mmagda		#74 Posted : 21 November 2018 18:55:35(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Hello! The problem is solved, there was nothing wrong with my wiring. The s88 bus was broken (hence the reason it was getting hot). I tried finding a new one, but I couldn't find it therefore I bought another CS1- ESU Reloaded this time . Thank you all for your support and, once again, I apologize for hijacking the thread. If a moderator is kind enough to make it a different thread, it would be great. Regards
User Profile View All Posts by User View Thanks

Minok		#75 Posted : 21 November 2018 20:07:43(UTC) Retweet
Joined: 15/10/2006(UTC) Posts: 2,319 Location: Washington, Pacific Northwest		<deleted>
		Toys of tin and wood rule! --- My Layout Thread on marklin-users.net: InterCity 1-3-4 My YouTube Channel: https://youtube.com/@intercity134
User Profile View All Posts by User View Thanks

David Dewar		#76 Posted : 21 November 2018 23:28:02(UTC) Retweet
Joined: 01/02/2004(UTC) Posts: 7,466 Location: Scotland		Why buy a new Cs1 which is a very old controller and not a new S88 which appears to be what you need.
		Take care I like Marklin and will defend the worlds greatest model rail manufacturer.
User Profile View All Posts by User View Thanks

Mmagda		#77 Posted : 22 November 2018 00:52:47(UTC) Retweet
Joined: 03/11/2018(UTC) Posts: 41 Location: Brandenburg, Potsdam		Because I couln't find a new s88 bus for the CS1.
User Profile View All Posts by User View Thanks
