Type of Marklin couplers - Need to identify these coach couplers
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline kokomo
#1 Posted : 30 September 2018 00:02:21(UTC)
Retweet
kokomo

Argentina
Joined: 28/04/2014(UTC)
Posts: 75
Hi everybody!

I found out that one of my UIC-X passenger coaches has a missing coupler. I took a photo of the remaining one so as to try to get a spare part.

Any help identifying the type or model number?

thanks

Modeling Central European trains. Eras III, IV and V
Mostly UserPostedImage UserPostedImage UserPostedImage but can also get some French or Italian articles too
Back to top
thanks 1 user liked this useful post by kokomo

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline river6109
#2 Posted : 30 September 2018 01:58:46(UTC)
Retweet
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 14,725
Location: On 1965 Märklin Boulevard just around from Roco Square
I think we need more information if you want us to help you with your inquiry: what is the catalogue number of your carriage ?

regards.,

John
https://www.youtube.com/river6109
https://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Back to top
WWW
thanks 2 users liked this useful post by river6109
Offline kokomo
#3 Posted : 30 September 2018 02:06:34(UTC)
Retweet
kokomo

Argentina
Joined: 28/04/2014(UTC)
Posts: 75
It is a TEE coach #4059, I guess. It has this specific type of coupler which I would like the type of name or #article

Thanks
Modeling Central European trains. Eras III, IV and V
Mostly UserPostedImage UserPostedImage UserPostedImage but can also get some French or Italian articles too
Back to top
thanks 1 user liked this useful post by kokomo
Offline RayF
#4 Posted : 30 September 2018 12:16:24(UTC)
Retweet
RayF

Gibraltar
Joined: 14/03/2005(UTC)
Posts: 15,839
Location: Gibraltar, Europe
I don't think this coupler is from a 4059, which is a 24cm long tin-plate coach. It looks like a standard plastic 701570 coupler similar to this one:

UserPostedImage
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
Back to top
thanks 2 users liked this useful post by RayF
Offline Markus Schild
#5 Posted : 30 September 2018 14:13:00(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi,

The couplers shown were used from the mid 1970s until the early 1980s at the 409X 27 cm cars. They are no longer available since decades. The number was 701620, but this is just academic knowledge.

Regards

Markus
Back to top
WWW
thanks 2 users liked this useful post by Markus Schild
Offline steventrain
#6 Posted : 30 September 2018 14:35:43(UTC)
Retweet
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 31,606
Location: United Kingdom
The coupling similar to 44xx and 44xxx hobby series freight stock.
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
Back to top
thanks 1 user liked this useful post by steventrain
Offline Markus Schild
#7 Posted : 30 September 2018 14:49:49(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
No,

that is not the same coupler. That version above has longer arms than 701570 which is used on the 44XX series and many modern cars.

Regards

Markus
Back to top
WWW
thanks 4 users liked this useful post by Markus Schild
Offline RayF
#8 Posted : 30 September 2018 15:47:34(UTC)
Retweet
RayF

Gibraltar
Joined: 14/03/2005(UTC)
Posts: 15,839
Location: Gibraltar, Europe
It's not the same coupler but couldn't a 701570 fit? The "spring" arms are shorter and might not be as effective but it might at least allow coupling with other coaches
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
Back to top
thanks 2 users liked this useful post by RayF
Offline kokomo
#9 Posted : 30 September 2018 17:31:05(UTC)
Retweet
kokomo

Argentina
Joined: 28/04/2014(UTC)
Posts: 75
Hello and thanks for all the fruitful and interesting responses.

My mistake. Indeed it was not a 4059 coach. I had it labeled under such erroneously it seems (which would be the proper number, 4095 perhaps?) but I do posses a real 4059 and it's a metallic one, and not plastic, as mentioned.

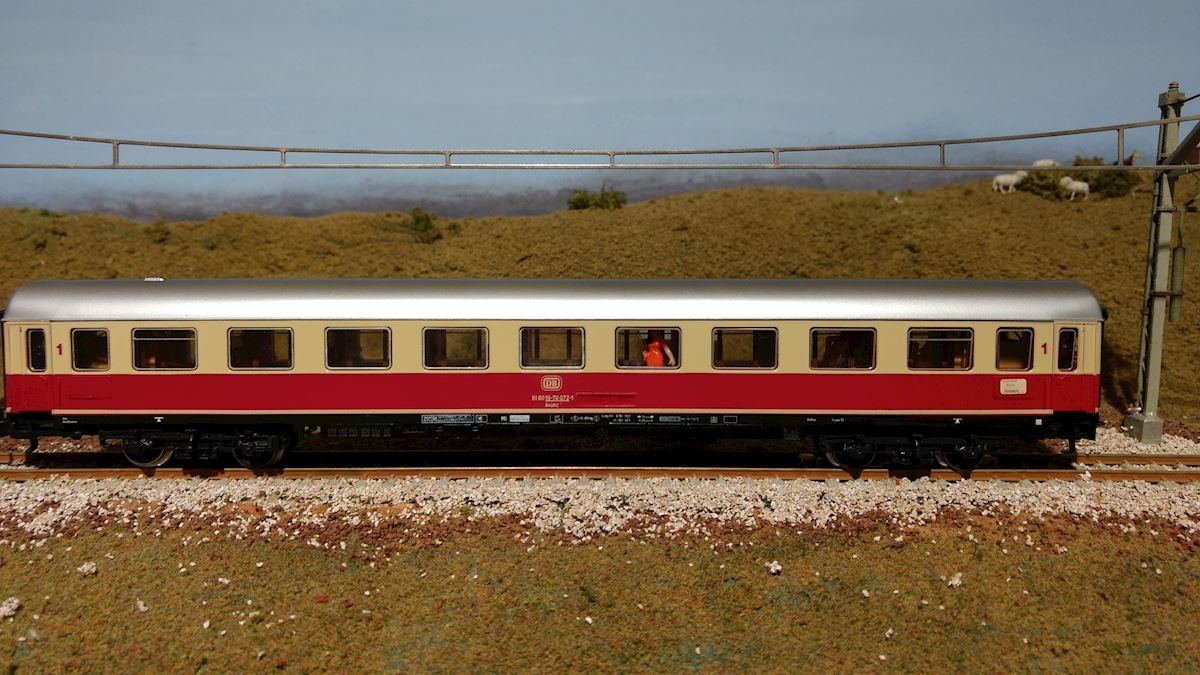

I enclose a couple of additional photos in case it's helpful.

4059 vagon2-04.jpg

4059 vagon2-02.jpg

If you can notice, I placed a Relex coupler on the right side of the coach to make a contrast how shorter it is.
Modeling Central European trains. Eras III, IV and V
Mostly UserPostedImage UserPostedImage UserPostedImage but can also get some French or Italian articles too
Back to top
thanks 2 users liked this useful post by kokomo
Offline Markus Schild
#10 Posted : 30 September 2018 18:34:35(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi,

Yes 4095 is the correct number for the coach shown. That coupler is a nice project to 3D-print. Give me some weeks and I will draw it and publish the files. I think that PLA is flexible enough to produce usable parts.

Regards

Markus
Back to top
WWW
thanks 4 users liked this useful post by Markus Schild
Offline Markus Schild
#11 Posted : 08 October 2018 09:22:25(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi,

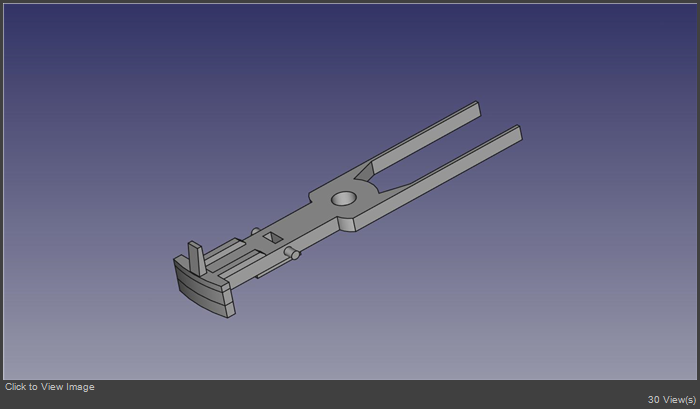

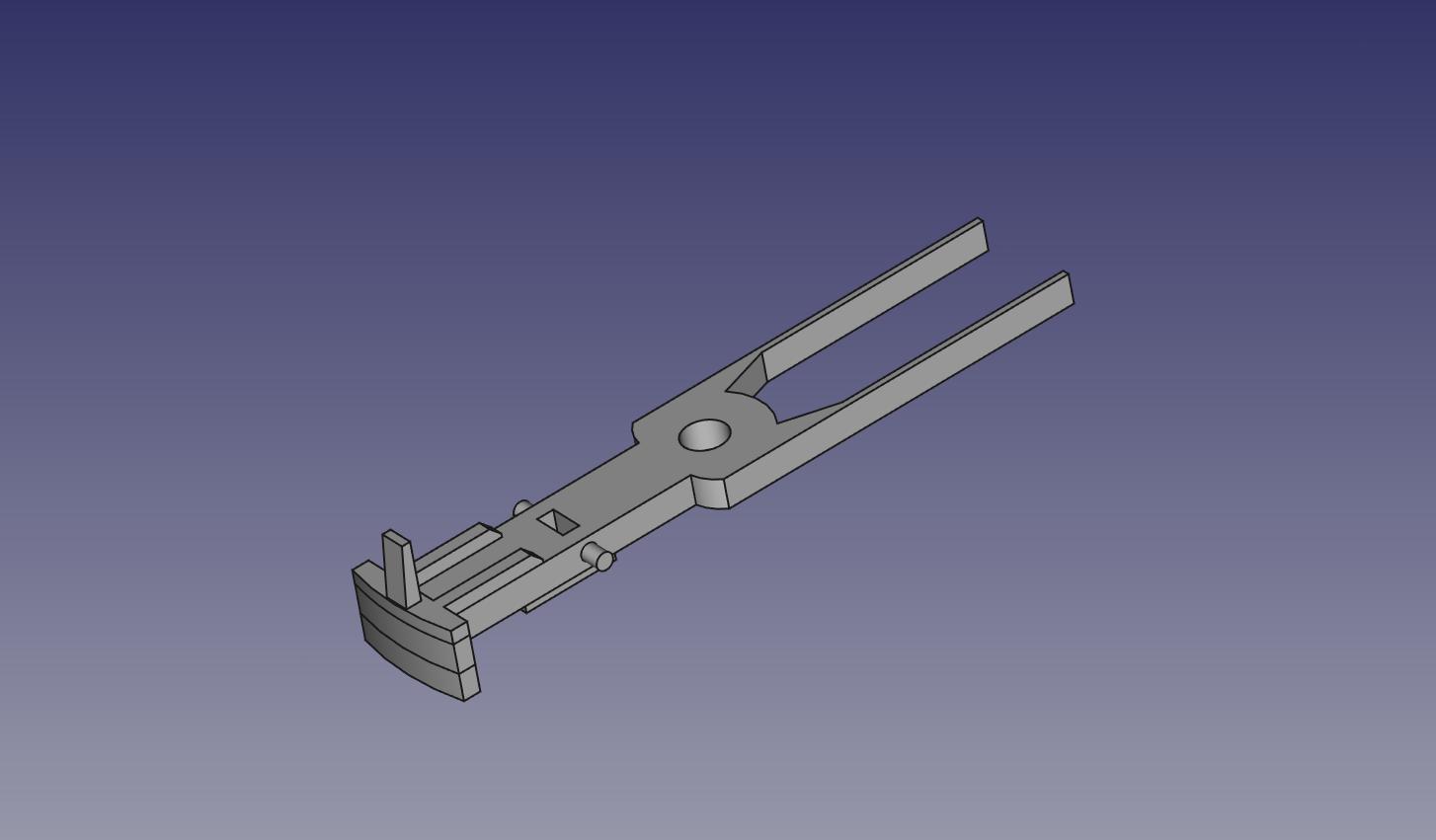

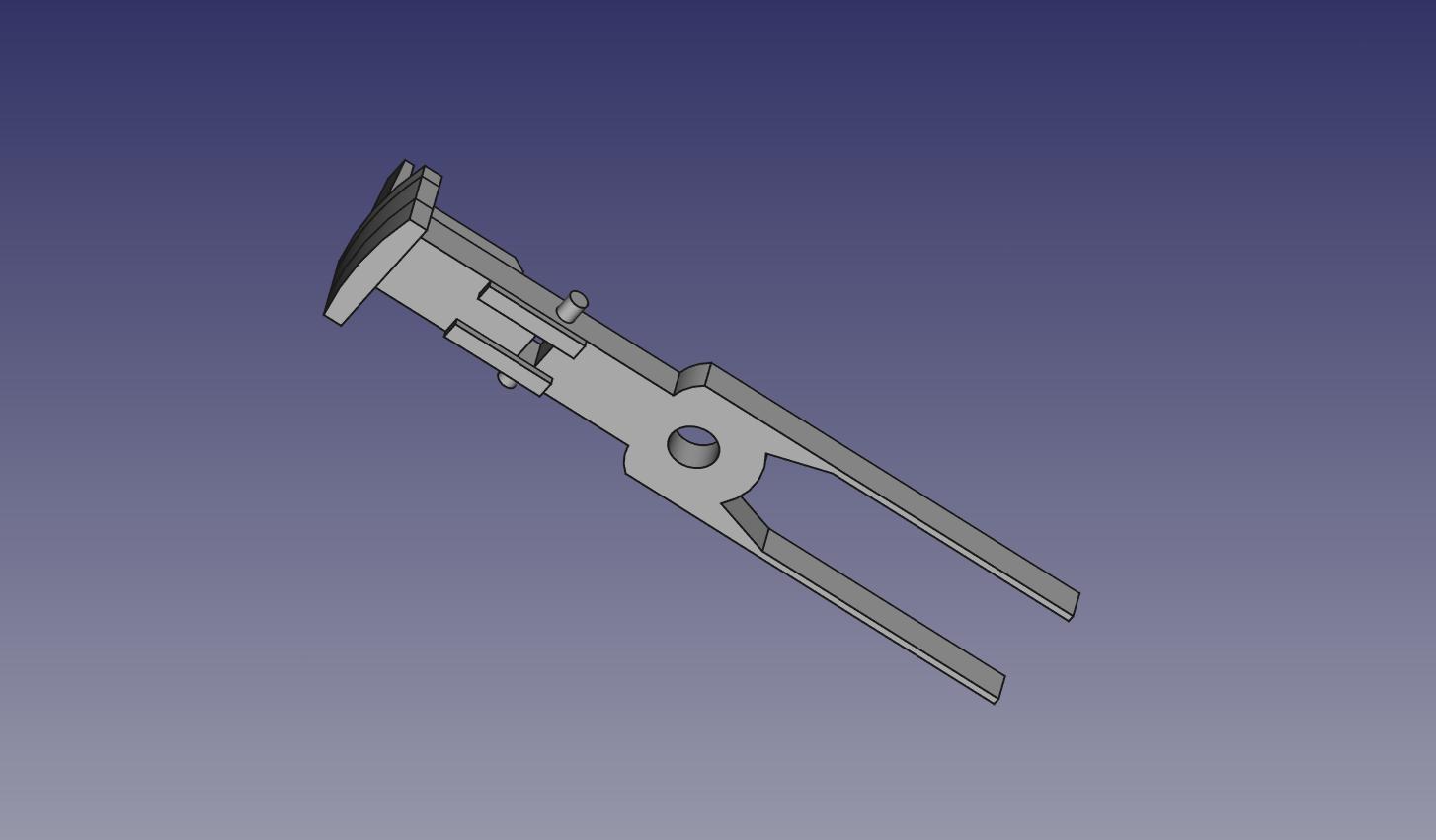

I haven't forgotten this topic. This is the first concept for the coupler. Next will be finding the best material to print it and test the samples.





Regards

Markus
Back to top
WWW
thanks 12 users liked this useful post by Markus Schild
Offline nick.r
#12 Posted : 01 February 2024 04:59:22(UTC)
Retweet
nick.r

United States
Joined: 21/12/2022(UTC)
Posts: 1
Location: Texas, Austin
Originally Posted by: Markus Schild Go to Quoted Post
Hi,

I haven't forgotten this topic. This is the first concept for the coupler. Next will be finding the best material to print it and test the samples.





Regards

Markus


OMG!
I know I'm late to the party but do you have the STL by any chance? Those couplers are just impossible to find.
Back to top
thanks 1 user liked this useful post by nick.r
Offline revmox
#13 Posted : 02 February 2024 05:45:25(UTC)
Retweet
revmox

Australia
Joined: 26/05/2021(UTC)
Posts: 148
Location: Australia, East Maitland, NSW
3D printing entire couplers is beyond my skill level so I just make NEM adapters that let me use stock Marklin couplings.

I couldn't get enough strength and precision in the small plastic parts for a reliable coupling that I would trust with my rolling stock.

Possibly some of the NEM adapters that I made for Startup rolling stock could be modified.

Back to top
thanks 2 users liked this useful post by revmox
Offline seatrains
#14 Posted : 02 February 2024 05:48:47(UTC)
Retweet
seatrains

United States
Joined: 22/11/2006(UTC)
Posts: 669
Location: Shoreline, WA
All, not trying to hijack the thread, but what are the Marklin current conducting couplers for the 409X 27cm coaches?
Thanks in advance...
Thom
European Train Enthusiast - Pacific Northwest Chapter
4th Division, Pacific Northwest Region, National Model Railroaders Association
Back to top
Offline mvd71
#15 Posted : 02 February 2024 07:45:31(UTC)
Retweet
mvd71

New Zealand
Joined: 09/08/2008(UTC)
Posts: 1,729
Location: Auckland,
Originally Posted by: seatrains Go to Quoted Post
All, not trying to hijack the thread, but what are the Marklin current conducting couplers for the 409X 27cm coaches?
Thanks in advance...


That would depend if your 27cm coach has close couplers or not.
Back to top
thanks 1 user liked this useful post by mvd71
Offline Alsterstreek
#16 Posted : 02 February 2024 15:47:26(UTC)
Retweet
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,671
Location: Hybrid Home
Greetz - Ak
UserPostedImage
My current "layout": https://www.marklin-user...aigne-Project#post592818
Back to top
thanks 2 users liked this useful post by Alsterstreek
Offline mike c
#17 Posted : 02 February 2024 20:29:39(UTC)
Retweet
mike c

Canada
Joined: 28/11/2007(UTC)
Posts: 7,898
Location: Montreal, QC
There were two or three different couplings for the 4091-4099 coach models (DB Blue/Beige/TEE/IC). The original 27cm models had centre mounted bogies with a clip on relex coupler. Then there was the newer version of the coupling part from the period 1980-1984 and then, some models were delivered with offset mounted bogies and a shorter coupling part without the relex part. Finally, around 1985, the models were replaced by new models (4291-4298) with offset mounted bogies and close coupling mechanism and shaft with NEM coupler head.

To find these harder to find couplers, you can check with Ritter Restaurationen in Germany, possibly Eckert in USA and maybe Amiba in Switzerland.
I believe that if you can't find the oldest ones, you can install the intermediate ones as long as the pins are the same.

Regards

Mike C
Back to top
thanks 1 user liked this useful post by mike c
Offline mike c
#18 Posted : 02 February 2024 20:35:00(UTC)
Retweet
mike c

Canada
Joined: 28/11/2007(UTC)
Posts: 7,898
Location: Montreal, QC
I would also suggest that with some coaches going for as little as 10 EUR on ebay, it is probably cheaper just to buy one of those and to repurpose the couplers or bogie and coupler to repair your model.

I might even have a spare pair here.

Regards

Mike C
Back to top
thanks 2 users liked this useful post by mike c
Offline mike c
#19 Posted : 06 February 2024 17:54:06(UTC)
Retweet
mike c

Canada
Joined: 28/11/2007(UTC)
Posts: 7,898
Location: Montreal, QC
Originally Posted by: kokomo Go to Quoted Post
Hi everybody!

I found out that one of my UIC-X passenger coaches has a missing coupler. I took a photo of the remaining one so as to try to get a spare part.

Any help identifying the type or model number?

thanks

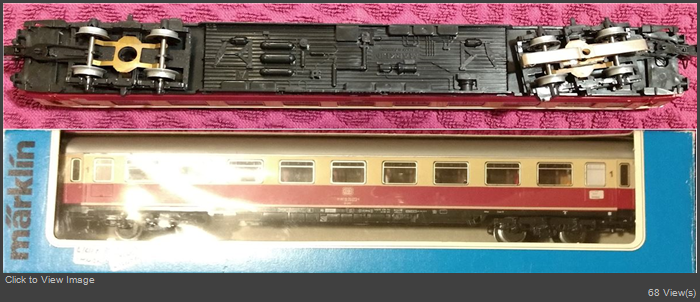

I have a spare set of bogies with couplers (newer version) from a 1980s TEE coach.
Corresponds to top image in photo of post #4 https://www.marklin-user...older-autotransportwagen

Regards

Mike C
Back to top
Offline mike c
#20 Posted : 09 February 2024 02:23:00(UTC)
Retweet
mike c

Canada
Joined: 28/11/2007(UTC)
Posts: 7,898
Location: Montreal, QC

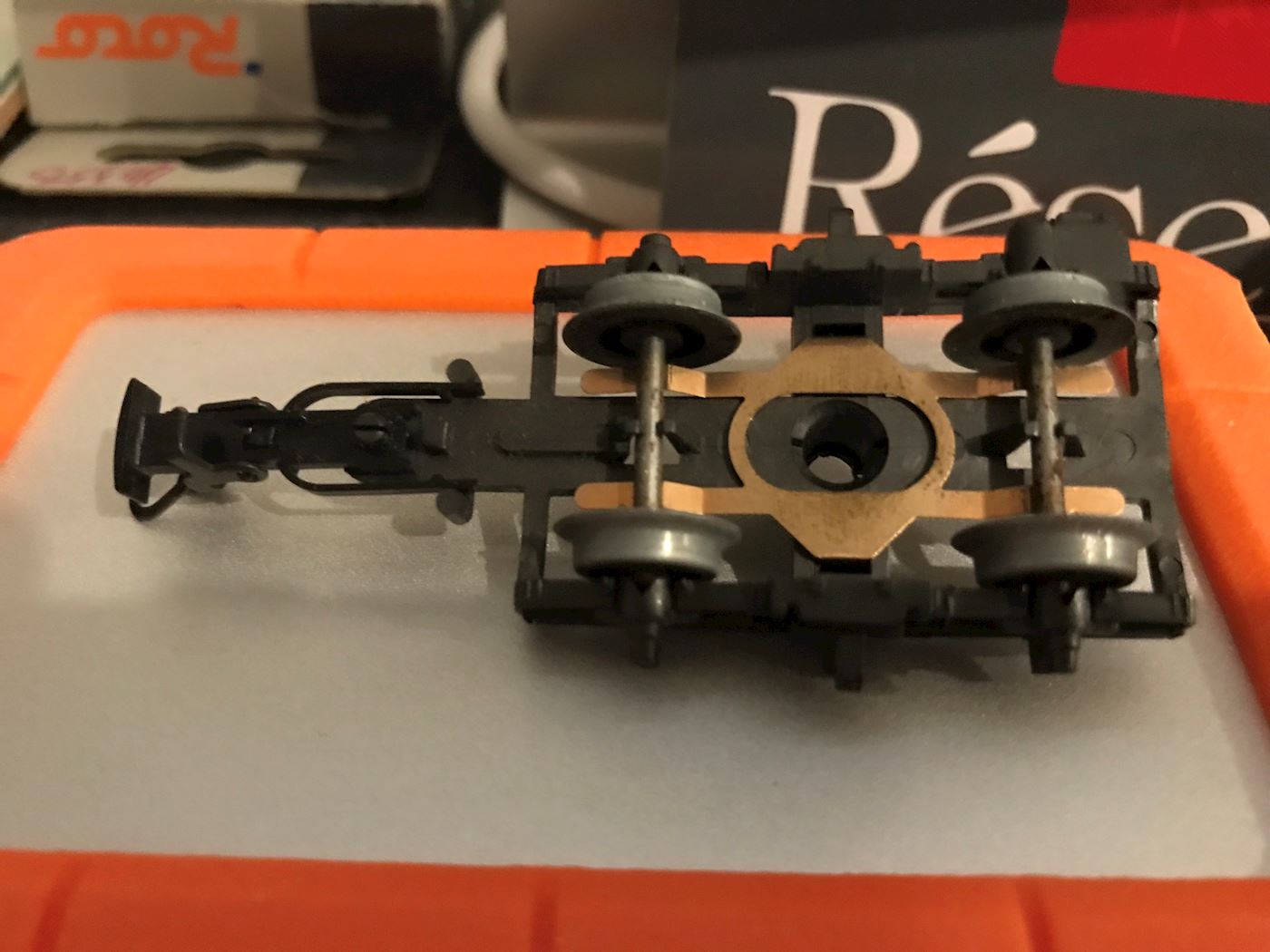

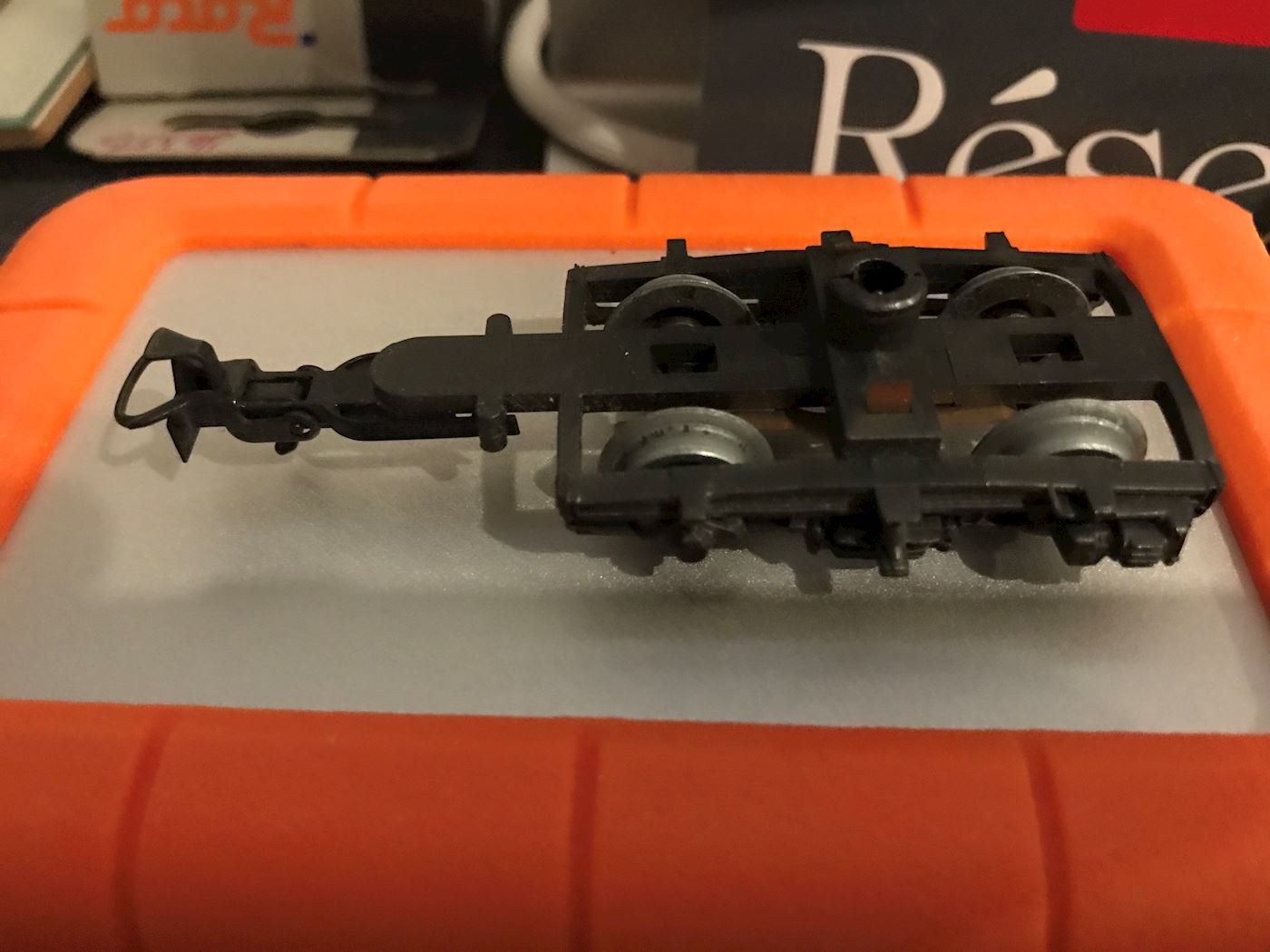

These are the spare bogies I have here (from a 4099):

Regards

Mike C
Back to top
thanks 1 user liked this useful post by mike c
