 Joined: 28/04/2014(UTC) Posts: 75
|
Hi everybody! I found out that one of my UIC-X passenger coaches has a missing coupler. I took a photo of the remaining one so as to try to get a spare part. Any help identifying the type or model number? thanks   |
Modeling Central European trains. Eras III, IV and V Mostly    but can also get some French or Italian articles too |
 1 user liked this useful post by kokomo
|
|
|
|
 Joined: 22/01/2009(UTC) Posts: 14,879 Location: On 1965 Märklin Boulevard just around from Roco Square
|
I think we need more information if you want us to help you with your inquiry: what is the catalogue number of your carriage ?
regards.,
John |
|
2 users liked this useful post by river6109
|
|
|
|
Joined: 28/04/2014(UTC) Posts: 75
|
It is a TEE coach #4059, I guess. It has this specific type of coupler which I would like the type of name or #article
Thanks |
Modeling Central European trains. Eras III, IV and V Mostly but can also get some French or Italian articles too |
1 user liked this useful post by kokomo
|
|
|
|
 Joined: 14/03/2005(UTC) Posts: 15,871 Location: Gibraltar, Europe
|

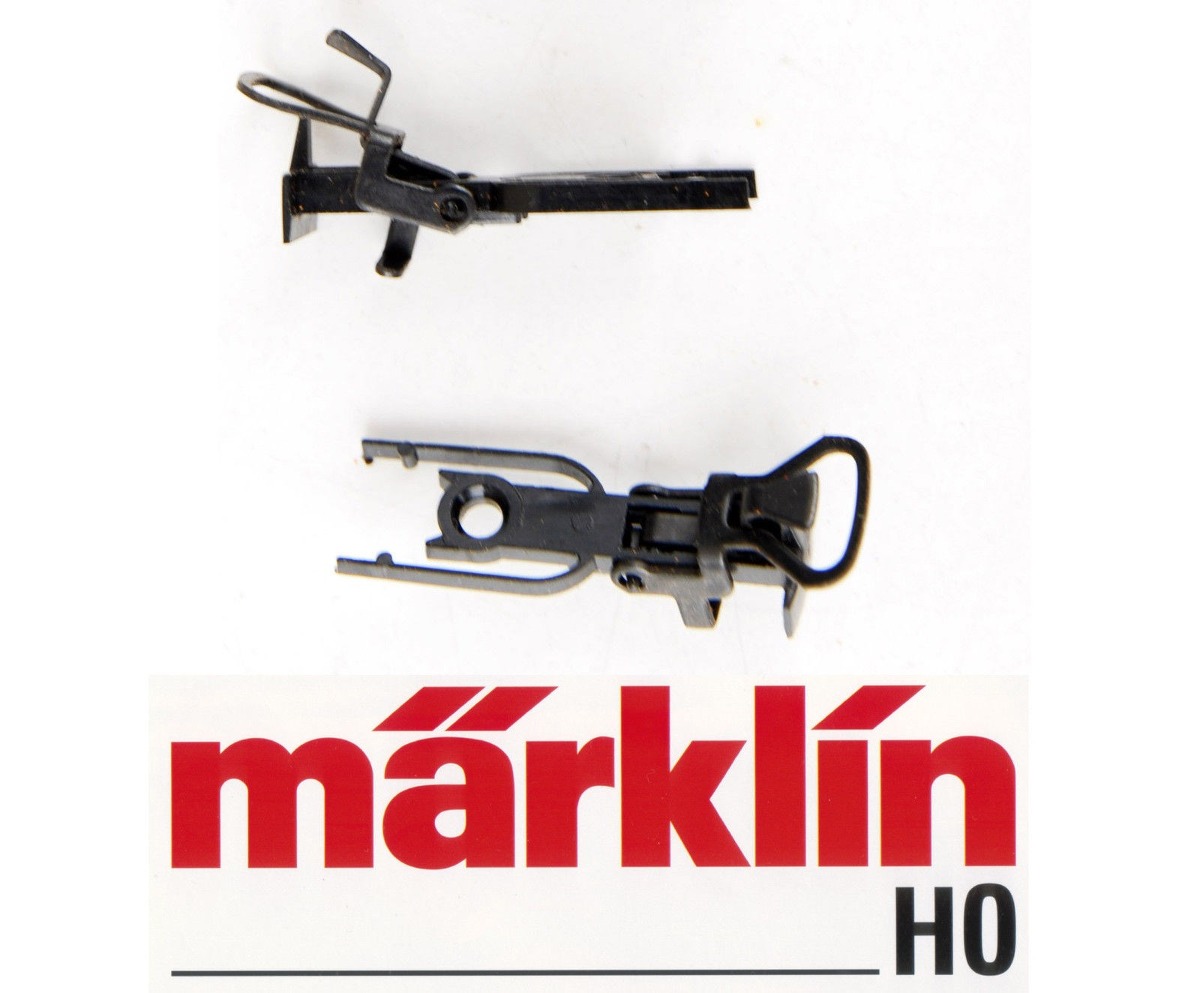

I don't think this coupler is from a 4059, which is a 24cm long tin-plate coach. It looks like a standard plastic 701570 coupler similar to this one:  |
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
|
2 users liked this useful post by RayF
|
|
|
|
 Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg
|
Hi,
The couplers shown were used from the mid 1970s until the early 1980s at the 409X 27 cm cars. They are no longer available since decades. The number was 701620, but this is just academic knowledge.
Regards
Markus
|
2 users liked this useful post by Markus Schild
|
|
|
|
 Joined: 21/10/2004(UTC) Posts: 31,704 Location: United Kingdom
|
The coupling similar to 44xx and 44xxx hobby series freight stock. |
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy. |
1 user liked this useful post by steventrain
|
|
|
|
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg
|
No,
that is not the same coupler. That version above has longer arms than 701570 which is used on the 44XX series and many modern cars.
Regards
Markus
|
4 users liked this useful post by Markus Schild
|
|
|
|
Joined: 14/03/2005(UTC) Posts: 15,871 Location: Gibraltar, Europe
|
It's not the same coupler but couldn't a 701570 fit? The "spring" arms are shorter and might not be as effective but it might at least allow coupling with other coaches
|
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
|
2 users liked this useful post by RayF
|
|
|
|
Joined: 28/04/2014(UTC) Posts: 75
|
Hello and thanks for all the fruitful and interesting responses. My mistake. Indeed it was not a 4059 coach. I had it labeled under such erroneously it seems (which would be the proper number, 4095 perhaps?) but I do posses a real 4059 and it's a metallic one, and not plastic, as mentioned. I enclose a couple of additional photos in case it's helpful.   If you can notice, I placed a Relex coupler on the right side of the coach to make a contrast how shorter it is. |
Modeling Central European trains. Eras III, IV and V Mostly but can also get some French or Italian articles too |
2 users liked this useful post by kokomo
|
|
|
|
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg
|
Hi,
Yes 4095 is the correct number for the coach shown. That coupler is a nice project to 3D-print. Give me some weeks and I will draw it and publish the files. I think that PLA is flexible enough to produce usable parts.
Regards
Markus
|
4 users liked this useful post by Markus Schild
|
|
|
|
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg
|
Hi, I haven't forgotten this topic. This is the first concept for the coupler. Next will be finding the best material to print it and test the samples.   Regards Markus
|
12 users liked this useful post by Markus Schild
|
Unholz, ktsolias, jerdenberg, RayF, Herrfleck, carlos.rivas.16752, Danlake, dickinsonj, Jimmy Thompson, harris19, marklinist5999, mbarreto
|
|
|
 Joined: 21/12/2022(UTC) Posts: 3 Location: Texas, Austin
|
Originally Posted by: Markus Schild  Hi, I haven't forgotten this topic. This is the first concept for the coupler. Next will be finding the best material to print it and test the samples. Regards Markus OMG! I know I'm late to the party but do you have the STL by any chance? Those couplers are just impossible to find.
|
1 user liked this useful post by nick.r
|
|
|
|
Joined: 26/05/2021(UTC) Posts: 198 Location: Australia, East Maitland, NSW
|
3D printing entire couplers is beyond my skill level so I just make NEM adapters that let me use stock Marklin couplings. I couldn't get enough strength and precision in the small plastic parts for a reliable coupling that I would trust with my rolling stock. Possibly some of the NEM adapters that I made for Startup rolling stock could be modified.
|
2 users liked this useful post by revmox
|
|
|
|
Joined: 22/11/2006(UTC) Posts: 676 Location: Shoreline, WA
|
All, not trying to hijack the thread, but what are the Marklin current conducting couplers for the 409X 27cm coaches?
Thanks in advance... |
Thom
European Train Enthusiast - Pacific Northwest Chapter
4th Division, Pacific Northwest Region, National Model Railroaders Association |
|
|
|
|
|
 Joined: 09/08/2008(UTC) Posts: 1,934 Location: Auckland,
|
Originally Posted by: seatrains All, not trying to hijack the thread, but what are the Marklin current conducting couplers for the 409X 27cm coaches?
Thanks in advance... That would depend if your 27cm coach has close couplers or not.
|
1 user liked this useful post by mvd71
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,881 Location: Hybrid Home
|
|
|
2 users liked this useful post by Alsterstreek
|
|
|
|
 Joined: 28/11/2007(UTC) Posts: 8,244 Location: Montreal, QC
|
There were two or three different couplings for the 4091-4099 coach models (DB Blue/Beige/TEE/IC). The original 27cm models had centre mounted bogies with a clip on relex coupler. Then there was the newer version of the coupling part from the period 1980-1984 and then, some models were delivered with offset mounted bogies and a shorter coupling part without the relex part. Finally, around 1985, the models were replaced by new models (4291-4298) with offset mounted bogies and close coupling mechanism and shaft with NEM coupler head.
To find these harder to find couplers, you can check with Ritter Restaurationen in Germany, possibly Eckert in USA and maybe Amiba in Switzerland.
I believe that if you can't find the oldest ones, you can install the intermediate ones as long as the pins are the same.
Regards
Mike C
|
1 user liked this useful post by mike c
|
|
|
|
Joined: 28/11/2007(UTC) Posts: 8,244 Location: Montreal, QC
|
I would also suggest that with some coaches going for as little as 10 EUR on ebay, it is probably cheaper just to buy one of those and to repurpose the couplers or bogie and coupler to repair your model.
I might even have a spare pair here.
Regards
Mike C
|
2 users liked this useful post by mike c
|
|
|
|
Joined: 28/11/2007(UTC) Posts: 8,244 Location: Montreal, QC
|
Originally Posted by: kokomo Hi everybody! I found out that one of my UIC-X passenger coaches has a missing coupler. I took a photo of the remaining one so as to try to get a spare part. Any help identifying the type or model number? thanks I have a spare set of bogies with couplers (newer version) from a 1980s TEE coach. Corresponds to top image in photo of post #4 https://www.marklin-user...older-autotransportwagenRegards Mike C
|
|
|
|
|
|
Joined: 28/11/2007(UTC) Posts: 8,244 Location: Montreal, QC
|
These are the spare bogies I have here (from a 4099):   Regards Mike C
|
1 user liked this useful post by mike c
|
|
|
|
