Offline Alsterstreek
#251 Posted : 01 October 2014 13:45:36(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
An arch bridge for rail and road traffic towering above a seagoing vessel in a lush green landscape in rather flat Northern Germany? Seriously? See the late (torn down in 1987) Grünentaler Hochbrücke over the Kiel Canal.
Alsterstreek attached the following image(s):
thanks 8 users liked this useful post by Alsterstreek
Offline Alsterstreek
#252 Posted : 01 October 2014 13:49:51(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Normally frequented by railcars, here is a bigger guest appearing on the bridge mentioned above.
Alsterstreek attached the following image(s):
auf gtb.png
thanks 5 users liked this useful post by Alsterstreek
Offline BrandonVA
#253 Posted : 03 October 2014 19:45:28(UTC)
BrandonVA

United States
Joined: 09/12/2011(UTC)
Posts: 2,533
Location: VA
Loco mashup:

BR50, 64, 23, 52, 44.

Credit:
https://www.flickr.com/photos/99758559@N07/14705519069
BrandonVA attached the following image(s):
thanks 3 users liked this useful post by BrandonVA
Offline hennabm
#254 Posted : 03 October 2014 21:06:38(UTC)
hennabm

Scotland
Joined: 22/09/2009(UTC)
Posts: 2,038
Location: Edinburgh,
Hi all

Anyone know why the Grünentaler Hochbrücke over the Kiel Canal was torn down?

Mike
1957 - 1985 era
What's digital?
thanks 3 users liked this useful post by hennabm
Offline Alsterstreek
#255 Posted : 03 October 2014 22:36:36(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Originally Posted by: hennabm Go to Quoted Post
Anyone know why the Grünentaler Hochbrücke over the Kiel Canal was torn down?


Yes, someone knows.BigGrin

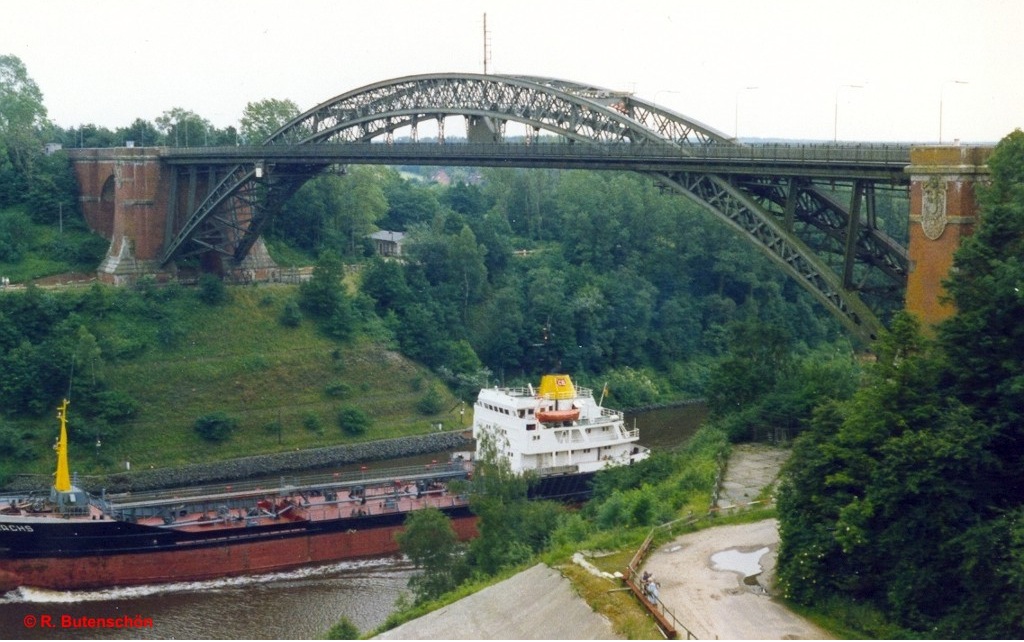

Built in 1892, the bridge did not fulfill any more requirements for mechanical resistance and stability and safety. Then, the water-level width represented a bottleneck. Thus, a new steel bridge with divided sections for a single track, a two-lane road plus a sidewalk/bike path and a clear height of 42.55 m was constructed in parallel - see pic. The buttresses of the old bridge were conserved and serve as observation decks.
Alsterstreek attached the following image(s):
thanks 5 users liked this useful post by Alsterstreek
Offline hennabm
#256 Posted : 04 October 2014 00:15:55(UTC)
hennabm

Scotland
Joined: 22/09/2009(UTC)
Posts: 2,038
Location: Edinburgh,
Hi AK

Thanks for the inforamation and pictureThumpUp

mmmmmm - I must say I like the look of the older bridge.Smile

Mike
1957 - 1985 era
What's digital?
thanks 3 users liked this useful post by hennabm
Offline Alsterstreek
#257 Posted : 07 October 2014 18:13:46(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Well, yes, I rest my case - see pic. How thoughtful of Mother Nature to place the round lake in the middle of the rail circle.
Alsterstreek attached the following image(s):
thanks 3 users liked this useful post by Alsterstreek
Offline Mark5
#258 Posted : 10 October 2014 04:11:39(UTC)
Mark5

Canada
Joined: 29/01/2012(UTC)
Posts: 1,420
Location: Montreal, Canada
Great posts gentlemen, I really love seeing the stations over the tracks and road.
Would be nice to see that modeled. I do have houses on a plateau over arched structure over tracks.
But its not the same thing.

(arrived here by looking at train movie posts...)

- Mark

DB DR FS NS SNCF c. 1950-65, fan of station architecture esp. from 1920-70.
In single point perspective, where do track lines meet?
thanks 2 users liked this useful post by Mark5
Offline Alsterstreek
#259 Posted : 24 October 2014 17:00:20(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home

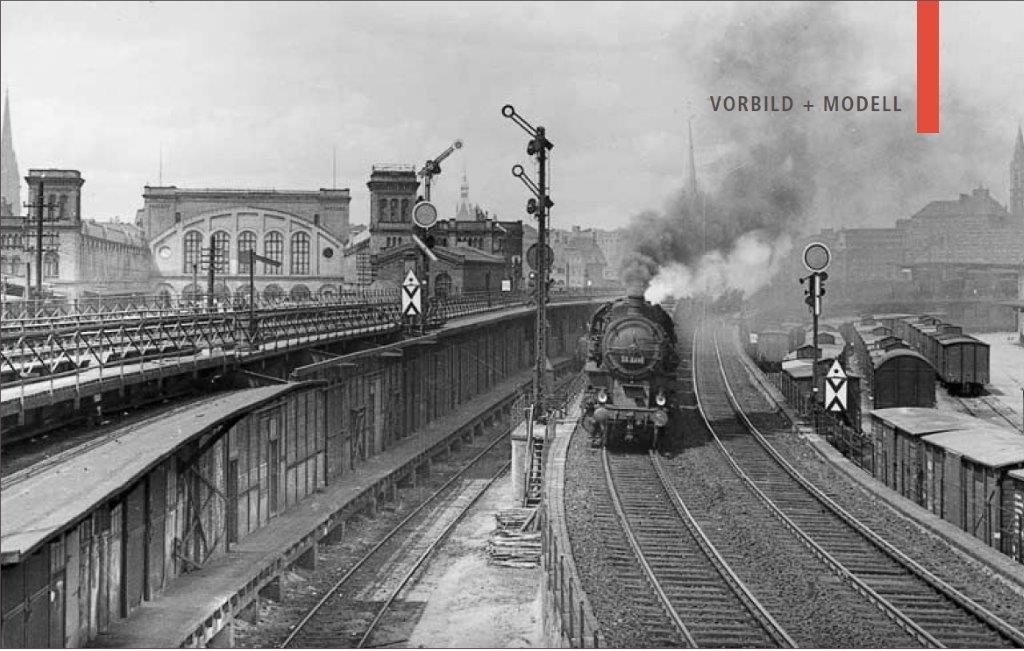

Another space saver, this time from the German low lands: A double-track mainline (the left one, thus not the one with the southbound steam loco) serving as roof for a freight terminal .

Where? On the southern approach to Hamburg-Hauptbahnhof some time before the 1960s electrifications.

(Foto: Staatliche Landesbildstelle Hamburg)
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline petestra
#260 Posted : 24 October 2014 22:46:05(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,824
Location: Leesburg,VA.USA
Super photo, AK. I'd love to have a poster of that photo for my trainroom but alas even if I did I'd have no room on the walls. Peter Love
thanks 1 user liked this useful post by petestra
Offline Alsterstreek
#261 Posted : 27 October 2014 12:49:26(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Another return loop at Argentine Blvd., Kansas City, USA.
Courtesy of Bing Maps.
Alsterstreek attached the following image(s):
thanks 2 users liked this useful post by Alsterstreek
Offline Alsterstreek
#262 Posted : 28 October 2014 22:34:30(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
A turnout on a steel bridge (above water)? With ballast? And the bridge custom-built to accommodate said turnout? Yes, in Pittsburgh (1966) - see left hand side at front end of bridge. As the construction looks new, it seems as if the track was still to be completed.

Source: http://www.bcoolidge.com
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline petestra
#263 Posted : 29 October 2014 00:47:07(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,824
Location: Leesburg,VA.USA
The famous Cologne Railway bridge has points on it. I remember seeing these when I crossed over it. Peter Smile



UserPostedImage


I was lucky to also find this photo of the BR44 freight Lok pulling an era3 Eilzug.


UserPostedImage
thanks 3 users liked this useful post by petestra
Offline PJMärklin
#264 Posted : 29 October 2014 11:20:05(UTC)
PJMärklin

Australia
Joined: 04/12/2013(UTC)
Posts: 2,204
Location: Hobart, Australia
Originally Posted by: petestra Go to Quoted Post
The famous Cologne Railway bridge has points on it. I remember seeing these when I crossed over it. Peter Smile



UserPostedImage


I was lucky to also find this photo of the BR44 freight Lok pulling an era3 Eilzug.


UserPostedImage


Hello Peter,

You are quite correct, the Hohenzollern Bridge does have points.

Regards,

PJ

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage
thanks 5 users liked this useful post by PJMärklin
Offline Alsterstreek
#265 Posted : 29 October 2014 12:13:36(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
True, however turnout / track on Cologne bridge not ballasted.
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline BrandonVA
#266 Posted : 03 November 2014 03:45:37(UTC)
BrandonVA

United States
Joined: 09/12/2011(UTC)
Posts: 2,533
Location: VA
Originally Posted by: Alsterstreek Go to Quoted Post
A turnout on a steel bridge (above water)? With ballast? And the bridge custom-built to accommodate said turnout? Yes, in Pittsburgh (1966) - see left hand side at front end of bridge. As the construction looks new, it seems as if the track was still to be completed.

Source: http://www.bcoolidge.com

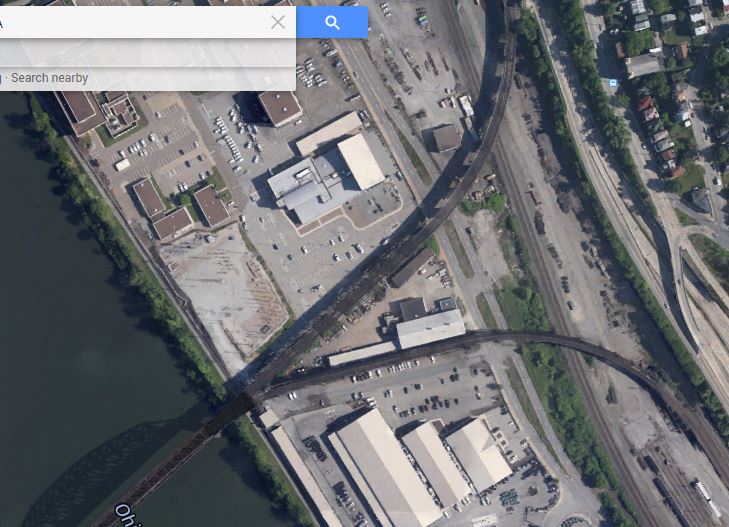

I believe now complete and still intact. Added bonus, additional flyover of nearby tracks.

-Brandon
BrandonVA attached the following image(s):
thanks 3 users liked this useful post by BrandonVA
Offline Alsterstreek
#267 Posted : 03 November 2014 18:59:14(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Re-visiting an earlier post: https://www.marklin-user...utations.aspx#post469064

Center stubs / pukos in the middle of prototype rails? Or even a solid center rail?
Alsterstreek attached the following image(s):
thanks 5 users liked this useful post by Alsterstreek
Offline Alsterstreek
#268 Posted : 04 November 2014 21:40:45(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Locos lying around on your layout? It is prototypical: see photo on NoHAB maintenance Trollhättan-style.
Alsterstreek attached the following image(s):
NoHab maint.png
thanks 5 users liked this useful post by Alsterstreek
Offline petestra
#269 Posted : 04 November 2014 22:41:31(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,824
Location: Leesburg,VA.USA
Yes, it's prototypical, especially if you model wartime or accidents. I don't and would never have any interest in it but

to each his own, no? Peter Huh
thanks 1 user liked this useful post by petestra
Offline Alsterstreek
#270 Posted : 04 November 2014 23:45:52(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Wartime is a no-no for me. Accidents I do not model intentionally, but they do happen on my layout due to hubris and turnout operation negligence.
thanks 2 users liked this useful post by Alsterstreek
Offline Alsterstreek
#271 Posted : 13 November 2014 16:39:44(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
2 x Faller HO scale kit B-541? Canyon Diablo bridge, Arizona, USA.
Alsterstreek attached the following image(s):
thanks 6 users liked this useful post by Alsterstreek
Offline petestra
#272 Posted : 13 November 2014 20:52:53(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,824
Location: Leesburg,VA.USA
Nice photo, AK. You know that's one thing "bridges" that really do not come into a European or North American look about them. Peter Cool
thanks 2 users liked this useful post by petestra
Offline Alsterstreek
#273 Posted : 16 November 2014 21:32:17(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Did you mean neither American nor European? Or did you mean both, American and European? Anyway, I allow Germany to meet the USA on a slightly altered Faller HO scale kit B-541 - see pic.

;-)

Edited by user 17 November 2014 07:52:03(UTC)  | Reason: Not specified

Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline petestra
#274 Posted : 16 November 2014 23:05:57(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,824
Location: Leesburg,VA.USA
Hi AK. I meant bridges really look mostly the same on both continents when all metal except for the ones which have brick/stone masonry. Then they have a

different look about them. Peter Cool
thanks 1 user liked this useful post by petestra
Offline Alsterstreek
#275 Posted : 25 November 2014 13:04:00(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home

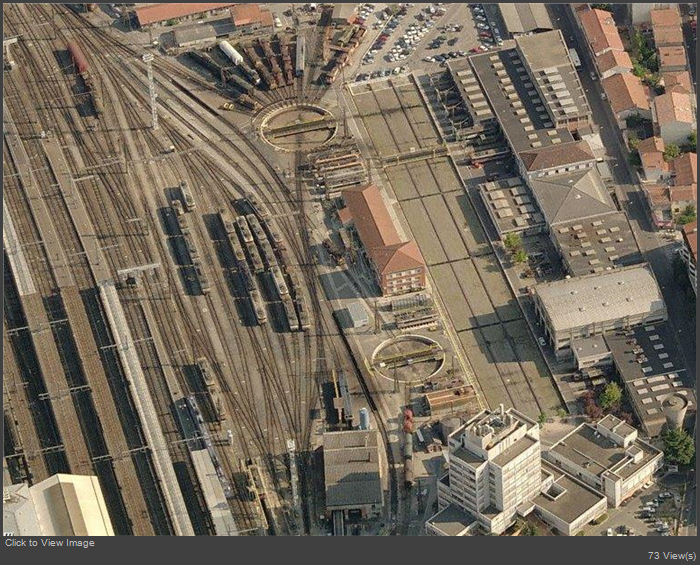

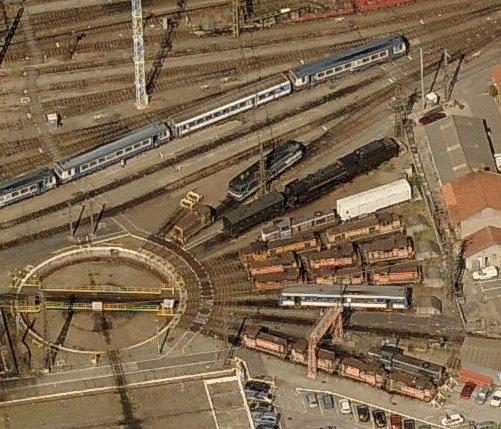

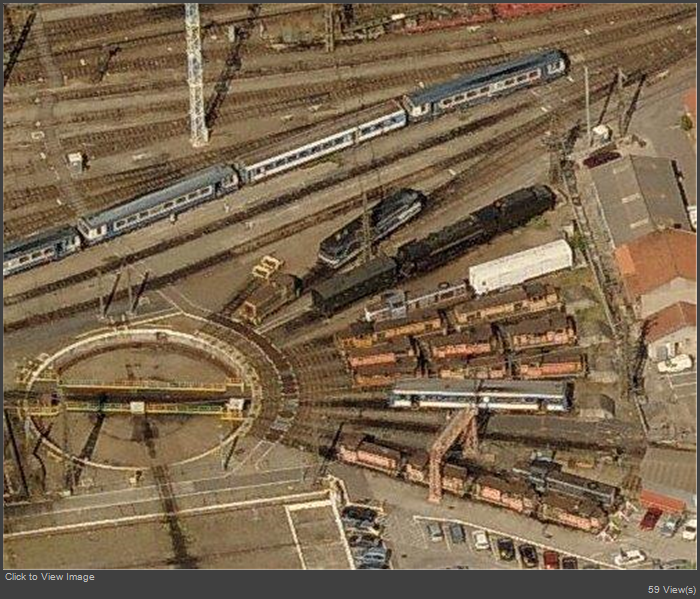

Toulouse/France - northern part or RR station:

1) Compact turntable without loco shed for steam and diesel.
2) Add electric locos, another turntable and a transfer table.

Courtesy of Bing Maps.
Alsterstreek attached the following image(s):
thanks 5 users liked this useful post by Alsterstreek
Offline kimballthurlow
#276 Posted : 25 November 2014 20:38:11(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,639
Location: Brisbane, Australia
Impressive facility at Toulouse.
I did not know that transfer tables could be so large.

regards
Kimball
HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
thanks 2 users liked this useful post by kimballthurlow
Offline Alsterstreek
#277 Posted : 25 November 2014 23:28:16(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
And interestingly - and MRR compatible "space-savingly" - the two turntables feed the large transfer table.
thanks 2 users liked this useful post by Alsterstreek
Offline kimballthurlow
#278 Posted : 26 November 2014 00:42:21(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,639
Location: Brisbane, Australia
And AK, somewhere in Germany before 1940, there were two turntables that intersected.
The engine house required two turntables, but there was not the space to provide two independent structures.

So the circular carriage rail in the pit of one, intersected the pit rail of the other.
The space for this arrangement was only 1.7 times the space required for one.

Someone posted pictures on this forum a few years ago.
regards
Kimball

Edited by user 28 November 2014 10:11:00(UTC)  | Reason: Updated to reflect following posts

HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
thanks 1 user liked this useful post by kimballthurlow
Offline Alsterstreek
#279 Posted : 26 November 2014 14:53:11(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Regarding truly intersecting double turntables, there existed only two in Germany AFIK, one in Hamburg-Altona and one in Cologne (E.g., Koblenz had two turntables side-by-side, but they were not intersecting). I attach a color photo of Hamburg-Altona and a black and white photo of Cologne (the latter by C. Bellingrodt).

Alsterstreek attached the following image(s):
thanks 9 users liked this useful post by Alsterstreek
Offline Alsterstreek
#280 Posted : 03 December 2014 14:22:07(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
K track "Flexgleis" ?
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline kiwiAlan
#281 Posted : 03 December 2014 15:32:47(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,067
Location: ENGLAND, Didcot
Originally Posted by: Alsterstreek Go to Quoted Post
K track "Flexgleis" ?


If they were using flexgleis they could have made a smooth curve. More like they were using C-Track ... BigGrin
thanks 1 user liked this useful post by kiwiAlan
Offline Alsterstreek
#282 Posted : 28 December 2014 22:30:05(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
No space for a diesel engine service area? Not even a tank car at your disposal? How about a roadside refueling like this on the Lucerne & Susquhana?

Source: http://www.rmweb.co.uk/c.../topic/48998-helm/page-6
Alsterstreek attached the following image(s):
thanks 6 users liked this useful post by Alsterstreek
Offline kimballthurlow
#283 Posted : 29 December 2014 00:05:49(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,639
Location: Brisbane, Australia
Originally Posted by: Alsterstreek Go to Quoted Post
K track "Flexgleis" ?


Hi Ak,
The blue diamond signs (there are two) in that photo denote the end of the catenary.

Drivers of electric locos....... DON'T PROCEED any further!

https://www.marklin-users.net/forum/resource.ashx?p=25715

regards
Kimball
HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
thanks 1 user liked this useful post by kimballthurlow
Offline Alsterstreek
#284 Posted : 11 January 2015 12:06:24(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Originally Posted by: Alsterstreek Go to Quoted Post
..."Bahnhof Zoo" in Berlin, Germany...


Also theme of a modular layout of a Berlin high school - see pic.

Link: www.modellbahn-gho.de
Alsterstreek attached the following image(s):
thanks 5 users liked this useful post by Alsterstreek
Offline Alsterstreek
#285 Posted : 27 January 2015 16:29:54(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
The late Luebeck Container Terminal (dismantled in 2009) on the banks of the river Trave connected the German rail network to seagoing vessels serving various Baltic Sea ports. The terminal had a MRR compatible trackage and size. Tracks were ballasted, and the curved dense design looks familiar to the crowded replication on many pikes. Pix courtesy of Google maps.
Alsterstreek attached the following image(s):
thanks 6 users liked this useful post by Alsterstreek
Offline Alsterstreek
#286 Posted : 27 January 2015 17:16:28(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Containers stored on ballasted track.
Alsterstreek attached the following image(s):
thanks 5 users liked this useful post by Alsterstreek
Offline Alsterstreek
#287 Posted : 27 January 2015 17:20:06(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
In to 2009 the two container cranes were sold and transported to Amsterdam in the Netherlands.
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline Alsterstreek
#288 Posted : 27 January 2015 17:35:14(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Inspired by this prototype, a Z-scaler kit-bashed a Maerklin container crane model. Source: http://zotti.lena-johannson.de/
Alsterstreek attached the following image(s):
thanks 4 users liked this useful post by Alsterstreek
Offline PJMärklin
#289 Posted : 28 January 2015 11:14:42(UTC)
PJMärklin

Australia
Joined: 04/12/2013(UTC)
Posts: 2,204
Location: Hobart, Australia
Originally Posted by: Alsterstreek Go to Quoted Post
The late Luebeck Container Terminal (dismantled in 2009) on the banks of the river Trave connected the German rail network to seagoing vessels serving various Baltic Sea ports. The terminal had a MRR compatible trackage and size. Tracks were ballasted, and the curved dense design looks familiar to the crowded replication on many pikes. Pix courtesy of Google maps.


Hello AK,

You continue to be a boundless source of fascinating information !!


Regards,

PJ
thanks 3 users liked this useful post by PJMärklin
Offline Alsterstreek
#290 Posted : 18 February 2015 21:01:34(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Whimsical tunnels?
Donner Pass, California.
Courtesy of railpictures.net.
Alsterstreek attached the following image(s):
thanks 6 users liked this useful post by Alsterstreek
Offline PJMärklin
#291 Posted : 19 February 2015 01:18:55(UTC)
PJMärklin

Australia
Joined: 04/12/2013(UTC)
Posts: 2,204
Location: Hobart, Australia
Originally Posted by: Alsterstreek Go to Quoted Post
Whimsical tunnels?
Donner Pass, California.
Courtesy of railpictures.net.



Hi AK,
Another tunnel and they may as well take the whole hill away !! LOL

Regards,

PJ
thanks 2 users liked this useful post by PJMärklin
Offline waorb
#292 Posted : 19 February 2015 14:36:07(UTC)
waorb

Brazil
Joined: 31/05/2011(UTC)
Posts: 868
Location: Brazil
Hello Ak!

I have such 'tunnels' on my Z layout... (still under construction)
But it's not in parallel...

RollEyes

Cheers,

Walter

waorb attached the following image(s):
thanks 5 users liked this useful post by waorb
Offline Token
#293 Posted : 20 February 2015 14:43:05(UTC)
Token

Australia
Joined: 25/01/2009(UTC)
Posts: 300
Location: Sydney, NSW
In case anyone thought the shell wagon in their 29530 set was not prototypical;

Shell Wagon 29530

BigGrin
thanks 7 users liked this useful post by Token
Offline Token
#294 Posted : 20 February 2015 15:20:05(UTC)
Token

Australia
Joined: 25/01/2009(UTC)
Posts: 300
Location: Sydney, NSW
What the heck - everyone else has posted their spiral, so why not mine?

Raurimu Spiral New Zealand

If you look closely, you can see the "overlander" express at the top.

Brief description;

The railway forms an ascending spiral southwards, with two relatively short tunnels, a circle and three hairpin bends. From the north, trains pass Raurimu before going round a 180° bend to the left in a horseshoe curve, climbing above the track on which they have just travelled. Two sharp bends to the right follow, after which the line passes through two short tunnels. Trains then complete a full circle, crossing over the longer of the two tunnels through which they have just passed, before continuing towards Wellington. Two kilometres (1.2 mi) further on the line has two further sharp bends, to the right and then to the left.

After the second of these bends a train has risen 132 metres (433 ft) and travelled 6.8 kilometres (4.2 mi) from Raurimu - the straight-line distance is 2 kilometres (1.2 mi). (courtesy of Wikipedia)

I use this picture as my desktop - perhaps a vision of a part of my layout in future? RollEyes
thanks 4 users liked this useful post by Token
Offline Alsterstreek
#295 Posted : 20 February 2015 16:45:03(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
In case anyone thought M* 4671 was not prototypical.
Alsterstreek attached the following image(s):
thanks 6 users liked this useful post by Alsterstreek
Offline waorb
#296 Posted : 20 February 2015 16:50:24(UTC)
waorb

Brazil
Joined: 31/05/2011(UTC)
Posts: 868
Location: Brazil
Originally Posted by: Alsterstreek Go to Quoted Post
In case anyone thought M* 4671 was not prototypical.


Nice example... Woot

Baujahr 1955?!? (construction year)
Wow... pretty "old"...

Cheers,

Walter
thanks 1 user liked this useful post by waorb
Offline Alsterstreek
#297 Posted : 21 February 2015 16:37:13(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Double-track mainline with sweeping S-curve(s) on a slope? In the USA? Yes, former Santa Fe Raton Pass ascent.
Alsterstreek attached the following image(s):
rp 2004.png
thanks 5 users liked this useful post by Alsterstreek
Offline Alsterstreek
#298 Posted : 21 February 2015 16:42:14(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Up to 3.3% slope to be precise. Here a 1992 coal drag.
Alsterstreek attached the following image(s):
thanks 3 users liked this useful post by Alsterstreek
Offline biedmatt
#299 Posted : 22 February 2015 00:27:07(UTC)
biedmatt

United States
Joined: 09/04/2012(UTC)
Posts: 1,343
Location: Southwest Ohio
Originally Posted by: Alsterstreek Go to Quoted Post
Double-track mainline with sweeping S-curve(s) on a slope? In the USA? Yes, former Santa Fe Raton Pass ascent.


I drove down I-25 through Raton Pass in '92. You could catch a glimps of the track from time to time. it looked like they did every engineering trick known to create that route.
Matt
Era 3
DB lokos, coaches and freight cars from across Europe
But I do have the obligatory (six) SBB Krocs
ECoS 50200, all FX and MFX decoders replaced with ESU V4s, operated in DCC-RailCom+ with ABC brake control.
With the exception of the passenger wagens with Marklin current conducting couplers, all close couplers have been replaced with Roco 40397.
thanks 3 users liked this useful post by biedmatt
Offline Alsterstreek
#300 Posted : 22 February 2015 14:35:44(UTC)
Alsterstreek

Germany
Joined: 16/11/2011(UTC)
Posts: 5,664
Location: Hybrid Home
Raton Pass summit tunnel: Separate portals on double-track mainline (ideal to hide a return loop).

;-)
Alsterstreek attached the following image(s):
Raton tunnels.jpg
thanks 6 users liked this useful post by Alsterstreek
Users browsing this topic
16 Pages«<45678>»
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2024, Yet Another Forum.NET
This page was generated in 2.211 seconds.
