Offline Thewolf
#1 Posted : 07 November 2022 23:52:12(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Hi gang. Cool

My goodness, it's been a long time since I came to the forum. Blink

Winter is coming and it's the beginning of the train season. I'm back to work on the layout.

I hope you are all well. I'm fine and it's been a great summer season...with a few surprises though and many decisions have been made.

To come back to my layout Train de la Vallée du Richelieu, after 3 minutes. already a little problem : after many months of inactivity, I put my cs2 in function...the stop bar blinks...the cs2 loads correctly...all the screen appears correctly.....and oops the stop bar lights up, remains frozen ...the leds of the stop bar light up red....the cs2 is frozen, planted.Crying Crying Cursing Blushing Mad

What should I do? Thank you for the answerCool

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline kiwiAlan
#2 Posted : 08 November 2022 00:17:34(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 7,115
Location: ENGLAND, Didcot
Originally Posted by: Thewolf Go to Quoted Post
Hi gang. Cool

My goodness, it's been a long time since I came to the forum. Blink

Winter is coming and it's the beginning of the train season. I'm back to work on the layout.

I hope you are all well. I'm fine and it's been a great summer season...with a few surprises though and many decisions have been made.

To come back to my layout Train de la Vallée du Richelieu, after 3 minutes. already a little problem : after many months of inactivity, I put my cs2 in function...the stop bar blinks...the cs2 loads correctly...all the screen appears correctly.....and oops the stop bar lights up, remains frozen ...the leds of the stop bar light up red....the cs2 is frozen, planted.Crying Crying Cursing Blushing Mad

What should I do? Thank you for the answerCool

Thewolf


The current version of the software comes up with the stopbar lit when it has finished initialisation so that anything on the layout doesn't take off unexpectedly.

Did you try operating the stop bar to see if the red lights go out?
Offline Thewolf
#3 Posted : 08 November 2022 00:34:02(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: kiwiAlan Go to Quoted Post


The current version of the software comes up with the stopbar lit when it has finished initialisation so that anything on the layout doesn't take off unexpectedly.

Did you try operating the stop bar to see if the red lights go out?


Thank you for your reply.

SorryCrying I forgot to explain that I had tried to operate the stop bar so that the red leds went out.

Despite two or three attempts to operate the stop bar, the cs2 remained as it was with the red leds on.Mad

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline cookee_nz
#4 Posted : 08 November 2022 01:27:27(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,853
Location: Paremata, Wellington
Have you tried disconnecting everything (except the power cable) to see if it will fully complete the startup, to rule out any external influence?
Cookee
Wellington
NZ image
Offline Thewolf
#5 Posted : 08 November 2022 05:55:59(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: cookee_nz Go to Quoted Post
Have you tried disconnecting everything (except the power cable) to see if it will fully complete the startup, to rule out any external influence?


Thank you for your reply.

No I didn't. Tomorrow morning without fail
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#6 Posted : 08 November 2022 17:41:30(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Hi gang Cool

The cs2 was sent to Mike, my dealer, from westend trains

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline cookee_nz
#7 Posted : 08 November 2022 20:14:15(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,853
Location: Paremata, Wellington
Originally Posted by: Thewolf Go to Quoted Post
Hi gang Cool

The cs2 was sent to Mike, my dealer, from westend trains

Thewolf


I guess that means it still did the same thing with absolutely nothing else connected except the power, (no connection to the track etc)?

Not much more you can do if that is the case. Might still be a relatively simple issue but needs technical experience to diagnose BigGrin
Cookee
Wellington
NZ image
Offline kiwiAlan
#8 Posted : 08 November 2022 20:19:53(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 7,115
Location: ENGLAND, Didcot
Originally Posted by: cookee_nz Go to Quoted Post
Originally Posted by: Thewolf Go to Quoted Post
Hi gang Cool

The cs2 was sent to Mike, my dealer, from westend trains

Thewolf


I guess that means it still did the same thing with absolutely nothing else connected except the power, (no connection to the track etc)?

Not much more you can do if that is the case. Might still be a relatively simple issue but needs technical experience to diagnose BigGrin


IIRC there was a loop that could cause this when updating the software, but I think he has done the right thing by taking it to his dealer.
Offline JohnjeanB
#9 Posted : 10 November 2022 13:12:40(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 2,287
Location: Paris, France
Hi

The CS2 was very innovative and I liked it a lot. I have 2 of them, one 60214 that failed and was returned / repaired by Märklin (changed the mother board for a 60215 one)
I used them intensively for 10 years but I met some difficulties with them:
- the Stop bar switch was not active all the time. I had to open and use contact spray on the switch to solve the issue
- the booting up was never completing (the progress bar, instead of stopping near the screen's center, continued all the way to the right). I solved this once by booting many many times being near an internet access and when successful making an update
- the accessory output not working. Never been able to repair this one.

So today, one of my CS2s is booting and working OK but without a programming track while the other one cannot finish booting no matter what I try. I read in a German forum, that this could be caused by a mass memory chip having too many errors to self-repair.

When I interrogated both my dealer in Paris and Märklin in Göppingen in 2020, I got this:
- no Märklin cannot repair any CS2 (60213 to 60215)
- send back the unit to Göppingen and we will check: They made an offer for a reduced price on a CS3
- I ended up turning down Märklin's offer as I got a better deal from MSL (Lippe) for a 60226 (584€ in Oct 2020).
So as of today I have a CS3 and also a CS2 quite functional but without a programming track capability
Cheers
Jean
My layout videos
latest vid
marshalling yard
thanks 1 user liked this useful post by JohnjeanB
Offline marklinist5999
#10 Posted : 10 November 2022 13:42:33(UTC)
marklinist5999

United States
Joined: 10/02/2021(UTC)
Posts: 1,870
Location: Michigan, Troy
I find myself using the stop button on my auxiliary MS2 more than on the CS3. A derailment short often takes longer to trip off the CS3, and mostly the emergency stop will trip the MS2, thus the CS3 doesn't even show that it is in stop mode unless the error and warning red window pops up.
Offline JohnjeanB
#11 Posted : 11 November 2022 13:33:00(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 2,287
Location: Paris, France
Hi
Yes, in some cases, with the latest s/w version on a CS3, when a short happens, the STOP bar does not lit but the current is cut all the same.
Small s/w bug I assume, that will be corrected by the next update. It has been more than a year since the last update so one is probably brewing in Göppingen.
They are also probably working on the CS3 replacement (should be released in less than 2 years time I think).
Cheers
Jean
My layout videos
latest vid
marshalling yard
thanks 1 user liked this useful post by JohnjeanB
Offline marklinist5999
#12 Posted : 11 November 2022 19:21:29(UTC)
marklinist5999

United States
Joined: 10/02/2021(UTC)
Posts: 1,870
Location: Michigan, Troy
Jean, the last update was in March which included the third pop up Loco controller feature. The prior one to that was in October 2021. I log them in my CS3 big manual when I install them.
Offline Thewolf
#13 Posted : 17 November 2022 22:21:23(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Hi GangCool


I have a tile: my cs2 according to Mike has to go back to Germany but I'm not tempted, because you know when you send an item there but you don't know when it will return and I'm not sure they will fix it

So the whole gang knows I'm working with Itrain for layout control.

What should I take as a cs3 ? the 60216 or the 60226 ?

Thanks gangCool

Thewolf


Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline JohnjeanB
#14 Posted : 18 November 2022 00:43:09(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 2,287
Location: Paris, France
Hi
Originally Posted by: Thewolf Go to Quoted Post
What should I take as a cs3 ? the 60216 or the 60226 ?

The CS3 (60226) has the following advantages:
- has all the qualities of a CS3 + (60216) BUT has no integrated Link88 (that is simplified on a 60216 unit) and no capability to be a slave unit (does not matter when using only one CS3)
- is cheaper even when including a Link88 (60883).
- the separate Link88 offer 3 different buses one of which allowing to re-use older 6088 or 60880. The other 2 buses allow to grow the regular units 60881 in 2 directions which is key for medium and large layouts
- unlike the CS+, the whole power of the CS3 is fully dedicated to power the layout and not the S88 system
- the CS3 has 2 CAN plugs and not one like the CS3+

It must be noted that many CS2 users have already a Link88 (60883) which increases the attractiveness of the CS3

Just my opinion
Cheers
Jean
My layout videos
latest vid
marshalling yard
Offline Thewolf
#15 Posted : 18 November 2022 01:04:18(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: JohnjeanB Go to Quoted Post
Hi
Originally Posted by: Thewolf Go to Quoted Post
What should I take as a cs3 ? the 60216 or the 60226 ?

The CS3 (60226) has the following advantages:
- has all the qualities of a CS3 + (60216) BUT has no integrated Link88 (that is simplified on a 60216 unit) and no capability to be a slave unit (does not matter when using only one CS3)
- is cheaper even when including a Link88 (60883).
- the separate Link88 offer 3 different buses one of which allowing to re-use older 6088 or 60880. The other 2 buses allow to grow the regular units 60881 in 2 directions which is key for medium and large layouts
- unlike the CS+, the whole power of the CS3 is fully dedicated to power the layout and not the S88 system
- the CS3 has 2 CAN plugs and not one like the CS3+

It must be noted that many CS2 users have already a Link88 (60883) which increases the attractiveness of the CS3

Just my opinion
Cheers
Jean



Thanks Jean Cool

If I understood correctly what you were saying:

as I use a 60883 marklin with LDT RM 88 n Opto decoders, the CS3 60226 is the console I need.

It is cheaper than the 60216,

Thanks Jean, I will follow your advice Cool

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline JohnjeanB
#16 Posted : 18 November 2022 14:06:53(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 2,287
Location: Paris, France
Yes, exactly.
To come back to the idea of sending back the CS2 for repair, I have been through this, taked to Märklin Germany (Märklin service people) and here is what I got:
- NO for sure, Märklin will not repair any CS2 because they have no electronic spare parts. So, even for cosmetic repairs, they would be forced by (European) law to guarantee the repaired CS2 which they can't.
- So, almost without checking, Märklin will propose to keep and dispose of the faulty CS2 in exchange for a reduction at a Märklin dealer in your country. Märklin must be returned the faulty unit no matter what (cost). When this offer was made to me, I checked and found that this was better for me to keep my CS2 and order a new CS3 by checking the best offers in Germany. So at the time, I got a much better deal than Märklin's offer. Of course, shipment to France is much cheaper than to Canada (6 to 12 €, no duty)

About my 2 faulty CS2s: one does not boot up anymore, the other is almost fully functional: only the program track output is dead OK. I can even use it as a bosster and a slave unit to my CS3 (60226)

Cheers
Jean
My layout videos
latest vid
marshalling yard
Offline nhumps
#17 Posted : 18 November 2022 19:51:53(UTC)
nhumps

New Zealand
Joined: 17/12/2018(UTC)
Posts: 58
Location: Wellington
Hi, maybe it is too late now but have you ruled out as suggested by Jean about the stop bar perhaps being faulty?
Do you have an MS2 you can plug in to test the STOP button?
Or connect the CS2 to the network and use the Marklin App or Web interface to try the stop button virtually?

For a while my STOP button on my CS2 was sticking and pressing it at different places/angles was required. As it turned out there was an obstruction in the mechanism and once cleared it has returned to normal operation
Offline Thewolf
#18 Posted : 18 November 2022 20:47:24(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 1,969
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: nhumps Go to Quoted Post
Hi, maybe it is too late now but have you ruled out as suggested by Jean about the stop bar perhaps being faulty?
Do you have an MS2 you can plug in to test the STOP button?
Or connect the CS2 to the network and use the Marklin App or Web interface to try the stop button virtually?

For a while my STOP button on my CS2 was sticking and pressing it at different places/angles was required. As it turned out there was an obstruction in the mechanism and once cleared it has returned to normal operation


I understand but I explained to Mike, my dealer of over 10 years in Toronto, everything that Jean commented to me.

Mike told me that my cs2 was dead and even if Marklin fixed it as it is over 10 years old there is no guarantee that it will work 100% in the future.

So I decided to upgrade to the cs3 60226

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline JohnjeanB
#19 Posted : 18 November 2022 21:17:35(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 2,287
Location: Paris, France
Hi
If we are sure, it is the stop bar that is not working (can it be activated by a plugged-in MS1 or MS2?) and all the rest is fine, then is is a matter of changing the SMC switch on the mother board.

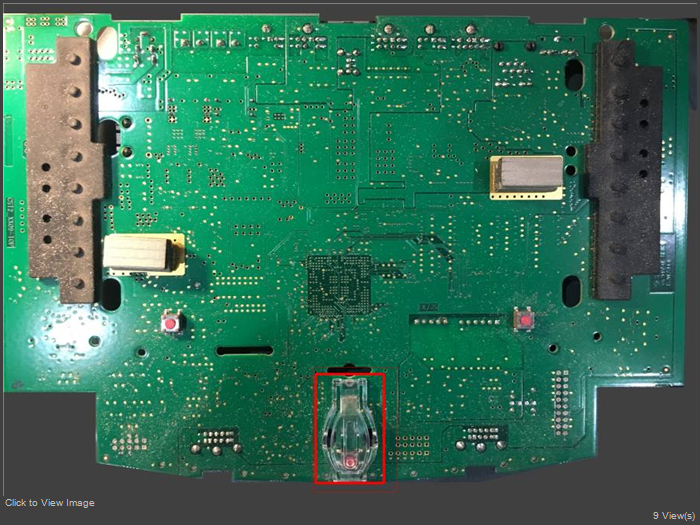

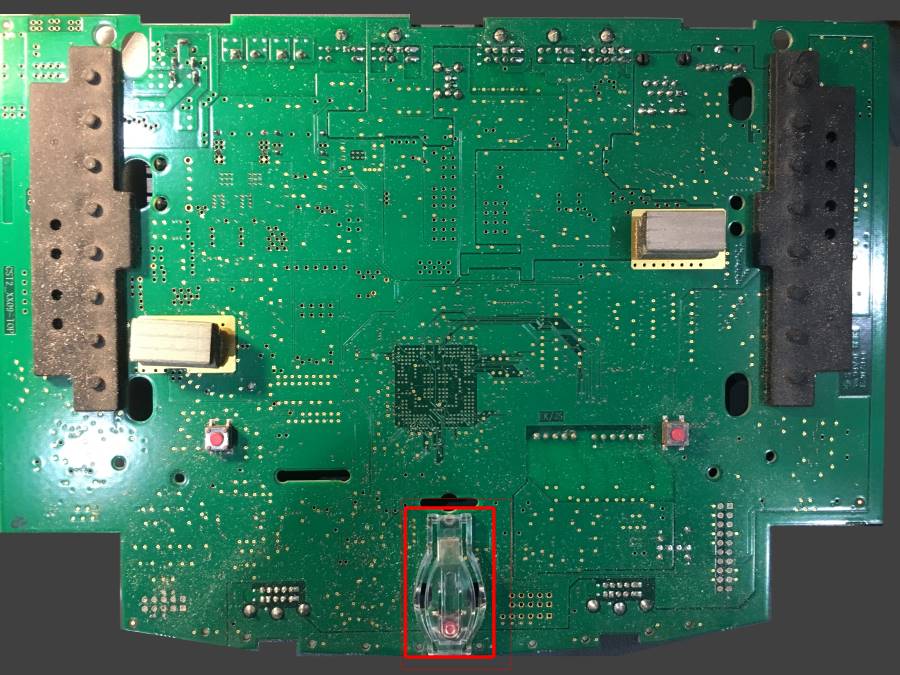

Here is the backside of a 60215 mother board on one of my CS2s (the side adjacent to the screen and keys)
60215 stop switch R.jpg

Once the transparent pusher (see the red frame in picture) is moved away, the regular SMC (Surface Mounted Component) switch can be removed and changed.

For this you need:
- a set of Metric Torx screwdrivers (to open the CS2)
- a SMC Digital desoldering iron hot air soldering station such as this one https://www.ebay.de/itm/40289546...YJo%7Ctkp%3ABFBMuI6DxpFh
- the switch component to be purchased on Internet (less than 1 € usually)

Note: it is delicate work with good tools and an illuminated magnifier.
Cheers
Jean
My layout videos
latest vid
marshalling yard
Users browsing this topic
OceanSpiders 2.0
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2022, Yet Another Forum.NET
This page was generated in 0.783 seconds.
