Offline adelrs
#1 Posted : 18 June 2014 13:05:48(UTC)
adelrs

United States
Joined: 20/05/2014(UTC)
Posts: 15
Location: TEXAS, ROUND ROCK
Can the Mobile Station 2 be used to control the Uncoupler Track 24997. If so what decoder can be used. The only reference I see is to use the 60830 K-83 decoder, which is no longer available. Any help would be appreciated.
Offline RayF
#2 Posted : 18 June 2014 13:59:45(UTC)
RayF

Gibraltar
Joined: 14/03/2005(UTC)
Posts: 15,766
Location: Gibraltar, Europe
The 60830 has been replaced by the 60831, which is available now.

This is the only way to control an uncoupler track at the moment. You can also get similar decoders from Viessman.
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
Offline sjlauritsen
#3 Posted : 18 June 2014 18:22:28(UTC)
sjlauritsen

Denmark
Joined: 18/08/2007(UTC)
Posts: 1,081
Location: Denmark
Yes, the Mobile Station 2 can control an uncoupler track as well as other accessories. But only by using an accessory decoder as Ray mentions. :-)

You can get accessory decoders for both Motorola (MM) and DCC from a couple of manufacturers like:

Märklin (#60831)
Viessmann (#5211, Motorola or #5212, DCC)
Littfinski (#S-DEC-4-*) (http://www.ldt-infocenter.com/dokuwiki/doku.php?id=en:s-dec-4)

If you use DCC for the accessory decoders you have more options from other manufacturers as well.
Søren from Denmark
Blog: https://railway.zone/ | Danish Model Railway Forum: https://baneforum.dk/
Offline DumbGuy
#4 Posted : 19 June 2014 14:35:52(UTC)
DumbGuy

United States
Joined: 25/12/2011(UTC)
Posts: 194
Location: Tennessee, USA
Originally Posted by: adelrs Go to Quoted Post
Can the Mobile Station 2 be used to control the Uncoupler Track 24997. If so what decoder can be used. The only reference I see is to use the 60830 K-83 decoder, which is no longer available. Any help would be appreciated.


Hello,

I operate multiple uncouplers and semaphores with old Marklin 6083 k83s and with Viessmann 5211s using a 60214 CS2 and a 60653 MS2. Both work well. I have no experience with the more recent 60830 or 60831 boxes. My 6083s came from eBay. Listings are fairly common at around $30(+ or -) plus shipping. A new VM 5211 retails for about $37 plus shipping. I've never seen one listed on North American eBay.

As an aside, a 60831 offers a few more features, can use an external power supply, and may require an additional 60821 board for turnout motors, all of which seem a bit of overkill for my (no DCC) needs. But since I've never used one, no cogent advice.

Regards -- Richard
Long-time analog user, collector & tinkerer.
Discovered digital & began conversion a few years ago.
C-Track, CS2 Carpetbahn built, taken-down, rebuilt, etc.
Username reflects how much I still have to learn.
Offline adelrs
#5 Posted : 21 June 2014 03:03:40(UTC)
adelrs

United States
Joined: 20/05/2014(UTC)
Posts: 15
Location: TEXAS, ROUND ROCK
Thanks for all the information. I will end up going with the 60831 decoder for my uncoupler track
thanks 1 user liked this useful post by adelrs
Offline steventrain
#6 Posted : 22 June 2014 16:01:09(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 32,848
Location: United Kingdom
I have 16 uncoupling on layout with two 60830.

Up to 8 uncoupling per 60831/60831.
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
thanks 1 user liked this useful post by steventrain
Offline FrankF
#7 Posted : 28 June 2014 01:03:31(UTC)
FrankF

Denmark
Joined: 18/11/2007(UTC)
Posts: 93

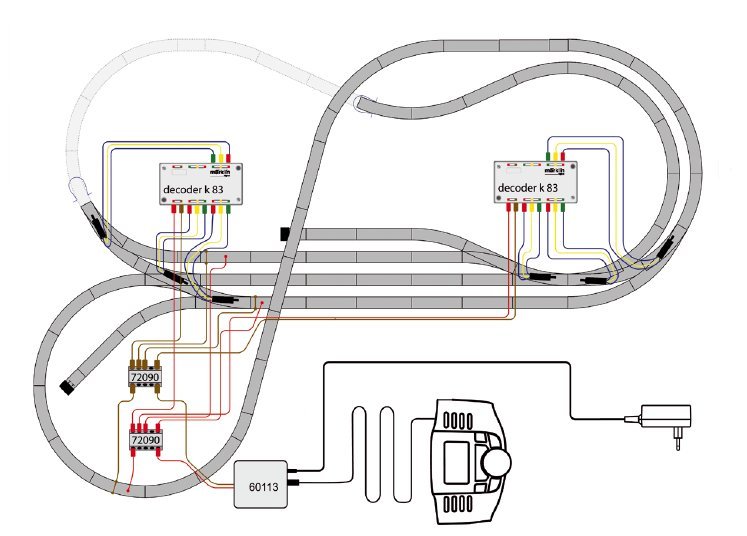

Here is an example for wiring the MS2 to the Layoyt :

MS2-Layout-Wiring


and here is the way to connect the Marklin 24997 Unit to the Marklin 60830 (k83 Decoder)

Marklin24997-Connection-k83-Decoder


Each of the 4 outputs connector on the Marklin 60830 (k83) unit can control 2 Marklin 24997 Uncoupling units

which give a total of 8 Marklin 24997 for each k83 Decoder.

Hope the pictures will show you how to connect your Uncouplers to use them with MS 2.
Frank F
Marklinisterne.dk
H0 C-Track
CS3+ 60216 (SW 2.2.0) / CS2 60215 (SW 4.2.13) / MS2 60653/60657 (SW 3.121) / Marklin PC Version 4.2.1
Marklin Decoder Tool 3 (SW 3.4.2) + 60970/60971/M60801
M7286 (LDT TT-DEC Decoder) / M7294 (M84) / 76500 / 76510 / 7051 (x5)
ESU Lokprogrammer Hardware (SW 5.1.1)+Teststand+Extension
thanks 1 user liked this useful post by FrankF
