Märklin Mikado 37970 - Front coupler pocket too high?

Options

View

Previous Topic Next Topic

einotuominen		#1 Posted : 14 August 2025 06:18:19(UTC) Retweet
Joined: 19/09/2022(UTC) Posts: 461 Location: Kaarina		Hi guys, it's been a while! I got the Märklin Mikado New York Central (37970) and was wondering is there a trick for the front NEM pocket? It is positioned too high and I'd like to put a standard short coupler to it. I don't know what standard it conforms to, but it's clearly at a wrong height for normal Märklin operation. Bought this second hand in original box, but the manual was missing. Best regards, -Eino

2 users liked this useful post by einotuominen		Alsterstreek, Jimmy Thompson
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

dickinsonj		#2 Posted : 15 August 2025 01:00:20(UTC) Retweet
Joined: 05/12/2008(UTC) Posts: 1,844 Location: Crozet, Virginia		Hello Eino, Is that locomotive a Marklin/BLI cooperation item? Sorry, but I can't think of a fix for that height problem other than something custom printed for that.
		Regards, Jim I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains! So many trains and so little time.

1 user liked this useful post by dickinsonj		Jimmy Thompson
User Profile View All Posts by User View Thanks

einotuominen		#3 Posted : 15 August 2025 15:57:12(UTC) Retweet
Joined: 19/09/2022(UTC) Posts: 461 Location: Kaarina		Originally Posted by: dickinsonj Hello Eino, Is that locomotive a Marklin/BLI cooperation item? Sorry, but I can't think of a fix for that height problem other than something custom printed for that. Hi, No I don’t think so. It’s this model https://www.maerklin.de/...ts/details/article/37970 But even Märklin site does not provide the manual. I sort of refuse to believe that they would have produced a model where the coupler at the other end is not suitable for coupling… -Eino

1 user liked this useful post by einotuominen		Jimmy Thompson
User Profile View All Posts by User View Thanks

Alsterstreek		#4 Posted : 15 August 2025 21:12:18(UTC) Retweet

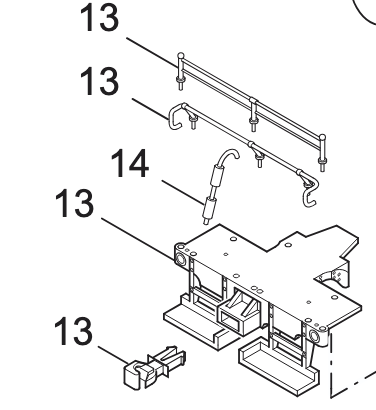

Joined: 16/11/2011(UTC) Posts: 5,907 Location: Hybrid Home		Source: www.maerklin.de/service/...lnummer=37970&lang=2 Besides the height issue, would the coupler 7203 fit into the pocket #13 - see snapshot?
		Greetz - Ak My current "layout": https://www.marklin-user...aigne-Project#post592818

1 user liked this useful post by Alsterstreek		Jimmy Thompson
User Profile View All Posts by User View Thanks

steventrain		#5 Posted : 16 August 2025 00:15:45(UTC) Retweet
Joined: 21/10/2004(UTC) Posts: 31,720 Location: United Kingdom		Originally Posted by: Alsterstreek Besides the height issue, would the coupler 7203 fit into the pocket #13 - see snapshot? If coupler 7203 fit but what about pull/push with rolling stock on radius curved?
		Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.

2 users liked this useful post by steventrain		Jimmy Thompson, Alsterstreek
User Profile View All Posts by User View Thanks

cintrans		#6 Posted : 16 August 2025 01:14:57(UTC) Retweet
Joined: 11/07/2018(UTC) Posts: 230 Location: Aruba (general), Oranjestad		Obviously not the same lok, but these are the front coupling options on the Big Boy, a normal short coupler does not seem to be an option. Even the simple hook has restricted use.... Regards Jean-Pierre

1 user liked this useful post by cintrans		Alsterstreek
User Profile View All Posts by User View Thanks

dickinsonj		#7 Posted : 16 August 2025 01:29:33(UTC) Retweet
Joined: 05/12/2008(UTC) Posts: 1,844 Location: Crozet, Virginia		I think Jean-Pierre has the answer. It was probably never meant to be a functional coupler, only decorative. So there was no need to position it at a usable height. The prototype would have seldom used the front coupler anyway. It is really strange that there is no manual available, since they are posted for a lot older locomotives.
		Regards, Jim I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains! So many trains and so little time.

1 user liked this useful post by dickinsonj		xxup
User Profile View All Posts by User View Thanks

cintrans		#8 Posted : 16 August 2025 02:06:12(UTC) Retweet
Joined: 11/07/2018(UTC) Posts: 230 Location: Aruba (general), Oranjestad		The Mikado was brought out under a range of numbers, there is a manual of #37935 available on the M* site

2 users liked this useful post by cintrans		xxup, Alsterstreek
User Profile View All Posts by User View Thanks

klarinettmeister		#9 Posted : 16 August 2025 09:55:27(UTC) Retweet
Joined: 13/02/2008(UTC) Posts: 812		Hi! I just checked my Mikados. The manual only states how to change the rear coupler but never mentions the front coupler. All my Mikados include only 2 figures and no extra parts. I guess the front coupler is not meant to be used as a coupler on the model just as many here have mentioned.
		37624 F7, my first review My layout in construction. /David

2 users liked this useful post by klarinettmeister		Alsterstreek, xxup
