 Joined: 18/11/2012(UTC) Posts: 353
|

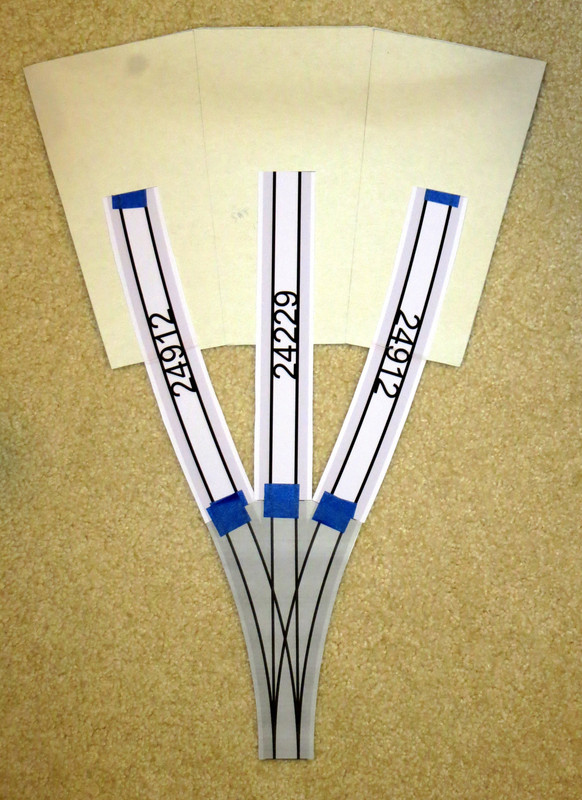

I'm thinking if adding a Kibri 39452 three bay roundhouse but without using a turntable for space reasons. I know it's probably not prototypical but I think I can use a C-track three way turnout to drive the loco's straight into the roundhouse. I've mocked up a what I'm thinking about with cardboard and some "paper" C track. Is there any reason I should not do this? Will there be any problems that I'm not seeing? Any comments or ideas will be greatly appreciated! ken  |
Ken
USofA |
 5 users liked this useful post by LA2019
|
|
|
|
 Joined: 17/09/2006(UTC) Posts: 18,771 Location: New Zealand
|
There's plenty of older M track plans in some of the old books that do this exact thing, so there's certainly nothing you're doing that hasn't been done before and certainly nothing you're doing wrong. As long as the tracks line up OK with the roundhouse doors there's no reason why you can't do this.
|
3 users liked this useful post by Bigdaddynz
|
|
|
|
Joined: 29/05/2016(UTC) Posts: 69 Location: Taupo
|
Good idea if you have reverse loops already and can turn locomotives around on them. Have thought of doing the same thing but wasn't sure with c track. Looks like it will work
Regards Stephen
|
3 users liked this useful post by boitpo
|
|
|
|
 Joined: 21/05/2004(UTC) Posts: 1,768 Location: Brisbane, Queensland
|
I did this on my last layout, certainly not uncommon.
In fact in a lot of real scenarios you will see massive engine sheds with no turntable for repairs etc. Typically straight sheds though, you can easily do that instead of a roundhouse too. |
modelling era IIIa (1951-1955) Germany |
2 users liked this useful post by applor
|
|
|
|
 Joined: 15/12/2005(UTC) Posts: 3,594 Location: Spain
|
Even if Märklin uses the roundhouse w.o. the turntable, I dont think it is prototipical correct.
Only in the cases where there once WAS a turntable, which was later removed, but the structures kept. In that case you would still need to model a kind of outline of the turntable installation, and thus almost nullifying the space-problem. |
|
|
|
|
|
|
 Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
Some standard gauge examples: Leipzig-Leutzsch - roundhouse with two stalls, now abandoned, neither turnout nor turntable traces visible (switch to satellite modus): https://www.google.de/ma...12%C2%B018'40.6%22E/@51.3558273,12.3117815,83m/data=!3m1!1e3!4m5!3m4!1s0x0:0x0!8m2!3d51.3557639!4d12.3112889 Zinnowitz - roundhouse with two stalls without turntable, still in use (switch to satellite modus): https://www.google.de/ma...7454+Zinnowitz,+Germany/@54.0767037,13.8989639,532m/data=!3m2!1e3!4b1!4m5!3m4!1s0x47ab02237d9b2d03:0x5d984b20e25755f6!8m2!3d54.0767037!4d13.9011526 Greifswald: Already in the 1960s, the roundhouse was reduced to three stalls, and the turntable was removed. Two stalls kept connected to the central station via turnouts (the third stall entrance was bricked up). Last structures torn down at the beginning of the second millennium. Source: https://www.tt-board.de/...heibe.28915/#post-473682 |
|
5 users liked this useful post by Alsterstreek
|
|
|
|
 Joined: 01/02/2004(UTC) Posts: 7,454 Location: Scotland
|
Some roundhouses are not good with C track going through the doors. However you can take away part of the C track ballast and it is OK. |
Take care I like Marklin and will defend the worlds greatest model rail manufacturer. |
1 user liked this useful post by David Dewar
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
 What does the German 1908 "Handbuch des Eisenbahnwesens" [= Railway Hancbook], pg. 152 f. state? "1. Locomotive roundhouse with turnout connection (figure 15). They are rare and are no longer being built at present." Source: https://books.google.pt/...enverbindung&f=false |
|
4 users liked this useful post by Alsterstreek
|
|
|
|
Joined: 05/12/2008(UTC) Posts: 1,802 Location: Crozet, Virginia
|
Originally Posted by: David Dewar  Some roundhouses are not good with C track going through the doors. However you can take away part of the C track ballast and it is OK. But the Märklin roundhouses are fine, correct? I don't have either a roundhouse or a turntable yet butI might buy my first 3-segment roundhouse kit soon. |
Regards,
Jim
I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains!
So many trains and so little time. |
1 user liked this useful post by dickinsonj
|
|
|
|
Joined: 01/06/2016(UTC)
Posts: 2,465
|
Originally Posted by: LA2019 I'm thinking if adding a Kibri 39452 three bay roundhouse but without using a turntable for space reasons. I know it's probably not prototypical but I think I can use a C-track three way turnout to drive the loco's straight into the roundhouse. I've mocked up a what I'm thinking about with cardboard and some "paper" C track. Is there any reason I should not do this? Will there be any problems that I'm not seeing? Any comments or ideas will be greatly appreciated! ken Are this still a roundhouse? I think it is more a 3 lane train shelter. I miss the roundness  .
|
|
|
|
|
|
Joined: 18/11/2012(UTC) Posts: 353
|
Originally Posted by: TEEWolf Originally Posted by: LA2019 Are this still a roundhouse? I think it is more a 3 lane train shelter. I miss the roundness . This is the kit I'm looking at. It may not be much of a roundhouse but it will do!  |
Ken
USofA |
3 users liked this useful post by LA2019
|
|
|
|
Joined: 01/06/2016(UTC)
Posts: 2,465
|
Of course it does. You are the English native speaker and my question to you, does it look like a ring in English? For myself, more of interest is this house designed and constructed after the rail yard of Ottbergen. But that one is larger. Ottbergen is a small town between Kassel, Bielefeld, Hannover - oh or easier: quite near to Modellbahnshop Lippe (MSL) in Detmold. https://www.google.de/ma...rgen,+37671+H%C3%B6xter/@51.7282548,9.246917,8.93z/data=!4m5!3m4!1s0x47bae3314f6508d5:0xa27f283d29fb160!8m2!3d51.7099452!4d9.3053818 https://de.wikipedia.org/wiki/ModellbundesbahnAnd their website https://www.modellbundesbahn.de/englischThis yard is rebuilt as a MRR and plenty of videos you find at You Tube, like this one At about 18:21 in this video you see their roundhouse. Have fun.
|
2 users liked this useful post by TEEWolf
|
|
|
|
 Joined: 02/01/2012(UTC) Posts: 244 Location: Stockholm, Sweden
|
According to a Google check the angle is supposed to be 15 degrees. You have only about 12. On my first layout I had the Marklin version of the roundhouse (also 15 degrees). After the 24630 I used a 24x15 followed by a 24206. You need to get the angle and distance correct to get thru the doors. To get the correct distance I can't remember if I used 24115 or 24215. Anyway, strange S-curves.  Added: If the floor of your roundhouse is flat (Marklin's is not) the angel is max 15 degrees. Less is OK. Edited by user 21 June 2019 10:21:13(UTC)
| Reason: Not specified |
OneGauge Marklin and MTH, ESU ECoS 2.1 on LGB tracks. MTH 3-rail 0-gauge, DCS on GarGraves tracks. Z: Rokuhan tracks, analog or DCC+TC Gold. |
4 users liked this useful post by blid
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
On the occasion (abeit served by a roundtable), there is a three-bay roundhouse in Westerland/Sylt. At least since the end of the 1960s/beginning of the 1970s it has been like this. And looking at the map, there was never space for more than six bays. Furthermore, the status of the outer wall suggests that the roundhouse had only three bays from the onset.  Source: Google Maps A 1972 b/w photograph can be found here (see post #18): http://www.bundesbahnzeit.de/seite.php?id=463 |
|
5 users liked this useful post by Alsterstreek
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
|
|
2 users liked this useful post by Alsterstreek
|
|
|
|
 Joined: 23/07/2014(UTC) Posts: 8,475 Location: ENGLAND, Didcot
|
Originally Posted by: Alsterstreek On the occasion (abeit served by a roundtable), there is a three-bay roundhouse in Westerland/Sylt. At least since the end of the 1960s/beginning of the 1970s it has been like this. And looking at the map, there was never space for more than six bays. Furthermore, the status of the outer wall suggests that the roundhouse had only three bays from the onset. Source: Google Maps A 1972 b/w photograph can be found here (see post #18): http://www.bundesbahnzeit.de/seite.php?id=463 There is actually four tracks going into the roundhouse, which matches the photo in the link you provided.
|
5 users liked this useful post by kiwiAlan
|
|
|
|
Joined: 18/11/2012(UTC) Posts: 353
|
I picked up a three-way switch and did a mock up with the roundhouse and all seems to be working fine. There is a slight curve to the track in the roundhouse but I'm OK with the way it looks. I did not have power to the tracks so I ran some passenger cars into the roundhouse with no problems. So far, so good.....   |
Ken
USofA |
17 users liked this useful post by LA2019
|
ixldoc, kimballthurlow, Andy McDowell, Crazy Harry, boitpo, Alsterstreek, dickinsonj, RayF, steventrain, petestra, Jimmy Thompson, Legless, dominator, Bogenschütze, Janne75, Bosse, einotuominen
|
|
|
Joined: 07/01/2015(UTC) Posts: 729 Location: England, Suffolk
|
so, item 9452 doesn't come up o Kibri's website. I can't find it anywhere. where can I find info for this item ? Thank you
|
|
|
|
|
|
Joined: 23/07/2014(UTC) Posts: 8,475 Location: ENGLAND, Didcot
|
Originally Posted by: ocram63_uk so, item 9452 doesn't come up o Kibri's website. I can't find it anywhere. where can I find info for this item ? Thank you That is because Kibri are now owned by Viessmann. They have added another digit in front of the Kibri catalogue number to distinguish the Kibri component line within their catalogue. See this link for the updated number.
|
2 users liked this useful post by kiwiAlan
|
|
|
|
Joined: 07/01/2015(UTC) Posts: 729 Location: England, Suffolk
|
Thank you very much. I have missed your reply :-(
|
|
|
|
|
|
 Joined: 16/04/2014(UTC) Posts: 775 Location: Bangalore, India
|
Originally Posted by: LA2019 Ken, could you post the track pieces with which you achieved this? I have a three way turnout and intend to do this as well
|
1 user liked this useful post by madhu.gn.71
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
Originally Posted by: madhu.gn.71 Ken, could you post the track pieces with which you achieved this? I have a three way turnout and intend to do this as well According to post no. 1 Ken foresaw 24912 curves. And on the most recent photos it looks like he really employed them on the outer tracks. |
|
1 user liked this useful post by Alsterstreek
|
|
|
|
 Joined: 23/03/2012(UTC) Posts: 2,550 Location: Finland
|
Hi all,
I have on my layout also a 3-way turnout with three-bay roundhouse. It works very well. Instead of using 24912 curved tracks as the outer rails I have straight tracks in the roundhouse and just short curved track pieces closest to that 3-way turnouts outer tracks. I can not remember what track piece these curved tracks are as they are permanently installed. But I did this installation around ten years ago and used the tracks Märklin recommended from C-track with this setup. I use Märklin three-bay roundhouse.
Cheers,
Janne |
Märklin H0 digital layout. I have analog and digital H0 Collection. Rolling stock mostly from era I, II, III and IV. Märklin 1 gauge beginner. |
2 users liked this useful post by Janne75
|
|
|
|
Joined: 16/04/2014(UTC) Posts: 775 Location: Bangalore, India
|
Originally Posted by: Alsterstreek
According to post no. 1 Ken foresaw 24912 curves. And on the most recent photos it looks like he really employed them on the outer tracks.
Ak, since I don't have 24912, are there any other track combinations, which you can think of would let me achieve the same?
|
1 user liked this useful post by madhu.gn.71
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
In line with my slogan “never without my Maerklin 24206”: yes. :o) A German Maerklinista and owner of a Kibri “Ottbergen” three-stall roundhouse reported in a German forum that he uses the C track three way turnout and two 24206 C track pieces, one on each of the two outer tracks (and adjacent to the curved turnout “stubs”), respectively, to attain the correct angle(s). Source: https://www.h0-modellbah...t-Weichen-befahrbar.html |
|
3 users liked this useful post by Alsterstreek
|
|
|
|
Joined: 16/04/2014(UTC) Posts: 775 Location: Bangalore, India
|
Oh yes! 24206. I do remember your famous line on 24206 that made me buy a box couple of years back. Let me explore this option. I'm not able to view the images in the above blog as they demand login I guess.
Regards,
Madhu
|
2 users liked this useful post by madhu.gn.71
|
|
|
|
Joined: 18/11/2012(UTC) Posts: 353
|
Originally Posted by: madhu.gn.71 Originally Posted by: LA2019
Ken, could you post the track pieces with which you achieved this? I have a three way turnout and intend to do this as well
Madhu, the outer tracks are 24912 + 24094 while the inner is 24188 + 24172. The three final tracks inside the roundhouse were trimmed to size with my Dremel tool. |
Ken
USofA |
3 users liked this useful post by LA2019
|
|
|
|
Joined: 16/04/2014(UTC) Posts: 775 Location: Bangalore, India
|
After two years of discussing here, I build my setup. Even though this setup works perfectly fine, there is one glitch. One of the doors of the left\right bay brushes the C track bed. Two simple solutions to this, grind the surface of the track (which I plan to do) or file the bottom surface of the door. With the second approach there is a slight fear of messing up the symmetry of the doors. Here is the setup. In the below pic you can spot the engine shed that I scratch built, that is almost to scale :)
|
8 users liked this useful post by madhu.gn.71
|
|
|
|
 Joined: 29/01/2012(UTC) Posts: 1,422 Location: Montreal, Canada
|
Originally Posted by: LA2019 Originally Posted by: madhu.gn.71 Originally Posted by: LA2019
Ken, could you post the track pieces with which you achieved this? I have a three way turnout and intend to do this as well
Madhu, the outer tracks are 24912 + 24094 while the inner is 24188 + 24172. The three final tracks inside the roundhouse were trimmed to size with my Dremel tool. So it looks like you have the 3-bay roundhouse well in hand. Nice work on the adjustments. I was going to offer you my old Vollmer 3-bay house with a C-triple if needed. And I have an old m-track turntable to offer since I have decided on something quite different for my upcoming layout. If there is anyone else in need of these items, just make an offer. Anything will be considered if you are willing to pay the postage from Canada. The house is assembled, of course. My dad built it for us in the around 1970 and doors still appear to function quite well last i looked. I loved how they closed with just a nudge of the loco. - Mark |
DB DR FS NS SNCF c. 1950-65, fan of station architecture esp. from 1920-70.
In single point perspective, where do track lines meet?
|
2 users liked this useful post by Mark5
|
|
|
|
Joined: 16/04/2014(UTC) Posts: 775 Location: Bangalore, India
|
@Mark5, could you post a listing under "I want to sell.." section with details like price and pictures? Please ignore if already done\known.
|
|
|
|
|
|
Joined: 16/11/2011(UTC) Posts: 5,845 Location: Hybrid Home
|
Prototype example: I just found a three-bay roundhouse next to the "Lübeck Travemünde Hafen" train station.  It even has a street address due to a car tyre shop residing there: Mühlenberg 2a, 23570 Lübeck  Google Maps view:  Edited by user 19 February 2024 14:49:27(UTC)
| Reason: Photo fixed |
|
6 users liked this useful post by Alsterstreek
|
|
|
|
