Offline steventrain
#1 Posted : 08 October 2018 20:14:57(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 32,846
30470.001 DB BR44 reproduction (from the 30470-01) mfx and now have sounds for first time on reproduction loco.

Very Limited to 300 pieces - 379.99 EUR each. Due NOV/DEC.

Note - Marklin asking about the 30470.001 mfx/sounds. You'll get this loco if you take place in a special workshop at Maerklin in Göppingen where they upgrade the 30470-01 with a new motor and a sound decoder.

Edited by user 11 October 2018 14:29:34(UTC)  | Reason: Not specified

Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
thanks 4 users liked this useful post by steventrain
Offline Bigdaddynz
#2 Posted : 08 October 2018 23:48:27(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 17,287
Location: New Zealand
I could put a mSD3 decoder into my 30470.1 and then there would be 301 pieces......
thanks 1 user liked this useful post by Bigdaddynz
Offline TEEWolf
#3 Posted : 09 October 2018 00:44:41(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,412
Originally Posted by: Bigdaddynz Go to Quoted Post
I could put a mSD3 decoder into my 30470.1 and then there would be 301 pieces......


Probably even 301,5 pieces.BigGrin, because of the mSD3 decoder. I just read that eg in the Insider 103 long (39170) has ex factory a mSD3 decoder on board. But it is a castrated one. It shall not be possible to change something in the sound. Whereas at a retrofitted mSD3 the sound can be changed.
thanks 2 users liked this useful post by TEEWolf
Offline steventrain
#4 Posted : 11 October 2018 11:17:27(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 32,846
Marklin asking about the 30470.001 mfx/sounds. You'll get this loco if you take place in a special workshop at Maerklin in Göppingen where they upgrade the 30470-01 with a new motor and a sound decoder.
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
Offline Armando
#5 Posted : 27 February 2020 15:01:50(UTC)
Armando

United States
Joined: 21/07/2003(UTC)
Posts: 1,329
Location: Houston, Texas
Has anyone experienced any issues with these two locomotives in the 30470 set when they run over the C-track wide-angled turnouts 24711 or 24712?
They seem to cause short-circuit as they run over them.
Best regards,
Armando García

Offline jvuye
#6 Posted : 27 February 2020 18:22:08(UTC)
jvuye

Belgium
Joined: 01/03/2008(UTC)
Posts: 2,838
Location: South Western France
Originally Posted by: Armando Go to Quoted Post
Has anyone experienced any issues with these two locomotives in the 30470 set when they run over the C-track wide-angled turnouts 24711 or 24712?
They seem to cause short-circuit as they run over them.


Hi Armando.
It could happen because of the short twin pick up shoe. I have had this trouble!
Check where the short happens.
I also had trouble with flanges touching pukos.
Check wheels' spacing, inner dimension should be 13.8mm.
Usually if you can find the "offending" puko, a very short piece of shrink tubing around it will take care of it, leaving only the tip exposed.
Good hunting. 😂
Jacques Vuye aka Dr.Eisenbahn
Once a vandal, learned to be better and had great success!
thanks 5 users liked this useful post by jvuye
Offline Armando
#7 Posted : 28 February 2020 04:41:41(UTC)
Armando

United States
Joined: 21/07/2003(UTC)
Posts: 1,329
Location: Houston, Texas
Originally Posted by: jvuye Go to Quoted Post
Originally Posted by: Armando Go to Quoted Post
Has anyone experienced any issues with these two locomotives in the 30470 set when they run over the C-track wide-angled turnouts 24711 or 24712?
They seem to cause short-circuit as they run over them.


Hi Armando.
It could happen because of the short twin pick up shoe. I have had this trouble!
Check where the short happens.
I also had trouble with flanges touching pukos.
Check wheels' spacing, inner dimension should be 13.8mm.
Usually if you can find the "offending" puko, a very short piece of shrink tubing around it will take care of it, leaving only the tip exposed.
Good hunting. 😂


Jacques,

Thank you for directing my attention to the possibility of the wheel flanges making contact with the pukos on the C-track wide-angled turnouts!
It was exactly that! There are at least two "culprit" pukos. Once wrapped with the shrink tubing, the problems was solved.

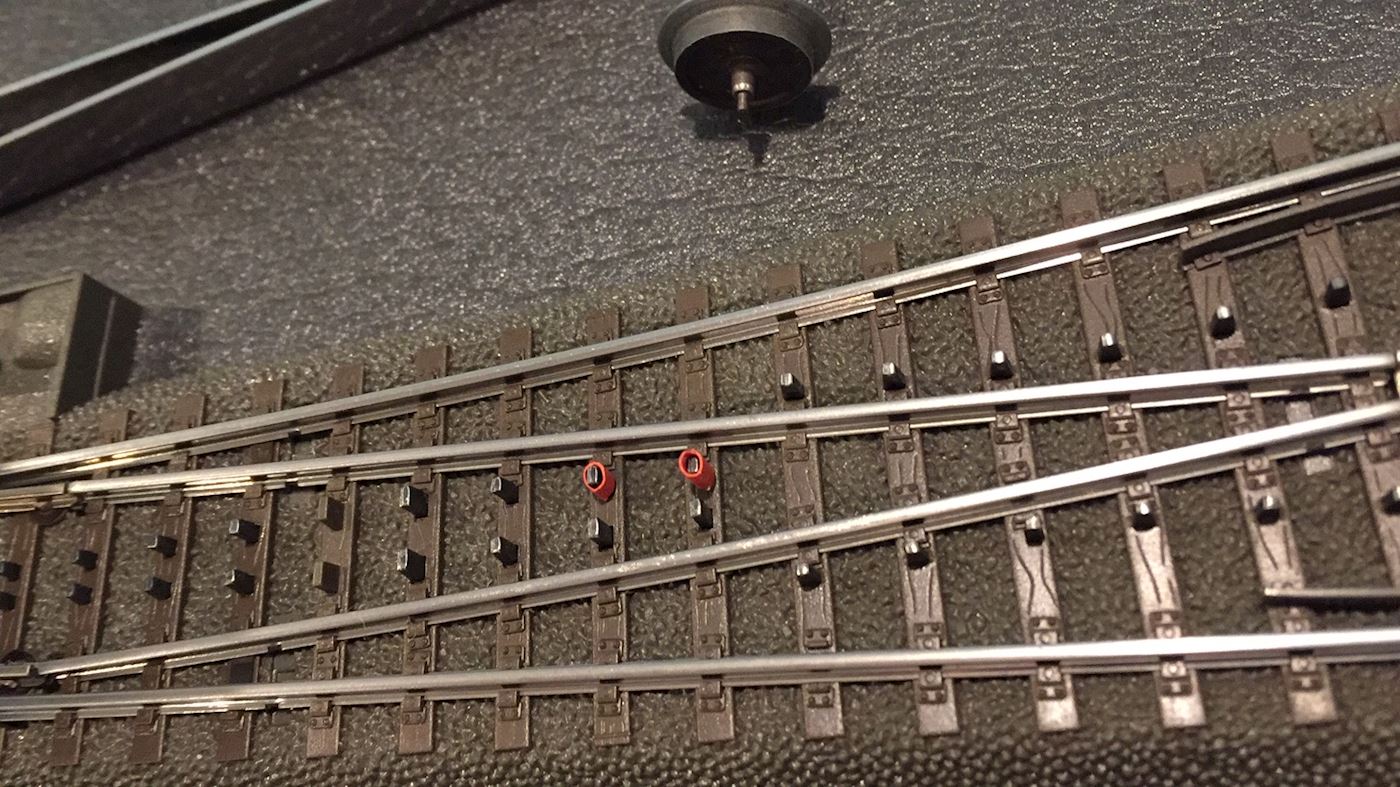

I'm attaching a photo opukos.jpegf the problematic pukos.
Best regards,
Armando García

thanks 1 user liked this useful post by Armando
