mb300e4m		#1 Posted : 25 November 2025 22:31:28(UTC) Retweet

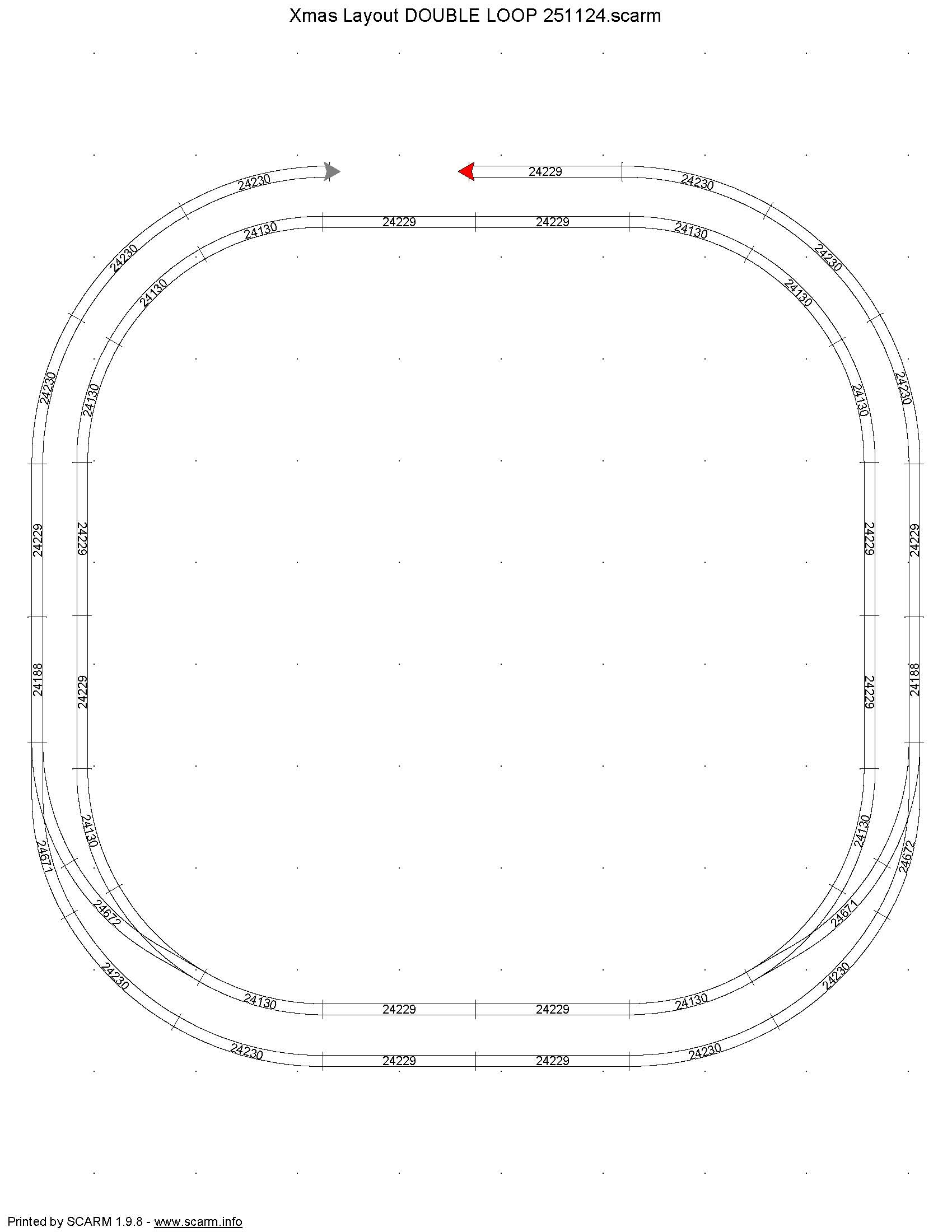

Joined: 07/06/2013(UTC) Posts: 444 Location: Florida		Hello all, I am assembling a small C Track layout for Christmas so that I can show off some of my new goodies to visitors. I am using SCARM for the design and find there is a gap in the track in one area. It may be a shortcoming with SCARM or it actually may be so when I lay the track. Anyone have any opinions on this? Thanks in advance, Peter B. in sunny Florida. [img]http://[/img] Edited by user 26 November 2025 14:39:09(UTC) \| Reason: Not specified
		Peter B. In Sunny Florida most of the time. Marklin, Trix Express, Trix Twin, Fleischmann, Liliput, Hornby Dublo, and Others, 2 & 3 Rail, AC, DC and Digital, Course Scale Wheels & Fine, 1935 to 1960s usually.

1 user liked this useful post by mb300e4m		marklinist5999
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

marklinist5999		#2 Posted : 26 November 2025 00:05:57(UTC) Retweet
Joined: 10/02/2021(UTC) Posts: 4,077 Location: Michigan, Troy		Assemble it and see if it joins up. Use the length of c track that works.


User Profile View All Posts by User View Thanks

EB421		#3 Posted : 26 November 2025 01:30:36(UTC) Retweet

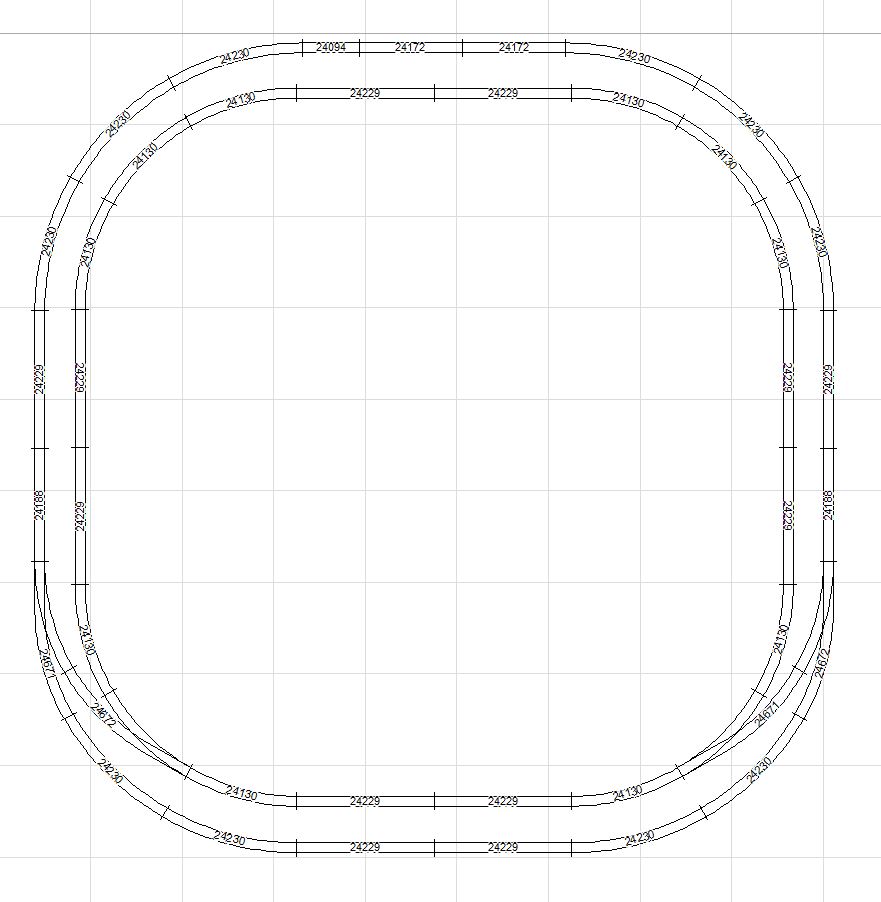

Joined: 10/04/2025(UTC) Posts: 49 Location: UK		Try this approach for your crossovers: As you can see from the added crossover at the top (only there to make the point) this lines up properly with C-Track geometry and has simple 229's on all sides.

1 user liked this useful post by EB421		marklinist5999
User Profile View All Posts by User View Thanks

mike c		#4 Posted : 26 November 2025 05:59:36(UTC) Retweet

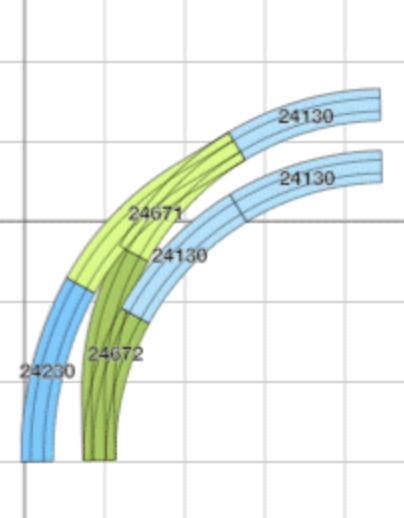

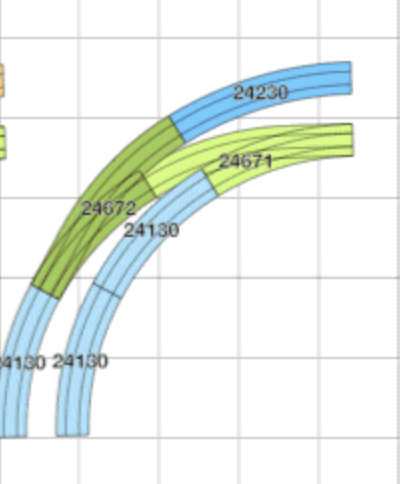

Joined: 28/11/2007(UTC) Posts: 8,327 Location: Montreal, QC		To resolve your issue, the curve with the curved switch should be aligned as follows (rotate second photo 90 degrees to the right to correspond): Once done this way, the tracks on the opposing side should properly line up with the outer track using R2 and the inner one using R1 tracks By correctly using the 24230 and 24130 as indicated, the tracks should maintain the separation required for R1 and R2 and the spacing at the top and bottom should be identical. Regards Mike C

1 user liked this useful post by mike c		marklinist5999
User Profile View All Posts by User View Thanks

Copenhagen		#5 Posted : 26 November 2025 13:54:28(UTC) Retweet
Joined: 23/04/2019(UTC) Posts: 536 Location: Copenhagen, Denmark		I haven't opened up my PC and Scarm but another way could be experimenting and fiddling with what smaller C track straight pieces, which there are several of, could fill the gap.. maybe even omitting the top 229 in favour of another piece. Even if the end result will show a small gap or be too big there will be enough flexibility to make it fit.

1 user liked this useful post by Copenhagen		marklinist5999
User Profile View All Posts by User View Thanks

mb300e4m		#6 Posted : 28 November 2025 23:19:53(UTC) Retweet
Joined: 07/06/2013(UTC) Posts: 444 Location: Florida		Originally Posted by: Copenhagen I haven't opened up my PC and Scarm but another way could be experimenting and fiddling with what smaller C track straight pieces, which there are several of, could fill the gap.. maybe even omitting the top 229 in favour of another piece. Even if the end result will show a small gap or be too big there will be enough flexibility to make it fit. I tried a number of different straights and found ones that would fit, but to complete the layout i.a.w. the diagram I'll need to buy a few more pieces. So eBay here I come again. Peter B. in Sunny Florida.
		Peter B. In Sunny Florida most of the time. Marklin, Trix Express, Trix Twin, Fleischmann, Liliput, Hornby Dublo, and Others, 2 & 3 Rail, AC, DC and Digital, Course Scale Wheels & Fine, 1935 to 1960s usually.


User Profile View All Posts by User View Thanks
