philippe99		#1 Posted : 09 August 2025 17:55:09(UTC) Retweet

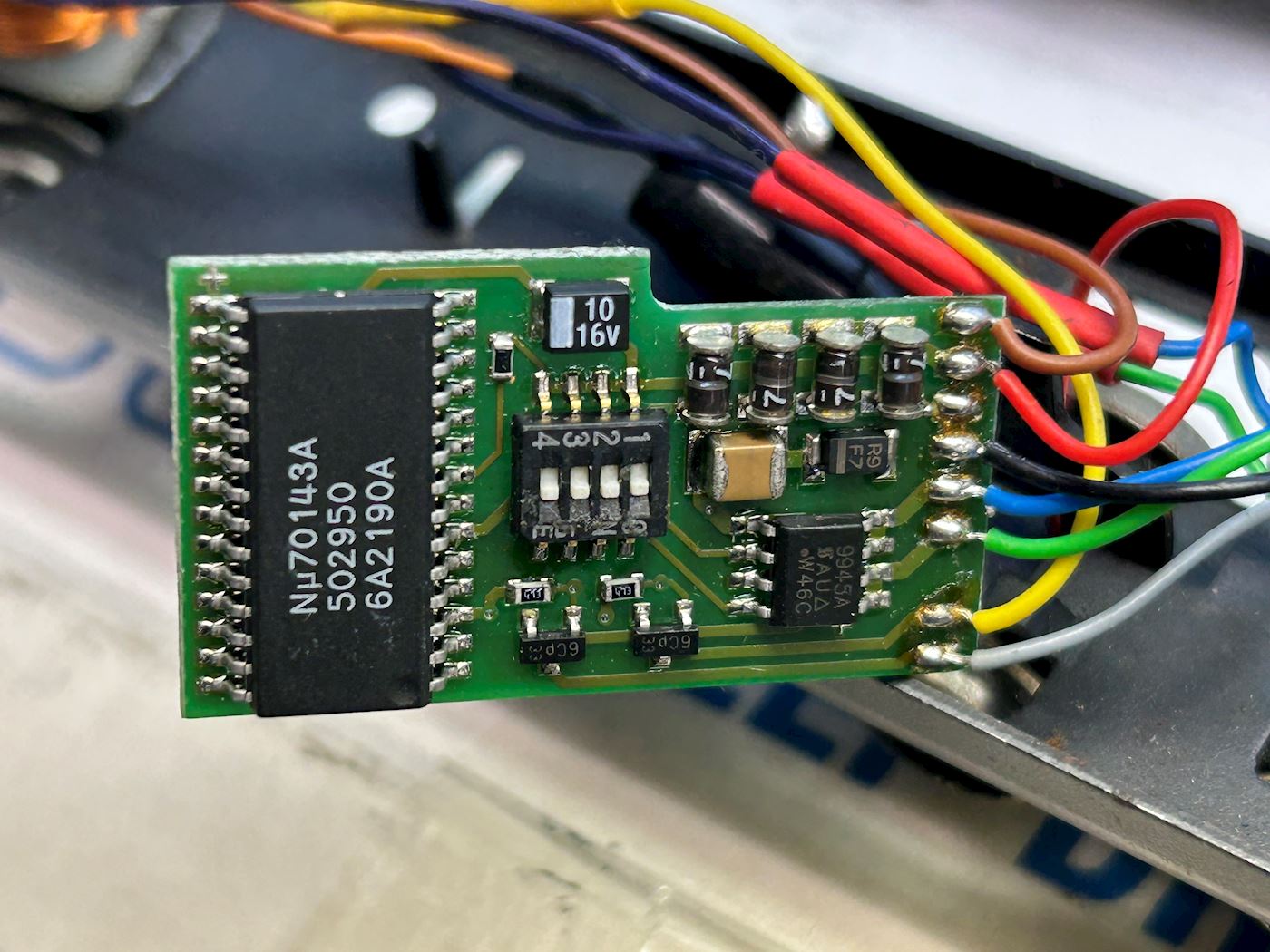

Joined: 09/02/2025(UTC) Posts: 21 Location: Liege		Hello I bought a used 3075. Contrary to the ad, the machine was in poor condition (a missing bogie, etc.).. but I have parts to repair. When I opened the machine, I saw that it had been digitized. I wondered... To switch it from digital to analog, isn't it enough to set all the switches to zero? There are four switches: two are already set to zero, and the other two are set to 1 (the positions range from 0 to 2). Of course, there is no documentation. NB: I don't have any other photo besides this one... which I used for the dispute... as the machine is being shipped back to me (the seller refused to take it back). Thx Phil

1 user liked this useful post by philippe99		marklinist5999
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

cintrans		#2 Posted : 09 August 2025 19:56:55(UTC) Retweet
Joined: 11/07/2018(UTC) Posts: 228 Location: Aruba (general), Oranjestad		Phil That lok is a #3021 (V200), not a #3075 (BR216) It has what seems to be a Delta decoder Yes, switching all the switches to 0 will make it drive in analog mode Best regards Jean-Pierre

1 user liked this useful post by cintrans		marklinist5999
User Profile View All Posts by User View Thanks

philippe99		#3 Posted : 09 August 2025 21:28:32(UTC) Retweet
Joined: 09/02/2025(UTC) Posts: 21 Location: Liege		Originally Posted by: cintrans Phil That lok is a #3021 (V200), not a #3075 (BR216) It has what seems to be a Delta decoder Yes, switching all the switches to 0 will make it drive in analog mode Best regards Jean-Pierre Yes, you're right is a V200. I always make a mistake with my BR216 I also own. Tx. will lower all the switches to enable analog Phi


User Profile View All Posts by User View Thanks

kiwiAlan		#4 Posted : 09 August 2025 23:53:28(UTC) Retweet
Joined: 23/07/2014(UTC) Posts: 8,528 Location: ENGLAND, Didcot		Originally Posted by: philippe99 Originally Posted by: cintrans Phil That lok is a #3021 (V200), not a #3075 (BR216) It has what seems to be a Delta decoder Yes, switching all the switches to 0 will make it drive in analog mode Best regards Jean-Pierre Yes, you're right is a V200. I always make a mistake with my BR216 I also own. Tx. will lower all the switches to enable analog Phi As the decoder has only four switches it is an early Delta decoder - not the earliest version which had solder jumpers to set the address, but the next generation that came out after Marklin decided not to use the automatic analogue mode sensing that they were in dispute with the patent holders.
