SamGreen		#1 Posted : 03 February 2024 20:36:36(UTC) Retweet
Joined: 02/12/2014(UTC) Posts: 3 Location: On the ocean		Is there an extension cable for the 60657 Mobile Station? I've tried the 60126 but it doesn't work.


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

kiwiAlan		#2 Posted : 03 February 2024 22:17:30(UTC) Retweet
Joined: 23/07/2014(UTC) Posts: 8,109 Location: ENGLAND, Didcot		Originally Posted by: SamGreen Is there an extension cable for the 60657 Mobile Station? I've tried the 60126 but it doesn't work. There is no extension cable for the 10 pin connector used on the mobile stations. However if you get the 60124 adapter cable then you can plug the mobile station into the 60126 cable and then that will plug into a cs2 or cs3. There is no extension cable that can be used to extend an ms from a track box.


User Profile View All Posts by User View Thanks

H0		#3 Posted : 05 February 2024 10:40:19(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,267 Location: DE-NW		Originally Posted by: SamGreen Is there an extension cable for the 60657 Mobile Station? I've tried the 60126 but it doesn't work. We had reports that the 60126 cable works when you use enough force to plug it in. Note that the MS2 plug has 10 pins while 60126 only has 9 pins. There may be one or two bent pins in that case, but they are not used. 60124 is an adapter from 10 pins to 7 pins and will not help here. When using a Central Station 2 or 3, you can use one or more 60126, one 60125/60145 and one 60124 to extend the cable to the MS2.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS

1 user liked this useful post by H0		marklinist5999
User Profile View All Posts by User View Thanks

TrainIride		#4 Posted : 05 February 2024 16:20:01(UTC) Retweet

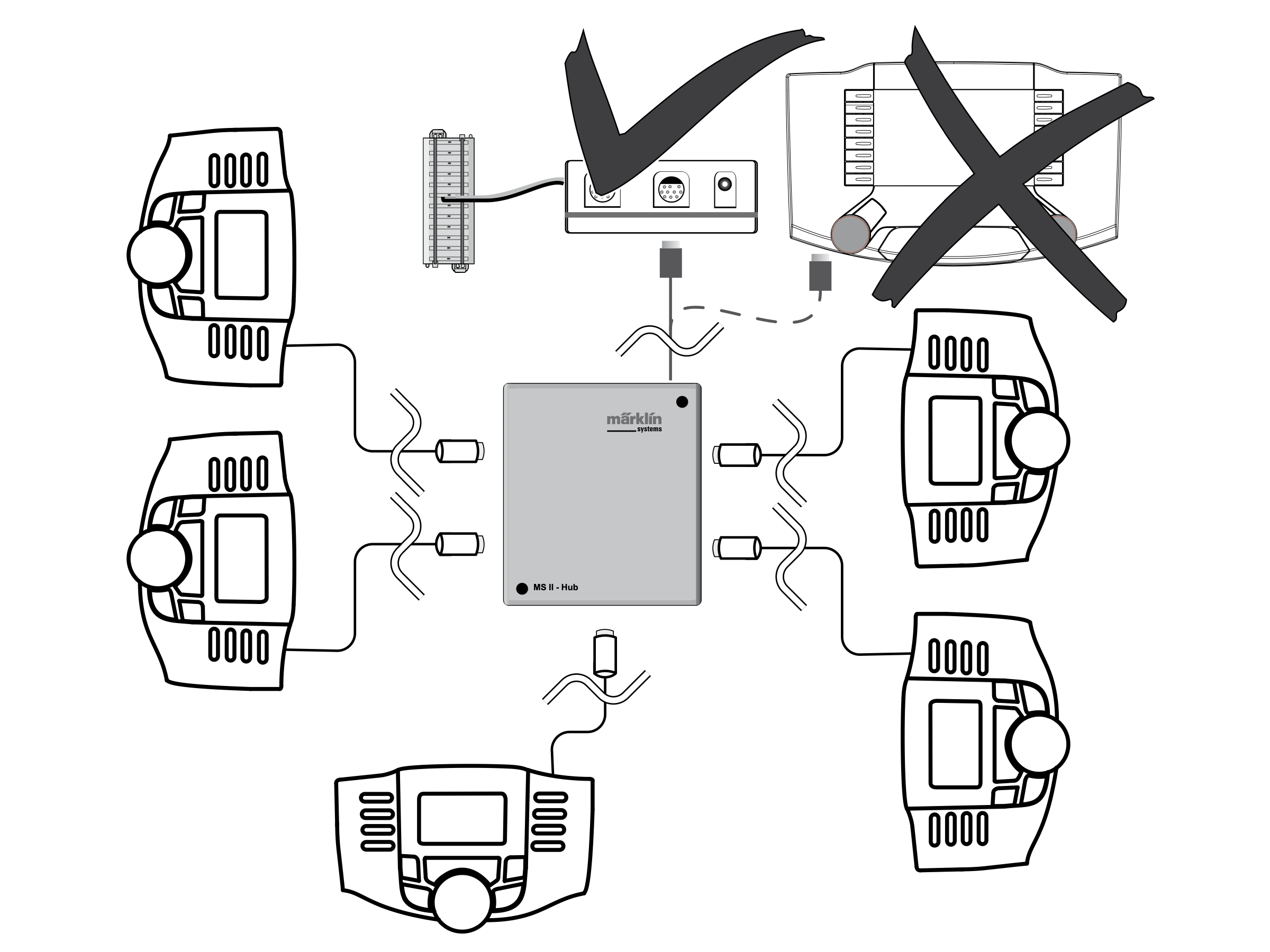

Joined: 23/10/2010(UTC) Posts: 1,917 Location: FRANCE		Hi, There was a hub for Mobile Station 2 Called MS II Hub (60122) used to connect more than two MS2 to the digital box. As it is a box with a cable, it could be used as a cable extension. I do not know the cable length, and it seems to not be produced anymore, but certainly available in shops. Hope this helps Best Regards Joël
		Marklin HO - M track & C track - Analog mode - https://www.marklin-users.net/TrainIride - my channel : https://www.youtube.com/user/2mes2mains
		WWW
2 users liked this useful post by TrainIride		marklinist5999, Pasquiles
User Profile View All Posts by User View Thanks

mvd71		#5 Posted : 05 February 2024 18:01:21(UTC) Retweet
Joined: 09/08/2008(UTC) Posts: 1,729 Location: Auckland,		What I would like is a source for the plugs and sockets. Then I could make my own extensions to the length I want


User Profile View All Posts by User View Thanks

bph		#6 Posted : 05 February 2024 22:48:45(UTC) Retweet
Joined: 04/08/2018(UTC) Posts: 996		CAN digital Bahn, used to make some: http://www.can-digital-bahn.com/modul.php?system=sys7&modul=48#Mod_Top you might be able to find a dealer with some left in stock.


User Profile View All Posts by User View Thanks

mvd71		#7 Posted : 06 February 2024 07:27:32(UTC) Retweet
Joined: 09/08/2008(UTC) Posts: 1,729 Location: Auckland,		Originally Posted by: bph CAN digital Bahn, used to make some: http://www.can-digital-bahn.com/modul.php?system=sys7&modul=48#Mod_Top you might be able to find a dealer with some left in stock. Thanks, I will look into that


User Profile View All Posts by User View Thanks
