Can I use mobile station 1's with a CS3?

Welcome Guest! To enable all features please Login or Register.

Notification

Error

Can I use mobile station 1's with a CS3?

Options

View

Previous Topic Next Topic

Allan2805		#1 Posted : 08 January 2023 01:26:43(UTC) Retweet
Joined: 11/03/2018(UTC) Posts: 7 Location: Canterbury, Christchurch		Hi, I have been operating with just my two mobile stations, the original versions, higher amped ones for Gauge 1. But with more digital functions on locos, the existing 60VA transformer powering them does not have enough grunt and overload cutouts occur. So I intend to get a CS3. Will my MS1's work with the CS3 - or do I have to get MS2's as well? Thanks in advance.


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

kiwiAlan		#2 Posted : 08 January 2023 01:31:07(UTC) Retweet
Joined: 23/07/2014(UTC) Posts: 8,109 Location: ENGLAND, Didcot		Originally Posted by: Allan2805 Hi, I have been operating with just my two mobile stations, the original versions, higher amped ones for Gauge 1. But with more digital functions on locos, the existing 60VA transformer powering them does not have enough grunt and overload cutouts occur. So I intend to get a CS3. Will my MS1's work with the CS3 - or do I have to get MS2's as well? Thanks in advance. The question has been asked before, and someone experimented, and the answer was yes they do work. I don't have a link to the thread at the moment, but I do remember BigDaddy doing the experiment and reporting that they do work.

1 user liked this useful post by kiwiAlan		Allan2805
User Profile View All Posts by User View Thanks

JohnjeanB		#3 Posted : 08 January 2023 01:45:52(UTC) Retweet

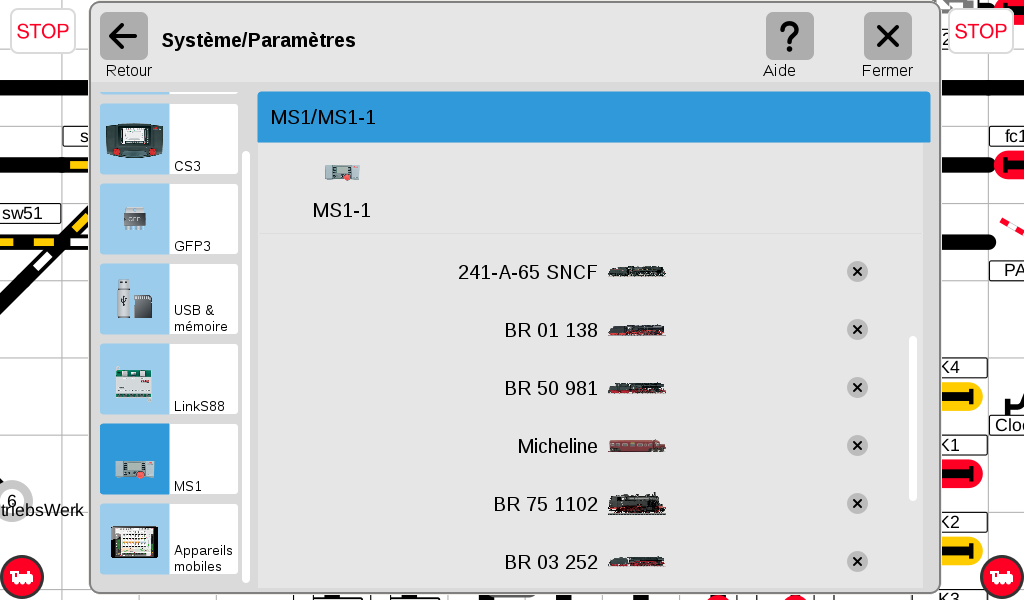

Joined: 04/02/2011(UTC) Posts: 3,130 Location: Paris, France		Hi Allan Yes the MS1 works very fine with a CS3 (my case) with the following: - plugs directly in one of the 2 front sockets or to extensions using a Terminal (Märklin 60125) to be checked as I don't have a hub) - stores only 10 of your locos. Those 10 locos are designated by the CS3 using the MS1 command As you know, the MS1 is much simplified compared with MS2 (no control of points and signals, no CV editing, etc) but to use as a local command away from the CS3 it is good. Note: be extra carefull when plugging as the pins break easily. Cheers Jean Edited by user 08 January 2023 11:58:37(UTC) \| Reason: Correction: Hub 60122 is replaced with Terminal 60125 (line 3)
		My layout videos latest vid marshalling yard My Layout

2 users liked this useful post by JohnjeanB		rbonet, Allan2805
User Profile View All Posts by User View Thanks

Bigdaddynz		#4 Posted : 08 January 2023 03:55:36(UTC) Retweet
Joined: 17/09/2006(UTC) Posts: 18,665 Location: New Zealand		Originally Posted by: kiwiAlan The question has been asked before, and someone experimented, and the answer was yes they do work. I don't have a link to the thread at the moment, but I do remember BigDaddy doing the experiment and reporting that they do work. I think that was in the 'New Locomotives 2022' thread.
		WWW BLOG
1 user liked this useful post by Bigdaddynz		Allan2805
User Profile View All Posts by User View Thanks

Bigdaddynz		#5 Posted : 08 January 2023 04:19:29(UTC) Retweet
Joined: 17/09/2006(UTC) Posts: 18,665 Location: New Zealand		Originally Posted by: Bigdaddynz Originally Posted by: kiwiAlan The question has been asked before, and someone experimented, and the answer was yes they do work. I don't have a link to the thread at the moment, but I do remember BigDaddy doing the experiment and reporting that they do work. I think that was in the 'New Locomotives 2022' thread. Close...... It was actually the 2021 version of that thread. https://www.marklin-user...ses---2021-Edition/page4 Kimball asked the question - Posts #165 - #168
		WWW BLOG

User Profile View All Posts by User View Thanks

clapcott		#6 Posted : 08 January 2023 10:34:34(UTC) Retweet
Joined: 12/12/2005(UTC) Posts: 2,435 Location: Wellington, New_Zealand		Originally Posted by: JohnjeanB ... or to extensions using a hub (Märklin 60122) to be checked as I don't have a hub) NO !!
		Peter


User Profile View All Posts by User View Thanks

Bigdaddynz		#7 Posted : 08 January 2023 11:21:15(UTC) Retweet
Joined: 17/09/2006(UTC) Posts: 18,665 Location: New Zealand		Originally Posted by: clapcott NO !! NO as in No it won't or NO as in No you shouldn't?
		WWW BLOG

User Profile View All Posts by User View Thanks

JohnjeanB		#8 Posted : 08 January 2023 11:56:39(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,130 Location: Paris, France		Hi I stand corrected, the "Terminal" to be used is the 60125. The 60122 was a hub allowing to increase the number of MS2 (MS1 is not mentioned but the connector and pin layout is the same) on a track module (60112 or 60113 ) . Not in production anymore https://static.maerklin....0d0c3e62e31434541986.pdf But it seems to be out of production now. Jean
		My layout videos latest vid marshalling yard My Layout

2 users liked this useful post by JohnjeanB		Bigdaddynz, Allan2805
User Profile View All Posts by User View Thanks

bph		#9 Posted : 08 January 2023 12:56:54(UTC) Retweet
Joined: 04/08/2018(UTC) Posts: 996		take a look at the Overview system architecture Märklin Digital: (Systemarchitektur) Overview system architecture Märklin Digital https://www.maerklin.de/fileadmin/media/maerklin-digital/Downloads/Systemarchitektur_Gesamt%C3%BCbersicht.pdf from: https://www.maerklin.de/en/service/technical-information/maerklin-digital/book-for-returning/downloads or acording to Märklin use a 60145 and a 60124 (as described in the 60145 manual) (this is also shown in the cs3 digital book (1st edition)

1 user liked this useful post by bph		marklinist5999
User Profile View All Posts by User View Thanks

H0		#10 Posted : 09 January 2023 08:28:30(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,267 Location: DE-NW		Two Mobile Stations (MS1 or MS2) can be connected at the front, a third MS can be connected using the 60124 adapter cable, more can be connected using hubs - each hub can connect four MS, but each MS requires a 60124 adapter cable. Cable 60126 can be used between CS and hub to increase the cable length. Theoretically the bus can go up to 100 m, so a few 60126 can be used to achieve a greater distance.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS

1 user liked this useful post by H0		marklinist5999
User Profile View All Posts by User View Thanks
