7039/7041 signal automatic and manual usage HELP? - use7039 semaphore signal for automatic and manual operation same time?
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline ddcullen
#1 Posted : 03 November 2022 16:03:38(UTC)
Retweet
ddcullen

United States
Joined: 02/11/2022(UTC)
Posts: 2
Location: newport, RI
Confused
I have a medium complex analogue M-Track layout. trying to set up automatic locomotive control with 7039/7041 semaphore signals with 5146/5147 switch tracks - HOWEVER - i still want to use 7072 control boxes for manual override of the 7039/7041 when desired (ie. when i wish to be able to manually restore power to a prescribed dead-zone thrown by 5146/5147 when a train doesn't cross over the far 5146/5147 switching track to 'clear' it.)

- question: can the 7039/7041 be set up to use both the switching tracks AND control boxes simultaneously?

Thanks - David
Back to top

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline Martti Mäntylä
#2 Posted : 03 November 2022 21:06:45(UTC)
Retweet
Martti Mäntylä

Finland
Joined: 15/11/2018(UTC)
Posts: 398
Location: Uusimaa, Helsinki
I don't see any reason why this would not be possible. Just add branching wires from the red and green control wires to a switchbox, in addition to the wires going to the switch tracks. The semaphores do not care how they get the control signal, or whether there are multiple sources for it.
- Martti M.
Era III analog & digital (Rocrail, CAN Digital Bahn, Gleisbox/MS2, K83/K84), C & M tracks, some Spur 1
Back to top
Twitter
thanks 3 users liked this useful post by Martti Mäntylä
Offline owidgie
#3 Posted : 08 November 2022 02:46:17(UTC)
Retweet
owidgie

United States
Joined: 03/06/2007(UTC)
Posts: 150
I am trying to do the same thing, but the problem is that I can turn Signal #2 to green with a control box and it will also turn signal #1 red.

I need to control only a single signal with a control box position. Since I am using circuit tracks, any input from a control box activates the signal behind it.

I tried a 4001 diode with no luck. Am I over driving the diode with analog power?

Thanks

Rick
Back to top
Offline Michael4
#4 Posted : 08 November 2022 09:53:02(UTC)
Retweet
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 643
Location: England, South Coast
Have you considered using 7045 (the remote switch) to break the circuit to the signal you don't want to change?
Back to top
Offline hxmiesa
#5 Posted : 08 November 2022 14:23:03(UTC)
Retweet
hxmiesa

Spain
Joined: 15/12/2005(UTC)
Posts: 3,522
Location: Spain
Originally Posted by: owidgie Go to Quoted Post
I tried a 4001 diode with no luck. Am I over driving the diode with analog power?

No overdrive, but you need 2 diodes!
-One coming from the 7072 and the other from the track-contact. Both going to the signal.
That is per solenoid, so you would need 4 diodes, if you want to control both red AND green from both the 7072 AND 2 contact-tracks.
Best regards
Henrik Hoexbroe ("The Dane In Spain")
http://hoexbroe.tripod.com
Back to top
WWW
Offline BenP
#6 Posted : 08 November 2022 14:44:46(UTC)
Retweet
BenP

United States
Joined: 04/02/2021(UTC)
Posts: 344
Location: Michigan, Ann Arbor
Originally Posted by: ddcullen Go to Quoted Post
Confused
I have a medium complex analogue M-Track layout. trying to set up automatic locomotive control with 7039/7041 semaphore signals with 5146/5147 switch tracks - HOWEVER - i still want to use 7072 control boxes for manual override of the 7039/7041 when desired (ie. when i wish to be able to manually restore power to a prescribed dead-zone thrown by 5146/5147 when a train doesn't cross over the far 5146/5147 switching track to 'clear' it.)

- question: can the 7039/7041 be set up to use both the switching tracks AND control boxes simultaneously?

Thanks - David


Add a power feeder track to the blocked section that becomes live (interrupting red wire) when turning on using push-button switch (permanent type, like 7210 switch; not pulse type).
Later adddition: you should only use the switch for track power (red wire; can be 0V); not to share with accessories permanent power (yellow wire).


Edited by user 08 November 2022 23:39:31(UTC)  | Reason: Not specified

Digital M (+ some K) track layout with mostly vintage rolling stock and accessories, and small Z scale layout.
https://youtube.com/play...0kgVYbh0CeDTF-bYXoD_2-V9
Back to top
Offline ddcullen
#7 Posted : 08 November 2022 22:09:08(UTC)
Retweet
ddcullen

United States
Joined: 02/11/2022(UTC)
Posts: 2
Location: newport, RI
Originally Posted by: BenP Go to Quoted Post
Originally Posted by: ddcullen Go to Quoted Post
Confused
I have a medium complex analogue M-Track layout. trying to set up automatic locomotive control with 7039/7041 semaphore signals with 5146/5147 switch tracks - HOWEVER - i still want to use 7072 control boxes for manual override of the 7039/7041 when desired (ie. when i wish to be able to manually restore power to a prescribed dead-zone thrown by 5146/5147 when a train doesn't cross over the far 5146/5147 switching track to 'clear' it.)

- question: can the 7039/7041 be set up to use both the switching tracks AND control boxes simultaneously?

Thanks - David

Add a power feeder track to the blocked section that becomes live (interrupting red wire) when turning on using push-button switch (permanent type, like 7210 switch; not pulse type).


Ahhhhh…. I like this idea! Thx. Very slick! My layout…
Back to top
thanks 1 user liked this useful post by ddcullen
Offline owidgie
#8 Posted : 08 November 2022 22:50:42(UTC)
Retweet
owidgie

United States
Joined: 03/06/2007(UTC)
Posts: 150
Originally Posted by: hxmiesa Go to Quoted Post
Originally Posted by: owidgie Go to Quoted Post
I tried a 4001 diode with no luck. Am I over driving the diode with analog power?

No overdrive, but you need 2 diodes!
-One coming from the 7072 and the other from the track-contact. Both going to the signal.
That is per solenoid, so you would need 4 diodes, if you want to control both red AND green from both the 7072 AND 2 contact-tracks.

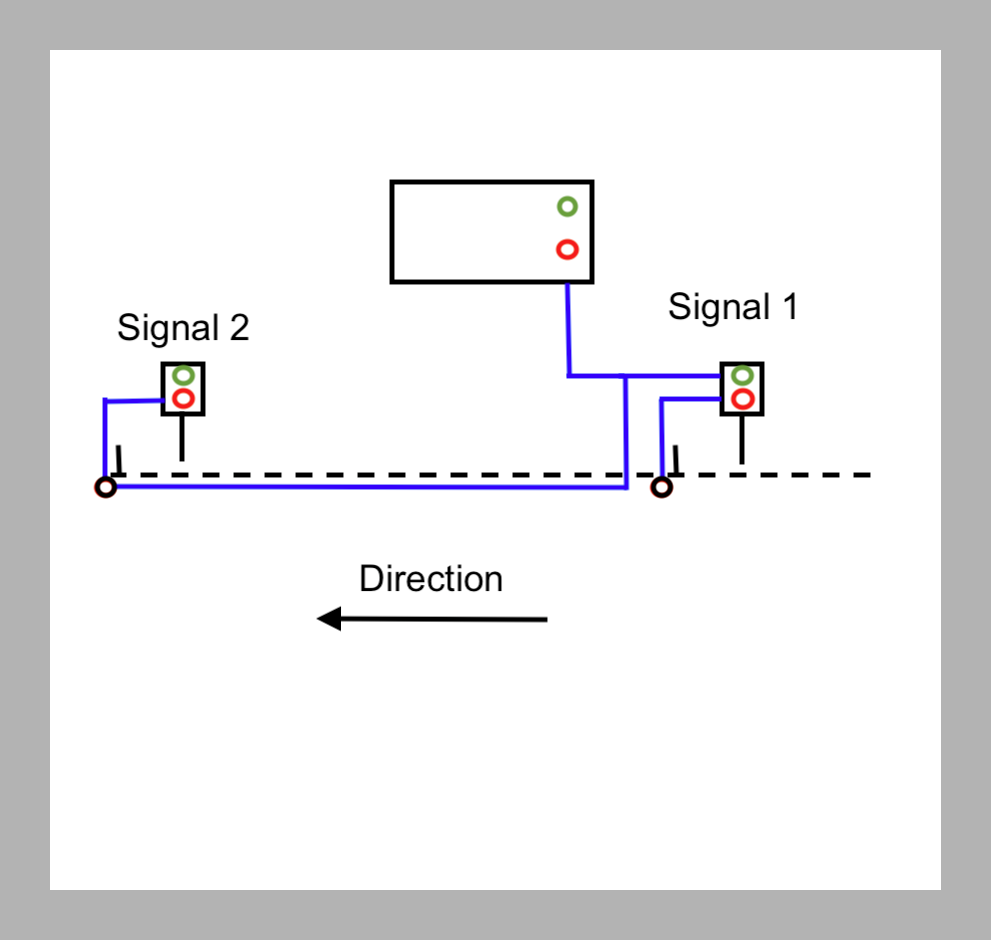

Hi Henrik, in this very crude diagram, where exactly and what direction do I insert the diodes? Electronics are my weakness! BigGrin

Thanks

Rick

Paint Blank copy.png
Back to top
Offline hxmiesa
#9 Posted : 09 November 2022 10:32:57(UTC)
Retweet
hxmiesa

Spain
Joined: 15/12/2005(UTC)
Posts: 3,522
Location: Spain
Originally Posted by: owidgie Go to Quoted Post
Hi Henrik, in this very crude diagram, where exactly and what direction do I insert the diodes? Electronics are my weakness! BigGrin


Best regards
Henrik Hoexbroe ("The Dane In Spain")
http://hoexbroe.tripod.com
Back to top
WWW
Offline owidgie
#10 Posted : 09 November 2022 18:54:11(UTC)
Retweet
owidgie

United States
Joined: 03/06/2007(UTC)
Posts: 150
PERFECT!!!


Thank you very much!!

ThumpUp

Rick
Back to top
