Offline pmgsr
#1 Posted : 01 June 2022 14:34:58(UTC)
pmgsr


Joined: 01/10/2004(UTC)
Posts: 200
Location: Lisbon, Lisbon
Hi there,

I use a 60VA transformer (Marklin 60052) with my CS1. My layout is prepared for several circuits but with the CS1 can't use them because Marklin made the CS1 a nasty bussines for owners. However, when i buy a new CS i probably will use at least one extra booster.

My question is in using a different transformer for powerring the TT 7286 with the 7687 kit and powering at the same time, with the same second transformer, some Viessmanns k83 (5211) that have an extra connection for exterior power in the "E" socket at the top (like shown below) and other similar devices:

UserPostedImage

Can i do this with different kind of transformers, like using the Marklin 6052 with the CS1 and then using a Viessmann 5200 (52VA) for the other devices, setting up a command ground "0" (brown) between them? (or even use an old Marklins 32VA Transformer from an old Starter Set, one with the analog dial but also have a separate output for acessories).
I also have a spare 60052 that i was saving for an extra booter, but can use it.

So, something like this:

(IMAGE EDITED)
Two Transformers

Thanks.
Pedro.

Edited by user 01 June 2022 22:36:08(UTC)  | Reason: Not specified

Pedro Rosa.
Linda-a-Velha / Lisbon, Portugal.
My Layout (Marklin, C-Track, Digital)
Offline H0
#2 Posted : 01 June 2022 15:04:14(UTC)
H0


Joined: 16/02/2004(UTC)
Posts: 15,254
Location: DE-NW
Hi!
The transformer that powers the CS must not be connected to anything beside the CS.
You do not show the CS in your drawing.
The CS can have a common ground with other transformers - this is even needed for level crossings.

The CS can be used with ESU boosters provided is has software level 2.0.4 or higher.
Regards
Tom
---
"In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
UserPostedImage
thanks 1 user liked this useful post by H0
Offline pmgsr
#3 Posted : 01 June 2022 15:23:01(UTC)
pmgsr


Joined: 01/10/2004(UTC)
Posts: 200
Location: Lisbon, Lisbon
Originally Posted by: H0 Go to Quoted Post
Hi!
The transformer that powers the CS must not be connected to anything beside the CS.
You do not show the CS in your drawing.
The CS can have a common ground with other transformers - this is even needed for level crossings.

The CS can be used with ESU boosters provided is has software level 2.0.4 or higher.


You're right, i corrected the image to show the CS1.
I didn't knew that however seems right because that CS was made by ESU (if i remember correctly because i was away from the hobby for many years).

Pedro.
Pedro Rosa.
Linda-a-Velha / Lisbon, Portugal.
My Layout (Marklin, C-Track, Digital)
Offline JohnjeanB
#4 Posted : 01 June 2022 17:49:30(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,083
Location: Paris, France
Hi Pedro
Powering the CS1 with a 60052 transfo is what was advised at the time but the drawback is the voltage fluctuations causing trains to change speed in an unwanted manner. Causes: power consumption changes, Voltage fluctuations on the mains.
The best (IMO is to use an old PC power supply (19 VDC, 50 or 100W). It provides stable smooth operation because the voltage is regulated.

Now how to connect other transfo? Here are the rules:
- never use the CS1 power source for anything else simultaneously.
- can connect any transfo (14, 16 or 18 VAC) to the digital power PROVIDED only ONE transfo pole is connected to the "Digital ground".
- any brand will do PROVIDED it has an over-current protection
- clearly identify in your wiring the shared ground Best is to use color coded wiring
Cheers
Jean
thanks 1 user liked this useful post by JohnjeanB
Offline pmgsr
#5 Posted : 01 June 2022 18:03:39(UTC)
pmgsr


Joined: 01/10/2004(UTC)
Posts: 200
Location: Lisbon, Lisbon

Jean,

Thanks again for yout wonderful tips. Just a question: for the newer CS3 this 60052 are not advised anymore by Marklin? (I understand that you gave a personnal opinion about their use in the CS1).

Originally Posted by: JohnjeanB Go to Quoted Post
Hi Pedro
Now how to connect other transfo? Here are the rules:
- never use the CS1 power source for anything else simultaneously.
- can connect any transfo (14, 16 or 18 VAC) to the digital power PROVIDED only ONE transfo pole is connected to the "Digital ground".
- any brand will do PROVIDED it has an over-current protection
- clearly identify in your wiring the shared ground Best is to use color coded wiring
Cheers
Jean


So, for what i understand, the diagram i made is correct?
I have all the wiring very well documented on the layout.

Pedro.
Pedro Rosa.
Linda-a-Velha / Lisbon, Portugal.
My Layout (Marklin, C-Track, Digital)
Offline Goofy
#6 Posted : 01 June 2022 18:12:12(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,993
Originally Posted by: JohnjeanB Go to Quoted Post
Hi Pedro
Powering the CS1 with a 60052 transfo is what was advised at the time but the drawback is the voltage fluctuations causing trains to change speed in an unwanted manner. Causes: power consumption changes, Voltage fluctuations on the mains.
The best (IMO is to use an old PC power supply (19 VDC, 50 or 100W). It provides stable smooth operation because the voltage is regulated.



I did used Lenz digital system with trafo that feeded system and there was no voltage fluctuation any at all.

H0
DCC = Digital Command Control
thanks 1 user liked this useful post by Goofy
Offline Goofy
#7 Posted : 01 June 2022 18:18:07(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,993
I have not see yours drawing but i suppose you mean difference power supply for your layout?
Be attention that when you use CS1 you can only feed by trafo.
I did used old turntable 7286 for many years ago with the CU 6021 and did connected the bridge with digital power source and turntable cab control with analog power via trafo.
H0
DCC = Digital Command Control
thanks 1 user liked this useful post by Goofy
Offline pmgsr
#8 Posted : 01 June 2022 18:37:46(UTC)
pmgsr


Joined: 01/10/2004(UTC)
Posts: 200
Location: Lisbon, Lisbon

Thanks! I think that you can see it now. Sorry...

Originally Posted by: Goofy Go to Quoted Post
Be attention that when you use CS1 you can only feed by trafo.


Sorry, didn't understand exactly what you mean by this.

Pedro Rosa.
Linda-a-Velha / Lisbon, Portugal.
My Layout (Marklin, C-Track, Digital)
Offline JohnjeanB
#9 Posted : 01 June 2022 22:06:38(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,083
Location: Paris, France
Originally Posted by: pmgsr Go to Quoted Post
Thanks again for yout wonderful tips. Just a question: for the newer CS3 this 60052 are not advised anymore by Marklin? (I understand that you gave a personnal opinion about their use in the CS1).

No, for the CS2 there was an option to use a 60052 transfo but a recommendation to use a switched power supply.
With the CS3, this is not an option anymore. You must feed it with the switched regulated power supply (60045 or 60061 before that).

Why? You purchase an expensive loco with an excellent load regulation (same speed uphill and downhill) and all would be ruined because the voltage feed to the CS3 is not constant, causing jumps or brutal slow downs? no way anymore. Beside, in the EU there are rules against energy waste (one is caused using transformers)
Jean

thanks 1 user liked this useful post by JohnjeanB
Offline JohnjeanB
#10 Posted : 01 June 2022 22:11:33(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,083
Location: Paris, France
Originally Posted by: Goofy Go to Quoted Post
I did used Lenz digital system with trafo that feeded system and there was no voltage fluctuation any at all.

I don't know about Lentz but I do know that CS1s, CS2s and CS3 rectify the incoming power (no voltage regulation) and digitalise it (hash it). I also know that with the best Märklin locos and motors, this has a direct consequence on their speed.
So maybe Lenz is just great or maybe you did not observe a real feed voltage change and its consequence on a loco speed.
Cheers
Jean

Offline JohnjeanB
#11 Posted : 01 June 2022 22:16:50(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,083
Location: Paris, France
Originally Posted by: pmgsr Go to Quoted Post
So, for what i understand, the diagram i made is correct?
I have all the wiring very well documented on the layout.

I don't know I cannot see your diagram but a no-entry sign instead.Sorry
Jean

Offline kiwiAlan
#12 Posted : 01 June 2022 22:33:37(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,082
Location: ENGLAND, Didcot
Originally Posted by: JohnjeanB Go to Quoted Post
... but I do know that CS1s, CS2s and CS3 rectify the incoming power (no voltage regulation)


I don't think the CS3 does rectify the power, this is why you must use the switch mode power supply that provides DC power to the CS3. I would expect it to have a diode to protect against reverse polarity though.

The CS2 does definitely rectify the incoming power which is why a transformer can be used.
Offline pmgsr
#13 Posted : 01 June 2022 22:34:24(UTC)
pmgsr


Joined: 01/10/2004(UTC)
Posts: 200
Location: Lisbon, Lisbon
Originally Posted by: JohnjeanB Go to Quoted Post
I don't know I cannot see your diagram but a no-entry sign instead.Sorry
Jean


I think it's available now.

Pedro.
Pedro Rosa.
Linda-a-Velha / Lisbon, Portugal.
My Layout (Marklin, C-Track, Digital)
Offline H0
#14 Posted : 02 June 2022 09:48:03(UTC)
H0


Joined: 16/02/2004(UTC)
Posts: 15,254
Location: DE-NW
Originally Posted by: Goofy Go to Quoted Post
Be attention that when you use CS1 you can only feed by trafo.
The CS1 works better when used with a switching-mode power supply, but it can be used with a transformer. And yes, only one transformer should be used for the CS1.

Regards
Tom
---
"In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
UserPostedImage
Offline JohnjeanB
#15 Posted : 02 June 2022 12:10:43(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,083
Location: Paris, France
Originally Posted by: pmgsr Go to Quoted Post
I think it's available now.

Hi
Sorry I wrote something false when I was meaning the opposite. Indeed the CS3 does not accept AC power.
The power connector for 60215 and 60216 has 4 pins. 2 pins are for + and -19VDC, 2 pins are for AC power.
On the CS3 (60216, 60226), the AC pins are not connected.

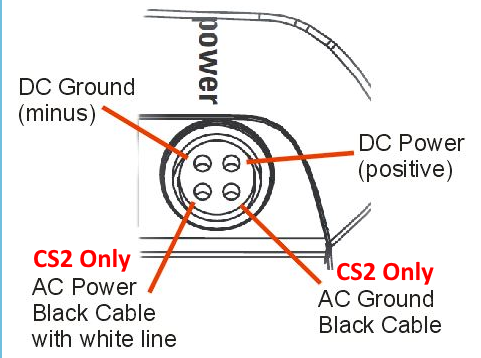

Here is the Pin Out common to 60213, 60214, 60215, 60216 and 60226 (taken from Mr Pallund website in Denmark)
CS Power.png
Sorry again for my mistake

Cheers
Jean




thanks 1 user liked this useful post by JohnjeanB
