Lusito		#1 Posted : 22 April 2021 15:05:16(UTC) Retweet

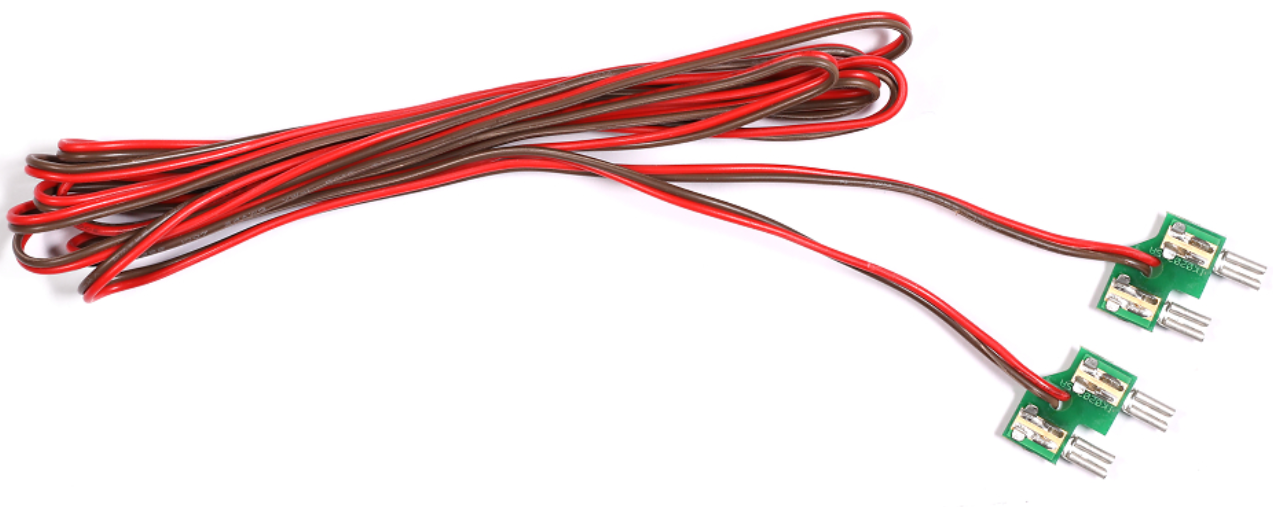

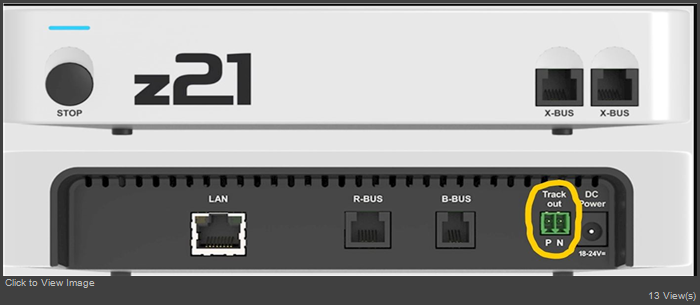

Joined: 26/02/2021(UTC) Posts: 6 Location: Porto		Hello How do we connect the 74042 to the back of the z21? 1-do we cut one end and make a connection to a green phoenix connector? 2-do we need a stronger 12 awg wire? Also; how do you call a system that is composed of 3 rail C-track + z21 controller and software + Marklin 3 rail locomotives and Marklin rolling stock? Thank you. Best Regards Lusito


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

H0		#2 Posted : 22 April 2021 15:13:54(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,266 Location: DE-NW		Hi! Originally Posted by: Lusito How do we connect the 74042 to the back of the z21? Cut the 74042 in the middle and you have two feeder wires. Use a plug at the end. When the layout grows you can use a bigger bus wire. When you make your own feeder tracks, you can solder the blank ends to the tabs of the C track. I would not trust the plug connections for C track that is glued or screwed to the layout. Originally Posted by: Lusito Also; how do you call a system that is composed of 3 rail C-track + z21 controller and software + Marklin 3 rail locomotives and Marklin rolling stock? A digital three-rail layout.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS


User Profile View All Posts by User View Thanks

Lusito		#3 Posted : 22 April 2021 15:26:13(UTC) Retweet
Joined: 26/02/2021(UTC) Posts: 6 Location: Porto		Hello H0 Thank you very much for your reply. Cutting the wire in 2 parts is a good idea! Best Regards Lusito
