Offline Michael4
#1 Posted : 08 March 2020 10:53:09(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
I've been around Marklin since the 1960s but have never had a loco with Telex.

A 3027 arrived recently that needs work. Everything works well but...

...it has Telex but how is this supposed to work?

Is it supposed to act on a second blip when moving forward?

Or is it supposed to work on a 'blip' after a reversing, or forwards blip?

Mine only seems to work on every eighth blip which I assume is the same as the number of teeth on the revolving drum of the reversing unit. Hmmm.

The soldering around the reversing unit is certainly not 'factory'. I wonder...

Any suggestions welcome but please tell me how it is supposed to work when set up properly and I can go from there.
Offline JohnjeanB
#2 Posted : 08 March 2020 11:12:40(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 893
Location: Paris, France
Hi Michael

It is operated by the direction relay which has 4 positions:
- forward no Telex
- forward with Telex
- reverse no Telex
- reverse with Telex
Note: the Telex remains activated until the next overvoltage pulse.
If this is not working like this you may have contact issues on the relay (normally located in the loco).
Cheers
Jean
My lay-out videos
latest vid
humping yard
Offline JohnjeanB
#3 Posted : 08 March 2020 11:19:24(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 893
Location: Paris, France
At the bottom of this page you have a picture of the relay

Relay for Telex couplers
Jean
My lay-out videos
latest vid
humping yard
Offline Michael4
#4 Posted : 08 March 2020 14:28:22(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
Hi Jean,

Thereis obviously something quite wrong because forward is followed by reverse etc without any telex instruction in between. I will do some test and see. Thanks for the link.
Offline JohnjeanB
#5 Posted : 08 March 2020 16:32:14(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 893
Location: Paris, France
Hi Michael
If forward is followed by reverse and forward again, then the only thing I could foresee is that the relay has been replaced with a standard one (ratchet relay).
Please open the loco (it is normally in the loco but was in the tender on some versions
Jean
My lay-out videos
latest vid
humping yard
Offline Michael4
#6 Posted : 08 March 2020 18:04:01(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
Hi Jean,

This doesn't look like the normal relay. I'm pretty sure it is the correct one but I really do not like the quality of the soldering so maybe someone has got the connections wrong? If so I reckon I'm looking for some guidance!

UserPostedImageIMG_4119 by dralowid, on Flickr

UserPostedImageIMG_4120 by dralowid, on Flickr

Ignore the broken valve gear, a replacement is on its way!
thanks 1 user liked this useful post by Michael4
Offline Webmaster
#7 Posted : 08 March 2020 21:07:57(UTC)
Webmaster


Joined: 25/07/2001(UTC)
Posts: 10,996
It indeed looks like the rotary "Perfect Schaltung" relay that was used with Telex locos a long time ago.

Units that I have had mainly have showed problems with contact between the "arms" and the rotary cylinder...

However, could also be a broken wire to the Telex - these thin wires are very delicate an can break. Or the coil in the coupler itself may also be burnt.
Just speculating a bit here, not an expert with these but have had some for repair.
Juhan - "Webmaster", at your service...
He who asks a question is a fool for five minutes. He who does not ask a question remains a fool forever. [Old Chinese Proverb]
Offline Michael4
#8 Posted : 08 March 2020 23:45:52(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
The coupler's electro magnet does work so I think that is OK. It seems to be actuated by itself every eight impulses.

It would be easy to swap it for a normal reversing unit (I have several) but where is the fun in that?! This is a challenge!
Offline TEEWolf
#9 Posted : 09 March 2020 01:42:14(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,383
Originally Posted by: Michael4 Go to Quoted Post
The coupler's electro magnet does work so I think that is OK. It seems to be actuated by itself every eight impulses.

It would be easy to swap it for a normal reversing unit (I have several) but where is the fun in that?! This is a challenge!


Hello Michael,

I do have the same loco but did not run it for over 50 years. Do you have the manual and spar part list for this loco? Wanted to scan it for you, but then I found it in the internet as a PDF file already.

manual
http://maerklin-sammler-...3027/03027_m_bda_002.pdf

explosion drawing
http://maerklin-sammler-...en/03027/03027_explo.pdf

At Page 6 is the Telex-description in English. But I remember the handling in the way Jean has already written about it.

Here some more information about this historic model.

http://maerklin-sammler-...omotiven/03027/03027.htm

Enjoy your new oldieSmile

Regards

Wolfgang
Offline JohnjeanB
#10 Posted : 09 March 2020 11:13:03(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 893
Location: Paris, France
Hi Michael
Thank you for the pictures.
Yes it is the good relay. If the coil is working then you can repair it.
One word of advice: be extremely careful when removing the unit (the one screw near the contacts as the tiny enameled wire is connected there (the ground return of the solenoid) and can be broken easily.

Once removed it is easy to disassemble, straighten contacts and clean then

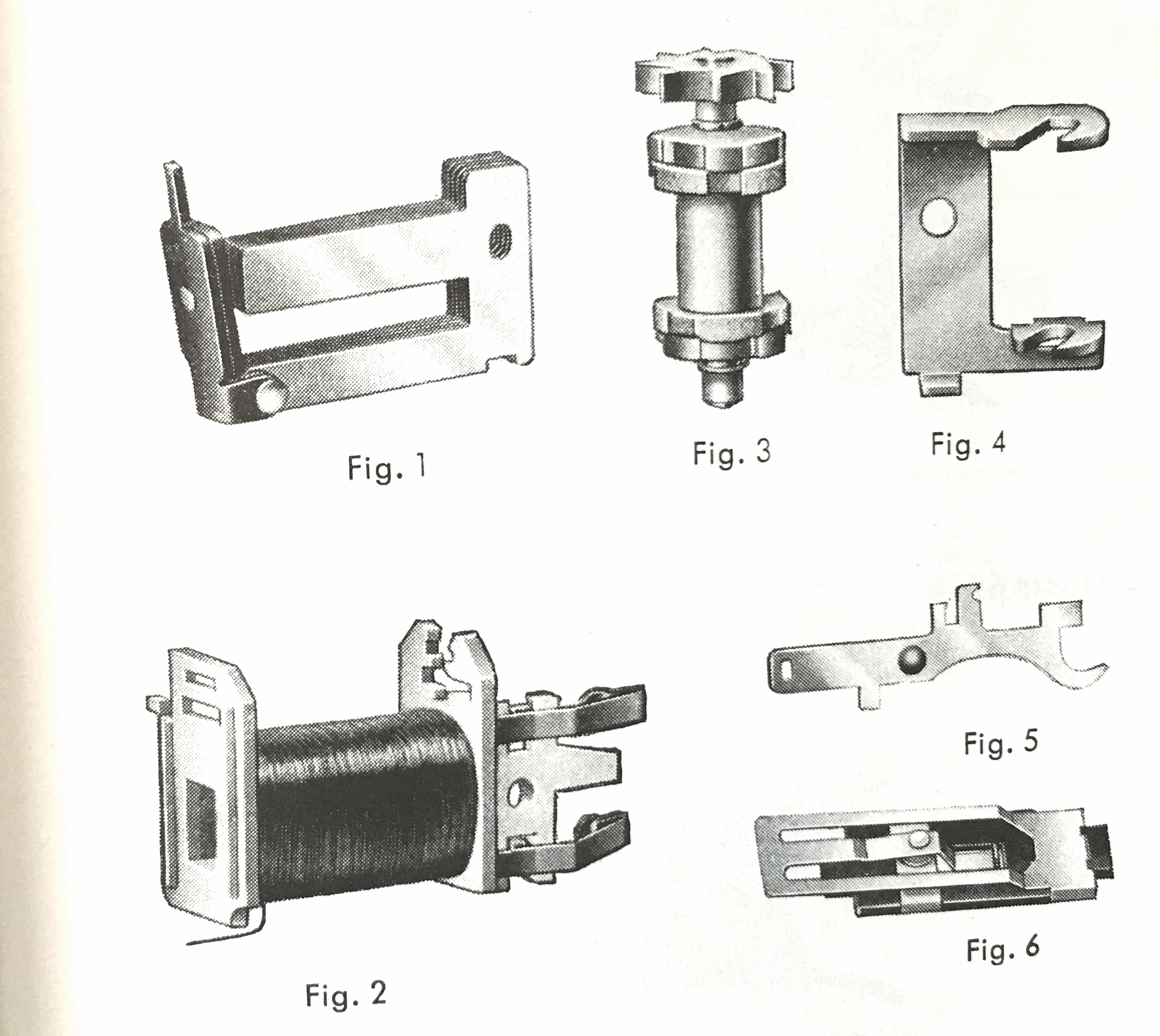

My image hosting is temporarily unavailable so I attach the picture: an opened relay. Telex relay.png (1,607kb) downloaded 16 time(s).
It is made of 7 parts:
- the solenoid supporting also the 3 contacts (2 extreme for motor coils, the center one for Telex)
- the armature and the pivoting plate
- the rotor (sort of drum with circular segments
- the ratchet
- the rotor holder
- the auxiliary contact ((to stop the motor when the relay is activated
- the spring
I hope this helps
Most probably someone has tinkered with contact soldering. When making new solder make sure to make them on the point of attachment (as far as possible from the contact itself.
Cheers
Jean
My lay-out videos
latest vid
humping yard
thanks 1 user liked this useful post by JohnjeanB
Offline Michael4
#11 Posted : 09 March 2020 13:06:02(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
I see that wire, it is small!

Thanks all. I will first have a bit of fiddle with the unit in place to understand it better. As I have said I am quite familiar with the normal one so just need to understand what this does or is supposed to do on top of the normal functions. I am due to receive some new valve gear in a few days which will require the removal of the unit so will wait for that to arrive and do it all at once.

Still looking for a wheelset for the tender, Radsatz D12 70 005. One of the better Ebay vendors has them at a low price and low cost postage but I have not heard back from him, but then he may have other things on his mind, he is in Bologna.
Offline Michael4
#12 Posted : 09 March 2020 17:35:19(UTC)
Michael4

United Kingdom
Joined: 02/02/2017(UTC)
Posts: 410
Location: England, South Coast
...and, half an hour with a bright light, lighter fluid, some cloth and a tiny screwdriver and it is 'nearly' working consistently without removal.

I say 'nearly'... Forwards OK / Forwards plus telex OK /Reverse OK / Reverse plus telex unreliable / Telex on until next blip OK...so I still need to work on that contact.

Clever little thing isn't it?! When fiddling around with things like this a little voice in my head starts mentioning 'digital'.

'Get thee behind me Satan' says I.

Thanks all.

Michael
