Offline owidgie
#1 Posted : 11 February 2020 21:57:08(UTC)
owidgie


Joined: 03/06/2007(UTC)
Posts: 22
Location: ,
Hello, I am wondering if there is some kind of "master list" of parts for Marklin Metall kits? I need about 5 parts but I don't know what part numbers I am looking for.

Thanks

Rick
Offline Bigdaddynz
#2 Posted : 11 February 2020 22:03:03(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 16,999
Location: New Zealand
Which set are you looking for? I do have some lists including the lists for the 1014 and 1034 sets which I used when looking for parts for those sets.

There are also pictures available which show what the part looks like so that when a widget is described you can see what a widget looks like.
Offline owidgie
#3 Posted : 11 February 2020 22:18:41(UTC)
owidgie


Joined: 03/06/2007(UTC)
Posts: 22
Location: ,
Im not looking for sets. I just need a few pieces.

Qty 1 Green Right angle bar with 21 holes in it.

Qty 2 Green Right angle bars with 3 holes

Qty 2 Red plates with right angle bends on the sides with 7 holes x 3 holes

I have an image but I don't know how to post it here.

Rick
Offline jvuye
#4 Posted : 11 February 2020 22:28:14(UTC)
jvuye

Belgium
Joined: 01/03/2008(UTC)
Posts: 2,764
Location: South Western France
Originally Posted by: owidgie Go to Quoted Post
Im not looking for sets. I just need a few pieces.

Qty 1 Green Right angle bar with 21 holes in it.

Qty 2 Green Right angle bars with 3 holes

Qty 2 Red plates with right angle bends on the sides with 7 holes x 3 holes

I have an image but I don't know how to post it here.

Rick


21 holes girder part # 8/21
3 holes girder part # 8/3
7x3 angled plate # 50/7

Used to be available from Metallus, but they went out of business.
If nothing else Ashok Banerjee is a good http://ashok_banerjee.tr...ille/Welcome.htmresource

Good Luck
Jacques Vuye aka Dr.Eisenbahn
Once a vandal, learned to be better and had great success!
Offline Bigdaddynz
#5 Posted : 11 February 2020 22:54:01(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 16,999
Location: New Zealand
Originally Posted by: owidgie Go to Quoted Post
Im not looking for sets. I just need a few pieces.


I realise you only want a few parts, what I was asking is what set were you wanting the parts for? From that we can hopefully give a list of what is meant to be in the set.

In addition to the seller Jacques mentions, there are a couple of good sellers on ebay who have most parts. If they aren't listed in their auctions, just ask they will most probably have them.

Offline owidgie
#6 Posted : 11 February 2020 23:18:01(UTC)
owidgie


Joined: 03/06/2007(UTC)
Posts: 22
Location: ,
Originally Posted by: jvuye Go to Quoted Post
Originally Posted by: owidgie Go to Quoted Post
Im not looking for sets. I just need a few pieces.

Qty 1 Green Right angle bar with 21 holes in it.

Qty 2 Green Right angle bars with 3 holes

Qty 2 Red plates with right angle bends on the sides with 7 holes x 3 holes

I have an image but I don't know how to post it here.

Rick


21 holes girder part # 8/21
3 holes girder part # 8/3
7x3 angled plate # 50/7

Used to be available from Metallus, but they went out of business.
If nothing else Ashok Banerjee is a good http://ashok_banerjee.tr...ille/Welcome.htmresource

Good Luck


Thanks Jacques. That link seems to be dead though.

Rick
Offline owidgie
#7 Posted : 11 February 2020 23:21:57(UTC)
owidgie


Joined: 03/06/2007(UTC)
Posts: 22
Location: ,
Hi, I'm not putting together a set. This is more of a freelance project.

I have already purchased a small set on eBay Germany that had various parts that I needed. Now it is down to the last bits.

I have a little time though until the "Official" unveiling in June!

Rick
Offline cookee_nz
#8 Posted : 12 February 2020 03:23:35(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,216
Location: Paremata, Wellington
Hi Rick,

Take a look here, there are several for download.

https://meccanoindex.co.uk/Other/Marklin/index.php?id=1546683767

'Freelance' project huh, sounds interesting Cool

Edited by user 12 February 2020 09:28:15(UTC)  | Reason: Typos

Cookee
Wellington
NZ image
Offline jvuye
#9 Posted : 12 February 2020 18:55:56(UTC)
jvuye

Belgium
Joined: 01/03/2008(UTC)
Posts: 2,764
Location: South Western France
Originally Posted by: owidgie Go to Quoted Post
....


Good Luck

Thanks Jacques. That link seems to be dead though.

Rick


Try this one

http://ashok_banerjee.tr...Meccanoville/Welcome.htm
Jacques Vuye aka Dr.Eisenbahn
Once a vandal, learned to be better and had great success!
Offline Bigdaddynz
#10 Posted : 12 February 2020 22:37:10(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 16,999
Location: New Zealand
These are the two ebay sellers who between them have most Marklin Metall parts. If it isn't listed, ask them, most likely they will have the items.

https://www.ebay.de/sch/...s=1&_ipg=&_from= Vincento10

https://www.ebay.de/sch/...s=1&_ipg=&_from= Maduwui
Offline owidgie
#11 Posted : 12 February 2020 22:58:50(UTC)
owidgie


Joined: 03/06/2007(UTC)
Posts: 22
Location: ,
The eBay sellers and the site in India look great! Thanks for the help!


Rick
Offline cookee_nz
#12 Posted : 13 February 2020 05:57:31(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,216
Location: Paremata, Wellington
I'm waiting for Markus Schild Offline to join this discussion - what he doesn't know about M-Metall isn't worth knowing Laugh

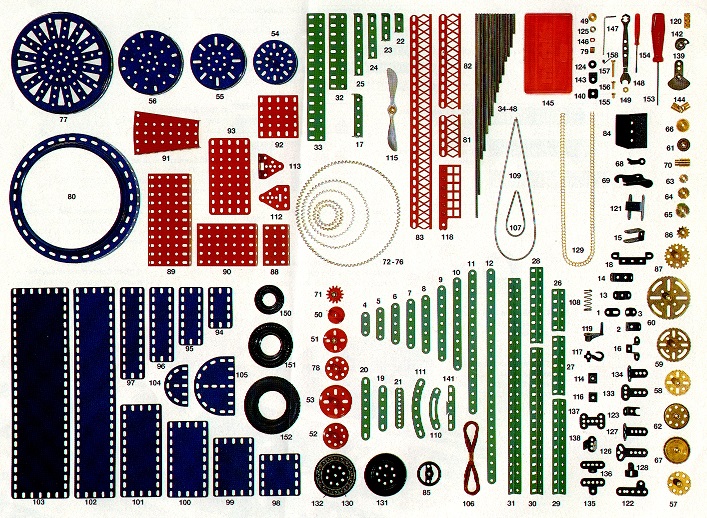

In the meantime, this site has a brief history of M-M and a nice graphic of the parts available - (ignore the weird links, seems some keywords have become advertising links)

http://www.dalefield.com...s&ends/marklin2.html

A full-size image can be downloaded at the above link

Cookee
Wellington
NZ image
Offline Bigdaddynz
#13 Posted : 13 February 2020 08:25:57(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 16,999
Location: New Zealand
This one is probably better - a complete list of parts with 5 digit part numbers and photos to match. There's a list at the back of what is in sets that were sold during the 1950's / 1960's /1970's - i.e. sets such as 1014 and 1034. I used these to replace missing parts in my 1014 and 1034 sets. Taken from the 14930 instruction manual.

Marklin Metal 14930.pdf (1,172kb) downloaded 13 time(s).
Offline Markus Schild
#14 Posted : 13 February 2020 15:51:21(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,789
Location: Wurttemberg
Hi all,

I attach a pdf which can be named "master list". It contains all known parts, the numbers used and the Meccano - reference.

maerkmec2004.pdf (101kb) downloaded 14 time(s).


Regards

Markus
thanks 4 users liked this useful post by Markus Schild
Offline cookee_nz
#15 Posted : 13 February 2020 23:36:24(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,216
Location: Paremata, Wellington
Originally Posted by: Markus Schild Go to Quoted Post
Hi all,

I attach a pdf which can be named "master list". It contains all known parts, the numbers used and the Meccano - reference.

maerkmec2004.pdf (101kb) downloaded 14 time(s).


Regards

Markus


Thanks Markus, I knew you'd have something to add BigGrin
Cookee
Wellington
NZ image
thanks 1 user liked this useful post by cookee_nz
Offline Bigdaddynz
#16 Posted : 14 February 2020 06:03:29(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 16,999
Location: New Zealand
Which is probably a superset of the list Markus gave me for the 1014 and 1034 sets. ThumpUp

1014-1034.pdf (61kb) downloaded 6 time(s).
