Measurement Device 78111 - Broken wires
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline bygger01
#1 Posted : 18 November 2019 18:09:56(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
To day I had brought a "Rollenprüfstand" 78151, so now we can service a Big Boy, but we do not one, as it can not get around in our helix's ....

Along with it was also a Measurement Device 78111 + meter on 78151, but unfortunately the wires are broken off on the small print. The wires are green / blue / black, and they can be soldered carefully again on again,

But is there anyone who knows the order?
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline Ross
#2 Posted : 18 November 2019 22:36:14(UTC)
Retweet
Ross

Australia
Joined: 25/09/2006(UTC)
Posts: 945
Location: Sydney, NSW
Hi Jørgen,

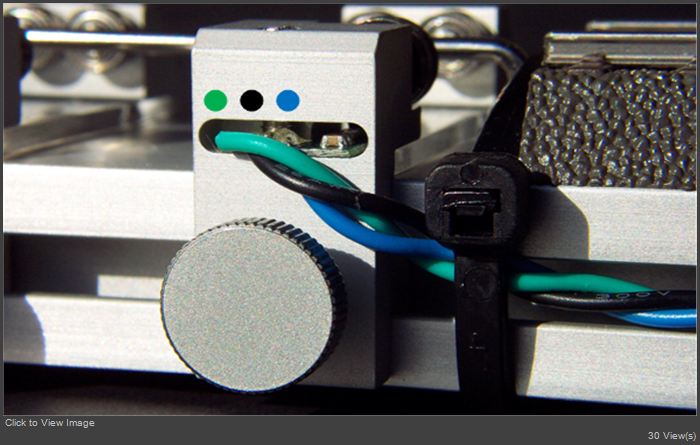

See attached photo for wire colours.


You may also be interested in my Rolling Stand Improvements article

Link corrected 01-01-2025

Edited by user 01 January 2025 04:14:32(UTC)  | Reason: Not specified

Ross
Back to top
WWW
thanks 6 users liked this useful post by Ross
Offline bygger01
#3 Posted : 19 November 2019 12:47:33(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
Perfect ...........
And thank you Ross for your help from as far one can come in this world.
I will soon heat up the solderiron and see if the print still is alive !
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
Offline bygger01
#4 Posted : 19 November 2019 17:15:10(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
It worked.

I put in some plugs on each of the 3 wires for protection of the soldering.

BUT there are other problems ..........

First / Something slides, because the measurement varies at constant speed of the locomotives and too little speed is displayed, so I shall see what you Ross are writing about that.

Secondly / There is no current in the ball bearings and terefore I can't have a tank locomotive or a diesel pulling on both bogies at 78151.
Is this normal ?
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
thanks 1 user liked this useful post by bygger01
Offline bygger01
#5 Posted : 19 November 2019 23:48:17(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
More from Denmark ......

I've come further into the rail and have found that my friend - who I can't "ask" anymore - has made two holes in the rail, and with the drilling i one hole, he had hit the red wire to the center rail in roll area.

It explain why there is no power where the rollers are.

So now only problem the signal to meter.
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
Offline Ross
#6 Posted : 31 December 2024 05:44:49(UTC)
Retweet
Ross

Australia
Joined: 25/09/2006(UTC)
Posts: 945
Location: Sydney, NSW
Originally Posted by: Ross Go to Quoted Post
Hi Jørgen,

See attached photo for wire colours.


You may also be interested in my Rolling Stand Improvements article


Link corrected 31-12-2024
Ross
Back to top
WWW
Offline bygger01
#7 Posted : 31 December 2024 09:44:37(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
Morning from Denmark.

What a service, so thank you for that.

The worst thing is, that I never used the gauge 78151, after I repaired it.

So it was sold a few years ago, when I bought a Piko "messwagen" (but it hasn't driven many meters either) !


Today is otherwise a historic day for our model railway - J&B Rail - as a hole in the layout has been closed with a inspection limb, so that I can actually declare our layout 99% complete after many years of work.

So now it's just on with the breakfast ......

+ Also to wish everyone a happy New Year.....


Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
thanks 1 user liked this useful post by bygger01
Offline dickinsonj
#8 Posted : 01 January 2025 01:37:26(UTC)
Retweet
dickinsonj

United States
Joined: 05/12/2008(UTC)
Posts: 1,796
Location: Crozet, Virginia
Such exciting news. Congratulations!

Enjoy that breakfast and the New Year.

Some news of the first runnings and some pictures would be great!
Regards,
Jim
I have almost all Märklin and mostly HO, although I do have a small number of Z gauge trains!
So many trains and so little time.
Back to top
Offline bygger01
#9 Posted : 01 January 2025 08:54:10(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark



This is before / test / and closed ( before the rest )
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
thanks 2 users liked this useful post by bygger01
Offline bygger01
#10 Posted : 01 January 2025 09:04:37(UTC)
Retweet
bygger01

Denmark
Joined: 23/11/2008(UTC)
Posts: 225
Location: Herning in Denmark
As you can see, the thinner felt edge dried darker, but a little paint will help!

The idea is to hold the edge down with velcro, but that doesn't help everywhere.

So now I'll try with a Grassmaster + many trees and see, if that can hide it a bit!

These pictures ruin the original content, so maybe I'll come up with a whole new post with just pictures...
Best regards
Jørgen St. from Herning in DK
H0 / Märklin K track / CS3+ / full digital / Epoke III +/-
Back to top
thanks 2 users liked this useful post by bygger01
