Offline Thewolf
#1 Posted : 03 March 2019 18:30:52(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Hi guys Cool

Everyone knows what a block is, especially when using PC software to control the train.

I use Itrain.

In the explanation of the booster 60175, I saw a graphic where a canton is divided in two for the electric current.

I wonder if this is correct, because I fear that with Itrain it could be a problem.

I asked the question about Itrain on the forum.

I must admit that splitting a canton in two for the contribution of power does not excite me much

I would like to hear your opinions

Thank you

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline TEEWolf
#2 Posted : 03 March 2019 20:25:29(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,465
Originally Posted by: Thewolf Go to Quoted Post
Hi guys Cool

Everyone knows what a block is, especially when using PC software to control the train.

I use Itrain.

In the explanation of the booster 60175, I saw a graphic where a canton is divided in two for the electric current.

I wonder if this is correct, because I fear that with Itrain it could be a problem.

I asked the question about Itrain on the forum.

I must admit that splitting a canton in two for the contribution of power does not excite me much

I would like to hear your opinions

Thank you

Thewolf


Hello Serge,

what do you understand by a canton? I do not understand your question completly, but have you seen this newly issued Märklin technical information?

https://www.maerklin.de/...e/technical-information/

Meanwhile even in French available. Perhaps it gives you an answer.

https://www.maerklin.de/...he_Sicherheit_FR__3_.pdf

Ciao

TEEWolf
Offline French_Fabrice
#3 Posted : 03 March 2019 21:18:22(UTC)
French_Fabrice

France
Joined: 16/05/2011(UTC)
Posts: 1,475
Location: Lyon, France
Hello Serge,

First, for English readers, a "canton" in French is like a block.

Second, when you use a PC to drive your layout under automatic (or manual) control, there are blocks everywhere, except where are located the switches ... and this later assertion can also be discussed, but it becomes more complex.
So for sake of simplicity, let's assume you have block everywhere, and switches don't belong to blocks.

Third, if you use boosters for tracks, that means you have more locos than a single power block can feed.
As a result, the main question is where to put the separation between B1 (Booster 1 or CS power) and B2 (Booster 2) ?

Answer, in my opinion:
-Not between switches : it is too risky if you get a derailment, with a risk the slider touches B1 & B2 for a long time thus generating a short
-What remains: Blocks of course ! but not just anywhere : You must place the separation of power (B1 | B2) at a place in a block where the loco runs at a normal speed, in order the transition between the 2 power lines is short (let's say less that 1 or 2 seconds). The best place would be just after the 1st sensor where the loco enters the block, and so has not really slowed down a lot... A compromise would be to set the separation in the middle of the block, for instance... Of course, never put the separation where the loco stops, and more generally where a slider stops !!!

Example in TrossingenIII
UserPostedImage
The separation between B1 and B2 is the middle of each block B-He1 and B-He2 (on the right side of the plan).

HTH
Fabrice
Offline Thewolf
#4 Posted : 03 March 2019 21:32:17(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: TEEWolf Go to Quoted Post
Originally Posted by: Thewolf Go to Quoted Post
Hi guys Cool

Everyone knows what a block is, especially when using PC software to control the train.

I use Itrain.

In the explanation of the booster 60175, I saw a graphic where a canton is divided in two for the electric current.

I wonder if this is correct, because I fear that with Itrain it could be a problem.

I asked the question about Itrain on the forum.

I must admit that splitting a canton in two for the contribution of power does not excite me much

I would like to hear your opinions

Thank you

Thewolf


Hello Serge,

what do you understand by a canton? I do not understand your question completly, but have you seen this newly issued Märklin technical information?

https://www.maerklin.de/...e/technical-information/

Meanwhile even in French available. Perhaps it gives you an answer.

https://www.maerklin.de/...he_Sicherheit_FR__3_.pdf

Ciao

TEEWolf


Hi Wolfgang Cool

I'll explain to you what a block is for Itrain:

This is the portion of the rails between two switches.

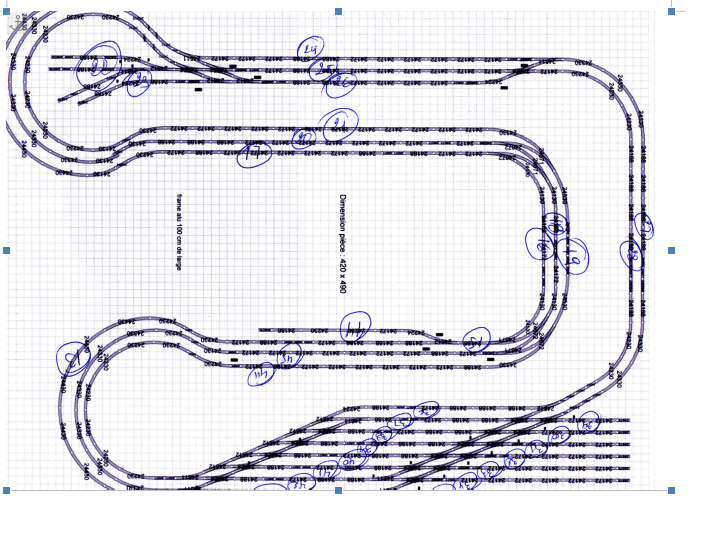

Here are my different blocks from the top of my layout:

cantons top.PNG

See block 24, 25, etc...

In the manual of the booster 60175, we see this:

division canton booster.PNG

Check the inner track: the block between 2 switches is divided. That's what worries me a little bit about my configuration .

And I have another much more important problem: my switches on the rail sections electrified by booster 2 and 3 do not work.

The information given (amperage, volts) in the cs2 is correct for boosters 2 and 3. The tracks sections of boosters 2 and 3 provide 12.5 volts of current everywhere, including on the switch tracks. The switch motors do not work.

I'm dismantling the sect's switch.

I'm dismantling the switch in sector booster 2 or 3. I reconnect it to the booster 1 or cs2 sector: the switch works.

I visited your links. Thank you .

I have 4 transformers 60065 for the cs2 and 3 boosters.

I installed what Mike sold me.

I don't know, but I understood that I have a problem after I read your links. I'm an accountant, not an electrician.

I wonder if I have installed the necessary number of 74030. In your links, I read that you had to isolate the two sections by 4 x 74030. I'm going to reread it again.

To see you later

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
thanks 1 user liked this useful post by Thewolf
Offline Thewolf
#5 Posted : 03 March 2019 21:44:18(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: French_Fabrice Go to Quoted Post
Hello Serge,

First, for English readers, a "canton" in French is like a block.

Second, when you use a PC to drive your layout under automatic (or manual) control, there are blocks everywhere, except where are located the switches ... and this later assertion can also be discussed, but it becomes more complex.
So for sake of simplicity, let's assume you have block everywhere, and switches don't belong to blocks.

Third, if you use boosters for tracks, that means you have more locos than a single power block can feed.
As a result, the main question is where to put the separation between B1 (Booster 1 or CS power) and B2 (Booster 2) ?

Answer, in my opinion:
-Not between switches : it is too risky if you get a derailment, with a risk the slider touches B1 & B2 for a long time thus generating a short
-What remains: Blocks of course ! but not just anywhere : You must place the separation of power (B1 | B2) at a place in a block where the loco runs at a normal speed, in order the transition between the 2 power lines is short (let's say less that 1 or 2 seconds). The best place would be just after the 1st sensor where the loco enters the block, and so has not really slowed down a lot... A compromise would be to set the separation in the middle of the block, for instance... Of course, never put the separation where the loco stops, and more generally where a slider stops !!!

Example in TrossingenIII
UserPostedImage
The separation between B1 and B2 is the middle of each block B-He1 and B-He2 (on the right side of the plan).

HTH
Fabrice


Hello Fabrice Cool

Thank you .

I thought you were going to answer me.

I read your comment carefully.

My separations between booster, cs2 are made in the middle of the block, far from the switches and far from the locomotive stops. My blocks are long.

As I explained to Wolfgang: the current is correct on each section of each power provider.

I only have a problem in the sections of boosters 2 and 3: my switches do not work even if the voltage seems correct

And tomorrow starts renovation week: no more train for a week. Merde. Shit Angry Blushing Laugh

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline French_Fabrice
#6 Posted : 03 March 2019 22:01:38(UTC)
French_Fabrice

France
Joined: 16/05/2011(UTC)
Posts: 1,475
Location: Lyon, France
Hello Serge,

If you have 12.5V, then something is wrong. Booster voltage should be between 18 and 19V, or you have misspelled the value ?

How many Switches & signals are on the layout ?
Do you have a booster dedicated to drive Switches, Signals, M83, M84 and so on. If not, that may be a solution to your issue. The wiring is much more simpler...

Cheers
fabrice
Offline Thewolf
#7 Posted : 03 March 2019 22:46:03(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: French_Fabrice Go to Quoted Post
Hello Serge,

If you have 12.5V, then something is wrong. Booster voltage should be between 18 and 19V, or you have misspelled the value ?

How many Switches & signals are on the layout ?
Do you have a booster dedicated to drive Switches, Signals, M83, M84 and so on. If not, that may be a solution to your issue. The wiring is much more simpler...

Cheers
fabrice


Hello Fabrice,

The information on the cs2:

Booster 2 : 19 V
Booster 1: 18.8 V
Booster 3: 18.6 V
CS2: 18.6 V

With my MAS830B on the 72090;

B2: 12.8 V
B1: 12.3 V
B3: 13.1 V
cs2: 12.3 V
idem on the tracks of each sector

Maybe a problem of 74030 (insulation) between sections ??? To isolate I only put 2 x 74030 on the inside of the tracks (insulation of the central studs).

I have to read again the links that Wolfgang gave me: I read in haste that in category 3 you have to isolate with 4 x 74030 but I think I am in category 2. Well I guess.

I like your suggestion to give a booster to the M84 and M83 which will operate 21 signals and 16 uncouplers, as long as the second booster given to the tracks operates the switches, which is not the case at the moment .

Switches with integrated decoder are connected to the cs2



Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#8 Posted : 03 March 2019 22:55:56(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Hi Fabrice Wolfgang and the gang Cool

I have read the links that Wolfgang gave me and if I understood correctly, my layout is in category 2 and for this purpose, within this business unit,
a common return conductor can be used for the different areas of the network.

So, my cs 2 and 3 booster can use the track masse as a common return conductor.

My layout therefore uses for the power supply 3 converters ref. 60061 in total for the CS 2 and the 3 boosters.

This results in a total possible power of 4 x 60 VA = 240 VA. Category 2 VA from 120 to 300 VA At all transition points, the insulation of the central conductor is sufficient.

I will review the separations on the layout and find a better separation layout and maybe buy a 4th booster only for the M84 and M83 but in this case it is necessary to check if the use of a 60822 with his converter is not more advantageous.

Good evening

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline TEEWolf
#9 Posted : 04 March 2019 04:49:20(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,465
Originally Posted by: Thewolf Go to Quoted Post
Hi Fabrice Wolfgang and the gang Cool

I have read the links that Wolfgang gave me and if I understood correctly, my layout is in category 2 and for this purpose, within this business unit,
a common return conductor can be used for the different areas of the network.

So, my cs 2 and 3 booster can use the track masse as a common return conductor.

My layout therefore uses for the power supply 3 converters ref. 60061 in total for the CS 2 and the 3 boosters.

This results in a total possible power of 4 x 60 VA = 240 VA. Category 2 VA from 120 to 300 VA At all transition points, the insulation of the central conductor is sufficient.

I will review the separations on the layout and find a better separation layout and maybe buy a 4th booster only for the M84 and M83 but in this case it is necessary to check if the use of a 60822 with his converter is not more advantageous.

Good evening

Thewolf


For a power supply of your decoders M83 and/or M84 you do not need a new booster. You can get a 60822 universal powers supply unit

https://static.maerklin....26ebe6266d1487855273.pdf

and a regular power supply 66360.

https://www.maerklin.de/...ts/details/article/66360

See on top of the system architecture of Märklin digital

https://www.maerklin.de/...Gesamt%C3%BCbersicht.pdf

As talked before, you can add up the decoders, but do not set a cable between the devices.

ciao

TEEWolf
Offline Thewolf
#10 Posted : 04 March 2019 15:05:54(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: TEEWolf Go to Quoted Post
Originally Posted by: Thewolf Go to Quoted Post
Hi Fabrice Wolfgang and the gang Cool

I have read the links that Wolfgang gave me and if I understood correctly, my layout is in category 2 and for this purpose, within this business unit,
a common return conductor can be used for the different areas of the network.

So, my cs 2 and 3 booster can use the track masse as a common return conductor.

My layout therefore uses for the power supply 3 converters ref. 60061 in total for the CS 2 and the 3 boosters.

This results in a total possible power of 4 x 60 VA = 240 VA. Category 2 VA from 120 to 300 VA At all transition points, the insulation of the central conductor is sufficient.

I will review the separations on the layout and find a better separation layout and maybe buy a 4th booster only for the M84 and M83 but in this case it is necessary to check if the use of a 60822 with his converter is not more advantageous.

Good evening

Thewolf


For a power supply of your decoders M83 and/or M84 you do not need a new booster. You can get a 60822 universal powers supply unit

https://static.maerklin....26ebe6266d1487855273.pdf

and a regular power supply 66360.

https://www.maerklin.de/...ts/details/article/66360

See on top of the system architecture of Märklin digital

https://www.maerklin.de/...Gesamt%C3%BCbersicht.pdf

As talked before, you can add up the decoders, but do not set a cable between the devices.

ciao

TEEWolf


Hello Wolfgang Cool

And what do I do with the two boosters? My name is Serge, not Croesus BigGrin Blink Flapper

I'm currently thinking about a new electrical layout.

I want to do this:

A) Booster 2 and 3 :

I have two sets of M84-M83s grouped together but in two different places under the layout:

1 x M83 + 3 x M84 on the right of the layout (1)

1 x M83 + 3 x M84 on the left of the layout (2)

I would like to assign booster 2 to (1) and booster 3 to (2)

B) Booster 1 and cs2 :

The hidden part will be managed by booster 1 and the visible part (the top) by cs2

I'll think about it.

C) And above all, don't forget (as I often have this kind of distraction) to apply this scheme that Fabrice sent me a long time ago. I had totally forgotten that this time.


Have a nice day

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#11 Posted : 04 March 2019 16:03:55(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
I am going to do this sytem :

electrical system layout 1.pdf (438kb) downloaded 45 time(s).

electrical layout (2).pdf (335kb) downloaded 40 time(s).

To see you later

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#12 Posted : 04 March 2019 16:30:01(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

I don't get it Crying

Why do you want 2 boosters to supply your M83s and M84s, when you can supply them with DC from a 60822 + a 66360 ?

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#13 Posted : 04 March 2019 17:10:53(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

I don't get it Crying

Why do you want 2 boosters to supply your M83s and M84s, when you can supply them with DC from a 60822 + a 66360 ?

Per.

Cool


Hi Per Cool

I wrote several times that I had 3 boosters....I might as well use it

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#14 Posted : 04 March 2019 17:46:31(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
I wrote several times that I had 3 boosters....I might as well use it


Using the same logic, I might as well use diesel on my gasoline powered car, since I have a few cans of diesel.

I'm trying to help you; but I have a hard time figuring out what your problems are and what you have.

At first you have 4 times 60065, then you have 3 times 60061; but multiply by 4 when calculating the power.

Measuring the voltage, using you MAS830B multimeter only adds to the confusion, since you get wrong results.

Your CS and booster_1 is working fine, and your booster_2 and booster_3 are not working fine, if I understand you correct?

I think you should try to take the things step by step, instead of jumping into everything at once. Blink

Per.

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#15 Posted : 04 March 2019 18:56:01(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
I wrote several times that I had 3 boosters....I might as well use it


Using the same logic, I might as well use diesel on my gasoline powered car, since I have a few cans of diesel.

I'm trying to help you; but I have a hard time figuring out what your problems are and what you have.

At first you have 4 times 60065, then you have 3 times 60061; but multiply by 4 when calculating the power.

Measuring the voltage, using you MAS830B multimeter only adds to the confusion, since you get wrong results.

Your CS and booster_1 is working fine, and your booster_2 and booster_3 are not working fine, if I understand you correct?

I think you should try to take the things step by step, instead of jumping into everything at once. Blink

Per.

Cool



Ok ...Okay... I made a mistake writing 60065 instead of 60061.

I'm happy for you if you're perfect.Cool

I don't understand your reference to diesel because I don't see how I'm making a mistake using 60175s I already have. Buying 60822 and 63365 that you suggested would be a

mistake on my part.This morning, I discussed this suggestion with Mike, my friend and delaer Marklin from the Toronto area.

Mike is recognized in the Marklin world in our country as a leading specialist. Ask Ontario members who know him.

Finally, if I follow your suggestion, what do I do with my 2 unused boosters? Chimney linings? Or a transformer from diesel to gasoline?BigGrin Love

So, the old system is abandoned. Everything is dismantled. I don't come back and as I wrote in my post 10 and 11, I put together a new concept that will be (and I repeat) the

cs2 and the booster 1 for the layout, the boosters 2 and 3 for the M84-M83.

However I agree with you for your final point.... although I'm a little busy with time. The spring is coming soon .

Have a nice day

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#16 Posted : 04 March 2019 19:12:32(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
I'm happy for you if you're perfect.


I'm not, I just try to figure out what you have now and what you want to have.

Last week you wrote a long question about problem, mentioning "74090" several times;
but neither my friend Google or Märklin's homepage knows that number.

Before I could ask, you posted that the problem was resolved, without a word to tell anyone what was wrong, or how you solved it.

A lot of friendly people here are trying to help; but if you don't want to help us to help you, it get really hard.

Per.

Cool



If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline TEEWolf
#17 Posted : 04 March 2019 19:57:24(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,465
Originally Posted by: Thewolf Go to Quoted Post

Hello Wolfgang Cool

And what do I do with the two boosters? My name is Serge, not Croesus BigGrin Blink Flapper

I'm currently thinking about a new electrical layout.

I want to do this:

A) Booster 2 and 3 :

I have two sets of M84-M83s grouped together but in two different places under the layout:

1 x M83 + 3 x M84 on the right of the layout (1)

1 x M83 + 3 x M84 on the left of the layout (2)

I would like to assign booster 2 to (1) and booster 3 to (2)

B) Booster 1 and cs2 :

The hidden part will be managed by booster 1 and the visible part (the top) by cs2

I'll think about it.

C) And above all, don't forget (as I often have this kind of distraction) to apply this scheme that Fabrice sent me a long time ago. I had totally forgotten that this time.

Have a nice day

Serge


Hello Serge,

I thougth you want to buy an extra new booster, just for your m83 and m84 decoders.

I see you do a rather great expansion of your layout. Well this needs a new calculation of the needed power for each section. You do not install boosters by needed space, you install them by the needed power. Means you have to calculate the power consumption for the feeded current section. This is not easy, but in the safety and technical informations from Märklin (I set the link a few times), e.g. under system supply are listed a few calculation examples for different layout sizes by the needed electricity. But best will be, you do this with your Märklin specialist an friend Mike together.

ciao

Wolfgang
Offline Thewolf
#18 Posted : 04 March 2019 19:58:16(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
I'm happy for you if you're perfect.


I'm not, I just try to figure out what you have now and what you want to have.

Last week you wrote a long question about problem, mentioning "74090" several times;
but neither my friend Google or Märklin's homepage knows that number.

Before I could ask, you posted that the problem was resolved, without a word to tell anyone what was wrong, or how you solved it.

A lot of friendly people here are trying to help; but if you don't want to help us to help you, it get really hard.

Per.

Cool





Per Cool ...ok Cool .

As you seem to like looking for the little flaw in the other person (I remember your posts with Goofy) I'll answer you in a cool wayCool :

1) why didn't you ask the question about that little mistake then? I'm sorry if in your eyes distraction is a crime. And I'm distracted. I had to write 72090

2) why didn't I write how I resolve it? The answer is simple: that day, I must have been in a hurry or busy doing something more important.

I can't even write that if I haven't explained how I solved this problem, it's because I would be stressed, shocked, angry because of many unanswered questions.

Yes, .... many of the questions I asked have remained unanswered, but when they do, I don't make a drama out of them. I understand that we don't always have time.

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#19 Posted : 04 March 2019 20:09:49(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: TEEWolf Go to Quoted Post
Originally Posted by: Thewolf Go to Quoted Post

Hello Wolfgang Cool

And what do I do with the two boosters? My name is Serge, not Croesus BigGrin Blink Flapper

I'm currently thinking about a new electrical layout.

I want to do this:

A) Booster 2 and 3 :

I have two sets of M84-M83s grouped together but in two different places under the layout:

1 x M83 + 3 x M84 on the right of the layout (1)

1 x M83 + 3 x M84 on the left of the layout (2)

I would like to assign booster 2 to (1) and booster 3 to (2)

B) Booster 1 and cs2 :

The hidden part will be managed by booster 1 and the visible part (the top) by cs2

I'll think about it.

C) And above all, don't forget (as I often have this kind of distraction) to apply this scheme that Fabrice sent me a long time ago. I had totally forgotten that this time.

Have a nice day

Serge


Hello Serge,

I thougth you want to buy an extra new booster, just for your m83 and m84 decoders.

I see you do a rather great expansion of your layout. Well this needs a new calculation of the needed power for each section. You do not install boosters by needed space, you install them by the needed power. Means you have to calculate the power consumption for the feeded current section. This is not easy, but in the safty and technical informations from Märklin (I set the link a few times), e.g. under system supply are listed a few calculation examples of different sizes. But best will be, you do this with your Märklin specialist an friend Mike together.

ciao

Wolfgang


Wolfgang Cool

My god...If I follow you correctly, the cs2 and booster 1 would be insufficient for my entire layout? Seriously ? Is it a joke ?

I remind you that boosters 2 and 3 are reserved for the M83 and M84.

And how is the energy consumption calculated? Wolfgang you must have this in your archives: you are the champion of useful links

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#20 Posted : 04 March 2019 20:10:15(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post


Per Cool ...ok Cool .

As you seem to like looking for the little flaw in the other person (I remember your posts with Goofy) I'll answer you in a cool wayCool :

1) why didn't you ask the question about that little mistake then? I'm sorry if in your eyes distraction is a crime. And I'm distracted. I had to write 72090

2) why didn't I write how I resolve it? The answer is simple: that day, I must have been in a hurry or busy doing something more important.

I can't even write that if I haven't explained how I solved this problem, it's because I would be stressed, shocked, angry because of many unanswered questions.

Yes, .... many of the questions I asked have remained unanswered, but when they do, I don't make a drama out of them. I understand that we don't always have time.

Thewolf



No, I'm not looking for flaws in other persons; but when I see misinformation, I feel obligated to correct what is wrong.

A few members here answers questions, not knowing anything about what is being asked; they just give an answer that is incorrect.

At the time when you asked your question mentioning the "74090" I were offshore on a ship, with very poor internet and very limited time,
so when I saw that you had solved the problem, I couldn't spend more time trying to figure out what you meant.

And since I until now hadn't figured out what you meant, and what you problem was, it still puzzled me and I wanted to know the solution.

Per.

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#21 Posted : 04 March 2019 20:16:27(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post


Per Cool ...ok Cool .

As you seem to like looking for the little flaw in the other person (I remember your posts with Goofy) I'll answer you in a cool wayCool :

1) why didn't you ask the question about that little mistake then? I'm sorry if in your eyes distraction is a crime. And I'm distracted. I had to write 72090

2) why didn't I write how I resolve it? The answer is simple: that day, I must have been in a hurry or busy doing something more important.

I can't even write that if I haven't explained how I solved this problem, it's because I would be stressed, shocked, angry because of many unanswered questions.

Yes, .... many of the questions I asked have remained unanswered, but when they do, I don't make a drama out of them. I understand that we don't always have time.

Thewolf



No, I'm not looking for flaws in other persons; but when I see misinformation, I feel obligated to correct what is wrong.

A few members here answers questions, not knowing anything about what is being asked; they just give an answer that is incorrect.

At the time when you asked your question mentioning the "74090" I were offshore on a ship, with very poor internet and very limited time,
so when I saw that you had solved the problem, I couldn't spend more time trying to figure out what you meant.

And since I until now hadn't figured out what you meant, and what you problem was, it still puzzled me and I wanted to know the solution.

Per.

Cool



Ok Per...next time I will not forget to explain the solution I used Cool

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#22 Posted : 04 March 2019 20:39:14(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
If I follow you correctly,the cs2 and booster 1 would be insufficient for my entire layout? Seriously ? Is it a joke ?


I don't remember seeing how many trains you want to run at the same time, which is the information needed.

As an example, the first section of Miniatur Wunderland in Hamburg had 60 trains running on 5 10A boosters on a 120 square meter layout.

1000 meters of track, 250 switches and 120 signals. Later the learnt to limit all boosters to 3A.

https://www.miniatur-wun...rland/worlds/knuffingen/

You have 4 boosters, including the one in your CS.............. BigGrin

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline TEEWolf
#23 Posted : 04 March 2019 20:56:40(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,465
Originally Posted by: Thewolf Go to Quoted Post



Have a nice day

Serge


Hello Serge,

the pictures shows only the cabling structure of the power devices, but not their consumption. Both is not easy but important. Märklin has several publications made about cabling in the Märklin Magazine, but all are in German and none is calculating the needed power for a layout. First I saw this in their safety regulations. Similar about statements of the needed diameter of a cable. And which profil you shall use for which powered solenoid. I saw a recommendation first time in this book art #03070

https://www.maerklin.de/...ts/details/article/03070

on pages 63, 84f, 146 (of course only in German) Märklin metioned cross sections between 0,14 mm² and 0,75 mm². But these profiles are important, because they shall act as a fusing for a layout. Or did you read anything about a fuse protection of a Märklin railroad? Well I did, but not by Märklin. It is on a private homepage of a MRR fan. His name is Stefan Krauß

http://www.skrauss.de/mo...bahn/autofuse/index.html

He developed and wrote a detailed technical article about excess current and a protection against it. He named it Autofuse.

http://www.skrauss.de/mo...ahn/autofuse/deluxe.html

Here are two links as examples about Märklin's publications.

https://www.maerklin.de/...Anlage_MM_2013_05_06.pdf

https://www.maerklin.de/.../MM_Verkabelung_2013.pdf

Because the pictures and plans inside may give you a hint for a further proceeding. But at the end of the day, please discuss it all with your friendly Märklin friend about the current consumption. I myself are not an electrician who is able just to do a quick layout power consumption calculation. But that's what you need for your CS and each booster section.

ciao

Wolfgang
Offline Thewolf
#24 Posted : 04 March 2019 21:54:23(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
If I follow you correctly,the cs2 and booster 1 would be insufficient for my entire layout? Seriously ? Is it a joke ?


I don't remember seeing how many trains you want to run at the same time, which is the information needed.

As an example, the first section of Miniatur Wunderland in Hamburg had 60 trains running on 5 10A boosters on a 120 square meter layout.

1000 meters of track, 250 switches and 120 signals. Later the learnt to limit all boosters to 3A.

https://www.miniatur-wun...rland/worlds/knuffingen/

You have 4 boosters, including the one in your CS.............. BigGrin

Per.

Cool


Per ...you are right ...the cs2 + 3 boosters = 4. This is Wunderland Canada Love Love LOL LOL LOL

Yesterday the cs2 and booster 1 work...the switches work...the switches on booster 2 and 3 did not work. Why ? I ask the question ...no answers !

I suppose that the reason why the switches do no work, that is because I forgot by distraction to connect al the '' O '' wires together ( from cs2 and boosters) . For me that's the only reason.

Your opinion ?

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#25 Posted : 04 March 2019 22:04:33(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
Yesterday the cs2 and booster 1 work...the switches work...the switches on booster 2 and 3 did not work. Why ? I ask the question ...no answers !

I suppose that the reason why the switches do no work, that is because I forgot by distraction to connect al the '' O '' wires together ( from cs2 and boosters) . For me that's the only reason.

Your opinion ?


Yesterday the only information you gave us was more or less this:

Originally Posted by: Thewolf Go to Quoted Post
I only have a problem in the sections of boosters 2 and 3: my switches do not work even if the voltage seems correct


That is not much information to start finding the error BigGrin

If you now found that you forgot to connect all the "0"s, I think you've found the reason for your problem. LOL

Have you connected the "0"s and tested it now ??

Per.

Cool



If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#26 Posted : 04 March 2019 22:05:10(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
But I think really that the cs2 + one booster are enough for the tracks and the M83-84 and certainly for 4 trains

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#27 Posted : 04 March 2019 22:09:42(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
Yesterday the cs2 and booster 1 work...the switches work...the switches on booster 2 and 3 did not work. Why ? I ask the question ...no answers !

I suppose that the reason why the switches do no work, that is because I forgot by distraction to connect al the '' O '' wires together ( from cs2 and boosters) . For me that's the only reason.

Your opinion ?


Yesterday the only information you gave us was more or less this:

Originally Posted by: Thewolf Go to Quoted Post
I only have a problem in the sections of boosters 2 and 3: my switches do not work even if the voltage seems correct


That is not much information to start finding the error BigGrin

If you now found that you forgot to connect all the "0"s, I think you've found the reason for your problem. LOL

Have you connected the "0"s and tested it now ??

Per.

Cool







This is the answer that I wait since this morning !!!! Ostie de tabarnak !!!! Flapper

I am going to test tomorrow with all '' O '' connected...I am sure that all will be ok

I'm going to go back to my initial configuration

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
thanks 1 user liked this useful post by Thewolf
Offline Purellum
#28 Posted : 04 March 2019 22:24:21(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
But I think really that the cs2 + one booster are enough for the tracks and the M83-84 and certainly for 4 trains


I'm 110% sure it will be enough power.

Per.

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Purellum
#29 Posted : 04 March 2019 22:29:08(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
Ostie de tabarnak !!!! Flapper


If you say so LOL

Per.

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#30 Posted : 04 March 2019 22:41:42(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Here's Mike's reminder to the distracted man I am:

“O” is the ground return (common). When the booster is connected to the tracks on the “B” is insulated. The “O” is common and provides the ground return. Connect all “O” together and try it again.

Mike Sorge
Westend Trains Inc. www.westendtrains.com
17 Arnold St.
Etobicoke, ON M8Z 5A5
Canada
T: 416.251.6124
F: 416.251.1637

Thank you to Per, Wolfgang and Fabrice. I know that I am a '' ostie de chialeux '' as we say in Quebec

Have a nice evening

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#31 Posted : 05 March 2019 21:39:01(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Hi guys Cool

Don't ask me how I feel.

I'm cursed.Cursing

I made all the connections of the wires'''0'' together (cs2 and boosters).

The switches under cs2 and booster 1 work Cool

The switches under boosters 2 and 2 do not work. Crying Cursing

A brief return to square one. Mad

Well... I'm going to go for a walk in a bar of ''naked dancers'' to calm my nerves Flapper

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#32 Posted : 05 March 2019 22:09:03(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
The switches under boosters 2 and 2 do not work.


Please disconnect the 2 boosters, and connect each of them individually to each just one switch, not connected to anything else.

Per.

PS:

Originally Posted by: Thewolf Go to Quoted Post
I'm going to go for a walk in a bar of ''naked dancers''


Pictures please LOL

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline kiwiAlan
#33 Posted : 06 March 2019 10:58:35(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,082
Location: ENGLAND, Didcot
Originally Posted by: Purellum Go to Quoted Post

Originally Posted by: Thewolf Go to Quoted Post
I'm going to go for a walk in a bar of ''naked dancers''


Pictures please LOL

Cool



Are you allowed to take pictures in those sort of places ??? Confused BigGrin Woot
Offline Thewolf
#34 Posted : 06 March 2019 14:41:45(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Hi guys Cool

Last night, I did a test drive with an E10.

It runs on the 4 sectors....but on the sectors managed by booster 2 and 3, it loses its power, I would say at least 60%.

In addition, the loco functions do not work on booster sectors 2 and 3.

To stop it in these areas, I must use the cs2 emergency stop.

For me, it is obvious that if the locomotive functions do not work under Booster 2 and 3, my signals and disconnectors under M84 and M83 will not work.

But before claiming an exchange under warranty, I will test the M83-M84s under booster 2 and 3.

Then based on the results, I'll talk to Mike.

Have a nice day

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#35 Posted : 06 March 2019 14:43:17(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: kiwiAlan Go to Quoted Post
Originally Posted by: Purellum Go to Quoted Post

Originally Posted by: Thewolf Go to Quoted Post
I'm going to go for a walk in a bar of ''naked dancers''


Pictures please LOL

Cool



Are you allowed to take pictures in those sort of places ??? Confused BigGrin Woot


It's ugly girls with 60175s in their faces.Bored Crying BigGrin
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#36 Posted : 06 March 2019 15:12:33(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
But before claiming an exchange under warranty, I will test the M83-M84s under booster 2 and 3.


I would suggest that you until you get everything to work, divide your layout into 4 totally separate layouts, and get them working.

Only then can we help you figure out what is wrong.

Per.

Cool



If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#37 Posted : 06 March 2019 15:22:51(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
But before claiming an exchange under warranty, I will test the M83-M84s under booster 2 and 3.


I would suggest that you until you get everything to work, divide your layout into 4 totally separate layouts, and get them working.

Only then can we help you figure out what is wrong.

Per.

Cool





Per,

The layout is already divided into four.Cool

But I can do something else for example: make more "pronounced" divisions by removing a rail between each division and rolling the loco on each part individually.

I am going to test this

Serge

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#38 Posted : 06 March 2019 15:34:58(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
But I can do something else for example: make more "pronounced" divisions by removing a rail between each division and rolling the loco on each part individually.


Yes, that was what i meant.

We have to figure out if the problem is the boosters or the wiring.

Per.

Cool

If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#39 Posted : 06 March 2019 15:57:07(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
But I can do something else for example: make more "pronounced" divisions by removing a rail between each division and rolling the loco on each part individually.


Yes, that was what i meant.

We have to figure out if the problem is the boosters or the wiring.

Per.

Cool



Per,

I think that this is a wiring problem.

Here the Mike's answer this moring a few minutes ago :

''Hi Serge,

That is a problem. You need to fix that first. When a loco can run properly in all 4 sections then we can move on to the rest of the problems with the switches.

I used your CS and all 3 boosters to test run a loco and it worked perfectly so there must be a problem with your connections''

Serge


Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#40 Posted : 06 March 2019 16:37:38(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
Per,

I think that this is a wiring problem.

Here the Mike's answer this moring a few minutes ago :

''Hi Serge,

That is a problem.You need to fix that first.When a loco can run properly in all 4 sections then we can move on to the rest of the problems with the switches.

I used your CS and all 3 boosters to test run a loco and it worked perfectly so there must be a problem with your connections''

Serge


I think you and Mike are right, and the easiest way to find the problem is IMHO to isolate the layout parts.

I think Mike is basically suggesting the same thing, just using other words.

( I actually think that you have swapped "B" and "0" on some of your track connections. )

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#41 Posted : 06 March 2019 17:15:36(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
Per,

I think that this is a wiring problem.

Here the Mike's answer this moring a few minutes ago :

''Hi Serge,

That is a problem.You need to fix that first.When a loco can run properly in all 4 sections then we can move on to the rest of the problems with the switches.

I used your CS and all 3 boosters to test run a loco and it worked perfectly so there must be a problem with your connections''

Serge


I think you and Mike are right, and the easiest way to find the problem is IMHO to isolate the layout parts.

I think Mike is basically suggesting the same thing, just using other words.

( I actually think that you have swapped "B" and "0" on some of your track connections. )

Per.

Cool


Per,

I do a new installation from the tracks to 72090 of the''B'' and''O'' and 60175-2 and -3.

I even install new sockets.

The wire is 0.14 mm2., even between the different''0''.

There will be 0.75 mm2 of the 72090 boosters at the M83-M84 but it will be for later.

I have a big problem to solve before.

Serge

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#42 Posted : 06 March 2019 17:25:52(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
I have a big problem to solve before.


Good luck BigGrin

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#43 Posted : 06 March 2019 17:35:51(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
However, I wonder: Confused

could the distance between the different boosters play a role?Bored

Boosters 2 and 3 are placed 250cm from the second terminal 60145 which itself is placed more than 360cm from the first 60145.

Booster 1 is placed 200 cm from terminal 1

Confused Confused

Serge
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#44 Posted : 06 March 2019 17:47:48(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
However, I wonder: Confused

could the distance between the different boosters play a role?Bored

Boosters 2 and 3 are placed 250cm from the second terminal 60145 which itself is placed more than 360cm from the first 60145.

Booster 1 is placed 200 cm from terminal 1

Confused Confused

Serge


This should absolutely not be a problem. CAN bus standard specifications says 40 - 1000 meters, depending on data transfer speed.

( Edit: Märklin says maximum 100 meters, data rate is 250 Kbit/s. )

Please isolate so you can test each booster section separately Cool

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline rbw993
#45 Posted : 06 March 2019 18:47:19(UTC)
rbw993

United States
Joined: 19/08/2008(UTC)
Posts: 954
The distance shouldn't be a problem. I have 3 boosters that are connected to the CS2 by a 125 terminal, then 6X2 meter extension cables, then two more 125's. that is at least 18 meters. Everything works fine. If the booster that works is connected to the booster port on the CS2 and the others are connected by a 125 terminal it sounds like something is wrong with the 125 connection.

Regards,
Roger
Offline Thewolf
#46 Posted : 06 March 2019 20:42:52(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: rbw993 Go to Quoted Post
The distance shouldn't be a problem. I have 3 boosters that are connected to the CS2 by a 125 terminal, then 6X2 meter extension cables, then two more 125's. that is at least 18 meters. Everything works fine. If the booster that works is connected to the booster port on the CS2 and the others are connected by a 125 terminal it sounds like something is wrong with the 125 connection.

Regards,
Roger


Hi Roger

If the 60145 was defective, the control led of the 60175 would not be bright red like the 2 leds of boosters 2 and 3 that I have.

Well, I suppose so.

Regards

Thewolf

Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#47 Posted : 06 March 2019 20:55:16(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Well, this is not a wiring problem in the sections of booster 2 and 3.

The test I idi : I connected the wiring from booster 1 to the sections of boosters 2 and 3.

Everything worked...the locomotive and switches...until a certain point.

I had a disconnection from the cs2: overload problem. The loco passed on an insulated rail for axle detection...and oops stop and mention on the cs2. It will be for later.

So I think it's a booster problem, right?

So I'm gonna talk to Mike.

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Purellum
#48 Posted : 06 March 2019 21:12:07(UTC)
Purellum

Denmark
Joined: 08/11/2005(UTC)
Posts: 3,498
Location: Mullerup, 4200 Slagelse
Cool

Originally Posted by: Thewolf Go to Quoted Post
Well, this is not a wiring problem in the sections of booster 2 and 3.


I'm not sure you're right.

Originally Posted by: Thewolf Go to Quoted Post


The test I idi : I connected the wiring from booster 1 to the sections of boosters 2 and 3.


Good.

Originally Posted by: Thewolf Go to Quoted Post
Everything worked...the locomotive and switches...until a certain point.

I had a disconnection from the cs2: overload problem. The loco passed on an insulated rail for axle detection...and oops stop and mention on the cs2. It will be for later.

So I think it's a booster problem, right?


This makes me sure it's a wiring problem.

It looks like the "B" ( pukos ) are somehow "connected" ( as in not meant to be connected; but connected by error ) to the isolated track piece.
It could just be a bend tongue on one of the "0" connections under the track, touching a "B" part of the connectors.

I would still divide your layout into 4 separate layouts, without any axle detection connected,
and make your locos run and your switches switch without any problems.

Regarding my last two lines: I feel like I'm repeating myself LOL

Per.

Cool
If you can dream it, you can do it!

I, the copyright holder of this work, hereby release it into the public domain. This applies worldwide.

In case this is not legally possible:
I grant anyone the right to use this work for any purpose, without any conditions, unless such conditions are required by law.

UserPostedImage
Offline Thewolf
#49 Posted : 06 March 2019 21:40:08(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
Originally Posted by: Purellum Go to Quoted Post
Cool

Originally Posted by: Thewolf Go to Quoted Post
Well, this is not a wiring problem in the sections of booster 2 and 3.


I'm not sure you're right.

Originally Posted by: Thewolf Go to Quoted Post


The test I idi : I connected the wiring from booster 1 to the sections of boosters 2 and 3.


Good.

Originally Posted by: Thewolf Go to Quoted Post
Everything worked...the locomotive and switches...until a certain point.

I had a disconnection from the cs2: overload problem. The loco passed on an insulated rail for axle detection...and oops stop and mention on the cs2. It will be for later.

So I think it's a booster problem, right?


This makes me sure it's a wiring problem.

It looks like the "B" ( pukos ) are somehow "connected" ( as in not meant to be connected; but connected by error ) to the isolated track piece.
It could just be a bend tongue on one of the "0" connections under the track, touching a "B" part of the connectors.

I would still divide your layout into 4 separate layouts, without any axle detection connected,
and make your locos run and your switches switch without any problems.

Regarding my last two lines: I feel like I'm repeating myself LOL

Per.

Cool


Per,

I will try to be more explicit.

The 4 sections during the test were individual... 1 track 24188 was missing between sections...so they were not common.

The loco rolled over each section...at the end of the section...I took it and dropped it off on the next section.

The little problem I had was solved as follows: I replaced the isolated track with a normal track.

Section 1 was managed by cs2...sections 2 by booster 1 (this is its initial section) and sections 2 (initial booster 2) and 3 (initial booster 3) by the connection from booster 1

Everything was working... so I say that the non-functionality of boosters 2 and 3 does not come from my track wiring, because it works under booster 1

I know perfectly well that the small overload problem comes from the wiring. I've known dozens of them.

Serge



Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Offline Thewolf
#50 Posted : 06 March 2019 22:06:15(UTC)
Thewolf

Canada
Joined: 08/09/2015(UTC)
Posts: 2,035
Location: Saint Mathias dur Richelieu-Canada
The last test I'm going to do:

- I will go up with new tracks the 2 sections of boosters 2 and 3 without the isolated tracks for the detection by axles. In the past, I had no trouble making these damn isolated calisse tracks.

- I have individual sections made
.
-each section will have its own energy supply

I'll see at the autopsy as they say in the Walloon cottages

Thewolf
Project The Richelieu Valley Railway-CS2-Track C- Itrain-Digital
Users browsing this topic
2 Pages12>
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2024, Yet Another Forum.NET
This page was generated in 1.171 seconds.
