What all do I need from Marklin to convert this old girl over to digital. I did my class 110 electric with an all in one kit sold thru Marklin, but it was a different power truck(DCM). The 3060 is a SFCM motor. All I am finding now are the motor parts without a decoder. Can I just use a normal DCC decoder thats available locally, such as TCS T1? I use the older Uhlenbrock Intellibox IR to operate my layout, not sure if it does more than the MM style decoder language. Still learning how to run the darn thing. Going to have 2 older F units to convert here soon, the Santa Fe and the DRGW version. Need to figure out how to program different addresses and change CV's with my set up so I can program decoders. Mike the Aspie

Hi

I did this conversion 15 days ago.
Is very easy
I used:
1. Märklin 60943 motor (SFCM) if yours has it as you said. There are some later 3060 models with DCM motor in this case you need 60941 motor
2. Märklin 60976 decoder (is a DCC decoder as well)
3. 5mm WW LED
6. Märklin E604180 bulb holder
7. Resistor 1kΩ 1/4 Watt

The frame before

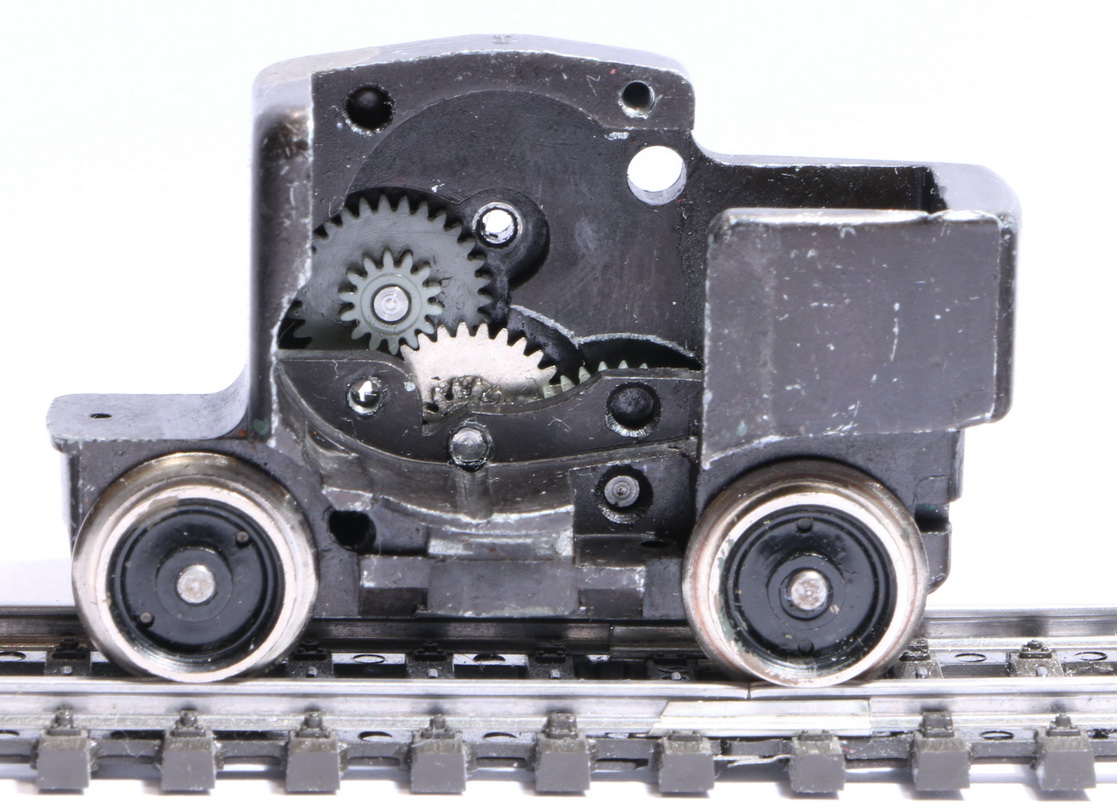

The motor truck open and clean



The 60943 motor in place

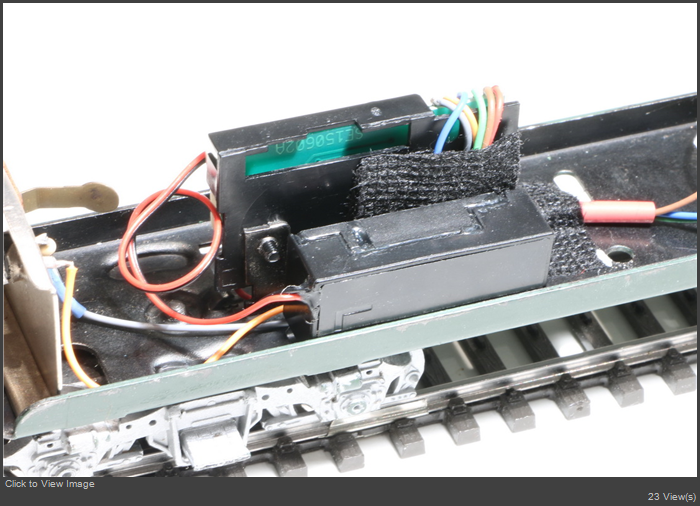

The 60976 decoder in place



The speaker



The front bulb base and the resistor



The 5mm LED in place



The frame after the conversion



The loco!!!



I used the F7 sounds from the Märklin Soundbibliotek as the main sounds (programmed with 60971 and mDT3 software).

As there are 4 more functions available you can put more lights according to taste (e.g. cabin light, road No light, engine room light)

Runs excellent

Good Luck

Costas

Edited by user 28 February 2019 17:08:38(UTC)  | Reason: Not specified

Looks nice, i just found out while looking thru AJCkids that Marklin has a new drop in decoder for the old AC field coil motors coming out 2nd quarter this year. NO motor modifications, so the old unregulated running style is preserved, along with the ozone smell and sound of the older models. The new decoder will also handle running the stock light bulbs, Telex couplers and smoke units. I may just wait till those come out and just push the dummy 4060 with my E110 loco that I already converted. I used a Marklin kit to convert it(it was a DCM motor) and its decoder works just fine with the original stock light bulbs. I did not do anything but wire the hot side wire up to them, they remain grounded to the chassis of the model. The decoder that came in that kit allowed this kind of set up if wired a specific way. AJC also has just a permag field magnet set up that will allow decoder install using the original brush plate and armature. Just have to isolate the grounded motor brush(an easy thing to do). I may try one of those and use one of my TSC T1 decoders, along with the stock light bulb set up. I do applaud Marklin for making up a decoder that allows simple digital conversion with nothing more than a rewire install. Nothing else to buy unless you want to. On my super small layout, sound quickly becomes annoying. I like that classic Marklin sound, the only difference being I am running on C track to enjoy the digital control of the turnouts. Mike

Wont be a problem on my mini layout, its only 55 inches by 33 inches, so its a single(powered) engine at a time layout. Even if I had a larger layout, it really would not be a huge problem. I am unable to multitask to any extant, so even when I have had or run on larger layouts, 1 or 2 trains going at the same time was my max without having problems keeping up with things due to my autism. For now, I am going to get one of the ESU field magnets and reuse the rest of the original motor parts along with a TCS T1 decoder to get her running for an upcoming show I am taking the layout to. Once those new decoders come out, then I will look into them, still a few months away till we see those and that is if M delivers them to market on schedule. Mike the Aspie
