nevw		#1 Posted : 25 September 2018 07:40:56(UTC) Retweet
Joined: 27/08/2005(UTC) Posts: 11,071 Location: Murrumba Downs QLD		Think I have a problem with 2 M83s. Both have been set to DCC (no 10 Dip switch on) when power is applied the indicator lights on the power connection flash on both units. The only information i can find is that if lights flash on both units the Red and Brown are reversed, No so in this case. checked and did a physical change over. Clues troops clues.
		NOt wearing the Pink Pinny, which is hard to see and now I have a white Pinny which also is hard to see against MY pure white Skin Still have 2 new shiny tin Hips that is badly in Need of Repair matching rusting tin shoulders and a hose pipe on the aorta Junior member of the Banana Club, a reformist and an old Goat with a Bad memory, loafing around
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

Goofy		#2 Posted : 25 September 2018 08:34:47(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,015		Did you connected(plugged) two m83 together and feed digital in both? In case don´t! Just only one m83 needs digital feed if you did connected two m83 plug into.
		H0 DCC = Digital Command Control
1 user liked this useful post by Goofy		nevw
User Profile View All Posts by User View Thanks

nevw		#3 Posted : 25 September 2018 09:54:38(UTC) Retweet
Joined: 27/08/2005(UTC) Posts: 11,071 Location: Murrumba Downs QLD		Originally Posted by: Goofy Did you connected(plugged) two m83 together and feed digital in both? In case don´t! Just only one m83 needs digital feed if you did connected two m83 plug into. NO only one feed in. They were working a few weeks ago but not now. tis a Pain.
		NOt wearing the Pink Pinny, which is hard to see and now I have a white Pinny which also is hard to see against MY pure white Skin Still have 2 new shiny tin Hips that is badly in Need of Repair matching rusting tin shoulders and a hose pipe on the aorta Junior member of the Banana Club, a reformist and an old Goat with a Bad memory, loafing around
User Profile View All Posts by User View Thanks

Goofy		#4 Posted : 25 September 2018 12:11:24(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,015		Try to connect just one m83 and check if there is default.
		H0 DCC = Digital Command Control
User Profile View All Posts by User View Thanks

Goofy		#5 Posted : 25 September 2018 12:13:36(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,015		Tip...no power on allowed when you change dip switch or connect the wires!
		H0 DCC = Digital Command Control
User Profile View All Posts by User View Thanks

nevw		#6 Posted : 26 September 2018 08:44:58(UTC) Retweet
Joined: 27/08/2005(UTC) Posts: 11,071 Location: Murrumba Downs QLD		I uncoupled the M83s and connected one unit the light flashed. connected power to the other unit the light flashed. I coupled the units together but in the reverse order, light flashed on both units. I think they have had it,
		NOt wearing the Pink Pinny, which is hard to see and now I have a white Pinny which also is hard to see against MY pure white Skin Still have 2 new shiny tin Hips that is badly in Need of Repair matching rusting tin shoulders and a hose pipe on the aorta Junior member of the Banana Club, a reformist and an old Goat with a Bad memory, loafing around
User Profile View All Posts by User View Thanks

Goofy		#7 Posted : 26 September 2018 08:55:37(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,015		If the red lighting is flashes normal you did connect right. If both check lighting flashes the wires has been swapped.
		H0 DCC = Digital Command Control
User Profile View All Posts by User View Thanks

Goofy		#8 Posted : 26 September 2018 09:01:21(UTC) Retweet

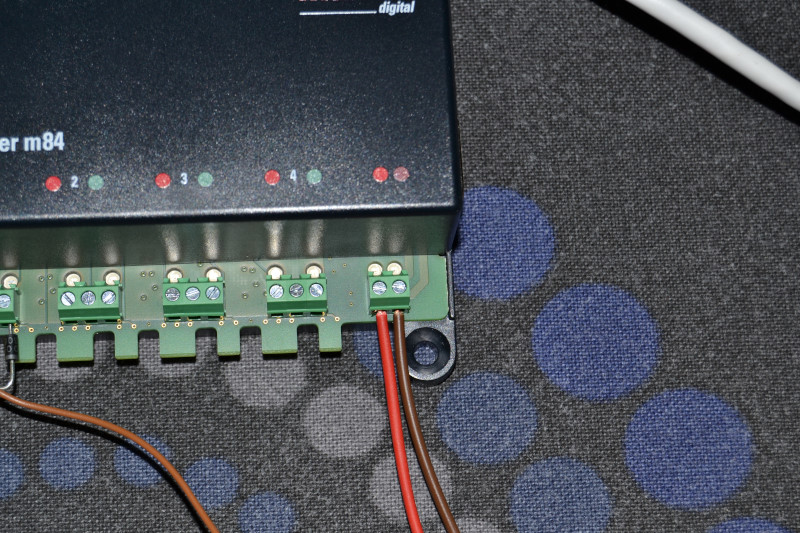

Joined: 12/08/2006(UTC) Posts: 9,015		I enclose an picture. You see the wires? It´s correct connect to the m84. So that means the left LED flash normal. if the wires was swapped both LED on the m84 flashes.
		H0 DCC = Digital Command Control
User Profile View All Posts by User View Thanks

nevw		#9 Posted : 26 September 2018 14:27:49(UTC) Retweet
Joined: 27/08/2005(UTC) Posts: 11,071 Location: Murrumba Downs QLD		The wires are connected correctly, the lights on BOTH units are flashing when they should not.
		NOt wearing the Pink Pinny, which is hard to see and now I have a white Pinny which also is hard to see against MY pure white Skin Still have 2 new shiny tin Hips that is badly in Need of Repair matching rusting tin shoulders and a hose pipe on the aorta Junior member of the Banana Club, a reformist and an old Goat with a Bad memory, loafing around
User Profile View All Posts by User View Thanks

Goofy		#10 Posted : 26 September 2018 15:13:49(UTC) Retweet
Joined: 12/08/2006(UTC) Posts: 9,015		Originally Posted by: nevw The wires are connected correctly, the lights on BOTH units are flashing when they should not. No the left red LED flashes normal and both unit do it correct. It´s normal operation.
		H0 DCC = Digital Command Control
User Profile View All Posts by User View Thanks

Goofy		#11 Posted : 26 September 2018 15:30:38(UTC) Retweet

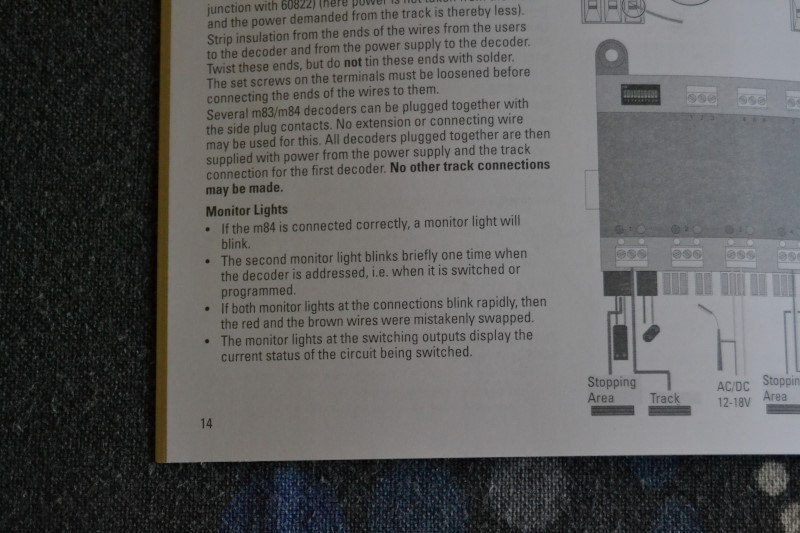

Joined: 12/08/2006(UTC) Posts: 9,015		I enclose an picture here where you can read about the monitor lighting.
