Offline Johnvr
#1 Posted : 26 December 2014 14:10:26(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

My existing "Matterhorn Layout" has provided me with great pleasure during the last 2 years.ThumpUp ThumpUp
But I am contemplating the construction of a new layout commencing during my holidays in January.

I am in the mood for running some trains with longer consists behind, like the ICE2 and DB103 and DB111 and DB01-097 each with several coaches behind, or Freight with lots of box-cars or coal hoppers, etc. I want trains of 1.5 meters in length to have space to ease around the layout, and stop at signals with braking modules.

There is some space is along the side of the garage wall, where I have a reasonable length, but which needs a removable end-piece. Why ? So that the cars can drive into the garage, access to the lawn-mower, bicycles, wind-surfers, etc, all of which also live in the garage. Of course !

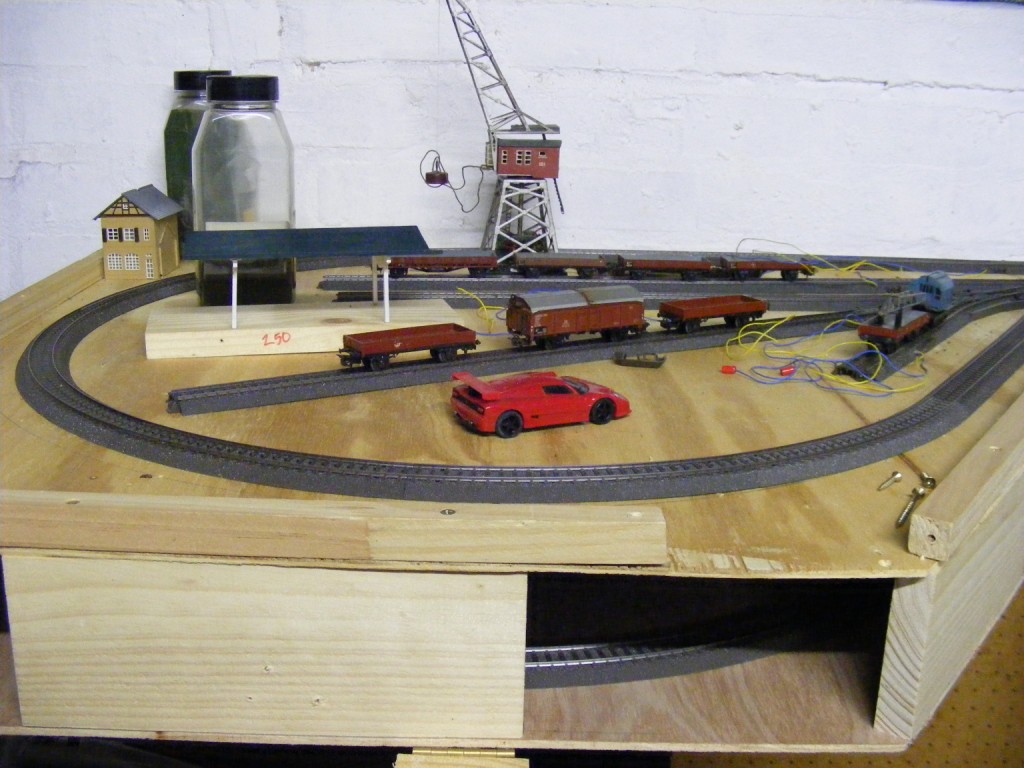

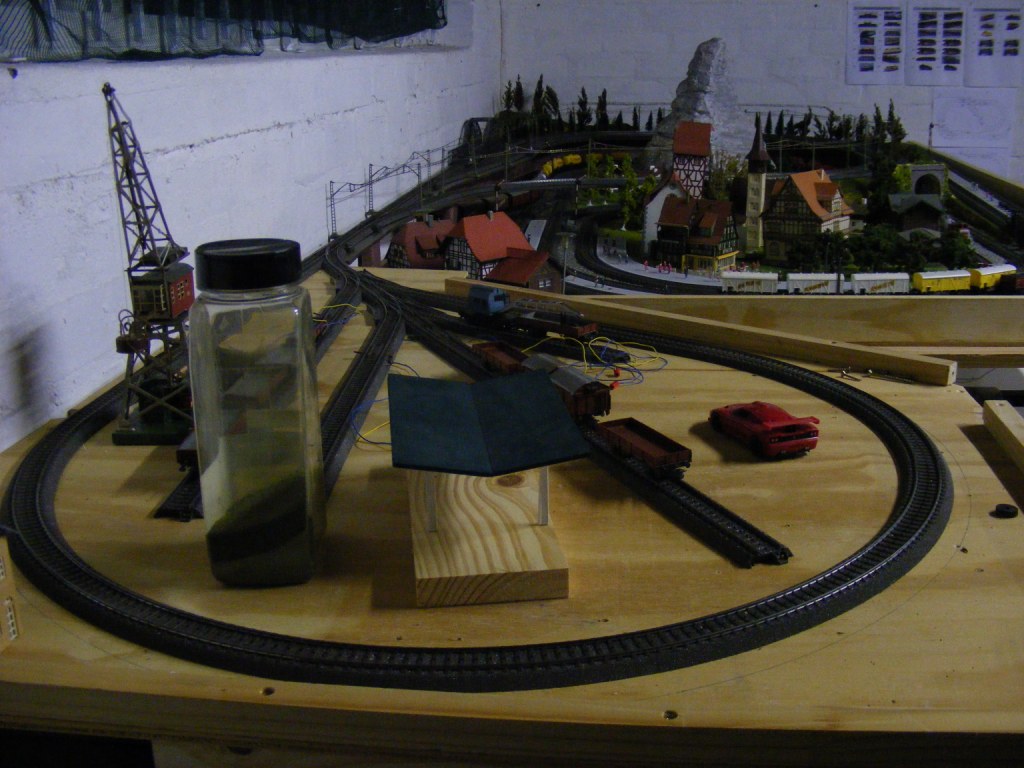

So I am planning to make a detachable module with a reversing loop which I can easily attach to extend the layout when I am running the trains, and remove when the lawn mower and bicycles have their moments. You will see the idea in the pictures below :

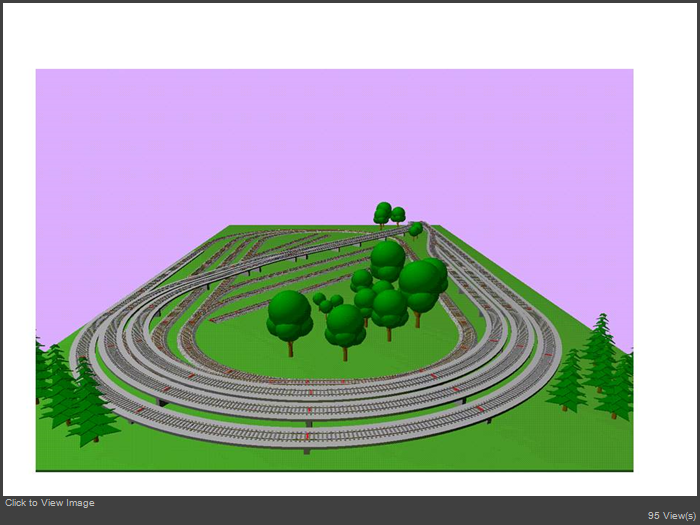

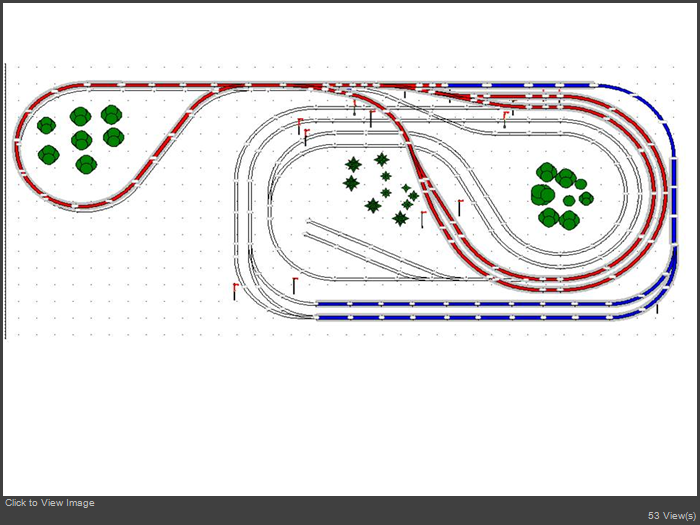

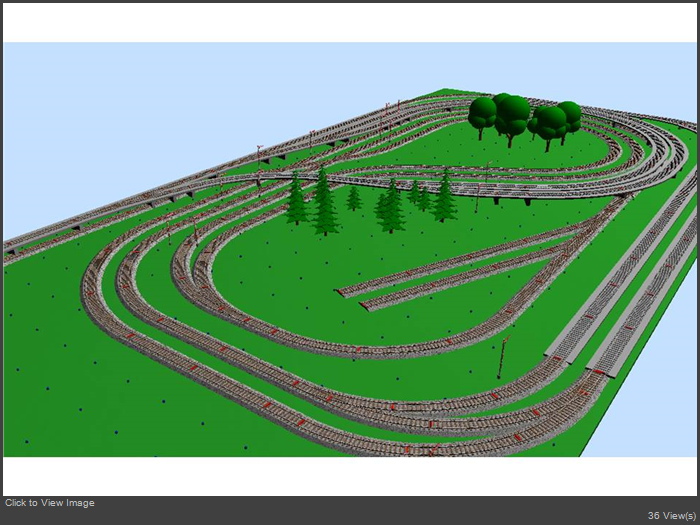

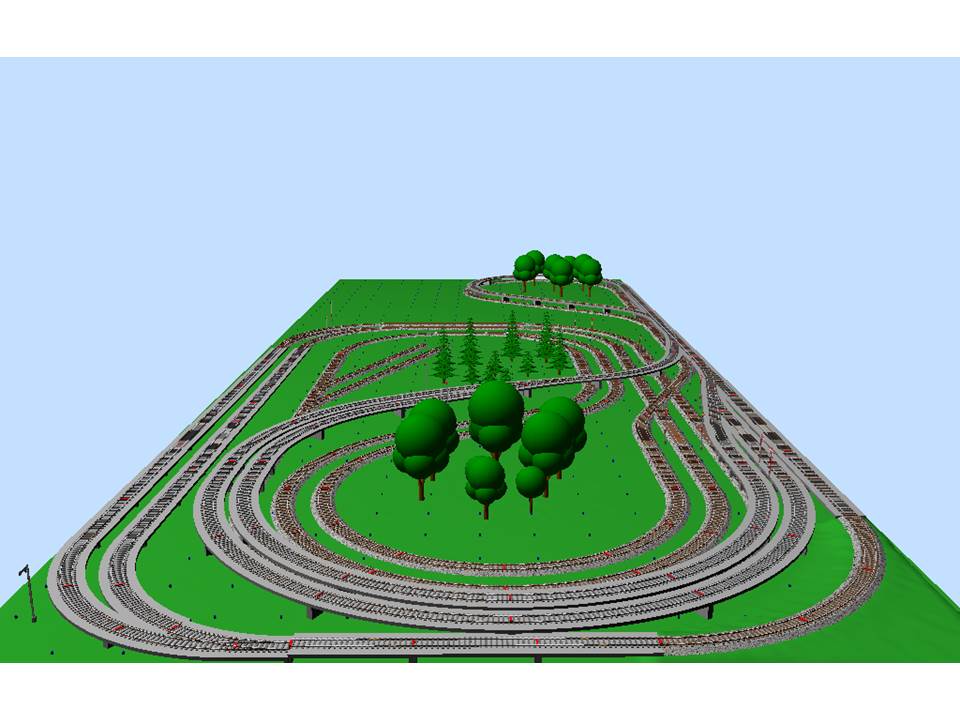

Here are some thoughts which I am working on at the moment.

Single ascent / descent line around the right hand side, so trains will need to reverse loop on the top and the bottom, as well as circuits on top level and bottom level. Signals at all locations where stations / platforms can go. Narrow angle points for slim line train switches. Something like this :

Comments welcome.Smile

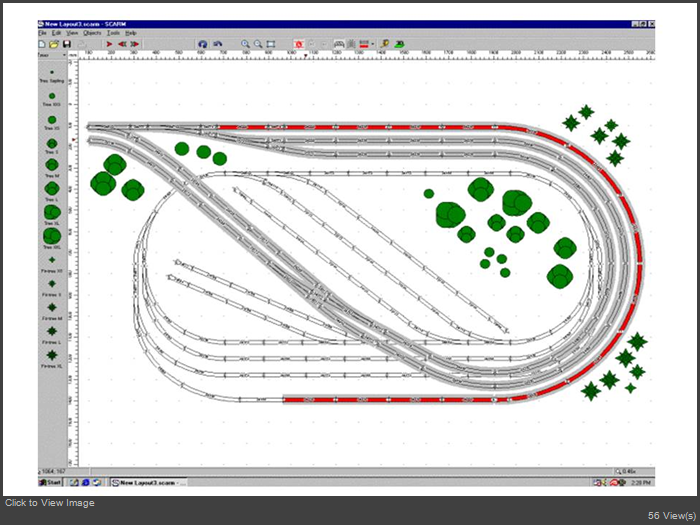

Many thanks to SCARM (Mixy) for allowing me to dream about layouts in my sleep, and then test them out on the computer before construction !



Regards,BigGrin
JohnPhoto1.jpg Photo3.jpg Photo4.jpg Photo6.jpgPhoto1.jpg Photo3.jpg Photo4.jpg Photo6.jpg

Edited by user 10 September 2017 16:32:02(UTC)  | Reason: Not specified

thanks 19 users liked this useful post by Johnvr
Offline Danlake
#2 Posted : 26 December 2014 18:50:16(UTC)
Danlake

New Zealand
Joined: 03/08/2011(UTC)
Posts: 1,551
Hi John,

Looks good and should give you lots of flexibility and fun.

Looking forward to follow the progress.

Brgds Lasse
Digital 11m2 layout / C (M&K) tracks / Era IV / CS3 60226 / Train Controller Gold 9 with 4D sound. Mainly Danish and German Locomotives.
Offline Janne75
#3 Posted : 26 December 2014 21:56:06(UTC)
Janne75

Finland
Joined: 23/03/2012(UTC)
Posts: 2,537
Location: Finland
Hi John,

Many possibilities to run long trains and park them on the sidings. What are the dimensions of this planned layout part and the removable layout part? I would also like to have longer sidings and straight track sections, but I'm really limited to my train rooms small size. If I will ever build a layout again (my current layout is a long project... Wink ) I will make sure there will be longer sidings, straight track sections and reversing loops in both directions.

Have fun with building your new layout. Maybe a good idea to have some kind of wheels under that removable layout section? RollEyes

Cheers,
Janne Smile
Märklin H0 digital layout. I have analog and digital H0 Collection. Rolling stock mostly from era I, II, III and IV. Märklin 1 gauge beginner.
Offline PJMärklin
#4 Posted : 27 December 2014 03:28:01(UTC)
PJMärklin

Australia
Joined: 04/12/2013(UTC)
Posts: 1,961
Location: Hobart, Australia
Hello John,

Great plans !

I am glad you are preserving access to the garage for the car !

Regards,

PJ
Offline GlennM
#5 Posted : 27 December 2014 15:34:45(UTC)
GlennM

United Kingdom
Joined: 09/05/2011(UTC)
Posts: 2,776
Location: Somewhere Near Manchester, England
John,

I am looking forward to following your progress. I think the additional module will look great.

BR

Glenn
Don't look back, your not heading that way.
Offline TrainIride
#6 Posted : 27 December 2014 20:12:14(UTC)
TrainIride

France
Joined: 23/10/2010(UTC)
Posts: 1,712
Location: FRANCE
Hi John,

your plans look great ThumpUp ThumpUp

Best regards
Joël
Offline Joseph Meiring
#7 Posted : 27 December 2014 20:52:48(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
Looks VERY good John! you do have the space, and I can already see that loooooong Ice train speeding along....keep us posted
Joe
Offline Johnvr
#8 Posted : 30 March 2015 19:34:31(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

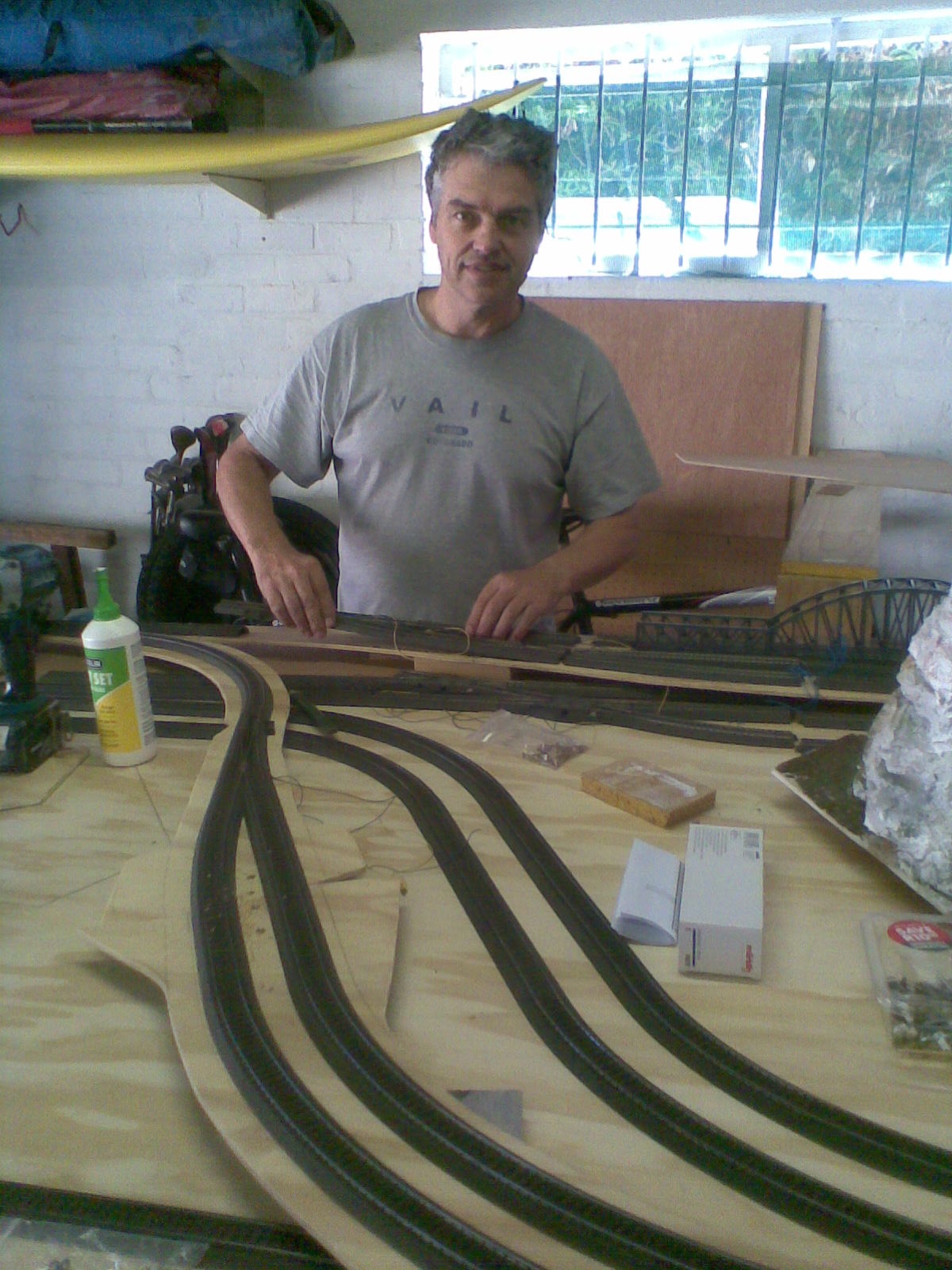

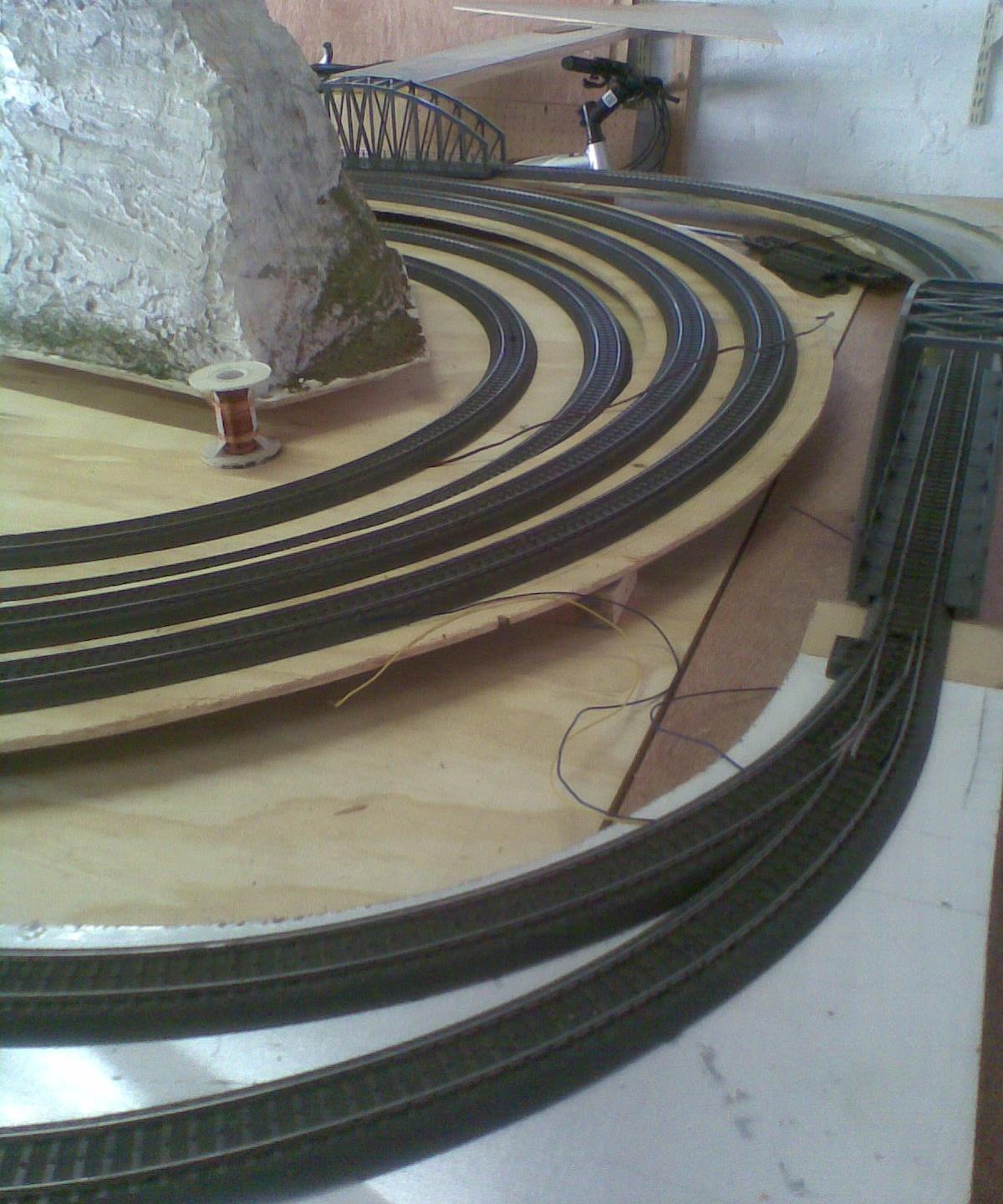

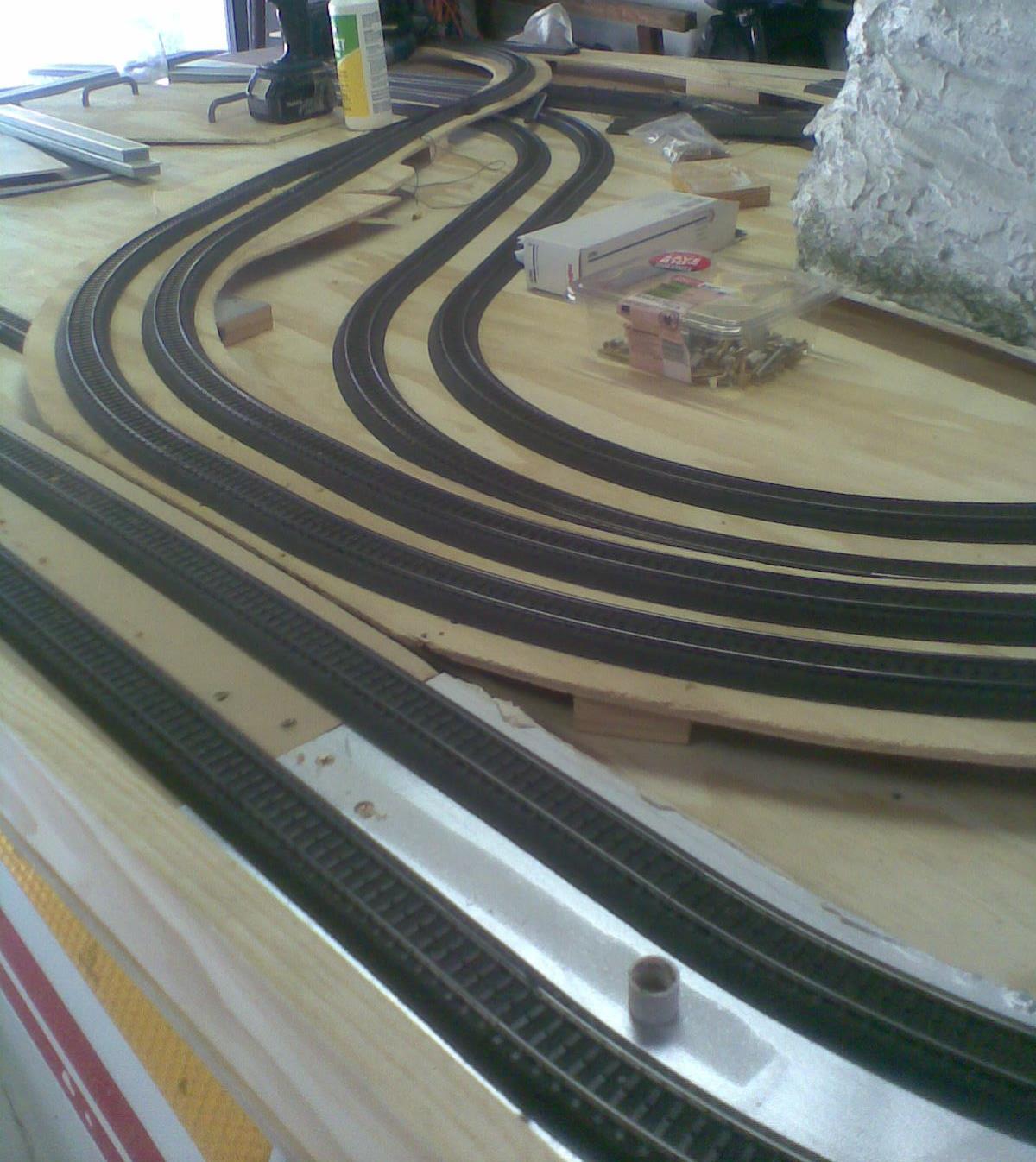

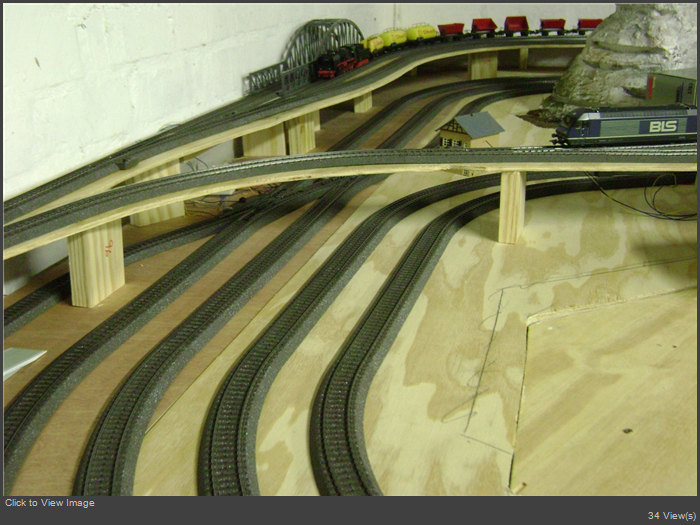

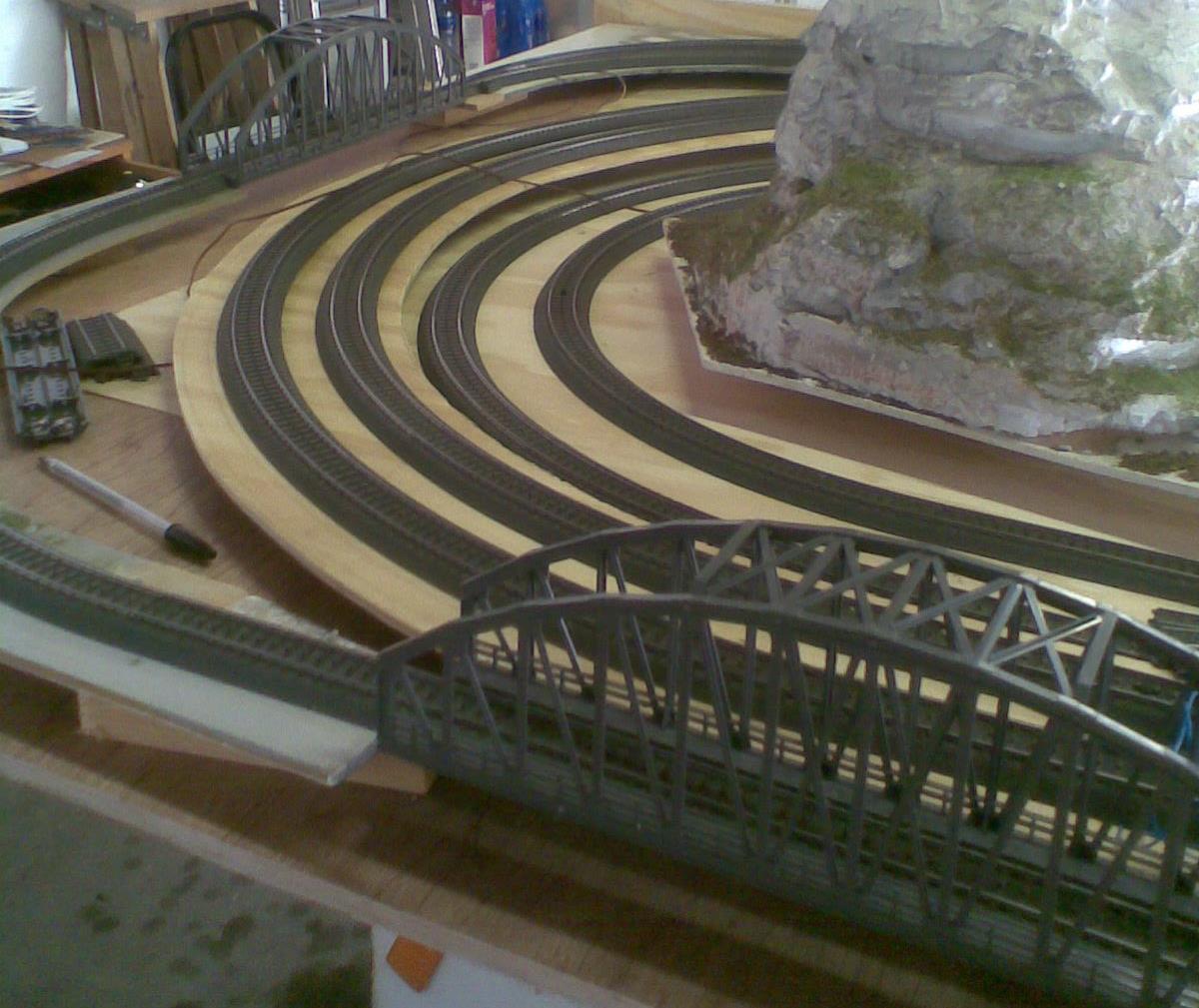

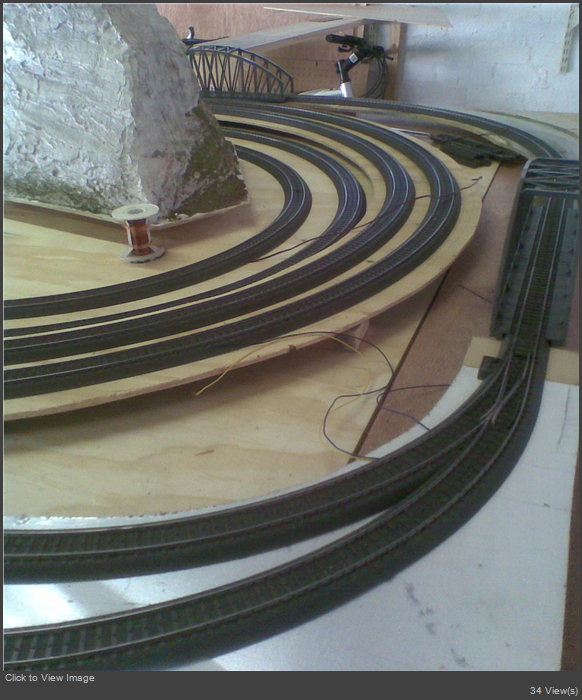

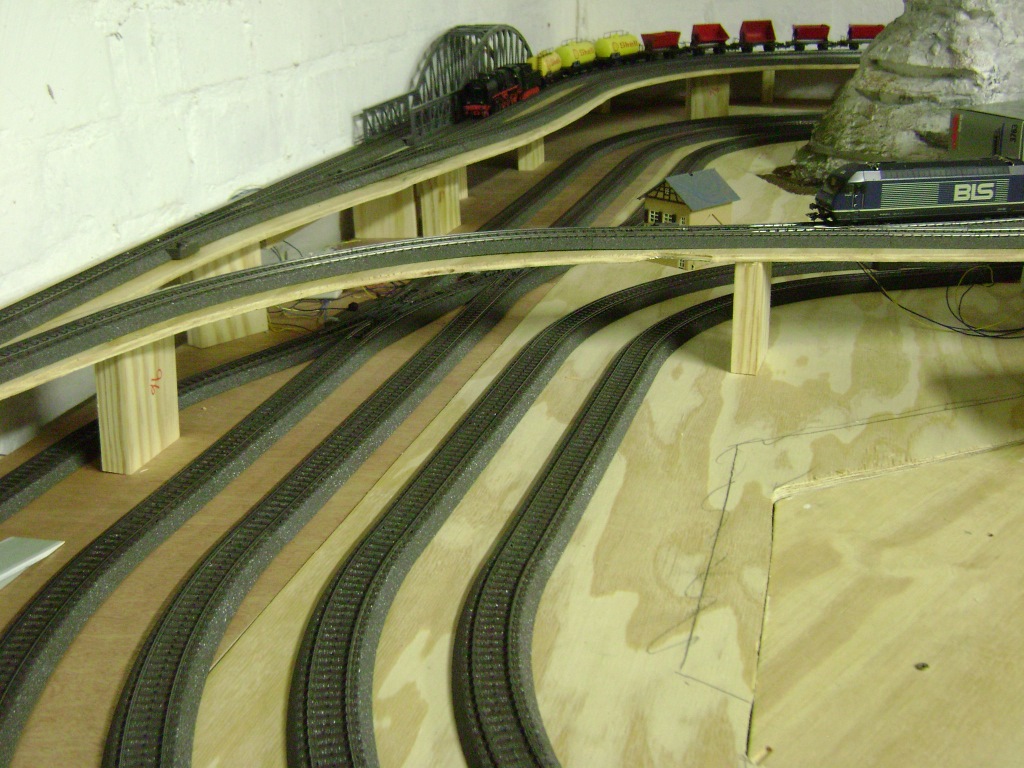

Finally getting going on the new Matterhorn Layout. BigGrin BigGrin
(This will be Matterhorn III, following on from Matterhorn I which was Analog, and Matterhorn II which was Digital).

My good friend Terry came to assist me with the woodwork during the past couple of weekends, and I managed to lay out some track. It's always exciting to see how the track plan develops, and I have been adjusting my SCARM drawings as I think of new things.

There will be lots of signalling systems here .. I haven't yet planned all of the signals, but there will be enough signals for train traffic to stop and go all over the layout, operated by Contact Track sections, and probably my first venture into Occupation Detection.

Regards,BigGrin
John
Johnvr attached the following image(s):
thanks 31 users liked this useful post by Johnvr
Offline rbw993
#9 Posted : 30 March 2015 19:57:11(UTC)
rbw993

United States
Joined: 19/08/2008(UTC)
Posts: 834
Great progress John!

Roger
Offline Goofy
#10 Posted : 30 March 2015 20:32:27(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,438
Very nice start John! ThumpUp
By the way...you looks like an famous actor. BigGrin
Not really sure about his name...
CS3...H0...
Offline waorb
#11 Posted : 30 March 2015 21:17:33(UTC)
waorb

Brazil
Joined: 31/05/2011(UTC)
Posts: 868
Location: Brazil
Originally Posted by: Goofy Go to Quoted Post
Very nice start John! ThumpUp

Indeed! Superb start! Woot

Quote:

By the way...you looks like an famous actor. BigGrin
Not really sure about his name...

Omar Sharif
Wink
thanks 1 user liked this useful post by waorb
Offline steventrain
#12 Posted : 30 March 2015 21:23:18(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 31,394
Location: United Kingdom
Looking good, Keep posted.Smile
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
Offline Angus
#13 Posted : 31 March 2015 09:01:50(UTC)
Angus

South Africa
Joined: 27/01/2012(UTC)
Posts: 202
Location: Johannesburg
Looking good John, I am going to have to make a quick trip down the N1 on my bike to come have a look one of these days...
thanks 1 user liked this useful post by Angus
Offline Goofy
#14 Posted : 31 March 2015 09:21:29(UTC)
Goofy


Joined: 12/08/2006(UTC)
Posts: 8,438
Originally Posted by: Goofy Go to Quoted Post
Very nice start John! ThumpUp
By the way...you looks like an famous actor. BigGrin
Not really sure about his name...


I got it!
Harry Hamlin.
CS3...H0...
Offline Andreas K
#15 Posted : 31 March 2015 15:52:11(UTC)
Andreas K


Joined: 04/11/2010(UTC)
Posts: 191
Location: South Africa.
Hi John
Looking good. I like the large radius curves.
These photos remind me when I was at the stage where you are now- sweet memories.
Keep up the good work and please keep us up to date.
Is the “Matterhorn” mountain from you previous layout?
Keep in touch
Regards
Andreas
PS Is the yellow surfboard still in use?
Pure Marklin - Steam is my Passion
Offline Johnvr
#16 Posted : 03 April 2015 08:26:15(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Andreas,

Yes, the "Matterhorn" was made for my first Matterhorn I, but I used it again on Matterhorn II and shall be using it again on Matterhorn III.

Regarding the windsurfer board, yes, I have been a windsurfer fanatic since the early 1980s, and I still windsurf every summer. I have 2 windsurfer boards, the yellow F2 (Fun & Function) used for wave-riding conditions, and the white Mistral used for flat water conditions.

During this summer, we have had extreme windy conditions (that's good for sailors !) , and on one day I achieved a long aspired ambition of mine to windsurf across Table Bay. And so it was that on a particular day in January the weather conditions were perfect, so I set off to sail across Table Bay. Wind speed about 25 knots south-easter wind , swell size about 2 meters, water chilly on west coast, but nice sunny day.

These selfie pictures were taken on my return, and I have arrowed the point of land on the far side of the bay to where I sailed, and back.

Magnificent backdrop of Table Mountain in the background. One of the world's premier windsurfing and kitesurfing locations.Cool Cool

Regards,BigGrin
John

Johnvr attached the following image(s):
thanks 10 users liked this useful post by Johnvr
Offline Johnvr
#17 Posted : 03 April 2015 08:39:16(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Originally Posted by: Goofy Go to Quoted Post
Originally Posted by: Goofy Go to Quoted Post
Very nice start John! ThumpUp
By the way...you looks like an famous actor. BigGrin
Not really sure about his name...


I got it!
Harry Hamlin.


HARRY HAMLIN / OMAR SHARIF

Thanks so much, Goofy, you made my day !!!! Cool Cool Cool
Also thanks to Waorb !Cool Cool

I shared the story with my wife and children and they relished in my new found fame !

Regards,
John

Offline Johnvr
#18 Posted : 24 April 2015 19:05:47(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

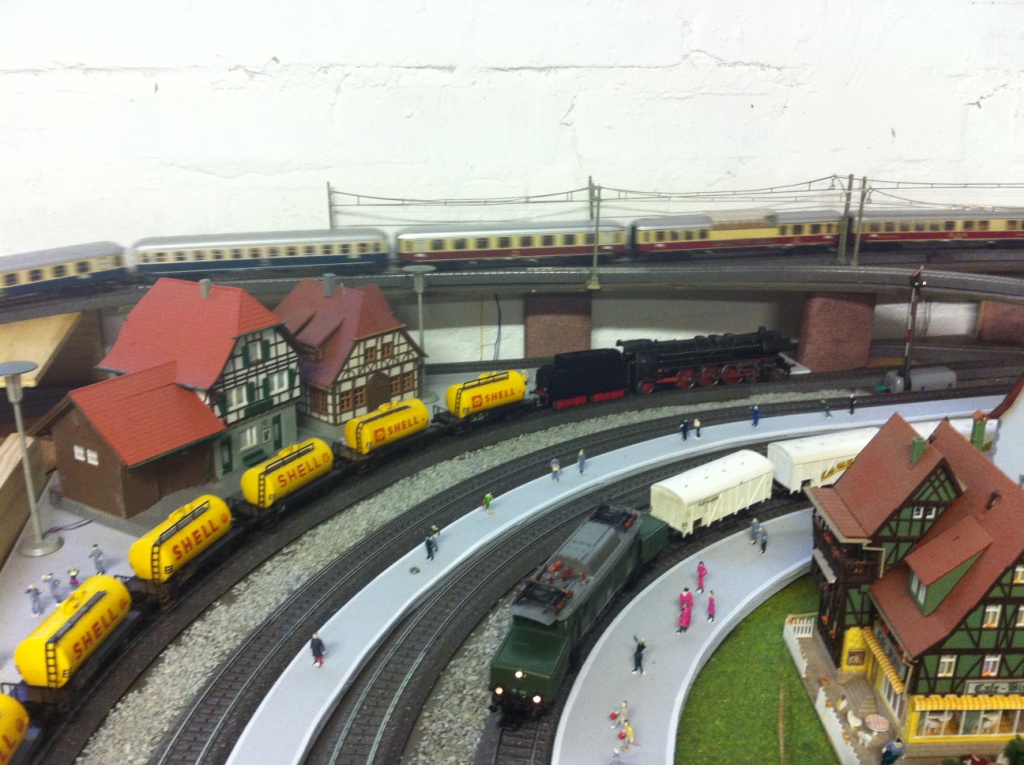

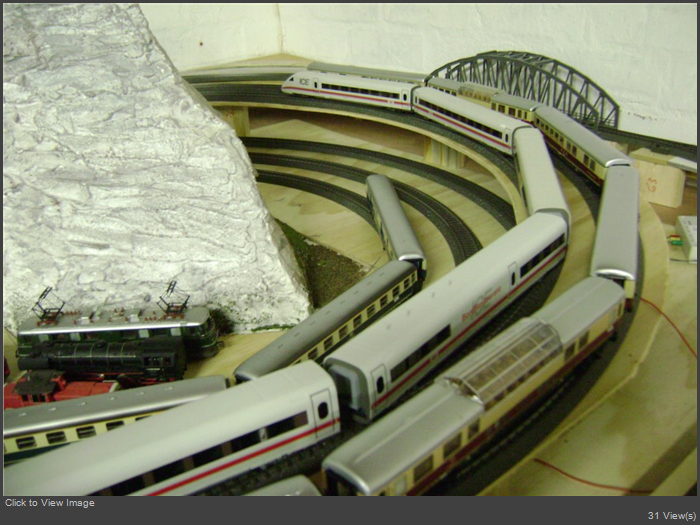

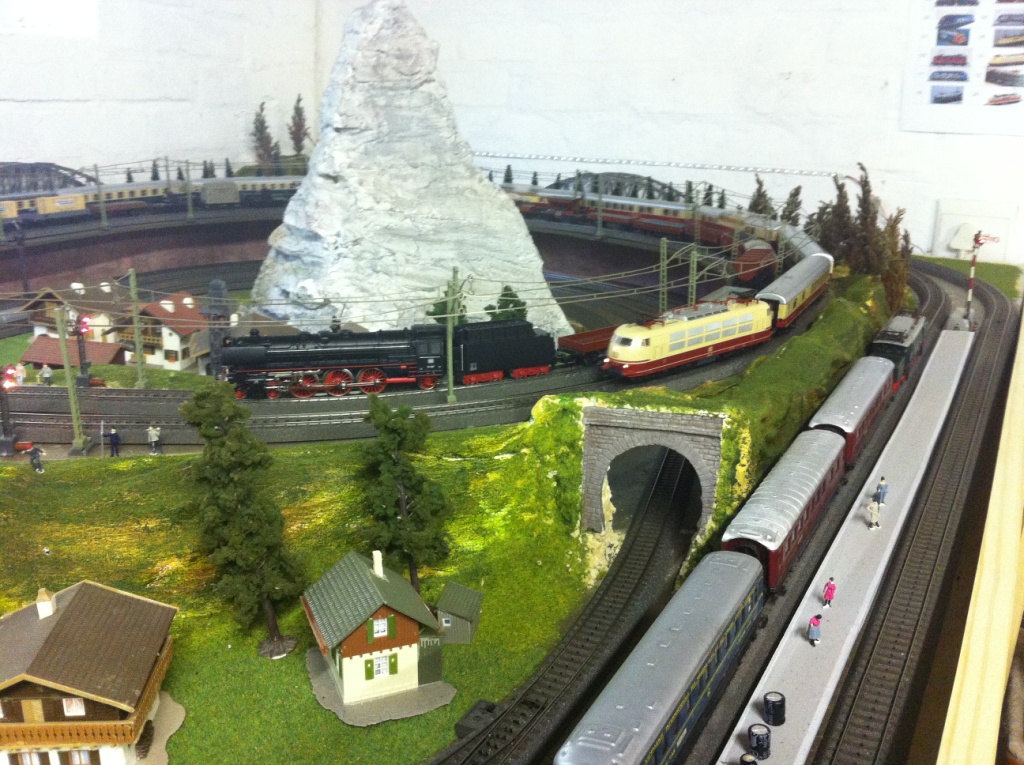

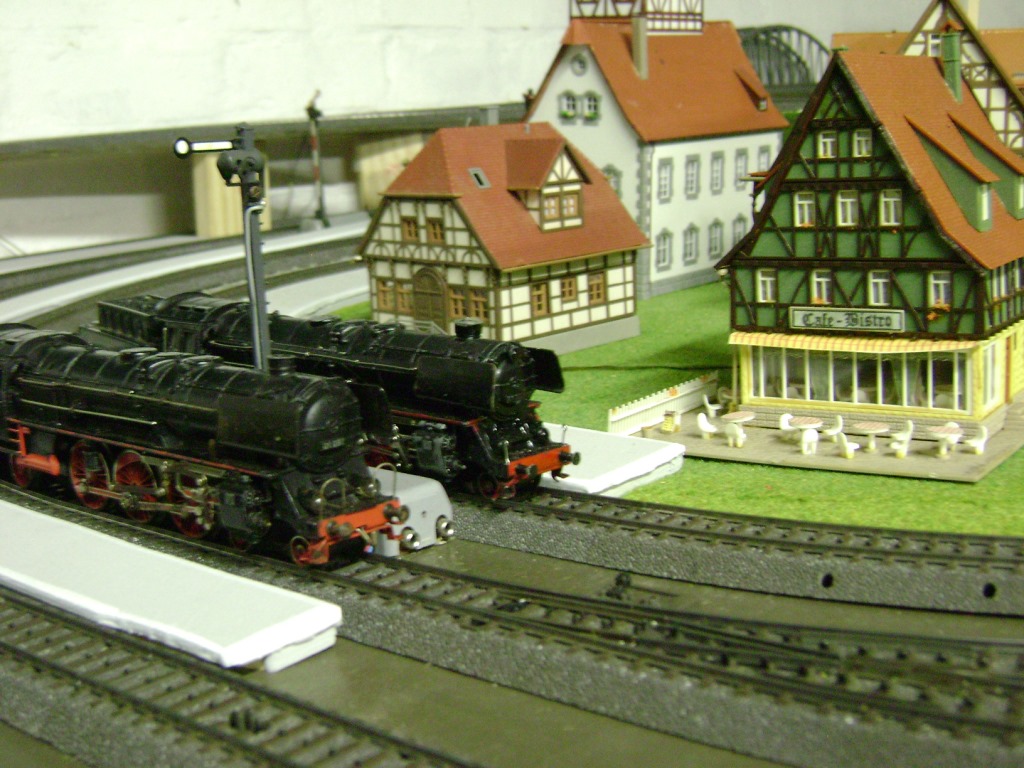

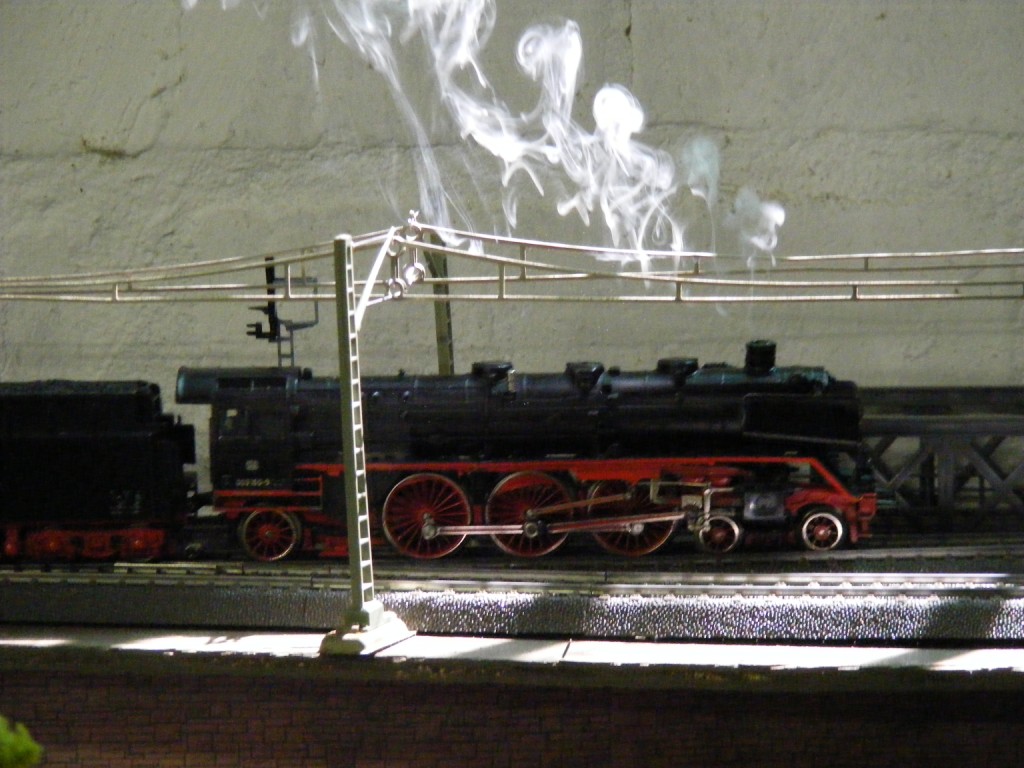

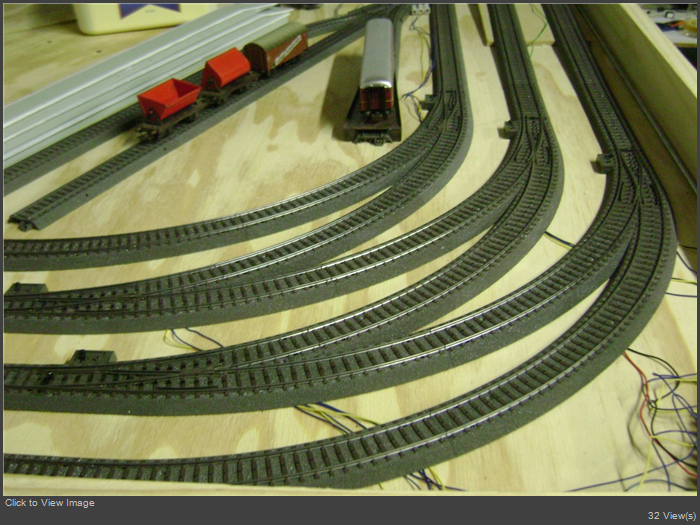

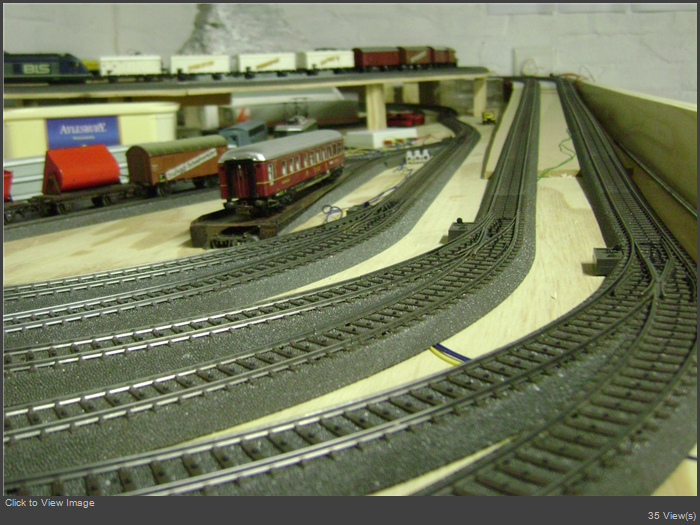

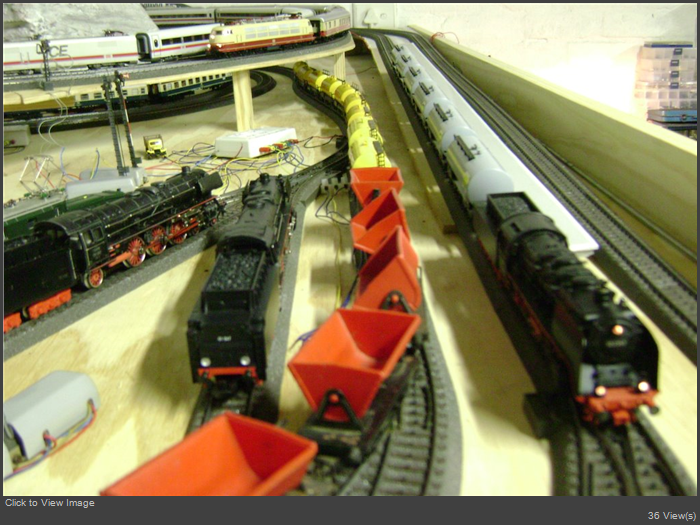

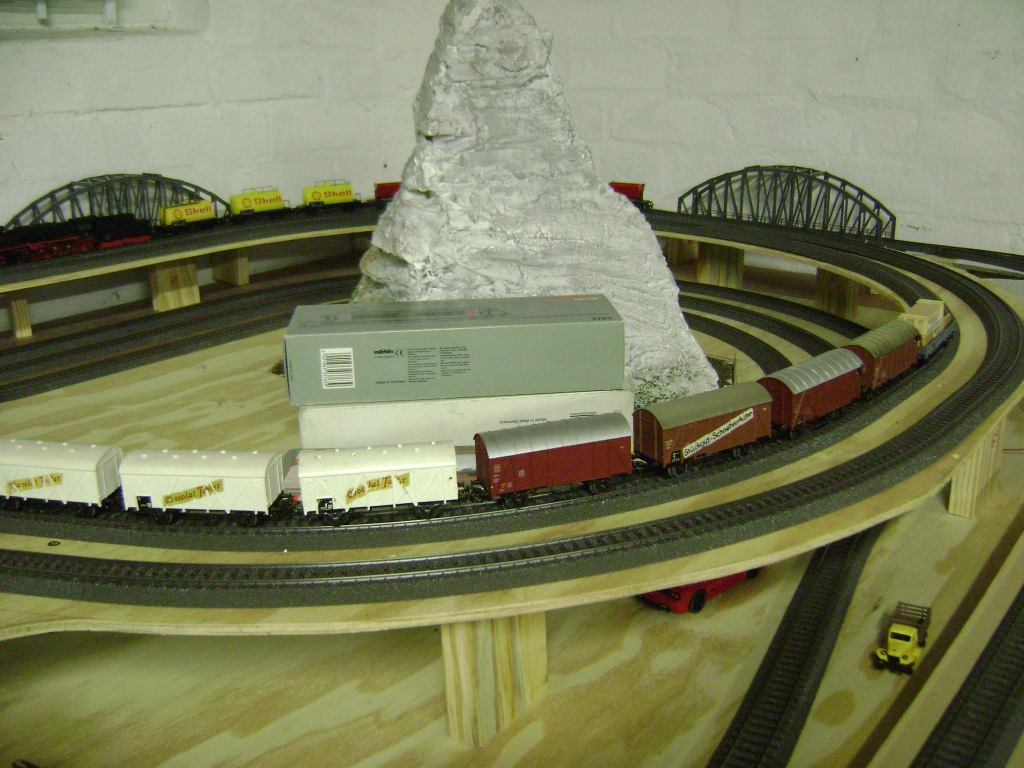

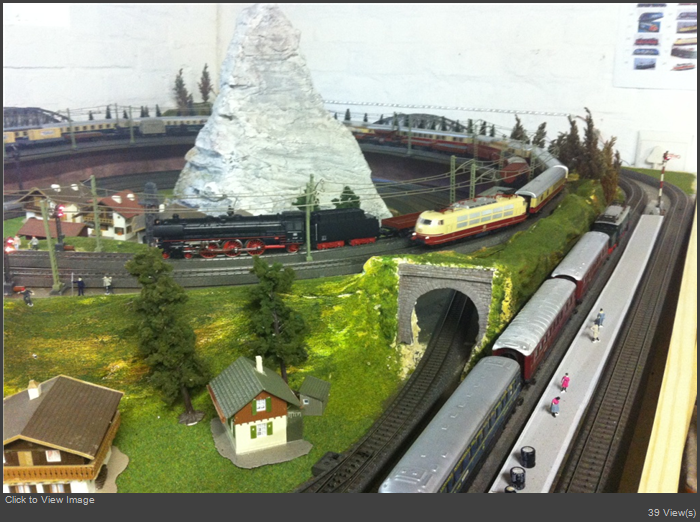

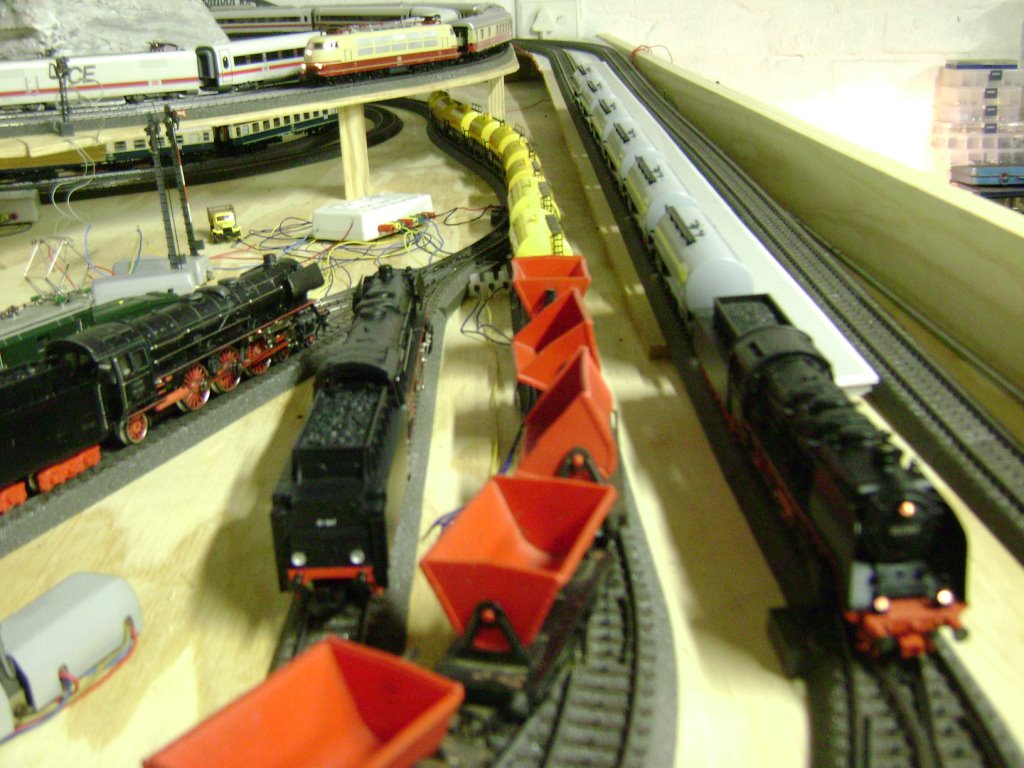

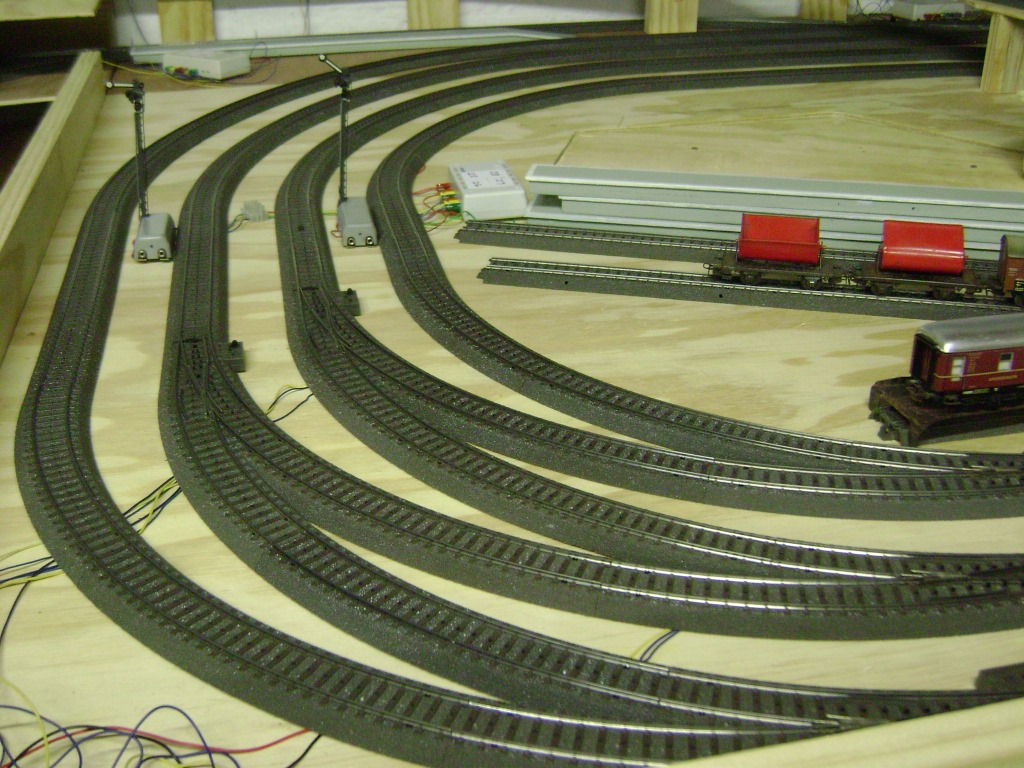

I have been running some trains on my new layout to test out everything before I commence with scenics and electronics.

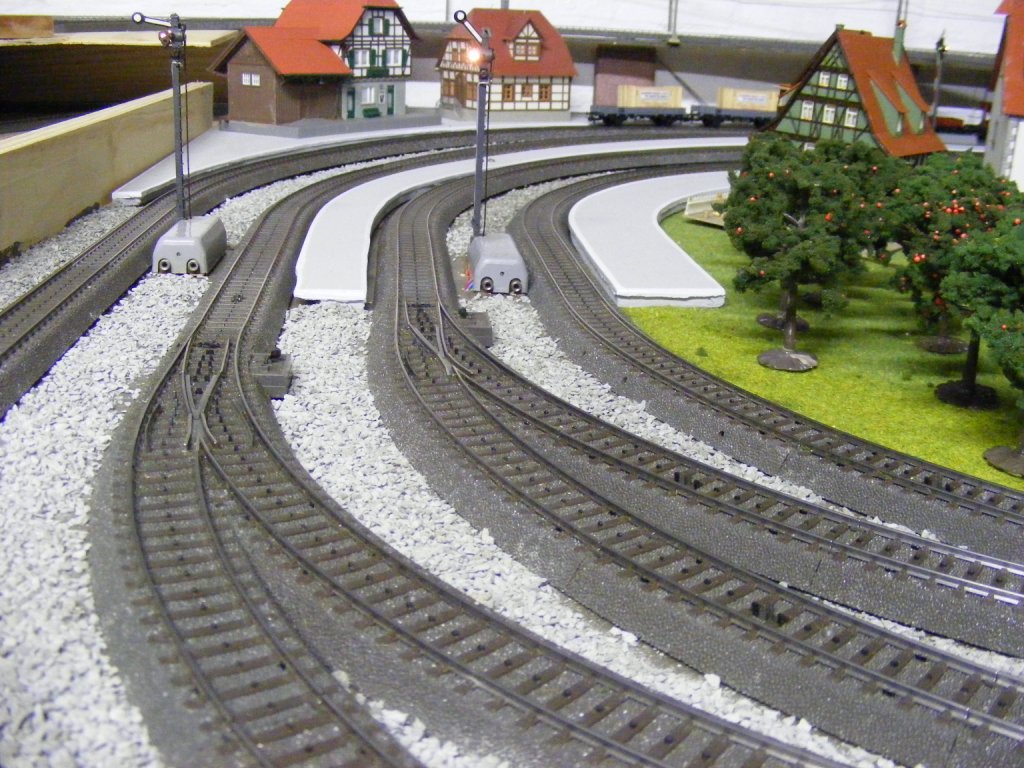

I modifed the track layout with some curved turnouts so that you can switch from any track to any other track at the junction before the station area. You can see the multiple stacked curved turnouts in the photograph.

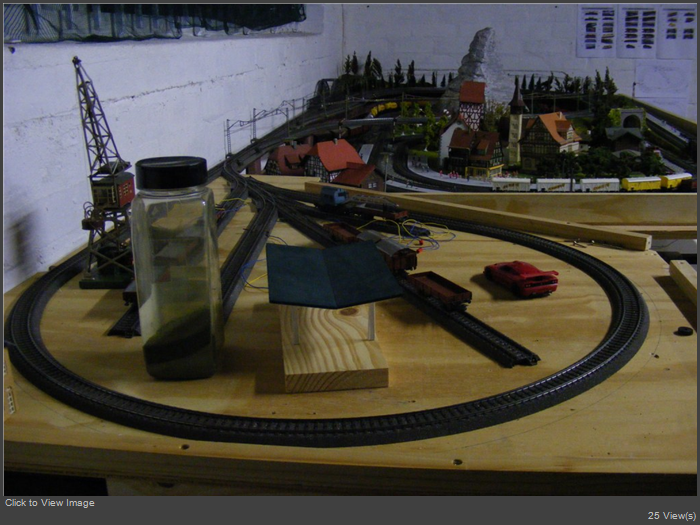

I also like the reversing loop out on the end which allows me to use R4 and R3 curves on the reversing upper level. My friend Terry helped me to add an extra 30cm in length and breadth to my original base board, you know, for that extra turning space. The lower level reversing loop is also fun to see the train disappearing and then re-appearing again from the same place.

It is for us a long weekend here, because Monday is a holiday, so I am hoping for some more progress on the layout.

Pictures attached :

Regards,BigGrin
John
Johnvr attached the following image(s):
thanks 15 users liked this useful post by Johnvr
Offline Joseph Meiring
#19 Posted : 24 April 2015 19:28:37(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
Looks SUPERB John - sorry I can't get there tomorrow; taking a trip into the country. Just LOVE those bank of curved turnouts all "stacked" together: Stuff to drool over....well done, and will def see you soon.
Joe
thanks 1 user liked this useful post by Joseph Meiring
Offline utkan
#20 Posted : 25 April 2015 10:34:09(UTC)
utkan

Turkey
Joined: 14/07/2009(UTC)
Posts: 19,116
Location: Istanbul,
Please accept my belated congratulations, John....Great work....Love Love

Cheers,

mehmet
Do unto others, as you would have them do unto you...
thanks 1 user liked this useful post by utkan
Offline Johnvr
#21 Posted : 17 June 2015 13:32:52(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

Time to update my story ...

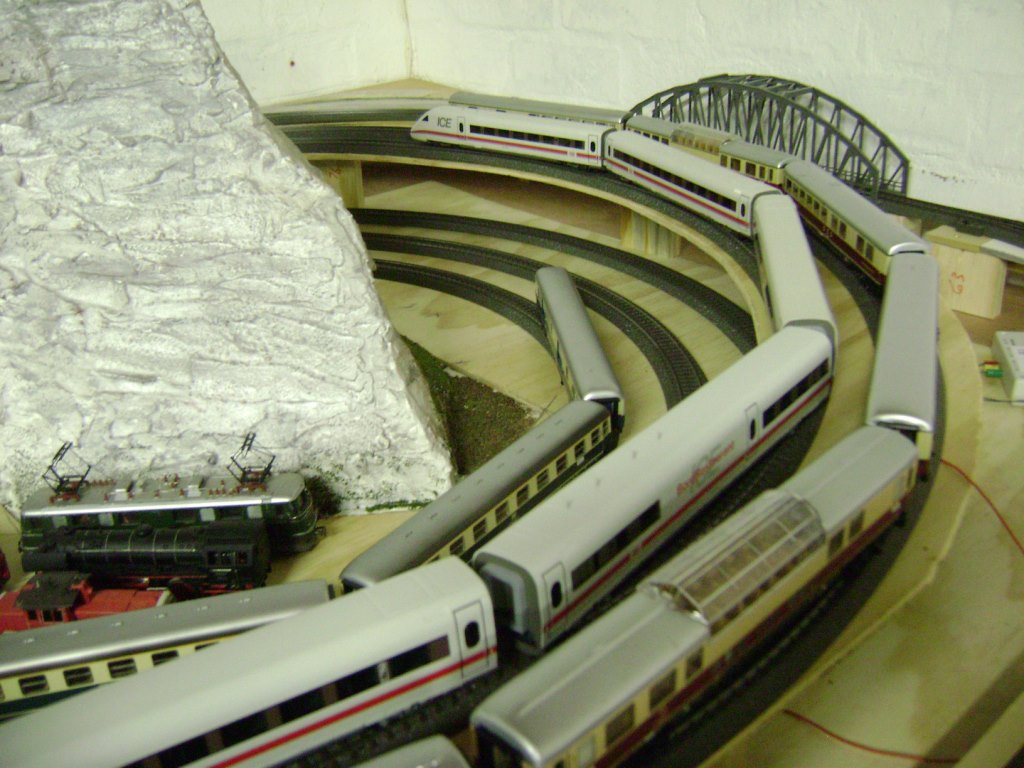

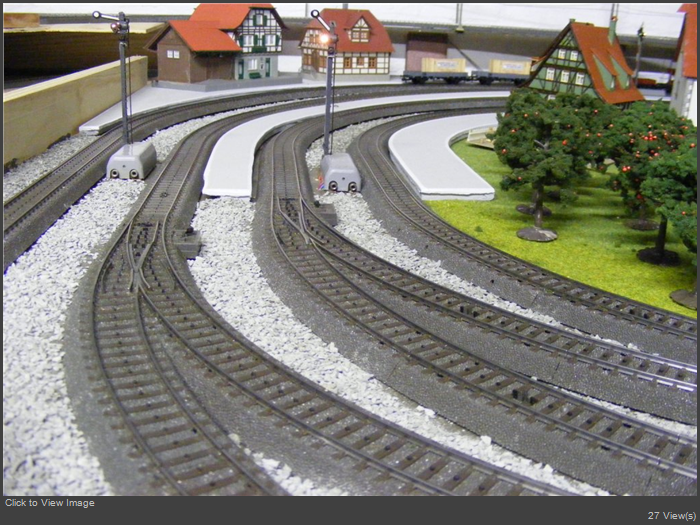

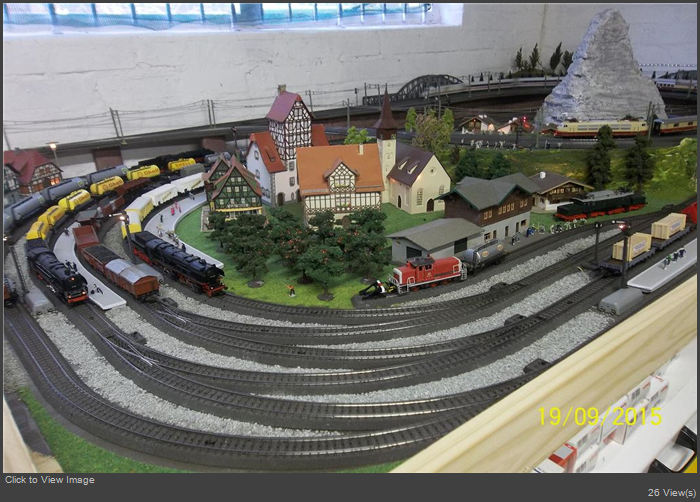

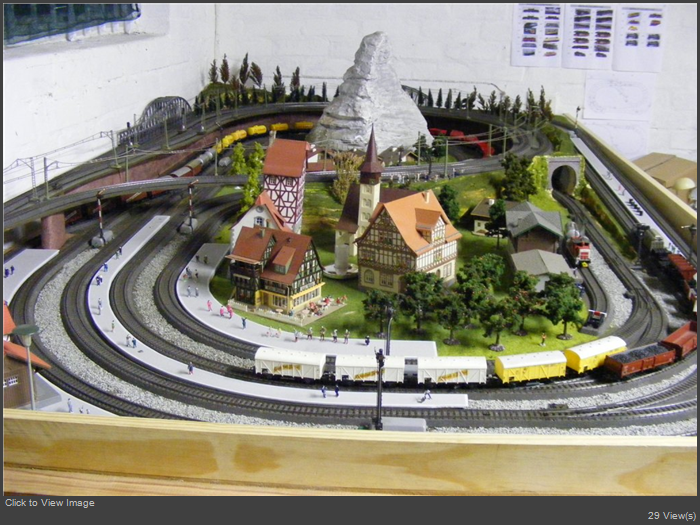

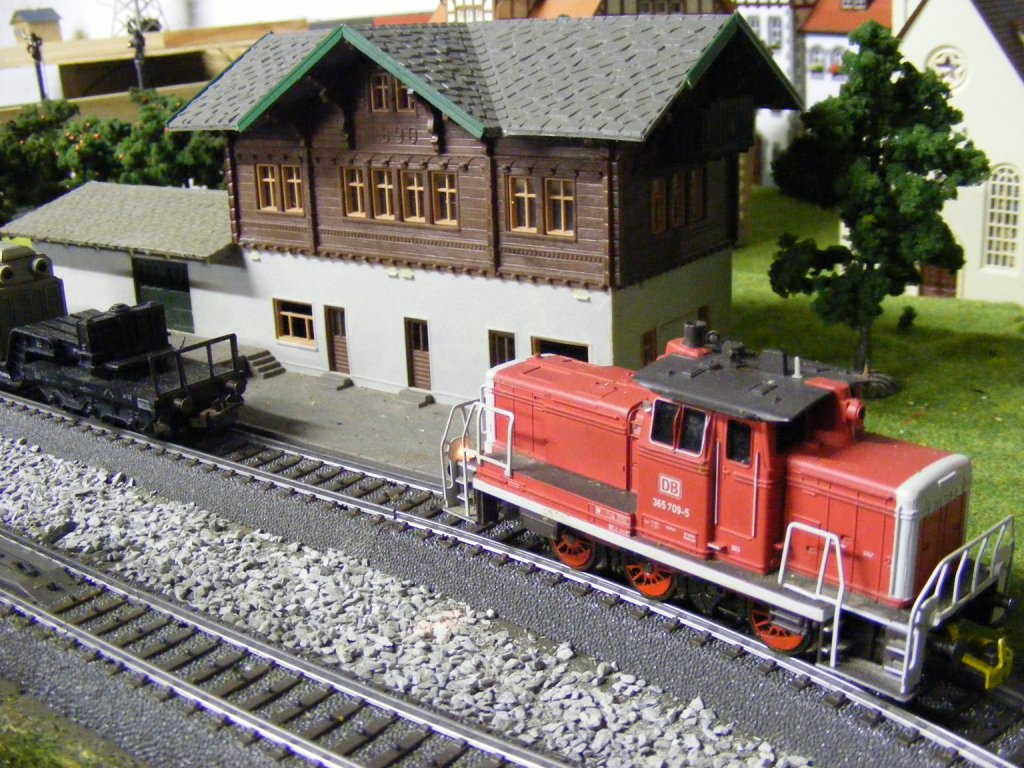

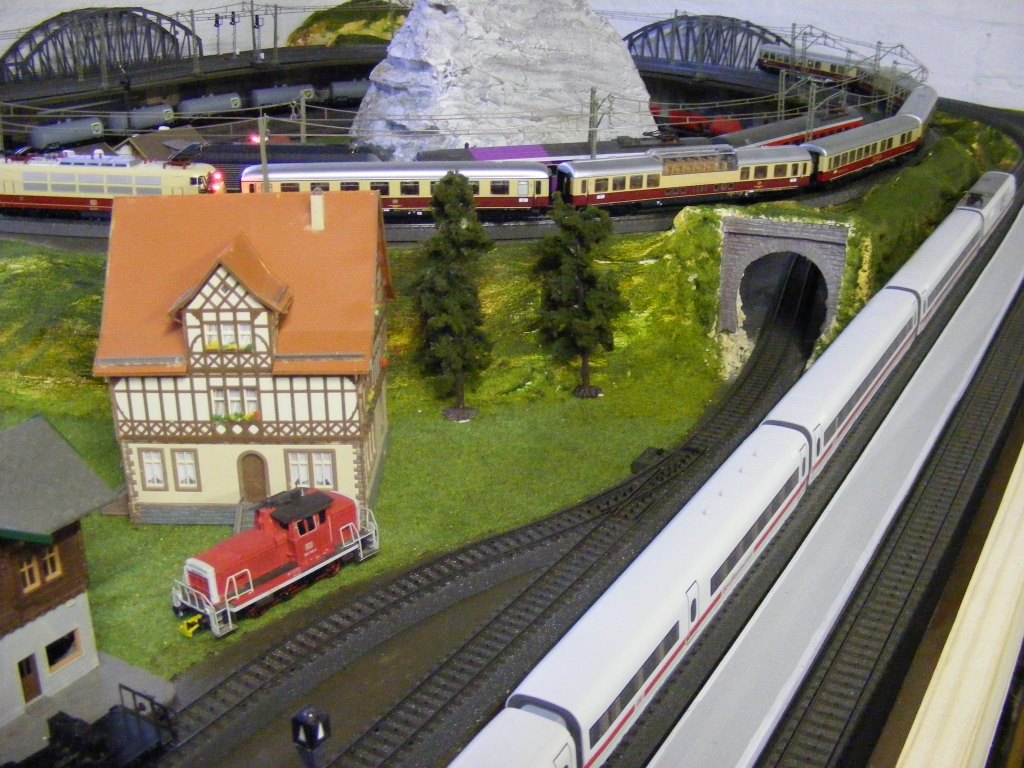

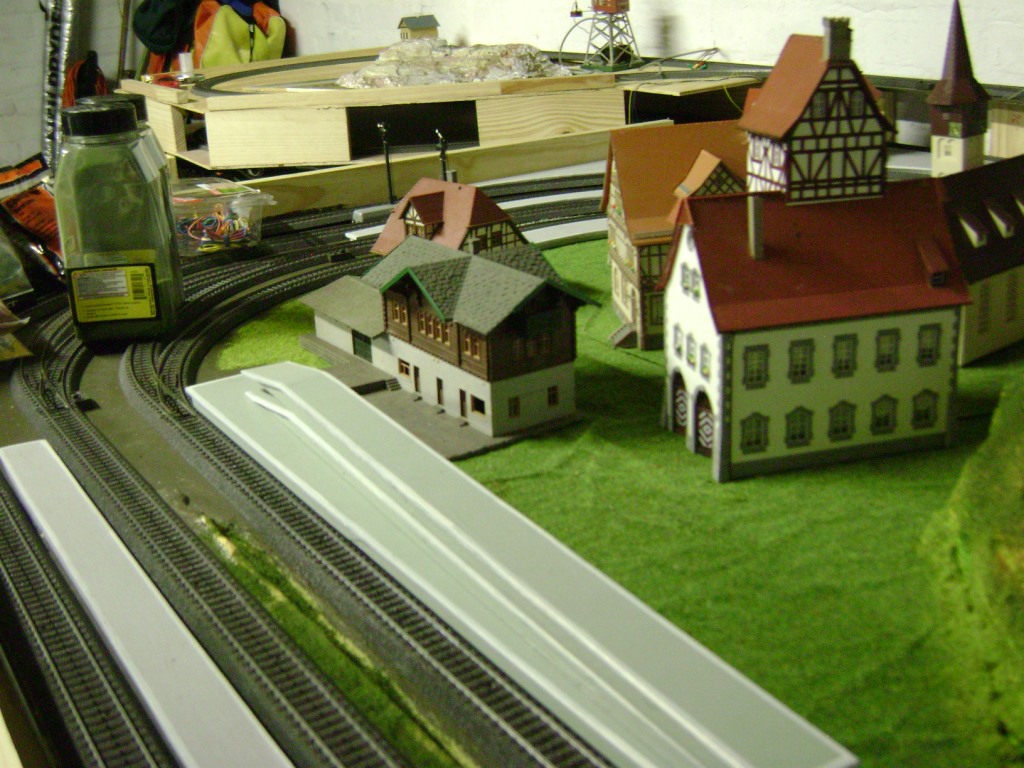

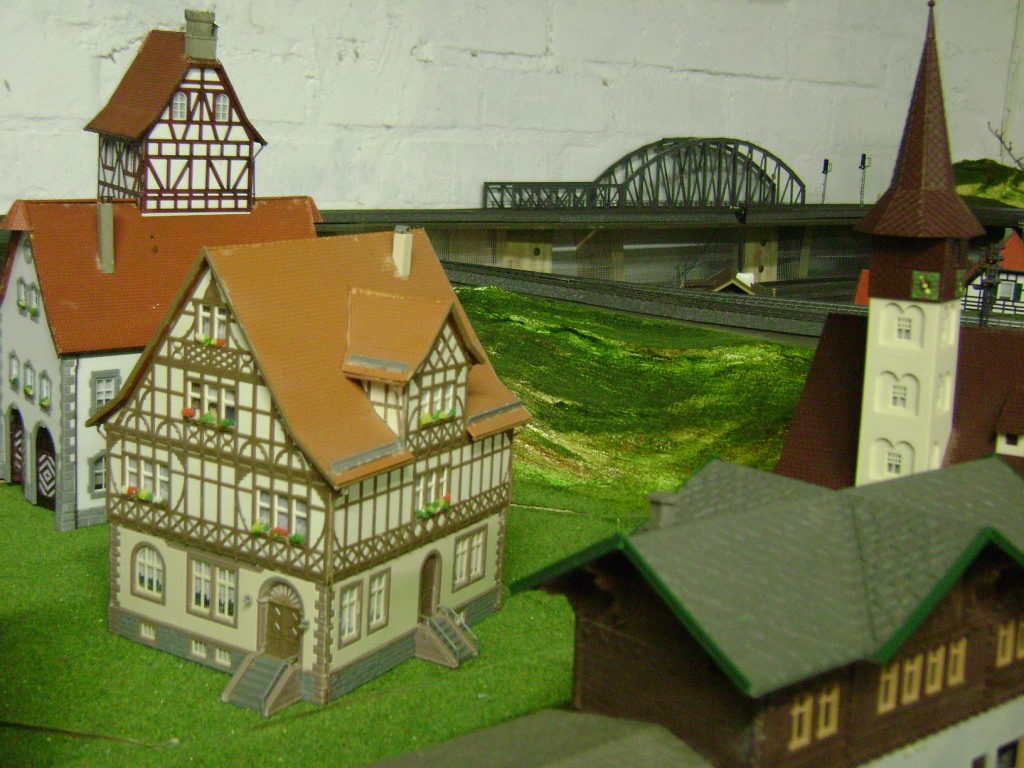

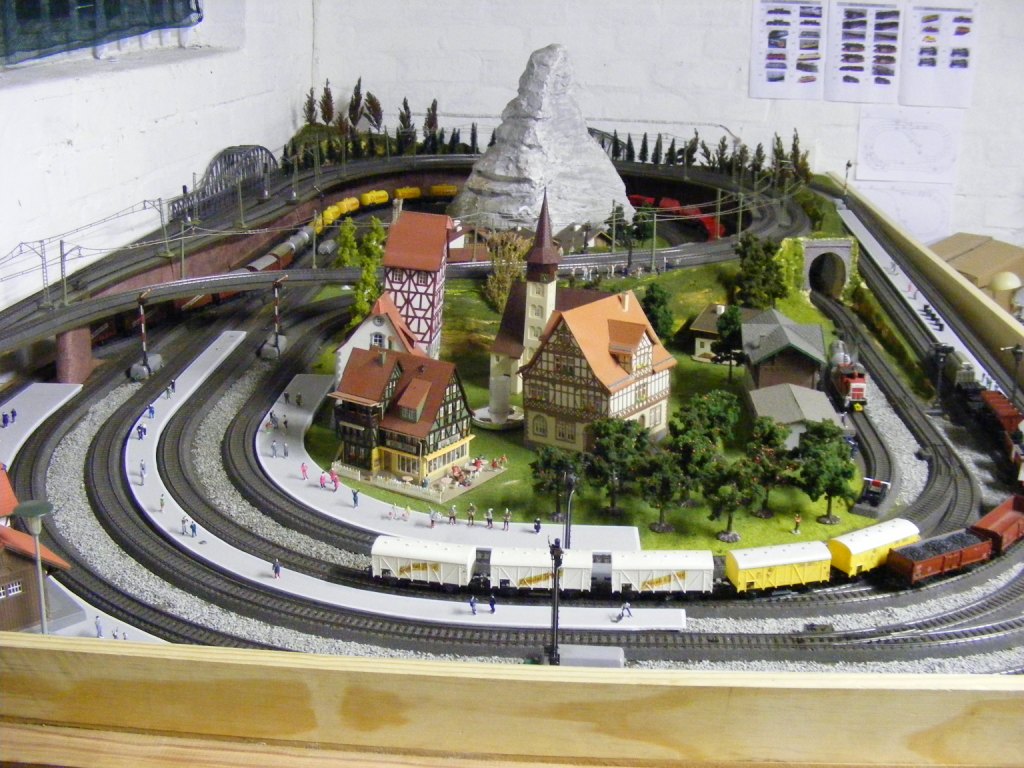

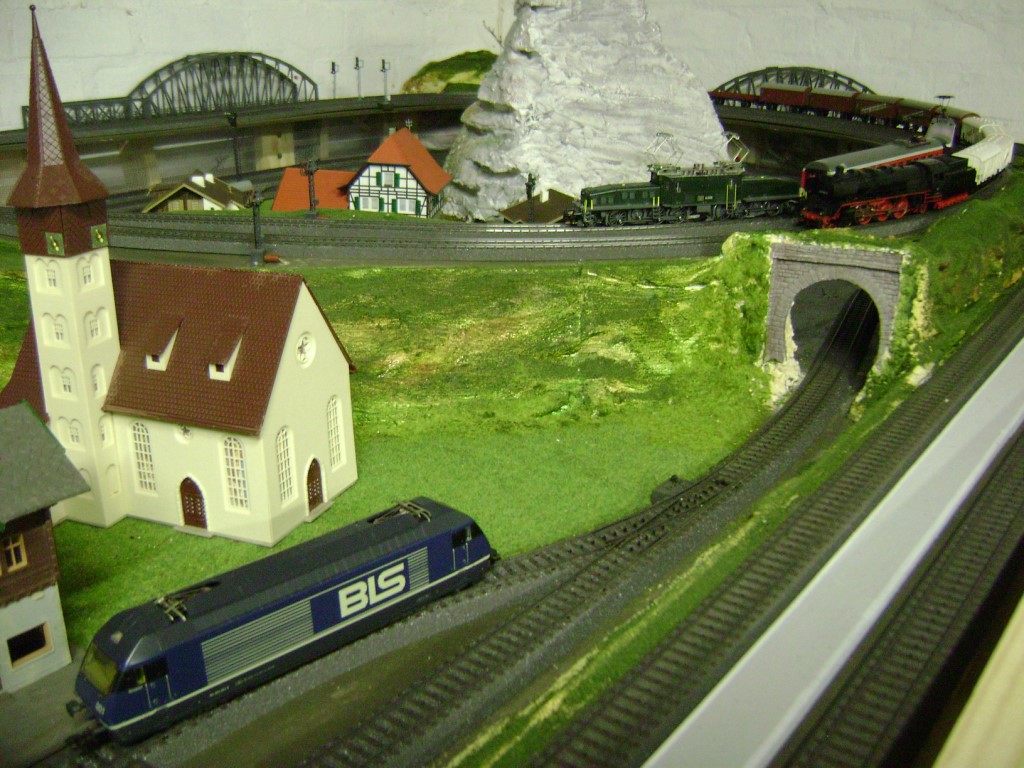

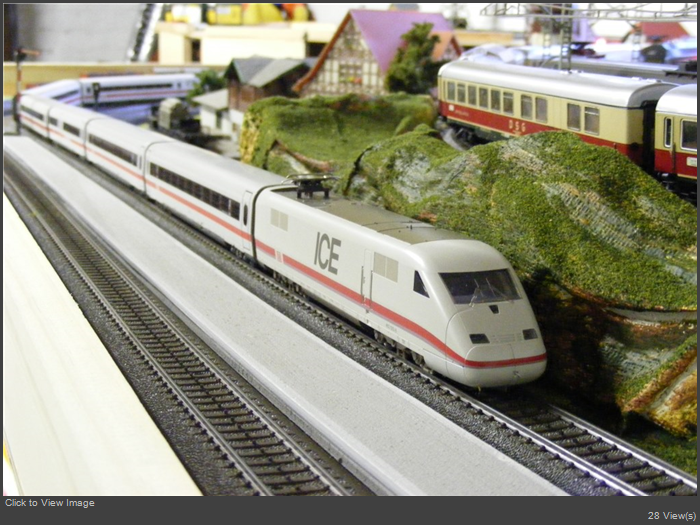

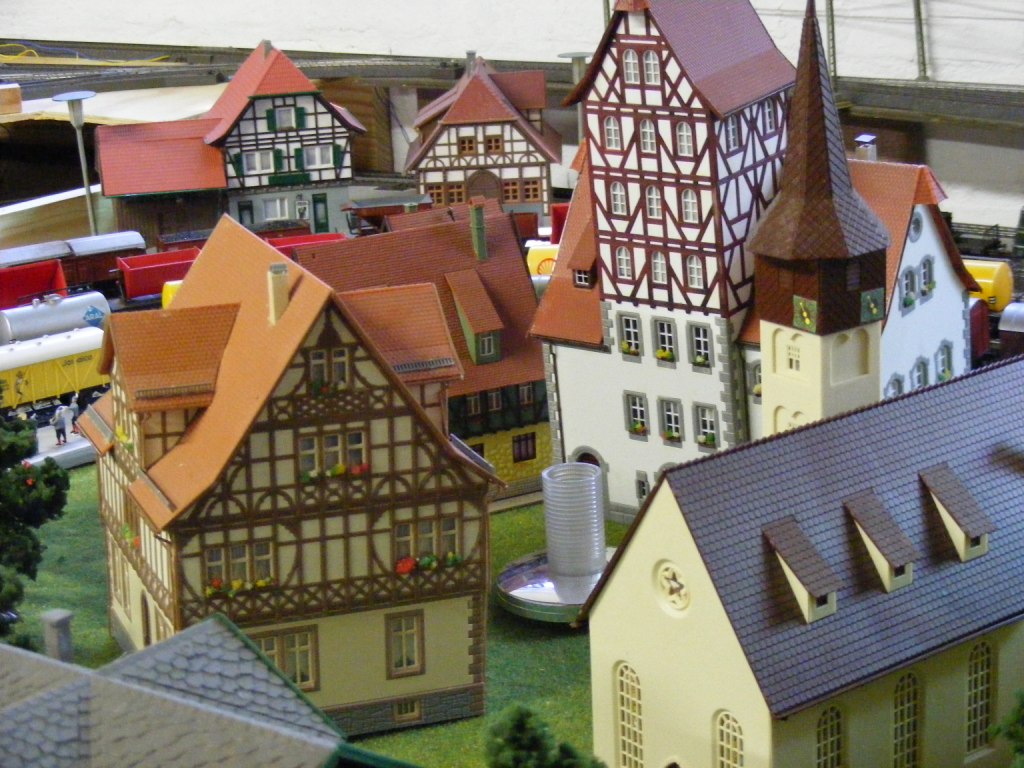

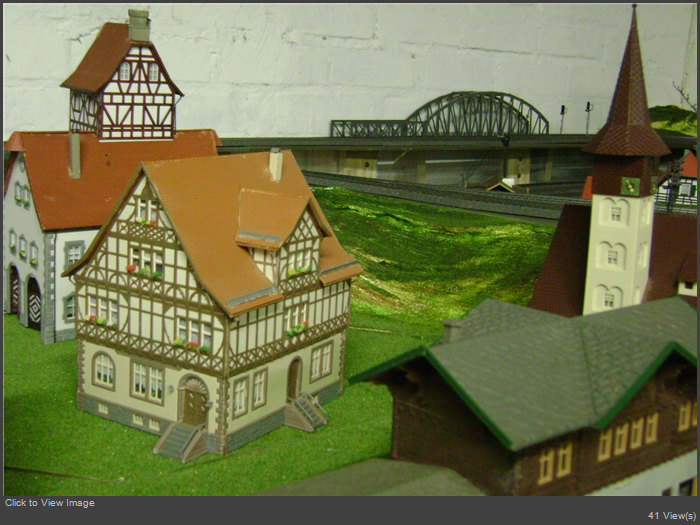

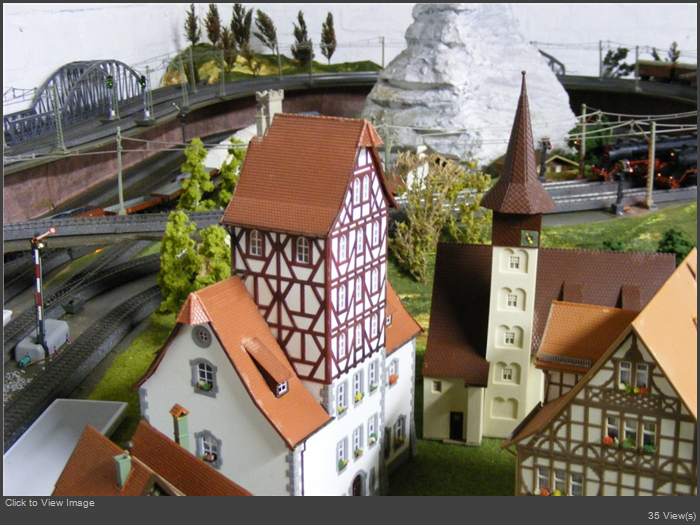

I have been working quite hard on my layout recently, first of all just running trains to see whether everything worked ok, and then to start building the scenery.

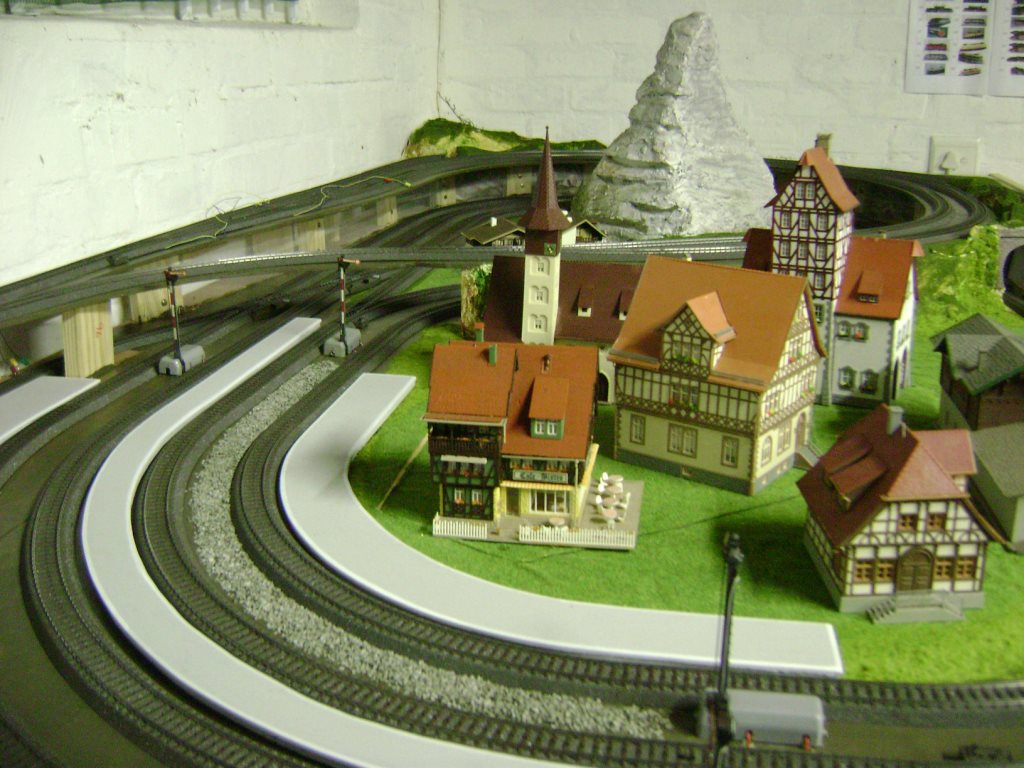

In the scenery building stage, I have removed all of the track, then done the painting, and now I am placing the track back into position.

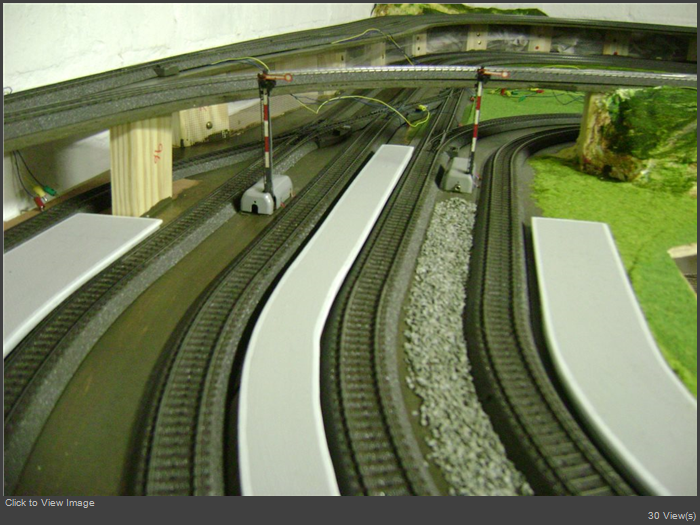

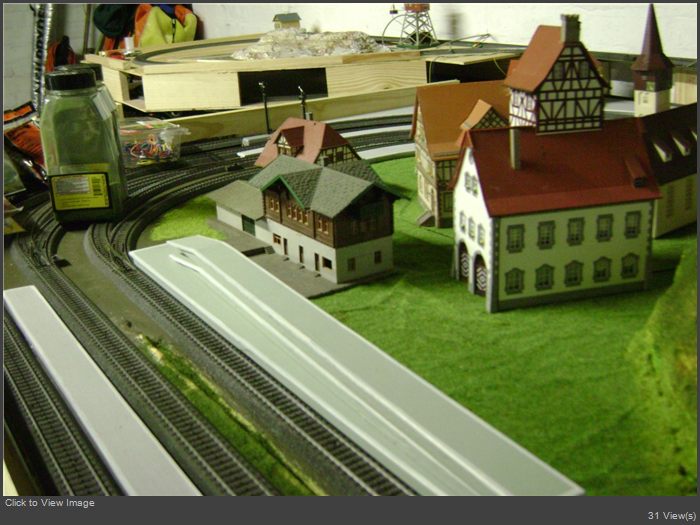

My friend Terry especially cut the curved station platform area, using the R1 & R2 on the inside, and R3 & R4 on the outer side. I really think he has done a good job !!

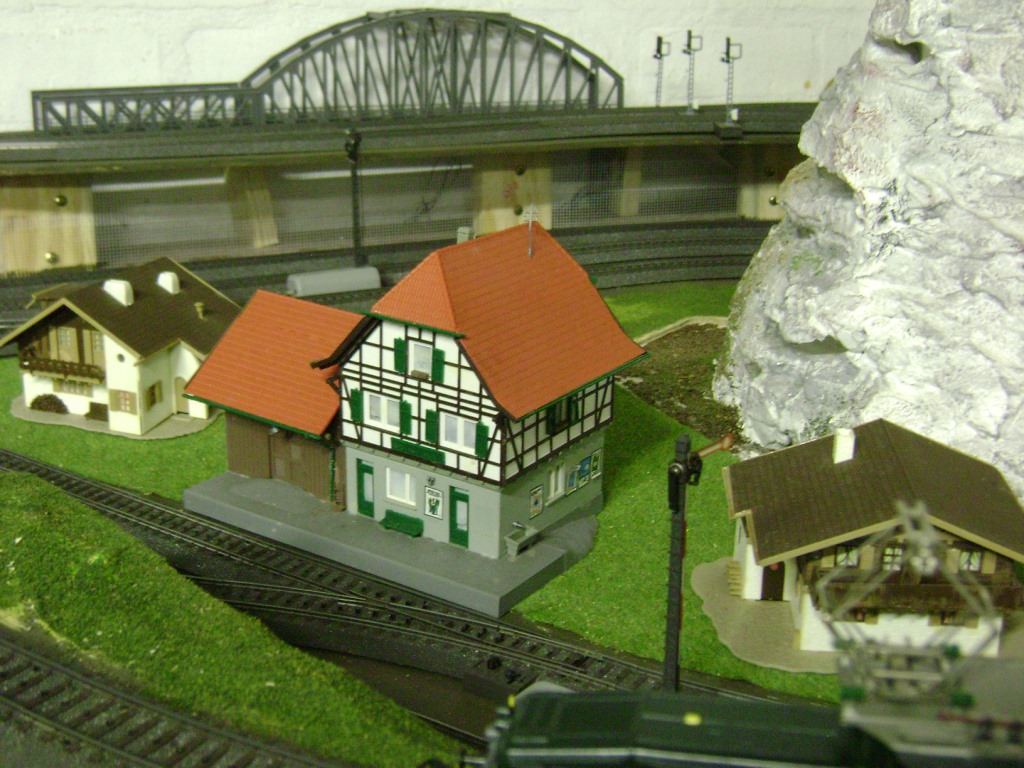

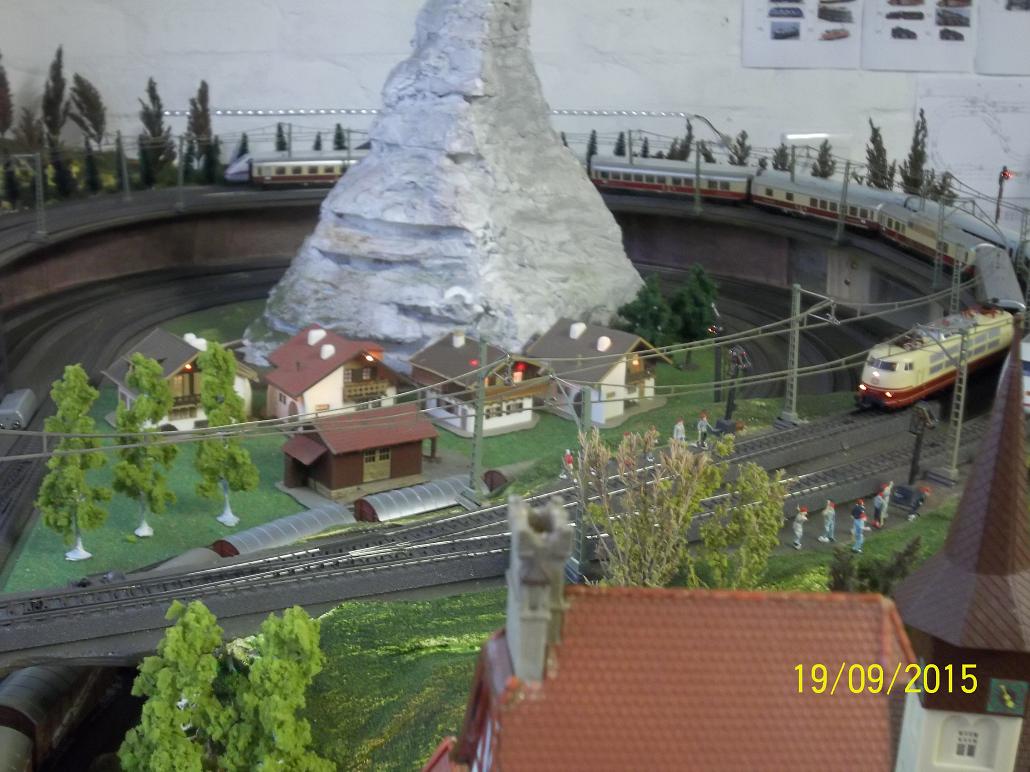

My Matterhorn Mountain from my previous layouts has remained with me for this new layout.

I hope you enjoy the latest pictures ......Cool Cool Cool

Regards, BigGrin
John

DSC00598 - Copy.JPG
DSC00603 - Copy.JPG
DSC00004 - Copy.JPG
DSC00006 - Copy.JPG
DSC00614 - Copy.JPG
DSC00626 - Copy.JPG






thanks 22 users liked this useful post by Johnvr
Offline Angus
#22 Posted : 18 June 2015 09:40:15(UTC)
Angus

South Africa
Joined: 27/01/2012(UTC)
Posts: 202
Location: Johannesburg
Looking good John!
Offline Johnvr
#23 Posted : 11 July 2015 19:53:27(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

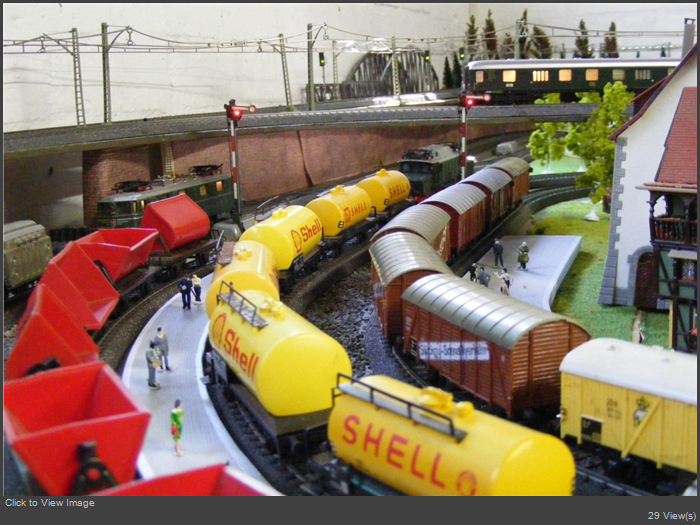

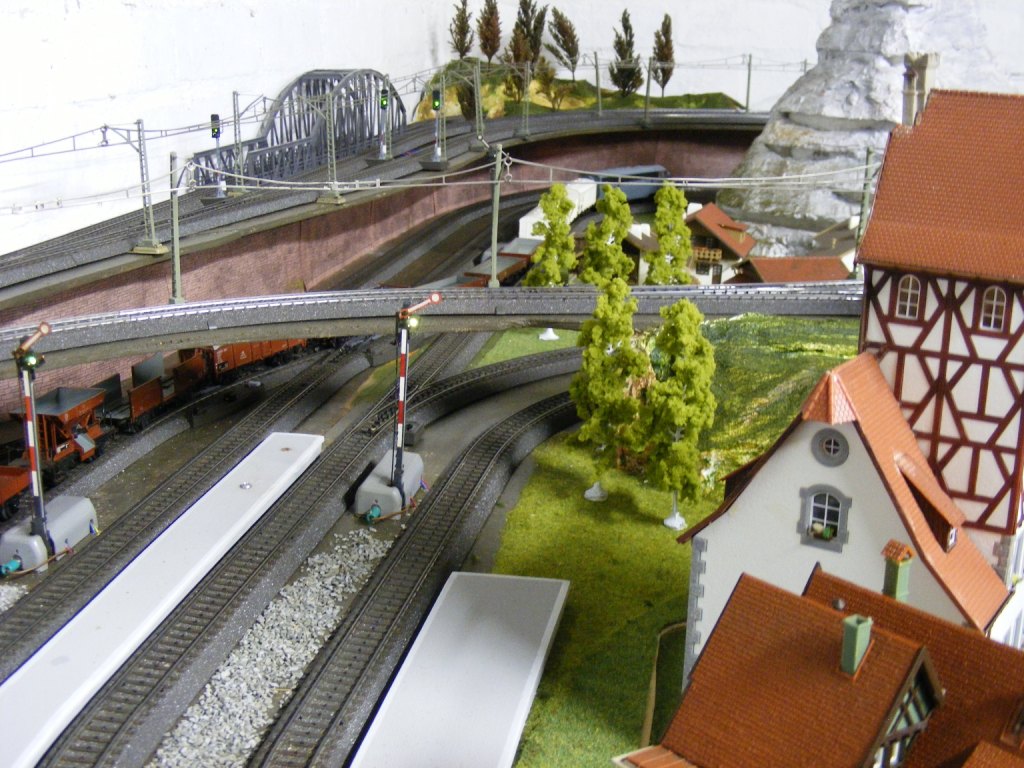

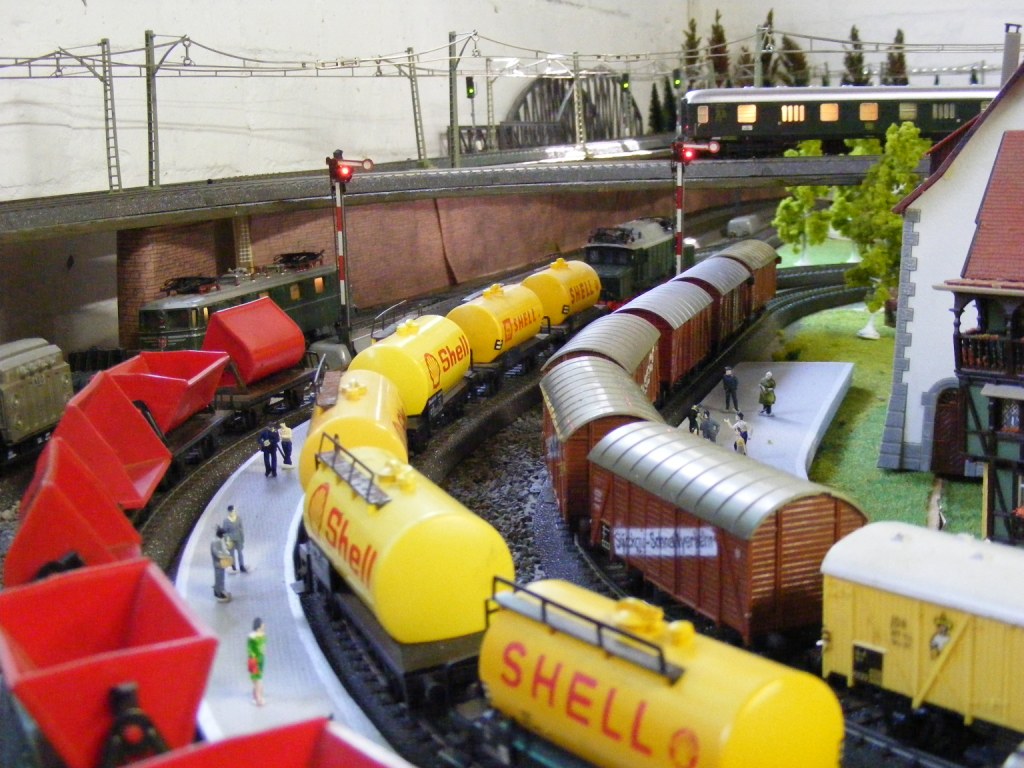

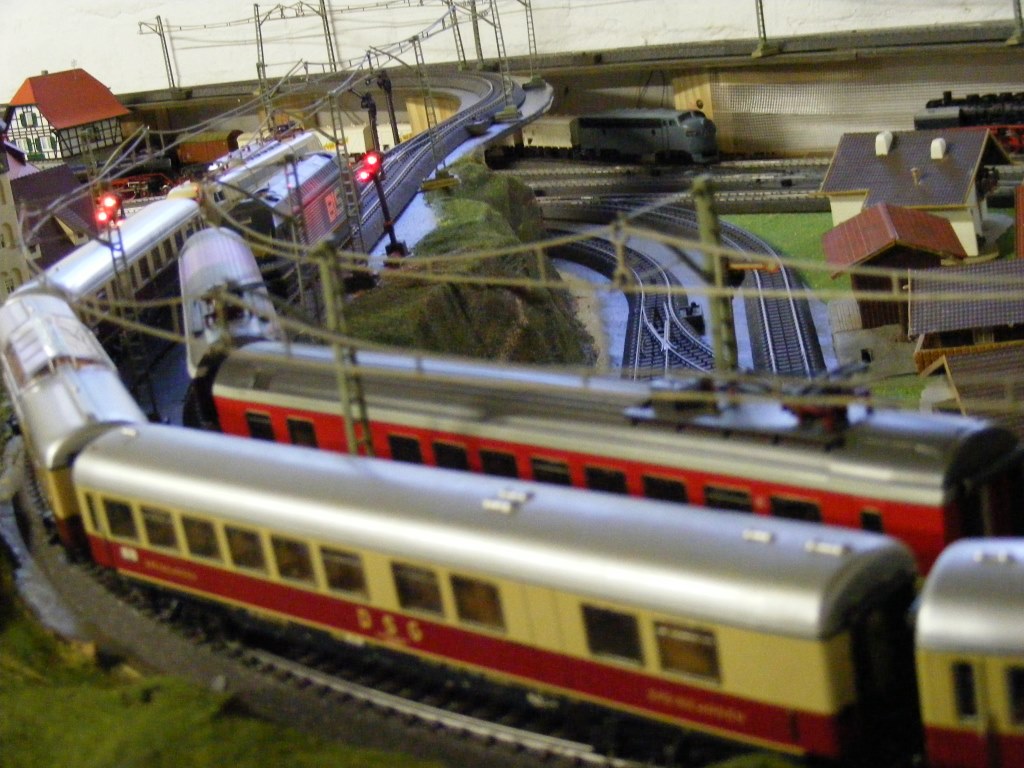

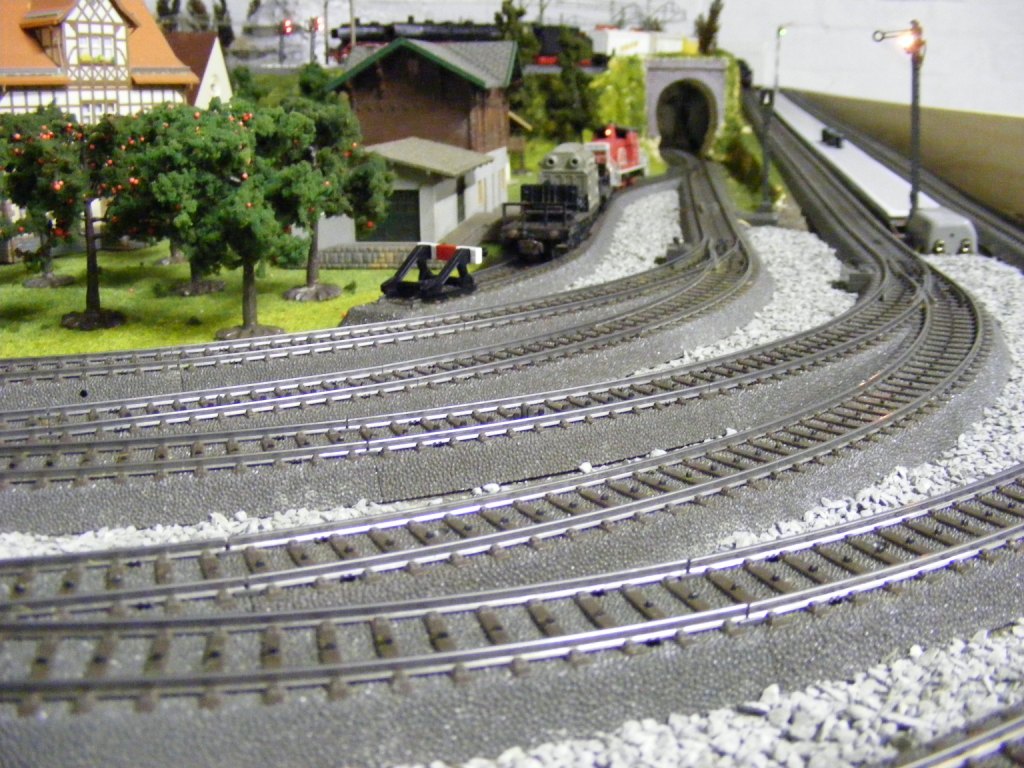

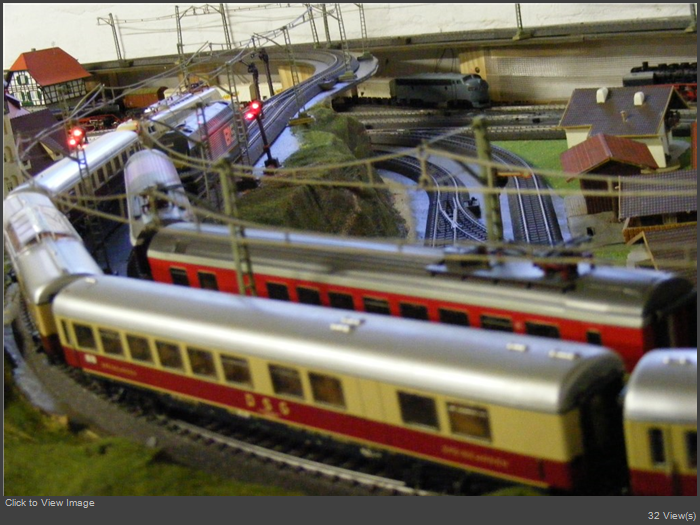

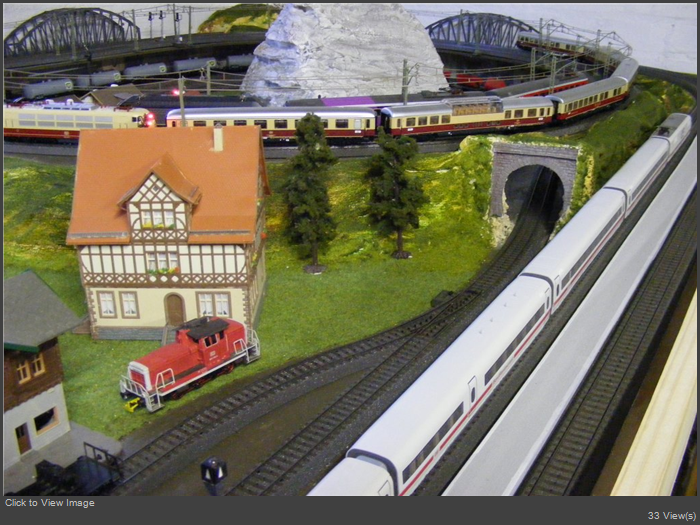

Some new pictures from today.

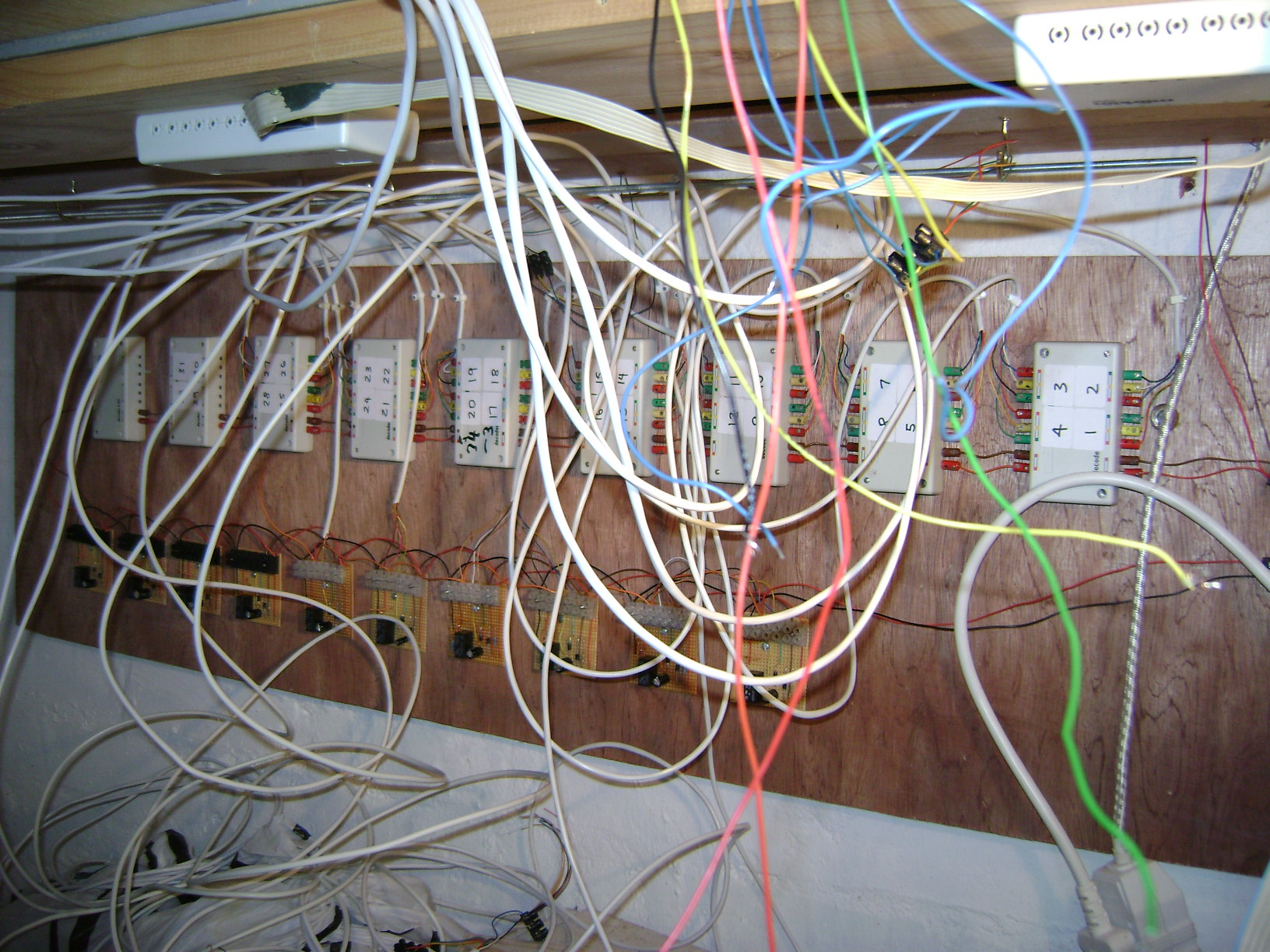

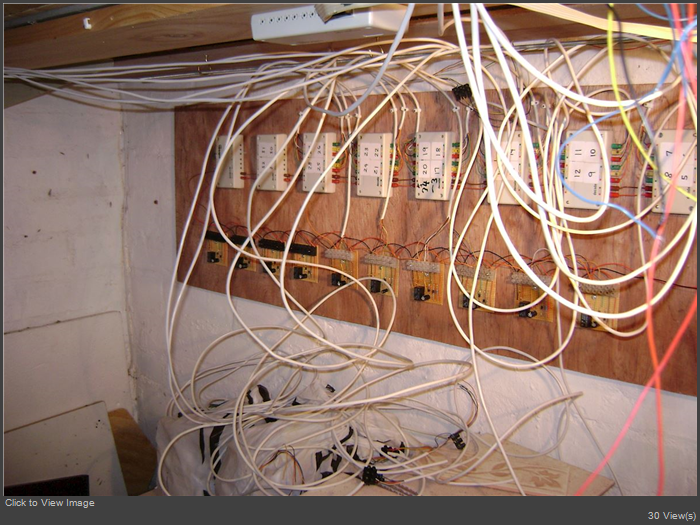

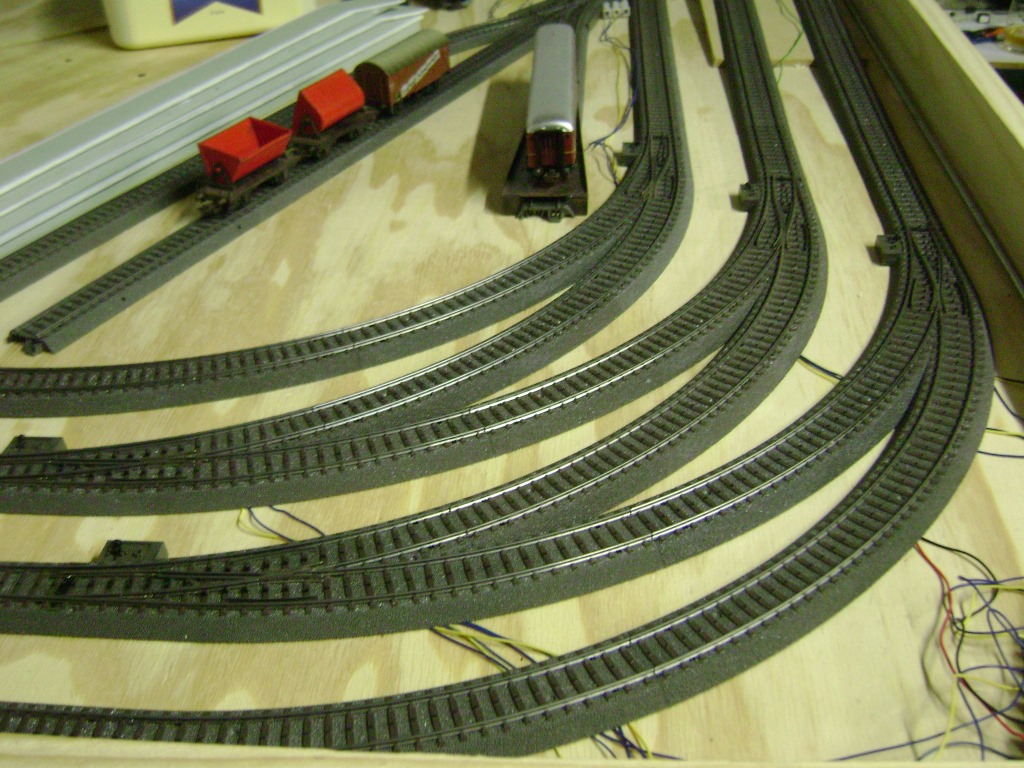

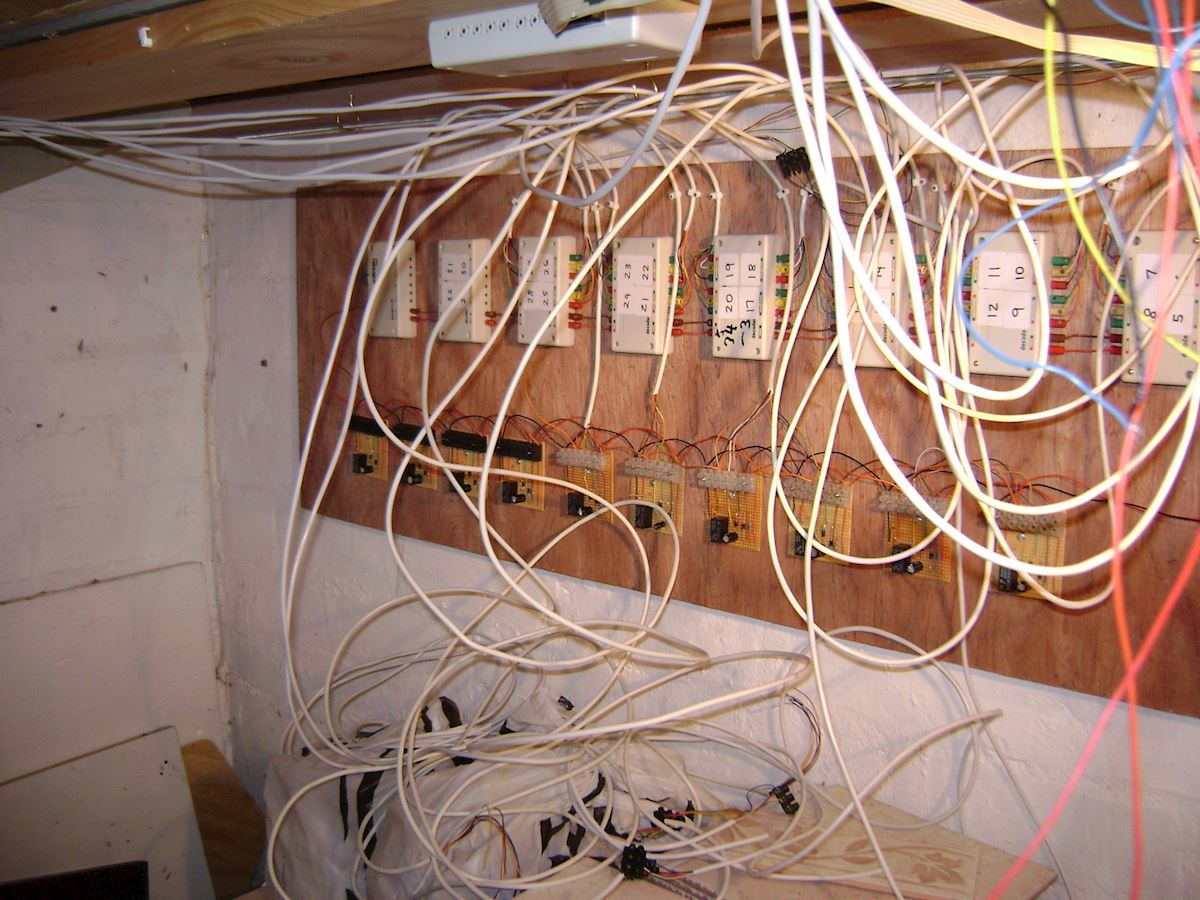

The progress looks slow because I am currently working on the wiring system Blink Blink
Have started to run trains, but this is only to check that everything fits ok. Still need to wire up the station signal and braking delay sections.

Regards,BigGrin
John
DSC00018 - Copy.JPGDSC00029 - Copy.JPGDSC00025 - Copy.JPGDSC00023 - Copy.JPGDSC00021 - Copy.JPGDSC00044 - Copy.JPG
thanks 19 users liked this useful post by Johnvr
Offline Chris6382chris
#24 Posted : 13 July 2015 05:11:57(UTC)
Chris6382chris

United States
Joined: 27/11/2009(UTC)
Posts: 1,160
Location: Middle of the US
John:

Everything looks great. Really nice work on the station platforms in those curves. Do you plan on wiring to have it as automated as your past layouts?

Chris
Offline utkan
#25 Posted : 13 July 2015 08:00:43(UTC)
utkan

Turkey
Joined: 14/07/2009(UTC)
Posts: 19,116
Location: Istanbul,
Hi John,

Great work....ThumpUp ThumpUp ...looking forward to a movie....RollEyes

Cheers,

mehmet
Do unto others, as you would have them do unto you...
Offline kimballthurlow
#26 Posted : 13 July 2015 08:30:16(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,071
Location: Brisbane, Australia
Hi John,
This is the first time I have visited your layout.
It is looking great, with plenty of running capabilities.
Thanks for sharing.

regards
Kimball
HO Scale - Märklin (ep III and VI, C Track, digital) - 2 rail (USA and Australia) - 3 rail (English Hornby Dublo) - a few old O gauge.
Offline Johnvr
#27 Posted : 13 July 2015 08:39:51(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Originally Posted by: Chris6382chris Go to Quoted Post
John:

Everything looks great. Really nice work on the station platforms in those curves. Do you plan on wiring to have it as automated as your past layouts?

Chris


Chris,

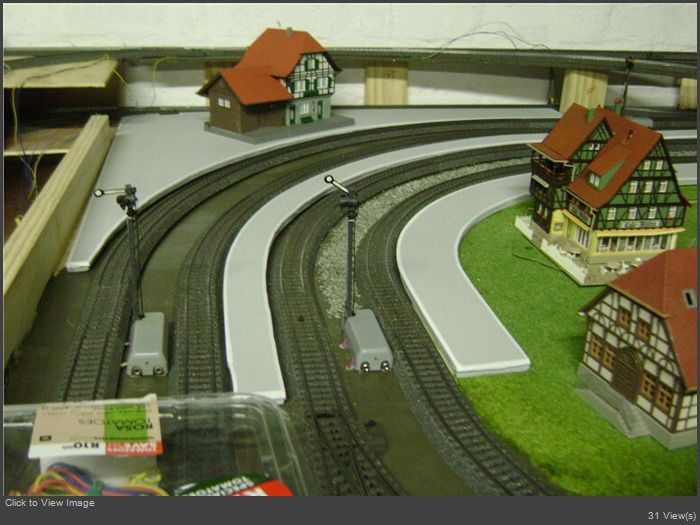

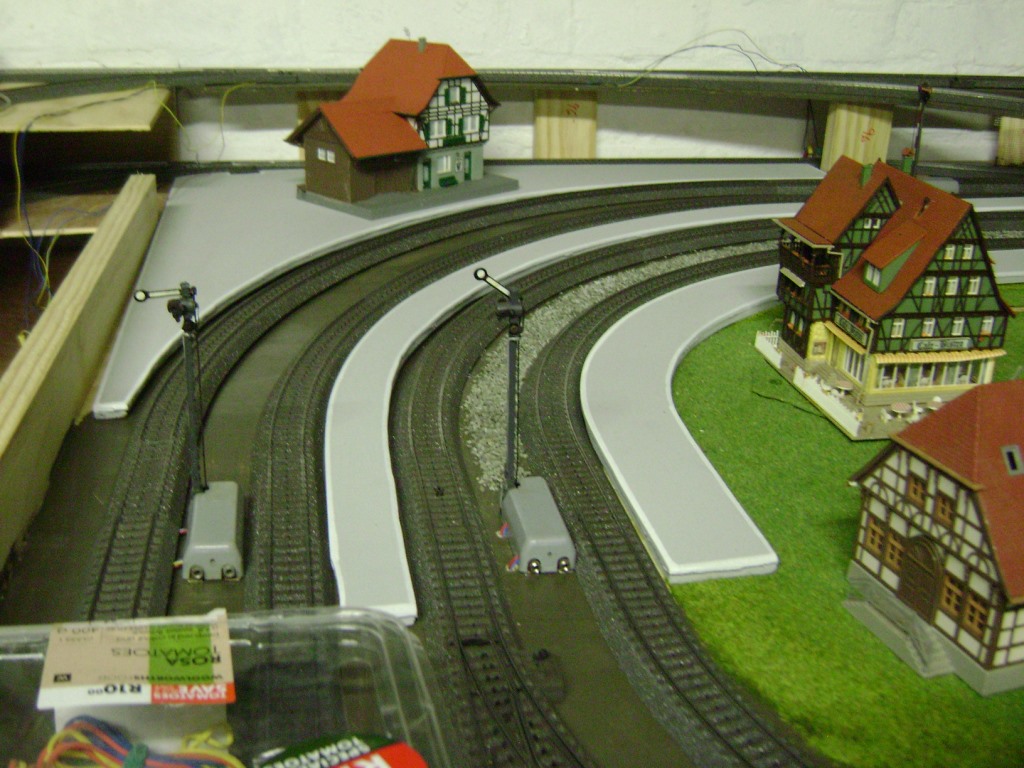

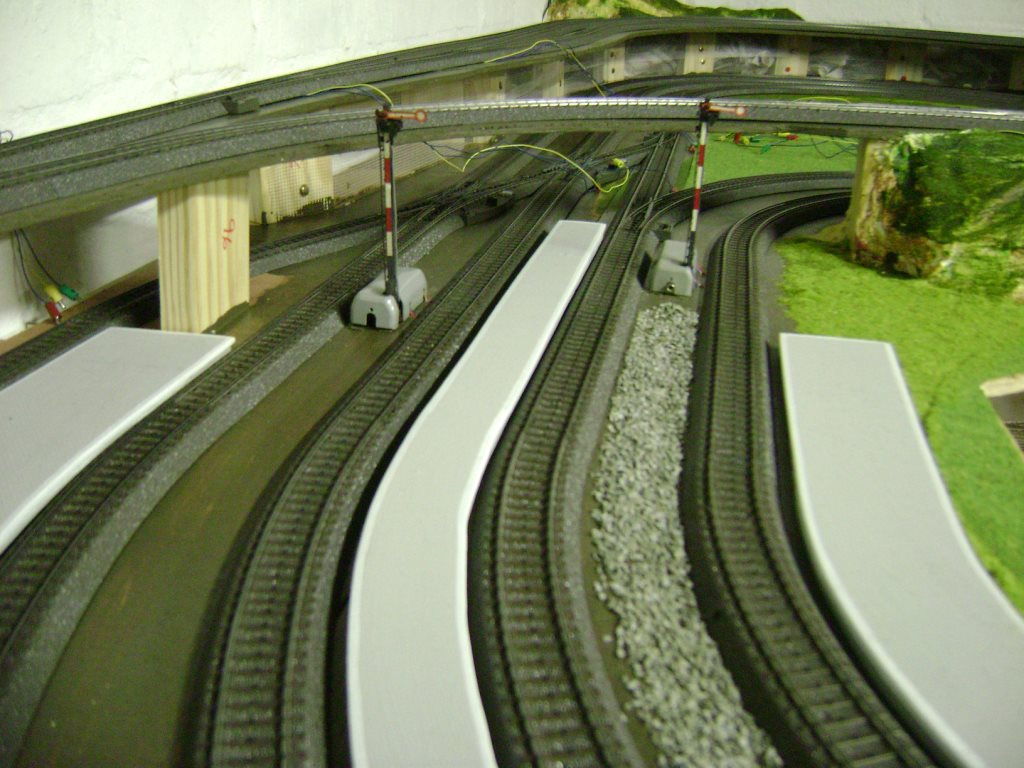

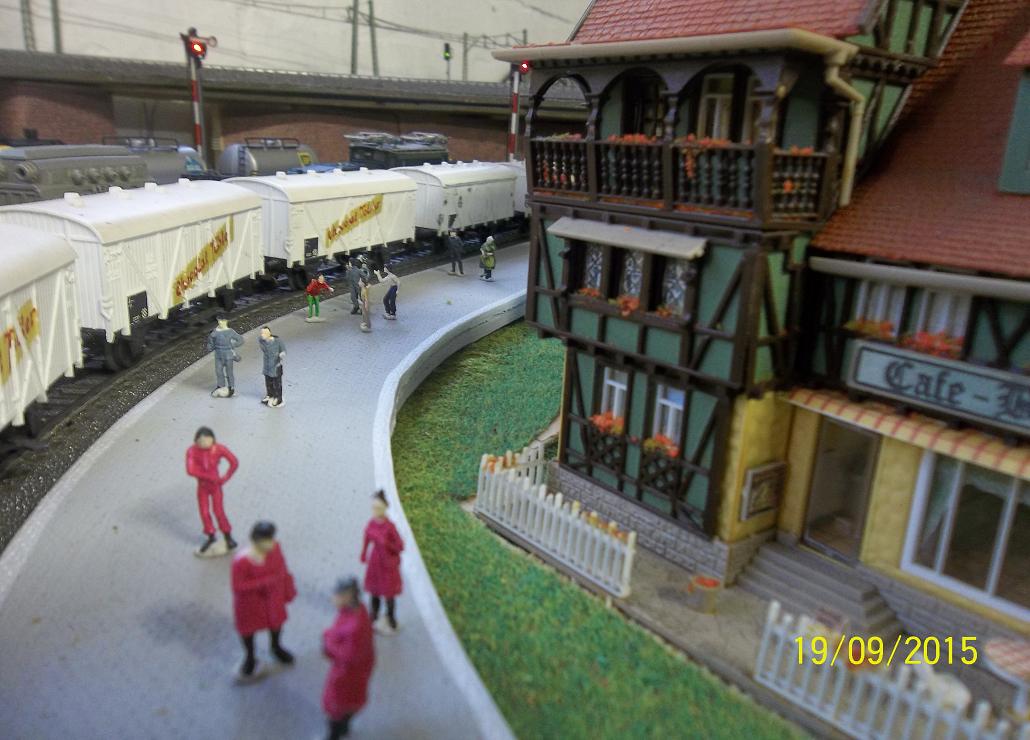

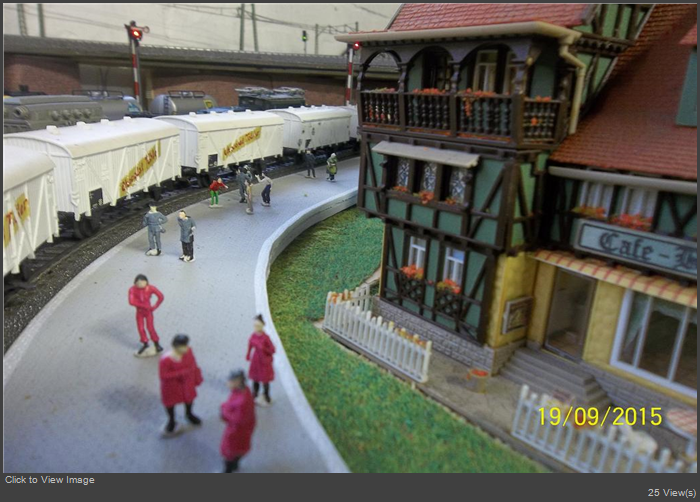

Thanks for your nice comments on the curved station platforms. I have to admit two things : 1) they were made by my friend Terry in exchange for some work which I did on his layout, and 2) they look great !!! Using the curves R1 & R2 on the inner, and R3 &R4 on the outer.

Yes, layout will have lots of automation , including :

2 x s88 inputs, with 32 input triggers connected to 20 contact tracks strategically placed around the layout
10 x k83 with 40 output mechanisms, including 10 signals, 24 turnouts, uncouplers, etc
signals and braking deals of 1.2meters at each platform, for realistic braking into the platform and trains stopping at the end of the platforms
distant signals changing with use of "occupation detection" at various places.
CS1 control connected to 6021
various lighting systems in houses (lights flashing, disco lights in one house, platform clocks, etc)

I can't wait !!

Regards,
John

thanks 2 users liked this useful post by Johnvr
Offline Johnvr
#28 Posted : 13 July 2015 08:42:04(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Originally Posted by: utkan Go to Quoted Post
Hi John,

Great work....ThumpUp ThumpUp ...looking forward to a movie....RollEyes

Cheers,

mehmet


Mehmet,

That's a good idea !
I shall make sure that I let you know when the movie is done.
Wiring is only 50% complete at this stage, so another couple of weeks away.
Watch this space ....

Regards,BigGrin
John
thanks 1 user liked this useful post by Johnvr
Offline steventrain
#29 Posted : 13 July 2015 10:37:31(UTC)
steventrain

United Kingdom
Joined: 21/10/2004(UTC)
Posts: 31,394
Location: United Kingdom
Looking good.ThumpUp
Large Marklinist 3- Rails Layout with CS2/MS2/Boosters/C-track/favorites Electric class E03/BR103, E18/E118, E94, Crocodiles/Steam BR01, BR03, BR05, BR23, BR44, BR50, Big Boy.
Offline petestra
#30 Posted : 13 July 2015 13:01:48(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,729
Location: Leesburg,VA.USA
Hi John. I don't know how I managed to miss your thread? Nice going! Yes, it really looks like a super fun layout. I assume you'll have a plan for your

signals? I just got a few of the new ones but I am a bit disappointed in that they will not work with the contact track sections with the MS2 or in analog

mode. I was told by Märklin the contact sections will only work with the CS2? Anyway, they are quite nice. I will be looking forward to your progress, John.

Cheers,Peter ThumpUp ThumpUp ThumpUp Smile
Offline Johnvr
#31 Posted : 13 July 2015 14:07:16(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

Wiring jungle - not for the faint hearted !
All under control actually !

I decided to create an electronic board with all of my k83's linked together.
Also home made braking delays all linked together.
Useful 6 strand cables going out to pairs of turnouts, signals, etc

Has turned out to be a very easy wiring approach, all done on the workbench in the sitting upright position, before positioning in the current place.
Avoiding the upside down stuff !

Regards,BigGrin
John

DSC00045 - Copy.JPGDSC00047 - Copy.JPG
thanks 16 users liked this useful post by Johnvr
Offline Johnvr
#32 Posted : 01 August 2015 19:48:52(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

My friends Joe and Terry and James popped in today to see what was happening on the layout.
So we ran a few trains and tested out some track running.
All went well, I am delighted to report.

There is still further work on the wiring and the s88 controls, so everything coming along smoothly.

Regards,BigGrin DSCF3377 - Copy.JPG
John DSCF3382 - Copy.JPGDSCF3384 - Copy.JPG
thanks 14 users liked this useful post by Johnvr
Offline Johnvr
#33 Posted : 15 August 2015 21:23:28(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hello all,

I have been making very good progress !

All of the wiring is connected and operating well. I have 2 x s88 inputs connected to 32 'flipper tracks' around the layout. The CS1 feeds these signals to the k83s and switched turnouts and signals on the layout. There are 10 signals with Braking Delays and about 20 turnouts.

I figures that everything works well enough for me to finish off the track ballasting and to decorate the layout with some more trees. Preisers and lights still to be added.

So here are some pictures from today :

Regards,BigGrin
John

DSCF3397 - Copy.JPGDSCF3399 - Copy.JPGDSCF3400 - Copy.JPGDSCF3412 - Copy.JPGDSCF3414 - Copy.JPGDSCF3402 - Copy.JPGDSCF3413 - Copy.JPG
thanks 18 users liked this useful post by Johnvr
Offline Joseph Meiring
#34 Posted : 16 August 2015 17:45:38(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
Outstanding John! Terry and I will have to come over SOON......
thanks 1 user liked this useful post by Joseph Meiring
Offline Johnvr
#35 Posted : 13 September 2015 13:04:34(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

The good news is ... I have been running lots of trains !
Especially older trains, older cargoes, older wagons.
Do you remember these wagons and carriages ?
They all run well on the layout !

I have been running seven trains on my layout, using CS1 automation.
4 trains in block formation, one behind the other, traversing upper level and lower leves.
2 trains on the upper level including the reversing loop twice around.
1 train on the lower level making a double-reversing loop and ending up where it started.

I am learning how to make a video using my phone device, and I shall post it shortly here.
Some pictures from this morning :


Regards,BigGrin
thanks 13 users liked this useful post by Johnvr
Offline Johnvr
#36 Posted : 13 September 2015 16:39:51(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

Here you can get a chance to watch my first video of the layout.
Seven trains running in automated control.

Matterhorn Automated Control

Regards,BigGrin
John
thanks 11 users liked this useful post by Johnvr
Offline Joseph Meiring
#37 Posted : 14 September 2015 09:10:59(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
Very impressive John - see you Saturday!!!
thanks 1 user liked this useful post by Joseph Meiring
Offline petestra
#38 Posted : 14 September 2015 12:39:57(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,729
Location: Leesburg,VA.USA
It all looks great, John. I see that you digitalized your 3048. I had mine done too recently, also with sounds. It gave new life to the old girl.

Have fun! I'll look forward to your new videos too. Cheers, Peter Smile ThumpUp
Offline Johnvr
#39 Posted : 14 September 2015 13:01:58(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Originally Posted by: petestra Go to Quoted Post
It all looks great, John. I see that you digitalized your 3048. I had mine done too recently, also with sounds. It gave new life to the old girl.

Have fun! I'll look forward to your new videos too. Cheers, Peter Smile ThumpUp


Peter,

Thanks for watching the video.
I hope you enjoyed the automated signal controls !

It's actually my "F800" featured in the video and in the picture above, but same loco chassis/body to 3048.
In fact, I have digitized all of the locos in the video.
All together, I have digitized about 35 locos myself, and only 2 of my locos came with digital decoders which I have not modified.

Regards,BigGrin
John
thanks 3 users liked this useful post by Johnvr
Offline Danlake
#40 Posted : 15 September 2015 02:05:24(UTC)
Danlake

New Zealand
Joined: 03/08/2011(UTC)
Posts: 1,551
Hi John,

Looks great - congrats with your new layout.

Automation is funThumpUp

Brgds Lasse
Digital 11m2 layout / C (M&K) tracks / Era IV / CS3 60226 / Train Controller Gold 9 with 4D sound. Mainly Danish and German Locomotives.
Offline utkan
#41 Posted : 15 September 2015 19:15:00(UTC)
utkan

Turkey
Joined: 14/07/2009(UTC)
Posts: 19,116
Location: Istanbul,
Originally Posted by: Johnvr Go to Quoted Post
Hi all,

Here you can get a chance to watch my first video of the layout.
Seven trains running in automated control.

Matterhorn Automated Control

Regards,BigGrin
John

Many thanks for the movie, John....Love Love Love
Do unto others, as you would have them do unto you...
Offline Johnvr
#42 Posted : 21 September 2015 20:54:18(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

Joe and Terry came to visit my layout over the past weekend.BigGrin BigGrin BigGrin

We were running the trains using automated control, and glad to say, everything seemed to work well.
When visitors come to the layout, then I run some of my favourite locos : ICE2, Croc 3356 (14305), BR50, BR53, BR01, etc.

Joe took some pictures to record our fun :

Regards,BigGrin
John

JHB Apr2014 037.jpgJHB Apr2014 026.jpgJHB Apr2014 029.jpgJHB Apr2014 030.jpgJHB Apr2014 024.jpg
thanks 11 users liked this useful post by Johnvr
Offline Johnvr
#43 Posted : 21 September 2015 20:55:59(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
JHB Apr2014 029.jpgJHB Apr2014 037.jpgJHB Apr2014 024.jpg
thanks 9 users liked this useful post by Johnvr
Offline BrandonVA
#44 Posted : 21 September 2015 22:22:24(UTC)
BrandonVA

United States
Joined: 09/12/2011(UTC)
Posts: 2,533
Location: VA
John,

Looks like a lot of fun! What's the size of your layout?

I see an E94 in the grass, glad I'm not the only one offroading locomotives :)

-Brandon
thanks 2 users liked this useful post by BrandonVA
Offline Johnvr
#45 Posted : 22 September 2015 19:05:31(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Brandon,

The layout measures 2.6m x 1.5m in the area visible in the photos below.

In addition, there is a reversing loop in the lower left hand side of the picture, which measures 1.2m x 0.8m. There are two levels in the reverse loop for the upper and the lower levels, as per the picture below, and connected via a single line back to the main track area.

(PS This area is not yet finished !)

It is a lot of fun already !
There are plenty of reversing loops on both levels, and so I am running seven trains in automated mode.

In manual mode, I hope to run 3-4 trains easily, with a little help from the signaling system. Every signal has a switch track to switch the signal to RED after a train has passed, so that no train should catch up with another.Cool Cool

Regards,BigGrin
John

thanks 4 users liked this useful post by Johnvr
Offline petestra
#46 Posted : 22 September 2015 19:42:45(UTC)
petestra

United States
Joined: 27/07/2009(UTC)
Posts: 5,729
Location: Leesburg,VA.USA
Hi John. I just watched your video again. Just super, especially with those breaking modules which allow the Lok sounds to remain on.

You did a terrific job there and your wife must feel right at home looking at the Matterhorn. Cheers,Peter ThumpUp ThumpUp Smile
thanks 1 user liked this useful post by petestra
Offline Johnvr
#47 Posted : 26 September 2015 13:49:47(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

I have been having fun with some more automation on my new layout.Cool Cool Cool

In this video, you can see three trains running.
The trains consist of several wagons each, and the idea is that the trains go past each other at the station.
All locos digitized by myself, and all of these trains and wagons come out of 70's/80's catalogue.

I hope you enjoy the video !
A few shakes here and there, but still ok to watch !

Marklin Trains Running by Johnvr

Regards,BigGrin
John
thanks 2 users liked this useful post by Johnvr
Offline Joseph Meiring
#48 Posted : 26 September 2015 14:19:39(UTC)
Joseph Meiring

South Africa
Joined: 27/12/2009(UTC)
Posts: 1,157
Location: Western Cape Cape Town
very nice indeed John - most enjoyable to watch!!
Offline Johnvr
#49 Posted : 26 September 2015 14:21:01(UTC)
Johnvr

South Africa
Joined: 03/10/2010(UTC)
Posts: 1,235
Location: Cape Town, South Africa
Hi all,

I would be interested if you could help me date the E94 locomotives in the video above.

The DB version (with the black wheel guards) came in a box labeled 3322 and it says "Made in Western Germany" on the box and also underneath the drive wheels on the chassis.

The DR version (with the red wheel guards) had no box when I purchased it, but it says "Made in Germany" underneath the drive wheels on the chassis.

As far as I know, the division between East Germany and West Germany began in August 1961 when the Wall divided the city of Berlin, and ended in October 1989 when the Wall was broken. I presume that Goppingen was always in West Germany even though it was outside of the Wall of Berlin, so where actually was the dividing line between East and West Germany ?


Regards,BigGrin
thanks 1 user liked this useful post by Johnvr
Offline French_Fabrice
#50 Posted : 26 September 2015 15:08:10(UTC)
French_Fabrice

France
Joined: 16/05/2011(UTC)
Posts: 1,383
Location: Lyon, France
Hi John,

I have both of them. I bought them as second hand locos.

The "254 153-0" is Marklin 3335, but I don't know when it has been built. Mine is marked "Made in Western Germany" underneath the drive wheels.

Cheers
Fabrice
thanks 2 users liked this useful post by French_Fabrice
Users browsing this topic
OceanSpiders 2.0
3 Pages123>
Forum Jump
You cannot post new topics in this forum.
You cannot reply to topics in this forum.
You cannot delete your posts in this forum.
You cannot edit your posts in this forum.
You cannot create polls in this forum.
You cannot vote in polls in this forum.

| Powered by YAF.NET | YAF.NET © 2003-2021, Yet Another Forum.NET
This page was generated in 1.562 seconds.
