Dear Marklin Z scalers,

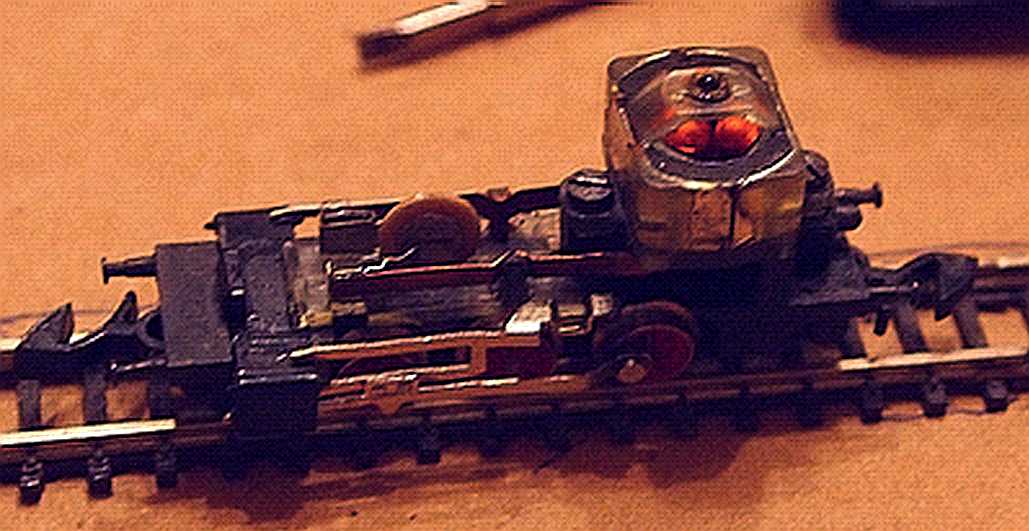

I am new to Z scale. I have just purchased a starter set on eBay and a few extra wagons and extra track to get started. I have a large N scale layout but have always wanted a bit of Z scale . The seller assures me the loco (DB 89 steam tank engine, 5 pole version) runs very nicely but I always like to know how to service model trains. Can someone point me to any on line diagrams, service sheets, pictures or photos of what’s inside this loco? So far I have found the two shown below.

It looks a lot like the Minitrix Dock Tank Engine with its vertically placed motor, only about 2/3 the size.

Minitrix Dock Tank


Many thanks,

Grahame Taylor

British exPat in Houston, USA
grahame attached the following image(s):
Offline Markus Schild
#2 Posted : 21 December 2013 20:38:05(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi Grahame,

Welcome to the forum.

The sheets you are looking for, can be found on the Märklin - server. The links must be copied and pasted in a new window. Märklin does not allow direct linking.

For the new version:

Exploded view:
Code:
http://medienpdb.maerklin.de/product_files/1/pdf/88051_explo.pdf


Manual:
Code:
http://medienpdb.maerklin.de/product_files/1/pdf/88051_betrieb.pdf


The older exploded view could be also of interest, it is more detailed:

Code:
http://medienpdb.maerklin.de/product_files/1/pdf/8800_explo.pdf


Regards

Markus


thanks 1 user liked this useful post by Markus Schild
Offline grahame
#3 Posted : 21 December 2013 20:46:21(UTC)
grahame

United States
Joined: 20/12/2013(UTC)
Posts: 141
Location: Houston
Thank you Markus :)

I just found this which I think is pretty much the same information:

http://medienpdb.maerklin.de/pr.../1/pdf/81521_betrieb.pdf
Offline ozzman
#4 Posted : 21 December 2013 20:56:25(UTC)
ozzman

Australia
Joined: 23/11/2007(UTC)
Posts: 1,980
Location: Sydney, Australia
Hi Grahame and welcome to this forum, and to the World of Z!

The link you found in your second post is as good as it gets. The Z scale Br 89 is a simple piece of kit.
Gary
Z Scale
"Never let the prototype get in the way of a good layout"
Offline grahame
#5 Posted : 21 December 2013 23:45:22(UTC)
grahame

United States
Joined: 20/12/2013(UTC)
Posts: 141
Location: Houston
Thanks Ozzman :)
Offline grahame
#6 Posted : 21 December 2013 23:49:21(UTC)
grahame

United States
Joined: 20/12/2013(UTC)
Posts: 141
Location: Houston
So just to confirm the black down arrow shown below is a lubrication point for the motor shaft, yes?
grahame attached the following image(s):
Offline ozzman
#7 Posted : 22 December 2013 00:11:44(UTC)
ozzman

Australia
Joined: 23/11/2007(UTC)
Posts: 1,980
Location: Sydney, Australia
Originally Posted by: grahame Go to Quoted Post
So just to confirm the black down arrow shown below is a lubrication point for the motor shaft, yes?


That's correct.

I did mean to say before that the little diesel shunters (8864, 88641, 8865) are basically the same, so if you wanted to diversify your loco fleet your workshop wouldn't have to learn a whole new lot of stuff.
Gary
Z Scale
"Never let the prototype get in the way of a good layout"
thanks 1 user liked this useful post by ozzman
Offline grahame
#8 Posted : 22 December 2013 13:11:40(UTC)
grahame

United States
Joined: 20/12/2013(UTC)
Posts: 141
Location: Houston

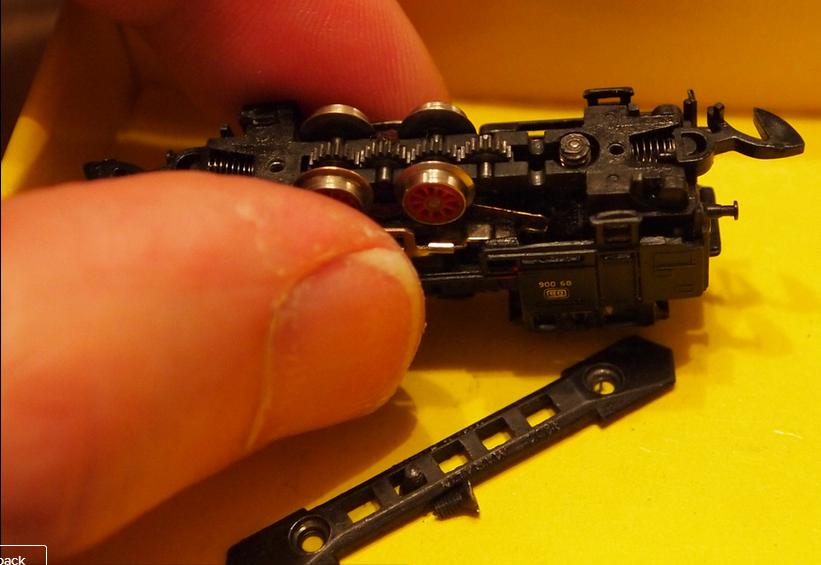

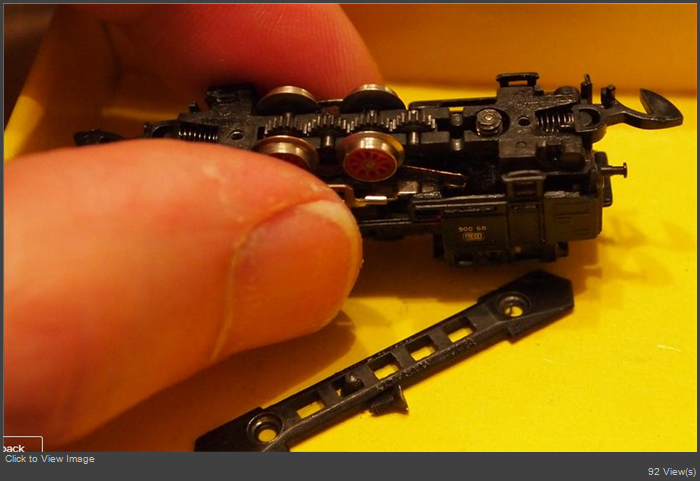

I just found this excellent video on the 8864, same chassis as the DB 89, yes?

Strip down for 8864
Offline Artologic
#9 Posted : 22 December 2013 23:04:38(UTC)
Artologic

Belgium
Joined: 21/08/2010(UTC)
Posts: 430
Grahame,

I have a starter set with the same loco, if I don t forget, I ll put up the manual tomorrow. Also, if that s a picture of your loco, it seems to have a 3 pole motor, not the 5 pole motor you are talking about...

Kristof
thanks 1 user liked this useful post by Artologic
Offline Artologic
#10 Posted : 25 December 2013 13:40:47(UTC)
Artologic

Belgium
Joined: 21/08/2010(UTC)
Posts: 430
Hello Grahame,

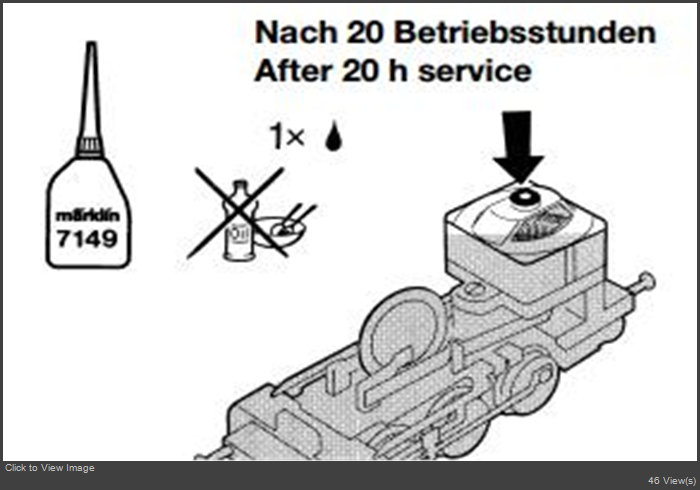

I have looked up the manual, and made a picture about the relevant page. I still hope it s of some use.
UserPostedImage
Also you asked for pictures of the loco itself, what do you exactly want? I have the loco with the 3 pole motor, but it s technically the same for the rest. Also, the v60 shunters (8864) are slightly different, the wormwheel is located diffently. The br89 is a easier one to rebuild, but the video still contains some good tips...

Kristof
