Offline Gregor
#1 Posted : 05 August 2013 20:43:43(UTC)
Gregor

Netherlands
Joined: 17/04/2003(UTC)
Posts: 996
Location: Netherlands
Hi All,

I run my layout through 8 TAMS boosters, they are non-MFX. They take the 5V data signal from a controller (Edits-Pro) and amplify this to 18V to feed the tracks.

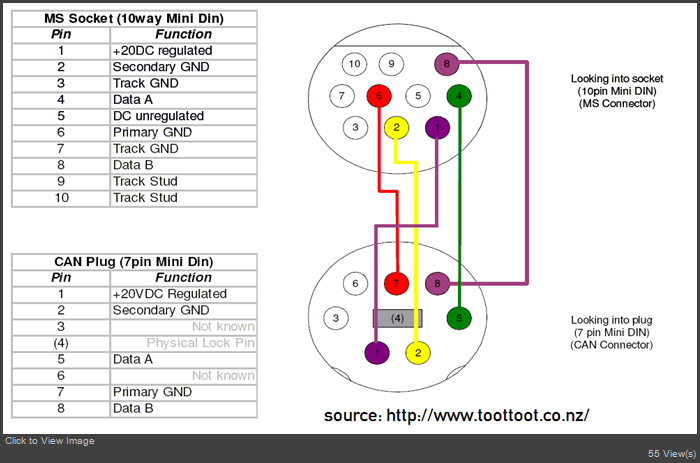

Would it be possible to connect a Mobile Station (60651) to these boosters ? Obviously without the possibility to use the MFX features. Toottoot shows the connection within the MS1 cable (see figure below and http://www.toottoot.co.nz downloads section)

Specific questions:
- Does anyone have experience in connecting a Mobile Station to a non-mfx booster?
- Does anyone have experience in using the schematic provided by toottoot?
- What is the difference between Data A and Data B in the schematic? Is A the control signal and B the feedback signal? (or vice versa)
- Would the MS work at all when it does not detect an MFX feedback signal?

Thanks in advance,
Gregor
Gregor attached the following image(s):
Offline perz
#2 Posted : 05 August 2013 21:31:15(UTC)
perz

Sweden
Joined: 12/01/2002(UTC)
Posts: 2,578
Location: Sweden
Yes, I have tested to connect a Märklin 6017 booster to a Mobile Station.

I connected the full swing track output from the MS through a voltage reduction circuit. I also made the mfx feedback available back to the MS, so that the loco registration worked normally in the booster section. But you can use a non-mfx booster without this feedback, if you register the locos directly on the MS first.

I do not normally use this kind of connection, I made it only to learn more about how mfx works.

http://www.persmodelrailroad.com/mfx_boost.html
thanks 2 users liked this useful post by perz
Offline Gregor
#3 Posted : 06 August 2013 21:51:08(UTC)
Gregor

Netherlands
Joined: 17/04/2003(UTC)
Posts: 996
Location: Netherlands

Thank you Per for your answer,

Somehow I feel it should be possible to use the Data line directly, therefore eliminating the need for the voltage reduction. However I have lent out my oscilloscope to someone, so I cannot investigate.

Best regards,
Gregor

Offline H0
#4 Posted : 06 August 2013 22:29:50(UTC)
H0


Joined: 16/02/2004(UTC)
Posts: 15,267
Location: DE-NW
Originally Posted by: Gregor Go to Quoted Post
Somehow I feel it should be possible to use the Data line directly
I guess the Data lines are the CAN bus and do not carry the track signals.

So IMO the track connections are the only suitable lines - depending on the booster the voltage levels may need adaptation.

People frequently use Delta Controls as boosters for Mobile Stations. The input of the Delta Control can be connected directly to the track output of the Mobile Station.
Regards
Tom
---
"In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
UserPostedImage
thanks 1 user liked this useful post by H0
Offline Webmaster
#5 Posted : 06 August 2013 22:39:45(UTC)
Webmaster


Joined: 25/07/2001(UTC)
Posts: 11,161
You could also check this topic:
https://www.marklin-user...ECT-6017---any-good.aspx

I have a 60129 that I can sell cheaply, and the "Tams Booster Link" for mfx mentioned in the topic sounds interesting too...
Juhan - "Webmaster", at your service...
He who asks a question is a fool for five minutes. He who does not ask a question remains a fool forever. [Old Chinese Proverb]
thanks 1 user liked this useful post by Webmaster
Offline perz
#6 Posted : 06 August 2013 23:21:57(UTC)
perz

Sweden
Joined: 12/01/2002(UTC)
Posts: 2,578
Location: Sweden
Originally Posted by: H0 Go to Quoted Post
I guess the Data lines are the CAN bus and do not carry the track signals.

So IMO the track connections are the only suitable lines - depending on the booster the voltage levels may need adaptation.



Yes, I agree with that opinion.

thanks 1 user liked this useful post by perz
Offline Gregor
#7 Posted : 07 August 2013 07:55:22(UTC)
Gregor

Netherlands
Joined: 17/04/2003(UTC)
Posts: 996
Location: Netherlands
Thank you all, very useful info.
Gregor
Offline efel
#8 Posted : 07 August 2013 08:32:54(UTC)
efel

France
Joined: 23/02/2005(UTC)
Posts: 800
Hi,
B2 TAMs' booster is driven by the track output.
The specified input range is 12 to 20V AC. See Here.
Looking at the schematic of the booster, you will see that it's necessary that the input signal be both positive and negative in order to drive both Q1 and Q3 transistor.
That means that B2 can be driven by MS1 output.
I guess it's the same for most TAMS boosters.

Fred
thanks 1 user liked this useful post by efel
