danmarklinman		#1 Posted : 01 February 2013 16:39:25(UTC) Retweet
Joined: 18/10/2012(UTC) Posts: 1,378		Hi, i have a layout which is small and is a basic oval with a siding and a passing loop. I would like to turn this in to one end of a dog bone ,with one of the curves on one corner being taken apart and made into the narrow part of a dog bone .So it effectively becomes double track before splitting again into the other end of the dog bone. can anyone help me by giving me a simple track diagram with parts to make such a thing in C and K track. many thanks Dan.
		Marklin and Piko era 4 SNCB , Marklin wagons Wiking model car Fan Faller fan including car system Instagram: marklin1978 Wiking fan
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

Yumgui		#2 Posted : 01 February 2013 23:12:08(UTC) Retweet
Joined: 20/03/2011(UTC) Posts: 1,660 Location: Paris, France		Hi Dan, Not much to go on in your description ... it's very general ^^ Some further information would help the ppl here to help you (I will have trouble as I use only M track and VB for HO AC 3 rail )... ... like a photo or a sketch or something ? And if you find an answer first, plz let us know. Thanks, Yum
		If your M track is rusted ... DON'T throw it out ! Working on: https://studiogang.com/projects/all My heavy train station renovation: https://youtu.be/QQlyNiq416A Inspired by: http://www.nakedmarklin.com/... Am not alone in this universe, phew.
		WWW
1 user liked this useful post by Yumgui		danmarklinman
User Profile View All Posts by User View Thanks

clapcott		#3 Posted : 02 February 2013 23:27:04(UTC) Retweet
Joined: 12/12/2005(UTC) Posts: 2,433 Location: Wellington, New_Zealand		Originally Posted by: danmarklinman Hi, i have a layout which is small and is a basic oval with a siding and a passing loop. I would like to turn this in to one end of a dog bone ,with one of the curves on one corner being taken apart and made into the narrow part of a dog bone .So it effectively becomes double track before splitting again into the other end of the dog bone. can anyone help me by giving me a simple track diagram with parts to make such a thing in C and K track. many thanks Dan. Hi Dan ? Is the existing oval track C or K ? are the existing turnouts for the loop standard (Straight/Curve) or double curve ? what is the max/optimal area the dogbone end can take up (also indicate if this might be modular - i.e. two or more transportable sections) ? do you want a symmetrical or asymmetrical return loop ? What double line spacing are you connecting into (Marklin standards are 77.5 and 64.3 for C-Track) ? Do you want to reuse the turnouts for sidings within the centre of the loop ? Do you want to retain a passing loop
		Peter
User Profile View All Posts by User View Thanks

danmarklinman		#4 Posted : 03 February 2013 18:19:04(UTC) Retweet
Joined: 18/10/2012(UTC) Posts: 1,378		Originally Posted by: clapcott Originally Posted by: danmarklinman Hi, i have a layout which is small and is a basic oval with a siding and a passing loop. I would like to turn this in to one end of a dog bone ,with one of the curves on one corner being taken apart and made into the narrow part of a dog bone .So it effectively becomes double track before splitting again into the other end of the dog bone. can anyone help me by giving me a simple track diagram with parts to make such a thing in C and K track. many thanks Dan. Hi Dan ? Is the existing oval track C or K ? are the existing turnouts for the loop standard (Straight/Curve) or double curve ? what is the max/optimal area the dogbone end can take up (also indicate if this might be modular - i.e. two or more transportable sections) ? do you want a symmetrical or asymmetrical return loop ? What double line spacing are you connecting into (Marklin standards are 77.5 and 64.3 for C-Track) ? Do you want to reuse the turnouts for sidings within the centre of the loop ? Do you want to retain a passing loop Hi sorry now i was a bit vague in my question. All i need is the parts needed for a C track return loop which is as small as possible. There is a double track line sticking out the back of my layout on the left hand side,or there will be The double track will need to have a small radius turnouts to creat a cross over and therefore a return loop! cheers Dan
		Marklin and Piko era 4 SNCB , Marklin wagons Wiking model car Fan Faller fan including car system Instagram: marklin1978 Wiking fan
User Profile View All Posts by User View Thanks

LeoArietis		#5 Posted : 03 February 2013 20:19:16(UTC) Retweet

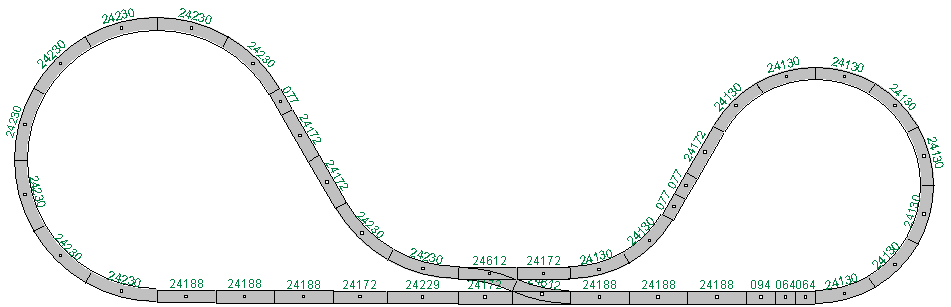

Joined: 07/02/2008(UTC) Posts: 153 Location: Lindome, Sweden		Here are two tries. I usually use the second one, length of the track is +2.6 m (8½ feet) so you can fit a good sized train fitting a medium sized layout and the length of the loop including the turnout/point is approx 1.15 m.
		Current layout: http://www.svensktmjforu.../index.php?topic=10990.0 The former project: http://www.svensktmjforu...forum_posts.asp?TID=1097 With Pictures and trackplans, but in Swedish Transitation-curves in C-track: https://www.marklin-user...9-on-75-cm.aspx#post9281
1 user liked this useful post by LeoArietis		danmarklinman
User Profile View All Posts by User View Thanks

LeoArietis		#6 Posted : 03 February 2013 20:26:44(UTC) Retweet
Joined: 07/02/2008(UTC) Posts: 153 Location: Lindome, Sweden		In the right one, numbers are : (24611 + 24172 + 24172 + 24188 + 24224 + 8*24130 + 24071 + 2*24130
		Current layout: http://www.svensktmjforu.../index.php?topic=10990.0 The former project: http://www.svensktmjforu...forum_posts.asp?TID=1097 With Pictures and trackplans, but in Swedish Transitation-curves in C-track: https://www.marklin-user...9-on-75-cm.aspx#post9281
User Profile View All Posts by User View Thanks

LeoArietis		#7 Posted : 03 February 2013 20:34:49(UTC) Retweet
Joined: 07/02/2008(UTC) Posts: 153 Location: Lindome, Sweden		It may look like it's not a perfect fit, but the difference is so small you, nor the track or trains will notice!
		Current layout: http://www.svensktmjforu.../index.php?topic=10990.0 The former project: http://www.svensktmjforu...forum_posts.asp?TID=1097 With Pictures and trackplans, but in Swedish Transitation-curves in C-track: https://www.marklin-user...9-on-75-cm.aspx#post9281
User Profile View All Posts by User View Thanks

H0		#8 Posted : 03 February 2013 20:50:34(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,265 Location: DE-NW		Hi! Originally Posted by: LeoArietis Here are two tries. I cannot see your images. And I bet many others cannot either. Never use the IMG tag for album images, the ALBUMIMG tag has to be used! Or simply attach the images to the post.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

danmarklinman		#9 Posted : 03 February 2013 21:13:13(UTC) Retweet
Joined: 18/10/2012(UTC) Posts: 1,378		Originally Posted by: LeoArietis Here are two tries. I usually use the second one, length of the track is +2.6 m (8½ feet) so you can fit a good sized train fitting a medium sized layout and the length of the loop including the turnout/point is approx 1.15 m. Cheers for that, thats great thanks. What i would also like is not to join them up but return to a double track. tar Dan
		Marklin and Piko era 4 SNCB , Marklin wagons Wiking model car Fan Faller fan including car system Instagram: marklin1978 Wiking fan
User Profile View All Posts by User View Thanks

Webmaster		#10 Posted : 03 February 2013 21:15:05(UTC) Retweet
Joined: 25/07/2001(UTC) Posts: 11,161		Edited posts to show the image...
		Juhan - "Webmaster", at your service... He who asks a question is a fool for five minutes. He who does not ask a question remains a fool forever. [Old Chinese Proverb]
		WWW Facebook Twitter
2 users liked this useful post by Webmaster		danmarklinman, H0
User Profile View All Posts by User View Thanks

H0		#11 Posted : 03 February 2013 21:29:04(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,265 Location: DE-NW		Hi! Here are two simple reversing loops (one only 24130, the other uses three 24230). The turnouts are only used to get the correct distance. If spaces allow, I'd avoid double curves without straight tracks in between. H0 attached the following image(s):
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
1 user liked this useful post by H0		danmarklinman
User Profile View All Posts by User View Thanks

H0		#12 Posted : 03 February 2013 21:42:44(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,265 Location: DE-NW		Other reversing loops (R2 on the left, R1 on the right). H0 attached the following image(s):
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
2 users liked this useful post by H0		danmarklinman, madhu.gn.71
User Profile View All Posts by User View Thanks

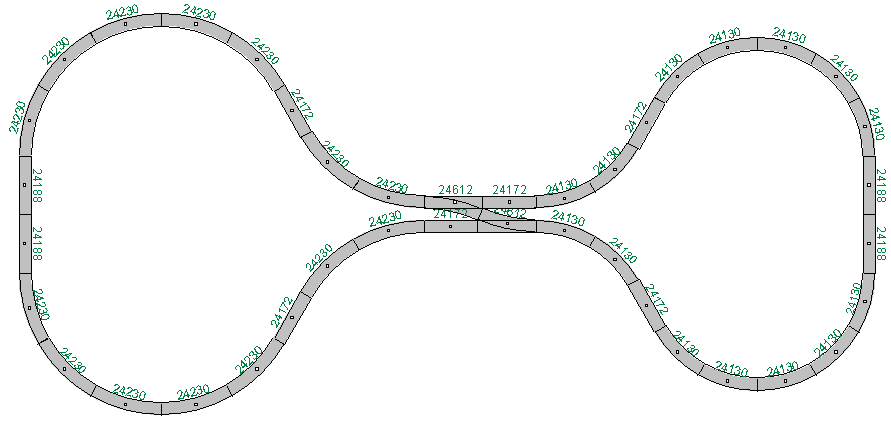

H0		#13 Posted : 03 February 2013 21:57:55(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,265 Location: DE-NW		And two more loops (R2 on the left, R1 on the right) that really make it look like a dog bone. H0 attached the following image(s):
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

danmarklinman		#14 Posted : 03 February 2013 22:02:30(UTC) Retweet
Joined: 18/10/2012(UTC) Posts: 1,378		Originally Posted by: H0 Hi! Here are two simple reversing loops (one only 24130, the other uses three 24230). The turnouts are only used to get the correct distance. If spaces allow, I'd avoid double curves without straight tracks in between. Hi thats spot on cheers, thankyou,part two of my layout coming up
