Hello fellow Marklinists,

Just starting to gear up for the wiring of my layout.

The Marklin wires available (i.e. 7101 Blue) seem to be 0.19 mm². The comparable wires from Brawa are 0.14 mm².

Even though originally from Holland, I have to find comparable sizes using the American Wire Gauge system (AWG). I found that 24 AWG and 26 AWG respectively are the closest in sizes.

What is the consensus for sizes when it comes to model layout wiring? I plan on using a bus wire for the digital signal so I can easily create feeder tracks every 10'. I would use a heavier gauge for this and scale down for the individual connections.

Share your wiring experience with us.
Best regards,

Offline Danlake
#2 Posted : 10 June 2012 10:10:25(UTC)

New Zealand
Joined: 03/08/2011(UTC)
Posts: 1,033
Hi Seamphore,

I use 22 AWG for feeder wires and 12 AWG for wire bus. I buy them in roll of 30 meters from digikey store in US (find it much cheaper than buying Marklin or Brawa 10 meter rolls)..

Every 7-10 track has a feeder wire.

There is an interesting article from Allan Gartner on below website (scroll down to section about feeder wire):


Brgs - Lasse
Digital 10m2 layout / C (M&K) tracks / Era IV / CS2 60214 / Train Controller Gold
thanks 2 users liked this useful post by Danlake
Offline Bigdaddynz
#3 Posted : 10 June 2012 11:19:08(UTC)

New Zealand
Joined: 17/09/2006(UTC)
Posts: 15,778
Location: New Zealand
Originally Posted by: Semaphore Go to Quoted Post
I plan on using a bus wire for the digital signal so I can easily create feeder tracks every 10'. I would use a heavier gauge for this and scale down for the individual connections.

And for splicing off the individual feeder connections, you can use scotchlok connectors, such as seen in this ebay auction

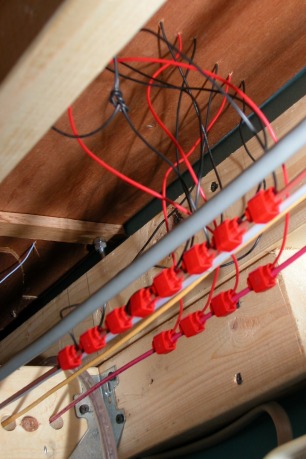

And here is how they work (This is a picture from Dale Schultz's website - thanks Dale)

Bigdaddynz attached the following image(s):
thanks 1 user liked this useful post by Bigdaddynz
Offline dickinsonj
#4 Posted : 17 February 2016 00:29:11(UTC)

United States
Joined: 05/12/2008(UTC)
Posts: 322
Location: United States
Reviving a dead thread...

I am getting ready to add wiring buses to all of my mainlines. I am looking for suggestions on the gauge of wire I should use. I see people going as large as 12 AWG and as small as 26 AWG. I also need to know what the size of the spade connectors on the C track is, so I can buy connectors that I can crimp on exactly where they are needed. I liked someone's suggestion about using a more common product like thermostat wire, which might be cheaper than a hobby item.

I am just getting back into my Marklin HO stuff after many years, and I am having a lot of fun but also having many questions!

Thanks for any help.



All Marklin HO, at least until the start of 2017 when I added my first ESU lok, a beautiful V200.

I focus on Era II & Era III, but I can't resist a special train even if it is from another time or even from another continent!
Offline sgtb
#5 Posted : 17 February 2016 01:05:44(UTC)

United States
Joined: 21/04/2014(UTC)
Posts: 24
Location: Central Ohio
Hey Jim,
Just go to napa down there and pick up a big roll of 14 gauge wire of red and brown. They also have the big box of the blue scotch locks. Call them first to make sure they have it there.
Now the clips for the c track you'll have to get elsewhere. Robert at RJFtrains may have the kits in stock.

They also can get wire down to 22 gauge.

Talk to ya soon,

Offline H0
#6 Posted : 17 February 2016 07:14:02(UTC)

Joined: 16/02/2004(UTC)
Posts: 12,196
Originally Posted by: dickinsonj Go to Quoted Post
Reviving a dead thread...
A more recent thread (will require translation from metric units to imperial units):

Re Flachsteckhülsen, see also (there must be other, similar threads):
"How can I see what I'm leaving for / How can I give what I gave before / How can you tell me that you want me to stay
How can I stay when I'm trying to say / That I can live without the rain / Yes I can live without the rain" (Rick Parfitt)
Offline Shamu
#7 Posted : 17 February 2016 10:02:43(UTC)

Joined: 11/07/2011(UTC)
Posts: 1,067
Location: In a building site in Yeppoon
The track connectors are 2mm spade connectors, you will most likely be able to find them with boots (rubber covers) in pack of 100 for under $10 on eBay.

Hummm.............. just double checked and as much as I'm sure they are 2mm I have 2.8 written on the 2 bags they are in so........ its one or the other Blushing

OK..... they are 2.8mm...

Find them here on ebay

Edited by user 17 February 2016 10:24:33(UTC)  | Reason: Not specified

Sad when its cheaper to buy a new 29640 starter set from Germany than a CS2 on its own in Oz, welcome to the joys of Marklin down under .
