johnhendry		#1 Posted : 12 March 2025 19:09:50(UTC) Retweet
Joined: 06/11/2024(UTC) Posts: 52 Location: Georgia, Atlanta		Guys, I’m trying to see if this motor is working before I buy a decoder. It’s a 3003 BR24 and we have it all apart. Can anyone draw some lines on this photo to help me figure out how to wire it for testing?
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

owidgie		#2 Posted : 12 March 2025 19:45:34(UTC) Retweet
Joined: 03/06/2007(UTC) Posts: 169		Put a 60903 Motor kit in it and a 60977 decoder and you can forget about troubleshooting the old motor. Just my thoughts... Rick
1 user liked this useful post by owidgie		marklinist5999
User Profile View All Posts by User View Thanks

johnhendry		#3 Posted : 12 March 2025 21:06:35(UTC) Retweet
Joined: 06/11/2024(UTC) Posts: 52 Location: Georgia, Atlanta		I'm kind of attached to these old ones and I love getting them running with the old motors. If it's dead I'll replace the motor for sure but I'd like to try.
User Profile View All Posts by User View Thanks

johnhendry		#4 Posted : 13 March 2025 05:16:03(UTC) Retweet
Joined: 06/11/2024(UTC) Posts: 52 Location: Georgia, Atlanta		Got it tested and it's running!! Going to run it with the old motor as long as it will go!
1 user liked this useful post by johnhendry		hxmiesa
User Profile View All Posts by User View Thanks

TrainIride		#5 Posted : 13 March 2025 08:12:42(UTC) Retweet

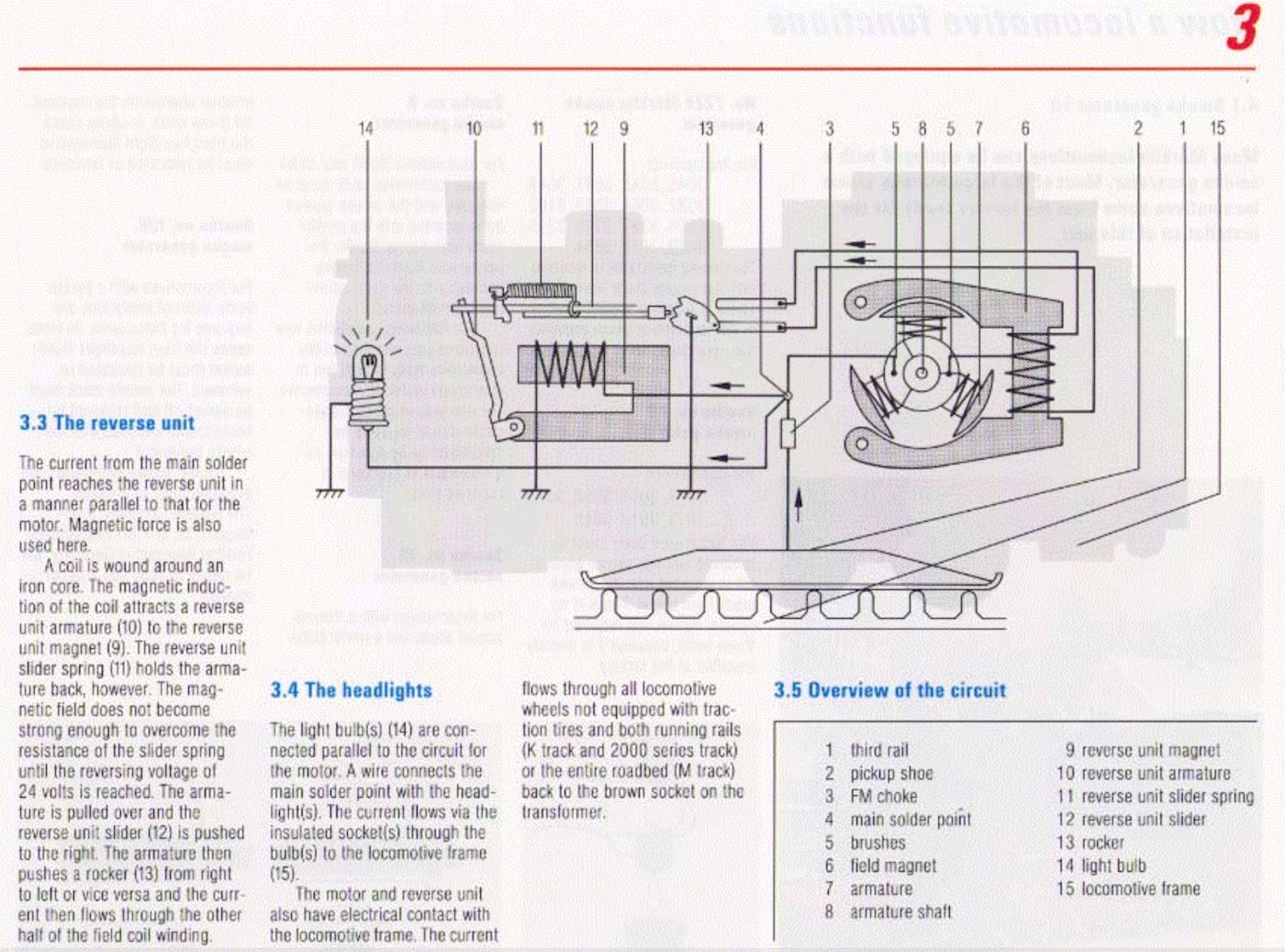

Joined: 23/10/2010(UTC) Posts: 2,059 Location: FRANCE		Hi, I cannot see clearly the picture, so please find hereafter a drawing for the wiring of old Märklin models of this kind: Hope this helps, Best Regards Joël Edited by user 13 March 2025 16:40:54(UTC)  | Reason: Not specified
		Marklin HO - M track & C track - Analog mode - https://www.marklin-users.net/TrainIride - my channel : https://www.youtube.com/user/2mes2mains
		WWW
2 users liked this useful post by TrainIride		marklinist5999, RudiC
User Profile View All Posts by User View Thanks

TrainIride		#6 Posted : 13 March 2025 10:33:14(UTC) Retweet
Joined: 23/10/2010(UTC) Posts: 2,059 Location: FRANCE		Some more details: Don't forget the brushes : Best Regards Joël
		Marklin HO - M track & C track - Analog mode - https://www.marklin-users.net/TrainIride - my channel : https://www.youtube.com/user/2mes2mains
		WWW
1 user liked this useful post by TrainIride		marklinist5999
User Profile View All Posts by User View Thanks

johnhendry		#7 Posted : 13 March 2025 15:42:36(UTC) Retweet
Joined: 06/11/2024(UTC) Posts: 52 Location: Georgia, Atlanta		This is EXCELLENT!! Thank you Joël!!
1 user liked this useful post by johnhendry		TrainIride
User Profile View All Posts by User View Thanks
