Offline QQQ1970
#1 Posted : 20 April 2024 21:04:43(UTC)
QQQ1970

Canada
Joined: 06/02/2018(UTC)
Posts: 388
Location: Ontario, Toronto
Does anyone know what piezo pantographs fit M28590 engine?

Offline kiwiAlan
#2 Posted : 21 April 2024 01:00:05(UTC)
kiwiAlan

United Kingdom
Joined: 23/07/2014(UTC)
Posts: 8,110
Location: ENGLAND, Didcot
Originally Posted by: QQQ1970 Go to Quoted Post
Does anyone know what piezo pantographs fit M28590 engine?



Marklin never made the piezo pantographs available as a spare part that i am aware.

More recent locos have used servos to operate the pantographs.

But I believe your loco is that old that it never had remotely operated pantographs. I don't think they have ever done remote controlled pantographs in an Ae6/6.

Offline mike c
#3 Posted : 21 April 2024 01:56:41(UTC)
mike c

Canada
Joined: 28/11/2007(UTC)
Posts: 7,902
Location: Montreal, QC
Sorry, I got the model number inverted.
AFAIK the model is a re-edition of the original "Jacquemin" model. I think it is unlikely that there is space inside the shell of this model to retrofit a motorized pantograph. The original models had either a diamond pantograph with 4 feet or the Maerklin single arm pantograph 7219, which was the Maerklin standard until the late 1970s. You could probably replace the Maerklin pantograph with the more correct SNCF model from Sommerfeldt or other.

Roco's pantograph is part 85571.
I think the Sommerfeldt one was 968

Regards

Mike C

Edited by user 23 April 2024 17:27:50(UTC)  | Reason: Not specified

thanks 1 user liked this useful post by mike c
Offline QQQ1970
#4 Posted : 21 April 2024 14:13:53(UTC)
QQQ1970

Canada
Joined: 06/02/2018(UTC)
Posts: 388
Location: Ontario, Toronto
I am wondering if a third party manufacturer makes a motorized pantograph that fits Le Capitole M28950.
thanks 1 user liked this useful post by QQQ1970
Offline marklinist5999
#5 Posted : 21 April 2024 15:27:26(UTC)
marklinist5999

United States
Joined: 10/02/2021(UTC)
Posts: 3,155
Location: Michigan, Troy
You could contact Sommerfeldt. They would know if anyone does.
Offline JohnjeanB
#6 Posted : 21 April 2024 16:55:04(UTC)
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,143
Location: Paris, France
Originally Posted by: QQQ1970 Go to Quoted Post
I am wondering if a third party manufacturer makes a motorized pantograph that fits Le Capitole M28950.

Hi
I guess, the easier approach is to use a servo motor in the front section of the loco.
The servo must be connected to the pantographs using thin (0.1 mm) nylon wire
The servo can be controlled by a decoder such as ESU suitable for driving 2 to 6 servos depending on type.

Note: I have multiple models using piezo motors (39970 Turmtriebwagen, 46715 Ardeltkran in yellow) and others using Servos (39008 BR 01 with changing level of coal in tender, 39126 BR E10 with motorized pantographs) and the operation is not that reliable (so it may be even worse if you do it yourself). So why why reduce the value of a high prized loco by chages you may regret later

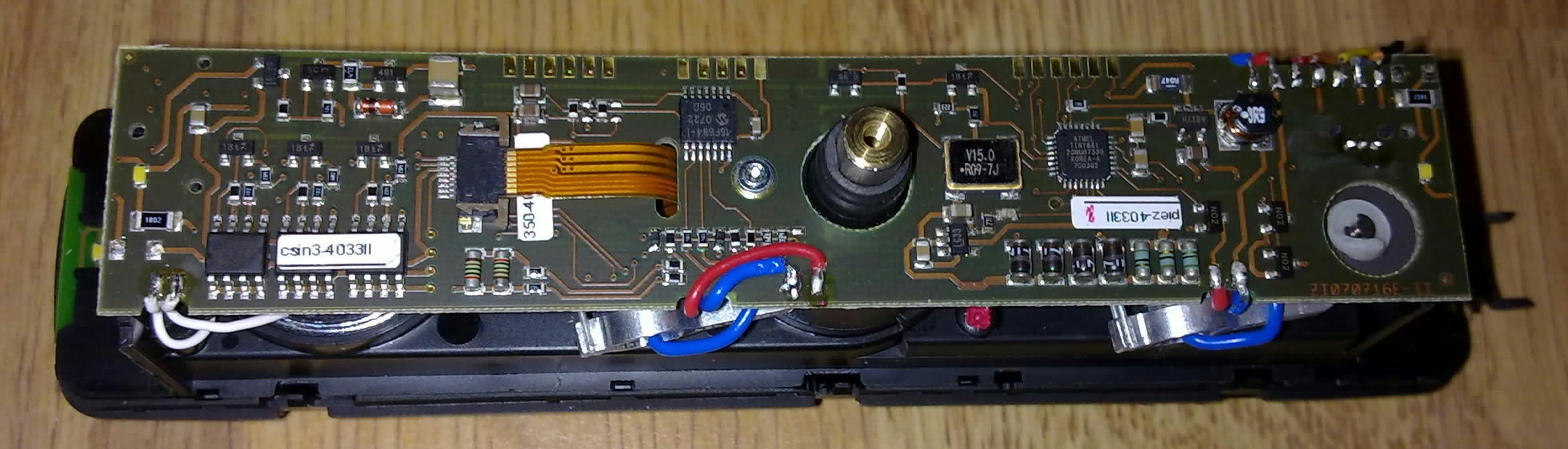

Here is my Turmtriebwagen with its piezo motors
39970 FX Decoder and SDS Drivers.png (1,879kb) downloaded 7 time(s).
They are wearing rapidly (nose in aluminum). Three of them on this model.
Here it is in operation


Cheers
Jean


thanks 1 user liked this useful post by JohnjeanB
