Offline anthpao
#1 Posted : 01 August 2020 06:59:43(UTC)
anthpao

Greece
Joined: 20/01/2010(UTC)
Posts: 119
Location: Thessaloniki, Greece
Can anyone tell me what is the part no E188376 of a new version of V60 locomotive, with pictures. I have the 37600 locomotive and I cannot figure out what item 7 in the spare part list is.
Thank you.
Offline cookee_nz
#2 Posted : 01 August 2020 07:55:29(UTC)
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,474
Location: Paremata, Wellington
Originally Posted by: anthpao Go to Quoted Post
Can anyone tell me what is the part no E188376 of a new version of V60 locomotive, with pictures. I have the 37600 locomotive and I cannot figure out what item 7 in the spare part list is.
Thank you.


I just did a quick 'google' search and got this right away....

https://www.maerklinshop...rds=37617&iBrandId=1

Leiterplatte Beleuchtung - Printed Circuit Board - Lighting

Perhaps a PCB with a couple of LED's for head or tail lights?

https://static.maerklin....7f9a2ded5a1581054868.pdf

Does that help?
Cookee
Wellington
NZ image
Offline g-gekko
#3 Posted : 01 August 2020 10:59:23(UTC)
g-gekko

Norway
Joined: 05/08/2015(UTC)
Posts: 9
Location: Oppland

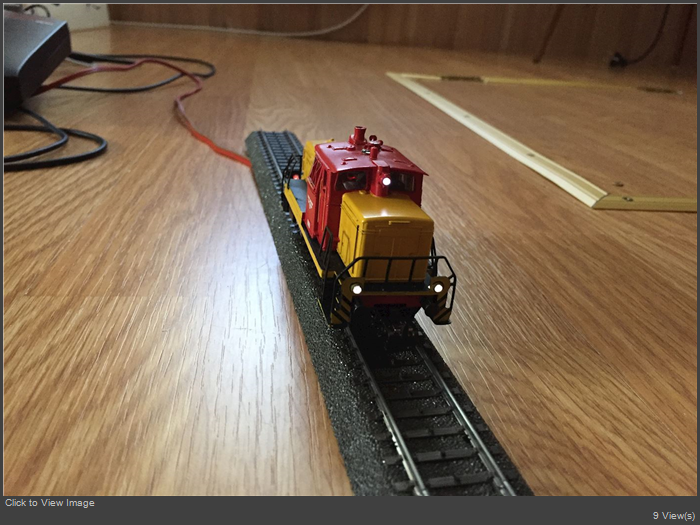

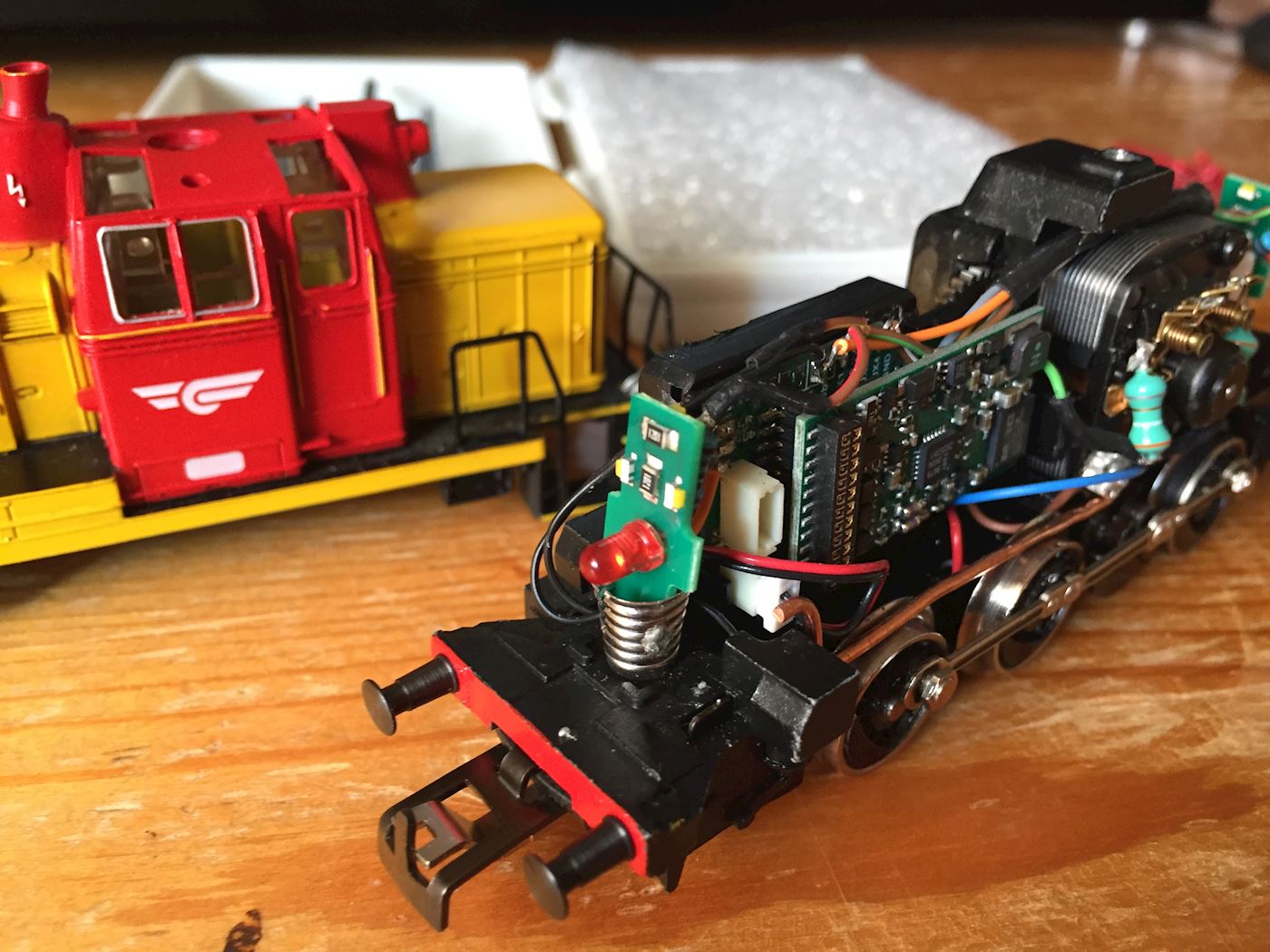

It is a pcb with 2 or 3 leds on the front side and 1 on the backside - all warm white. The shape makes it possible to stick it into old light bulb sockets. I have drilled two extra holes and soldered an extra red LED on the front making it possible to show red marker lights.

I will post a picture when I am back home.
Offline g-gekko
#4 Posted : 01 August 2020 17:27:12(UTC)
g-gekko

Norway
Joined: 05/08/2015(UTC)
Posts: 9
Location: Oppland

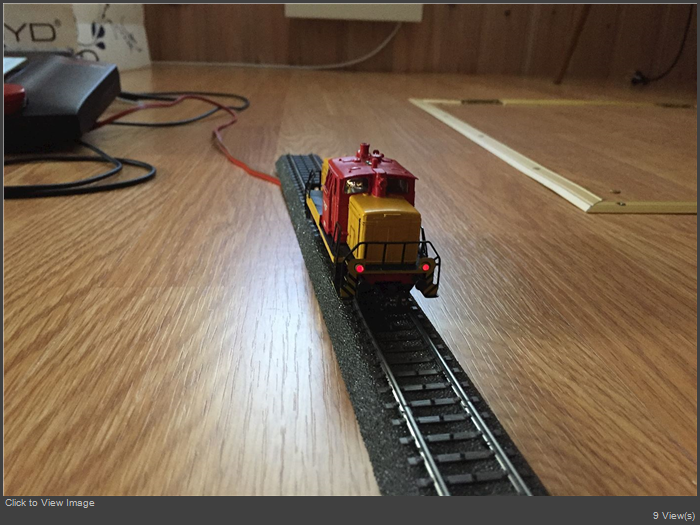

I did not have red SMD leds when I was converting this locomotive. Will change that one day…
thanks 1 user liked this useful post by g-gekko
Offline anthpao
#5 Posted : 02 August 2020 06:37:16(UTC)
anthpao

Greece
Joined: 20/01/2010(UTC)
Posts: 119
Location: Thessaloniki, Greece

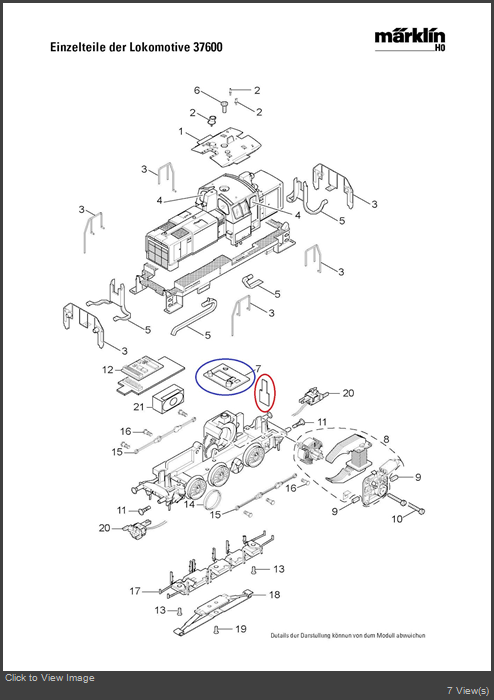

So there seems to be an error in the manual.
Item 7 is the one in the red circle and not the one in the blue.
Is the one in the blue circle an in cab detail plastic piece that covers the motor? And if yes why it is not installed in the locomotive. And second how can i order it?

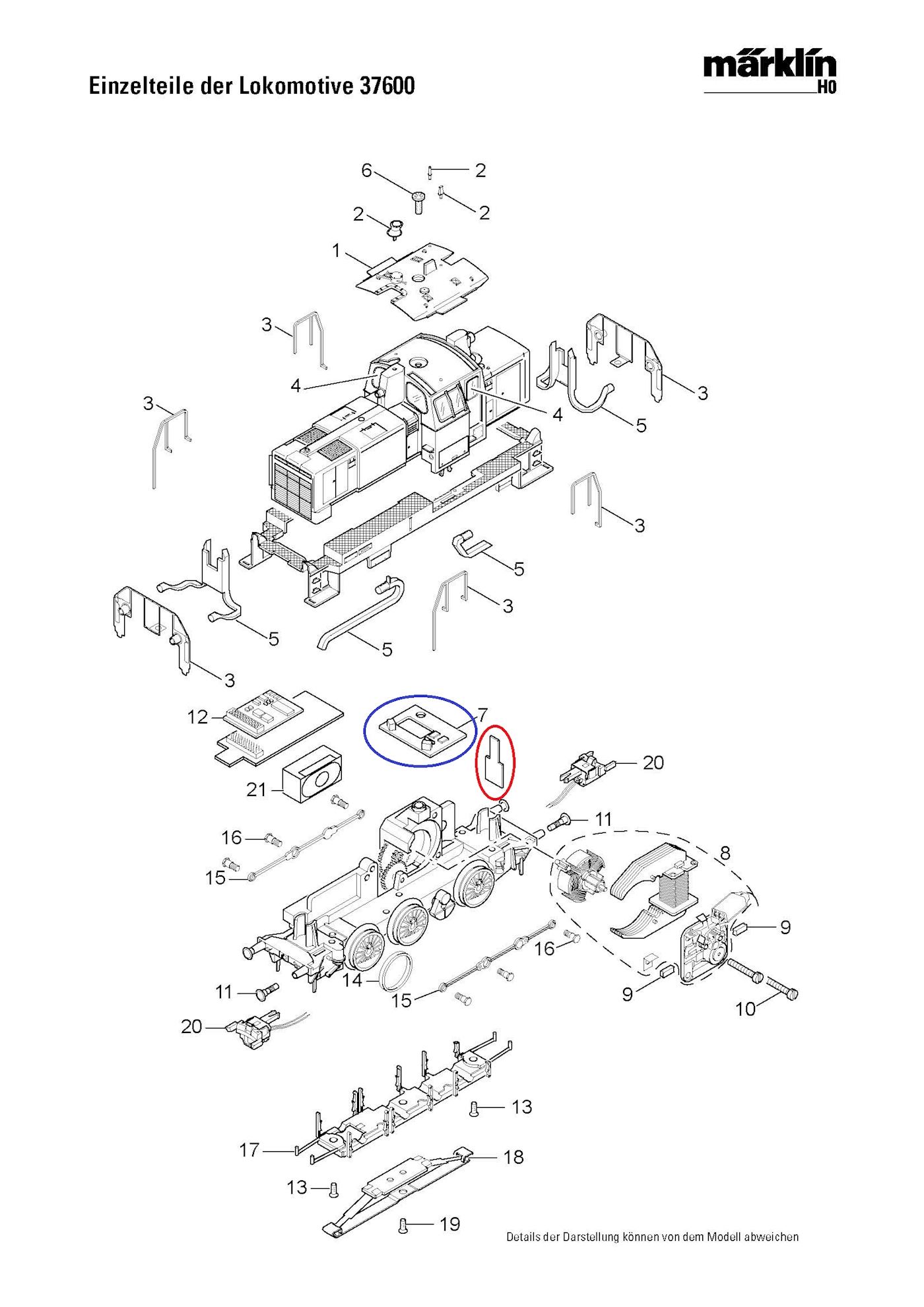

906.ma37600 spare parts_Page_1.jpg

Offline g-gekko
#6 Posted : 02 August 2020 15:04:42(UTC)
g-gekko

Norway
Joined: 05/08/2015(UTC)
Posts: 9
Location: Oppland
Yes, that is an error. Part #7 is in fact a pcb with part # E601815. As far as I know it has only been used in Märklin 34641. It is connected to the telex couplings and the two leds will turn on when the telex couplings are operated.

Leif
