Hi
I bought some c track Trix to run some old DC trains.

I’m just puzzled how and where to connect the power wires from the transformer as I can only find one clip underneath (as opposed to two clips no Marklin c track).

Apologies for this basic topic but I couldn’t find any online info.

Regards
J
thanks 1 user liked this useful post by Br01
Offline PMPeter
#2 Posted : 20 March 2020 02:36:57(UTC)
PMPeter

Canada
Joined: 04/04/2013(UTC)
Posts: 1,273
Location: Port Moody, BC
Can I ask a basic question? Is there a spade connector on the opposite end of the piece of track, connected to the other rail? If there is, then you have your 2 connections.
thanks 3 users liked this useful post by PMPeter
Offline kimballthurlow
#3 Posted : 20 March 2020 10:16:19(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,653
Location: Brisbane, Australia
Hi J,
As PMPeter has explained, the spade at one end of the Trix C track is for left hand rail.
The spade at the other end is for the right hand rail.
So you have one rail for (-) and one for (+).

Trix C track is very versatile, and works well with any of my 2 rail DC analogue or digital, including some dating from the 1960s.

Kimball
HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
thanks 3 users liked this useful post by kimballthurlow
Offline TEEWolf
#4 Posted : 20 March 2020 21:03:22(UTC)
TEEWolf


Joined: 01/06/2016(UTC)
Posts: 2,465
thanks 5 users liked this useful post by TEEWolf
Offline Bart
#5 Posted : 21 March 2020 14:35:26(UTC)
Bart

Netherlands
Joined: 13/05/2002(UTC)
Posts: 670
Originally Posted by: Br01 Go to Quoted Post


I'm not familiar with Trix C-track, but why is the metal strip crosing the midline, and almost touching the connector of the opposite track?
It looks like the original Märklin part, with the connecting bridge cut by hand

*Bart
thanks 1 user liked this useful post by Bart
Offline Br01
#6 Posted : 23 March 2020 01:53:15(UTC)
Br01

Portugal
Joined: 29/04/2012(UTC)
Posts: 32
Hi
Thank you all for your inputs. Indeed there are two connectors, one on each side and it’s super simple to use.

My main doubt was that both are marked “O” and I assumed it was the same pole, as they seem connected at first sight, so wanted to avoid short circuits.

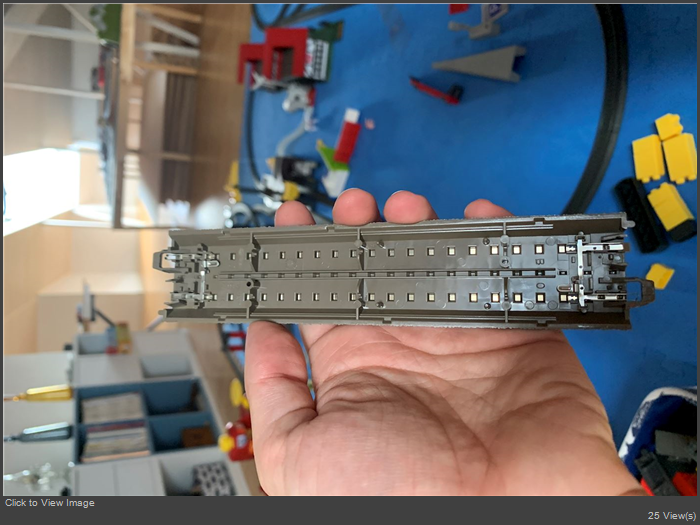

After a closer inspection, you can see that they are not connected. Marklin used the same mould as Marklin C track, so the “B” and “O” are printed, even the “Marklin” brand is printed as well as the “172” - in Marklin the reference is 24172 and in Trix is 62172. I post a couple of pictures for you to see.

I’m very happy with this track to use with old DC analogue trains. I started to assembly a Small floor layout to see how it goes and now I’m considering adding a small oval track in my Marklin layout project to have all trains running.

Regards
J
thanks 1 user liked this useful post by Br01
Offline kimballthurlow
#7 Posted : 24 March 2020 00:00:32(UTC)
kimballthurlow

Australia
Joined: 18/03/2007(UTC)
Posts: 6,653
Location: Brisbane, Australia
Originally Posted by: Bart Go to Quoted Post
Originally Posted by: Br01 Go to Quoted Post


I'm not familiar with Trix C-track, but why is the metal strip crosing the midline, and almost touching the connector of the opposite track?
It looks like the original Märklin part, with the connecting bridge cut by hand



Hi Bart,
That is a very good observation.
I have inspected the connections on my TRIX C track very closely.
You need a magnifying glass.

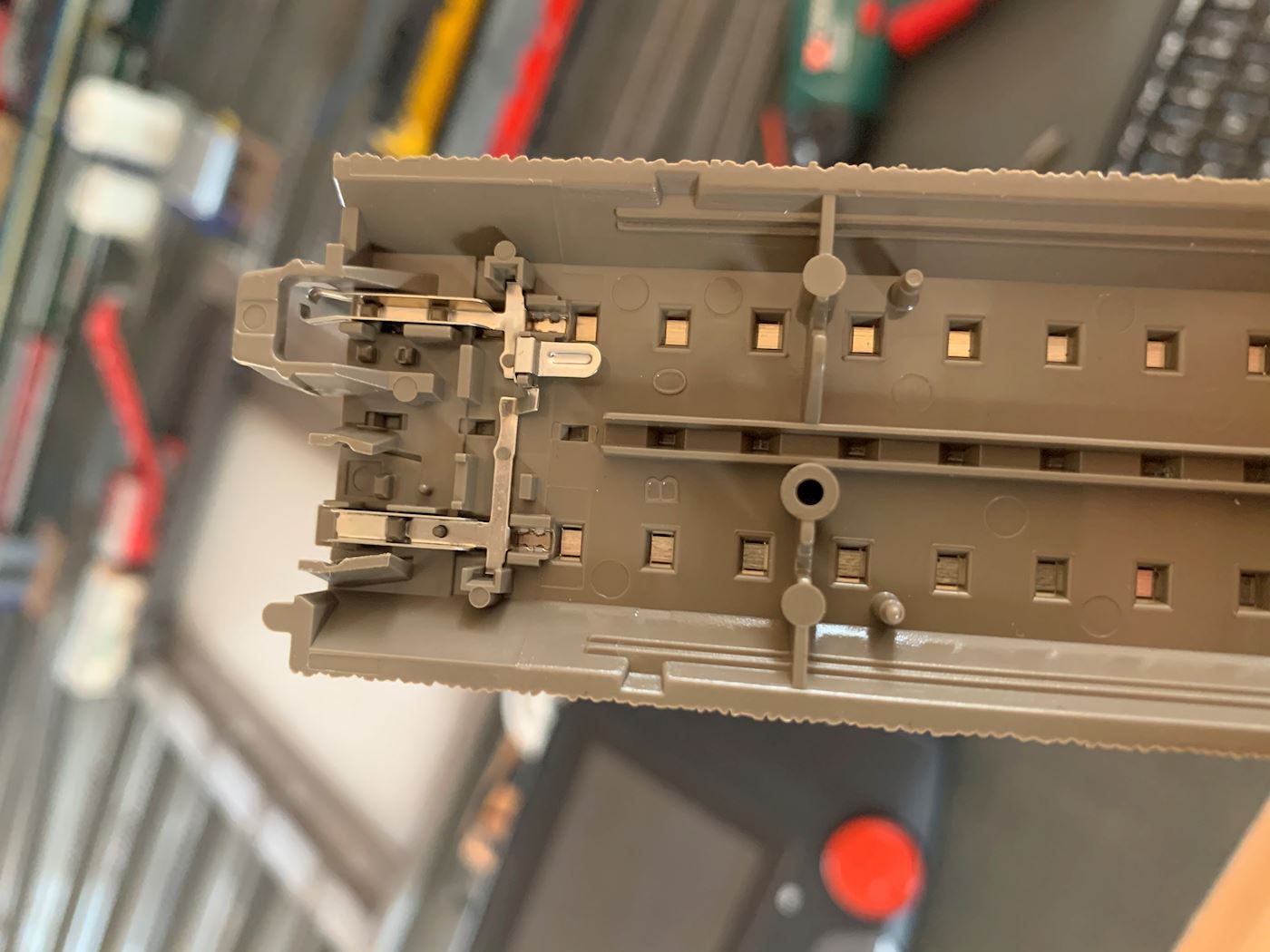

The separation of the sheet metal pressings for the left/right rails is less than 1mm.

The exact same sheet metal pressing is used in one whole on the Märklin C track for the O circuit ground (the original Märklin part).
As you suggest, separation for TRIX C track has been achieved by cutting at a designed point of bent up vertical pressing alongside a small plastic extrusion.
Then to complete the separation, the pressing tab that remains on one side is simply pushed back alongside the plastic extrusion.
This evidence of this process is more obvious on some pieces than others, and probably depends on the person doing it.

Thanks for bringing this to our attention.

Kimball
HO Scale - Märklin (ep II-III and VI, C Track, digital) - 2 rail HO (Queensland Australia, UK, USA) - 3 rail OO (English Hornby Dublo) - old clockwork O gauge - Live Steam 90mm (3.1/2 inch) gauge.
Offline Bart
#8 Posted : 25 March 2020 08:04:44(UTC)
Bart

Netherlands
Joined: 13/05/2002(UTC)
Posts: 670
I hope they did not mount and subsequently remove the pukos as well BigGrin
*Bart
