Michael4		#1 Posted : 06 March 2020 23:56:30(UTC) Retweet
Joined: 02/02/2017(UTC) Posts: 694 Location: England, South Coast		Does anyone have a parts list or parts diagram for 3027? I'm looking for the part numbers for the left hand valve gear and also tender wheels. I think the number for the right hand valve gear is 20605 and assume the left has a different number? Thanks
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

Martti Mäntylä		#2 Posted : 07 March 2020 00:06:29(UTC) Retweet
Joined: 15/11/2018(UTC) Posts: 432 Location: Uusimaa, Helsinki		This useful site has several part lists for classical locos, including this one. (The bottom of the page, the PDF file titled "Ersatzteilblatt".) It seems the part number you want to know is 20607.
		- Martti M. Era III analog & digital (Rocrail, CAN Digital Bahn, Gleisbox/MS2, K83/K84), C & M tracks, some Spur 1
		Twitter
2 users liked this useful post by Martti Mäntylä		Michael4, foumaro
User Profile View All Posts by User View Thanks

JohnjeanB		#3 Posted : 07 March 2020 13:41:14(UTC) Retweet

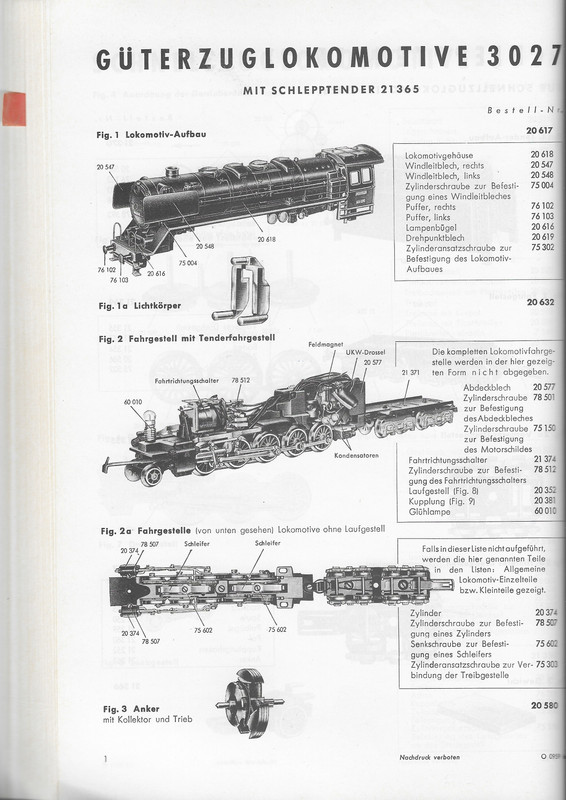

Joined: 04/02/2011(UTC) Posts: 3,563 Location: Paris, France		Hi Here is what I have These are Märklin service sheets at the time Cheers Jean
		My layout videos latest vid marshalling yard My Layout
1 user liked this useful post by JohnjeanB		foumaro
User Profile View All Posts by User View Thanks

JohnjeanB		#4 Posted : 07 March 2020 14:20:47(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,563 Location: Paris, France		Hi I have found the Left valve gear here https://www.ritter-restauratione...il=;usrPwd=;katKey=1.9.3 Cheers Jean
		My layout videos latest vid marshalling yard My Layout
1 user liked this useful post by JohnjeanB		foumaro
User Profile View All Posts by User View Thanks

Michael4		#5 Posted : 07 March 2020 16:05:56(UTC) Retweet
Joined: 02/02/2017(UTC) Posts: 694 Location: England, South Coast		Thanks both, just to confirm 3027 Right hand valve gear 20605, left hand 20607. Tender wheels D12 70 005 (Diameter given as 12mm) As always, this site has been a real help!
