Gauge 1 - A shunting layout - A little layout in big scale

Options

View

Previous Topic Next Topic

Torstein		#1 Posted : 08 December 2019 13:11:23(UTC) Retweet

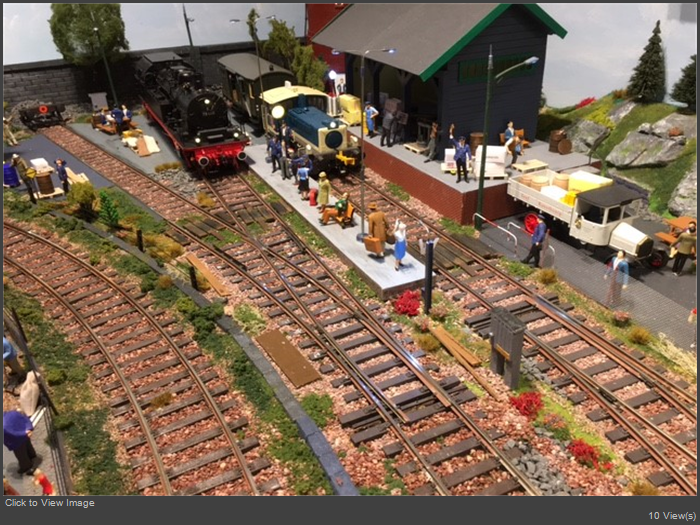

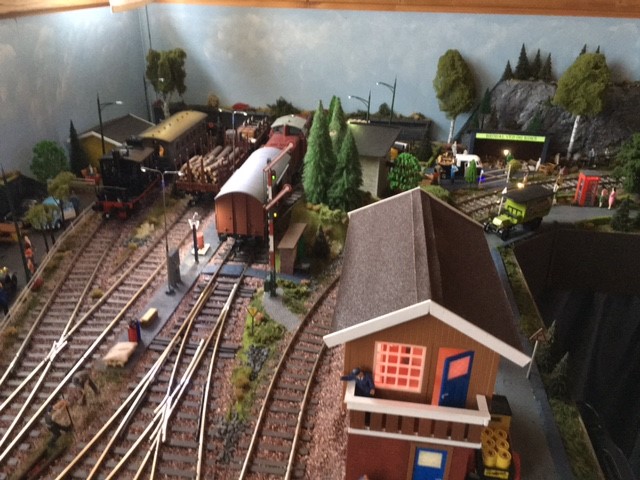

Joined: 27/03/2010(UTC) Posts: 338 Location: Norway		Hi - in the beginning of this year I had some questions here as I planned to built a little gauge one layout. As all constructions are self made, it took some time , but I will show the progress or what I have done the last year on this little shunting layout. It is a small room but I have tried to put in what I thought was important. Not finish, lot of details are missing. Made a film of it with a overview and some movements. All the best Torstein.

28 users liked this useful post by Torstein		xxup, PhredD, Rwill, MarcelV, Jimmy Thompson, Brakeman, kweekalot, Roland, LA2019, David Dewar, Martti Mäntylä, SNAFU, GaryTrooper, Carim, Tex, grnwtrs, TrainIride, Alsterstreek, Rocca, mbarreto, zoooctan, Janne75, Danlake, Bigdaddynz, Jabez, Ross, GLI, dickinsonj
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

Jimmy Thompson		#2 Posted : 08 December 2019 16:45:52(UTC) Retweet
Joined: 26/03/2019(UTC) Posts: 608 Location: Florida Classic but Successful Swampland City		Multum in Parvo! Splendid! Jimmy
		Jimmy T Analogue; M-track; BR 111; KLVM; Primex; Sarrasani Zirkuswelt There is a Prototype For Everything

2 users liked this useful post by Jimmy Thompson		Torstein, hennebror
User Profile View All Posts by User View Thanks

Rocca		#3 Posted : 27 December 2019 12:06:14(UTC) Retweet
Joined: 28/01/2004(UTC) Posts: 617		Dear Torstein, Very good job! My compliments! Would you be so kind sharing with us this wonderful track plan Layout? Which radiuses are you employing? Are you planning to realize a scheduled rail freights? Thanks so much and best regards Stefano Originally Posted by: Torstein Hi - in the beginning of this year I had some questions here as I planned to built a little gauge one layout. As all constructions are self made, it took some time , but I will show the progress or what I have done the last year on this little shunting layout. It is a small room but I have tried to put in what I thought was important. Not finish, lot of details are missing. Made a film of it with a overview and some movements. All the best Torstein.

3 users liked this useful post by Rocca		Carim, Jimmy Thompson, grnwtrs
User Profile View All Posts by User View Thanks

Torstein		#4 Posted : 29 December 2019 09:34:10(UTC) Retweet

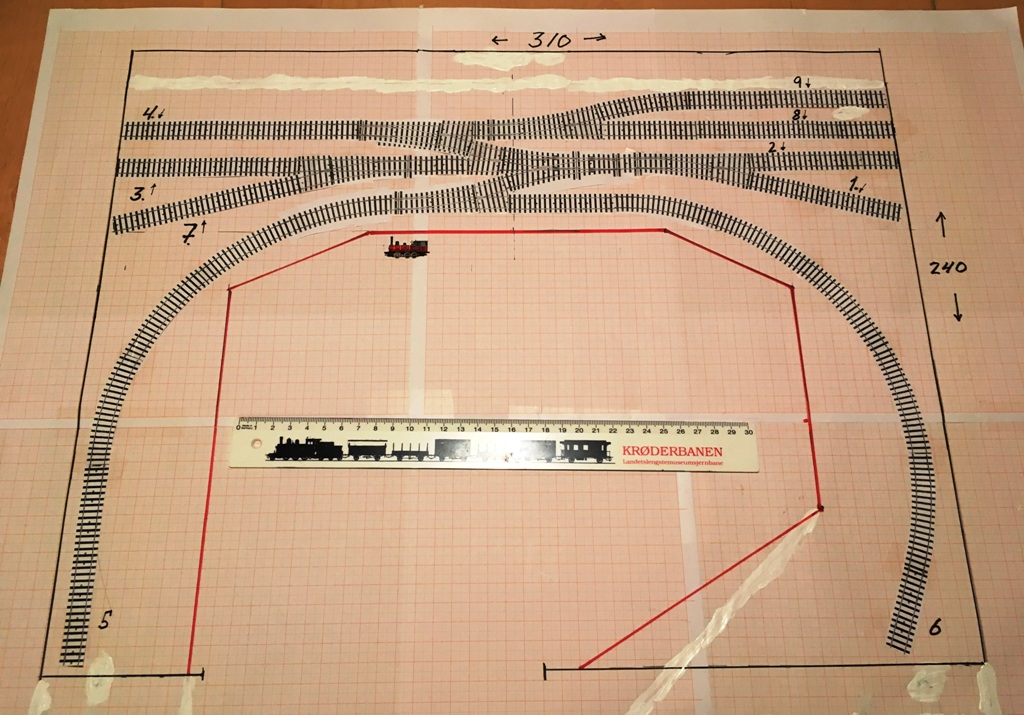

Joined: 27/03/2010(UTC) Posts: 338 Location: Norway		Thanks for compliments and likes. Hi Stefano, here is the track plan(1:6) and as you see, the room size it is not big. I could run trains around the room with 1020 curved tracks but then it was no space for sidings. If I want to run longer trains I can use my Z or HO layouts so that was not the point here. I got more tracks with sidings. All tracks are Märklin - curved track 1020 mm - controller CS3 and MS2 - buildings 3D print and wood - motor turnouts Tortoise - light 3 V. There are no bypass here so I need 2 locomotives to handle the cars. I have different scenarios or schedules for moving cars. Smart ideas are always welcome. It is fun to build in this scale and fun to run. Happy new year. Torstein

10 users liked this useful post by Torstein		Rocca, Jimmy Thompson, mbarreto, Carim, kimballthurlow, Martti Mäntylä, grnwtrs, Janne75, Bigdaddynz, Brakeman
User Profile View All Posts by User View Thanks

Rocca		#5 Posted : 29 December 2019 10:35:22(UTC) Retweet
Joined: 28/01/2004(UTC) Posts: 617		Dear Torstein, Thank you so much for all and first of all happy new year to you too! Your tracks plan is really interesting, especially because in this way you're allowed to do a lot of operation. I've too an H0 and Z Märklin layouts and collect Spuer1 too. The idea of 3-Ways Turnout in the middle allows you to save a lot of place. So the sidings in the upper cover a place of 100 x 310? Doesn't it? I need to build something like that! Anyway, thank you again and a lot of compliments! Stefano Originally Posted by: Torstein Thanks for compliments and likes. Hi Stefano, here is the track plan(1:6) and as you see, the room size it is not big. I could run trains around the room with 1020 curved tracks but then it was no space for sidings. If I want to run longer trains I can use my Z or HO layouts so that was not the point here. I got more tracks with sidings. All tracks are Märklin - curved track 1020 mm - controller CS3 and MS2 - buildings 3D print and wood - motor turnouts Tortoise - light 3 V. There are no bypass here so I need 2 locomotives to handle the cars. I have different scenarios or schedules for moving cars. Smart ideas are always welcome. It is fun to build in this scale and fun to run. Happy new year. Torstein

1 user liked this useful post by Rocca		Torstein
User Profile View All Posts by User View Thanks

Torstein		#6 Posted : 17 March 2020 13:56:17(UTC) Retweet
Joined: 27/03/2010(UTC) Posts: 338 Location: Norway		Hi – some progress in this korona times…. Except from detail the layout – I wanted to try an old Maxi locomotive as I see several layouts/people use them – upgraded. I got a very cheap “glaskasten” from Ebay (as new) with a delta decoder. It run terrible so I changed the decoder to a Loksound 5. Next step was to feed the turnout frogs with current – I had prepared this before and with the Tortoise motor it was simple. Now it run properly. On this little layout I found out I can use HO decoders as it will pull max 2 cars. The Maxi motor is a very low current consumer but for the smoke unit I use an ESU relay 51963 and current directly from track – digital control. This total project cost me less than a new HO steamer. I wondered how I could get light in the passenger car – also an old Maxi I think – and ended up with the solution from Train-Tech, battery and activated by movement. Perfect in this case. Current frogs mean the turnouts must be in correct positions (Short circuit) – but I must do something on a little layout. Have fun with your layout. All the best Torstein

5 users liked this useful post by Torstein		Jimmy Thompson, grnwtrs, Janne75, zoooctan, Rocca
User Profile View All Posts by User View Thanks

Jimmy Thompson		#7 Posted : 17 March 2020 14:04:48(UTC) Retweet
Joined: 26/03/2019(UTC) Posts: 608 Location: Florida Classic but Successful Swampland City		Torstein! Serendipity is afoot! zoooctan had just asked about whether Maxi and Gauge 1 were the same, and here you have just posted the wonderful news that Maxi's can be digitized and all that! I love it when a plan comes together.
		Jimmy T Analogue; M-track; BR 111; KLVM; Primex; Sarrasani Zirkuswelt There is a Prototype For Everything

2 users liked this useful post by Jimmy Thompson		Torstein, zoooctan
User Profile View All Posts by User View Thanks

zoooctan		#8 Posted : 17 March 2020 18:00:54(UTC) Retweet
Joined: 07/09/2019(UTC) Posts: 65 Location: Singapore, Singapore		Yes this is amazing. Thank you Jimmy. Torstein, you layout is amazing. And I was just asking if maxi and 1 gauge track were similiar. Thank you

2 users liked this useful post by zoooctan		Jimmy Thompson, Torstein
User Profile View All Posts by User View Thanks

nygma		#9 Posted : 01 April 2020 22:17:21(UTC) Retweet
Joined: 15/04/2015(UTC) Posts: 64 Location: Budapest, Budapest		This is superb. I love every small details in this layout. And it does not have to be big to make some interesting movements and pass some quality time.
		WWW
1 user liked this useful post by nygma		Torstein
User Profile View All Posts by User View Thanks

Torstein		#10 Posted : 08 January 2021 15:26:46(UTC) Retweet

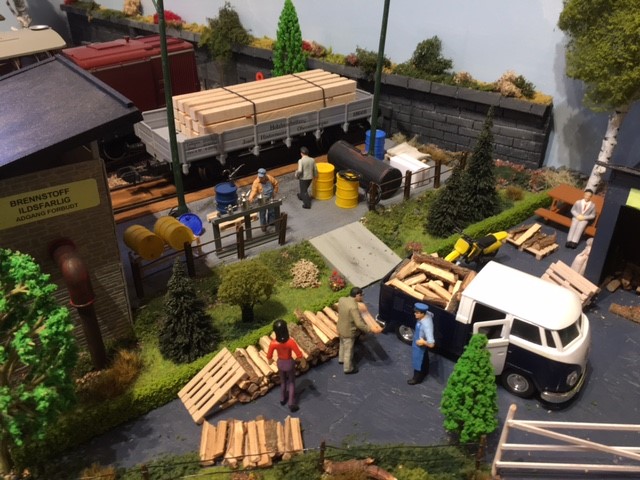

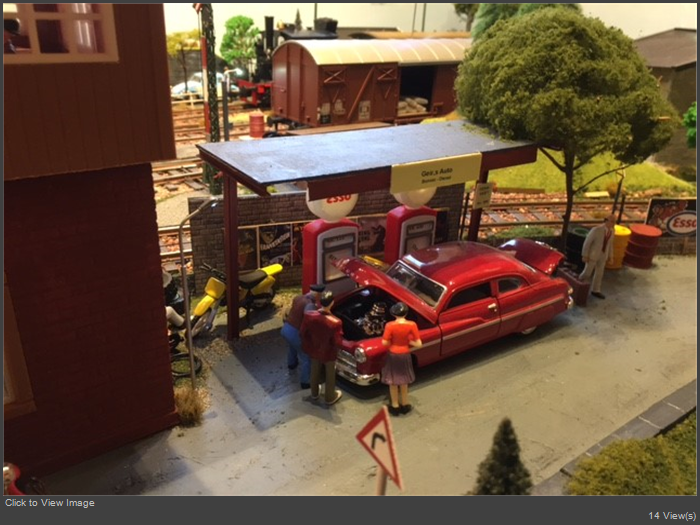

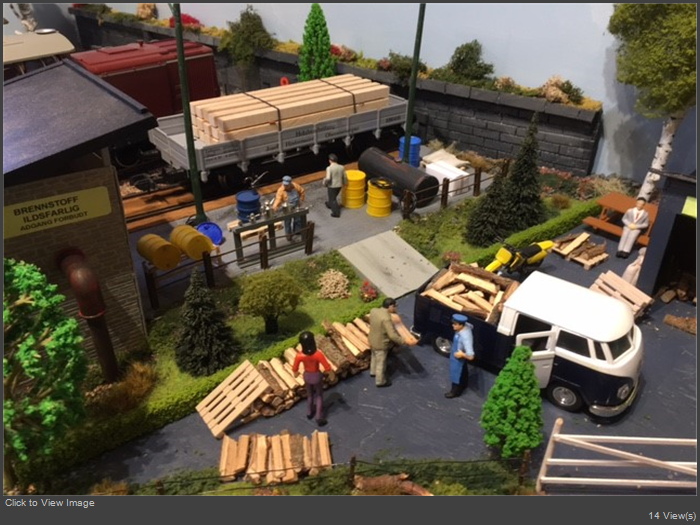

Joined: 27/03/2010(UTC) Posts: 338 Location: Norway		Time to pop up this thread…. Another year have gone and I am still working on my little gauge one layout. This year I got a new steamer and some cars but most of the time I put on details to make it more complete. Automatic running (event) has also been done with the CS3. In the meantime, I have met a lot of gauge one people, it sems to be more and more who turn over to this scale in this country. Have fun. Torstein Some pictures…

11 users liked this useful post by Torstein		Jimmy Thompson, Martti Mäntylä, Eurobahnfan, xxup, Bigdaddynz, Roland, DV, zoooctan, phils2um, Janne75, Rocca
User Profile View All Posts by User View Thanks

scraigen		#11 Posted : 08 January 2021 15:48:10(UTC) Retweet
Joined: 29/01/2009(UTC) Posts: 299 Location: Sheffield,		Love the detail - keep up the good work!
		Must build something

1 user liked this useful post by scraigen		Torstein
User Profile View All Posts by User View Thanks

zoooctan		#12 Posted : 09 January 2021 03:32:43(UTC) Retweet
Joined: 07/09/2019(UTC) Posts: 65 Location: Singapore, Singapore		Beautiful. One day...one day, I will have my own small 1 gauge layout

1 user liked this useful post by zoooctan		Torstein
User Profile View All Posts by User View Thanks
