nickbeat09		#1 Posted : 28 September 2019 21:32:02(UTC) Retweet
Joined: 04/09/2019(UTC) Posts: 4 Location: Florida, St. Petersburg		Need wiring assistance for controlling block and signal via the relay. Any help with either would be appreciated.


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

zscalehobo		#2 Posted : 29 September 2019 16:53:47(UTC) Retweet

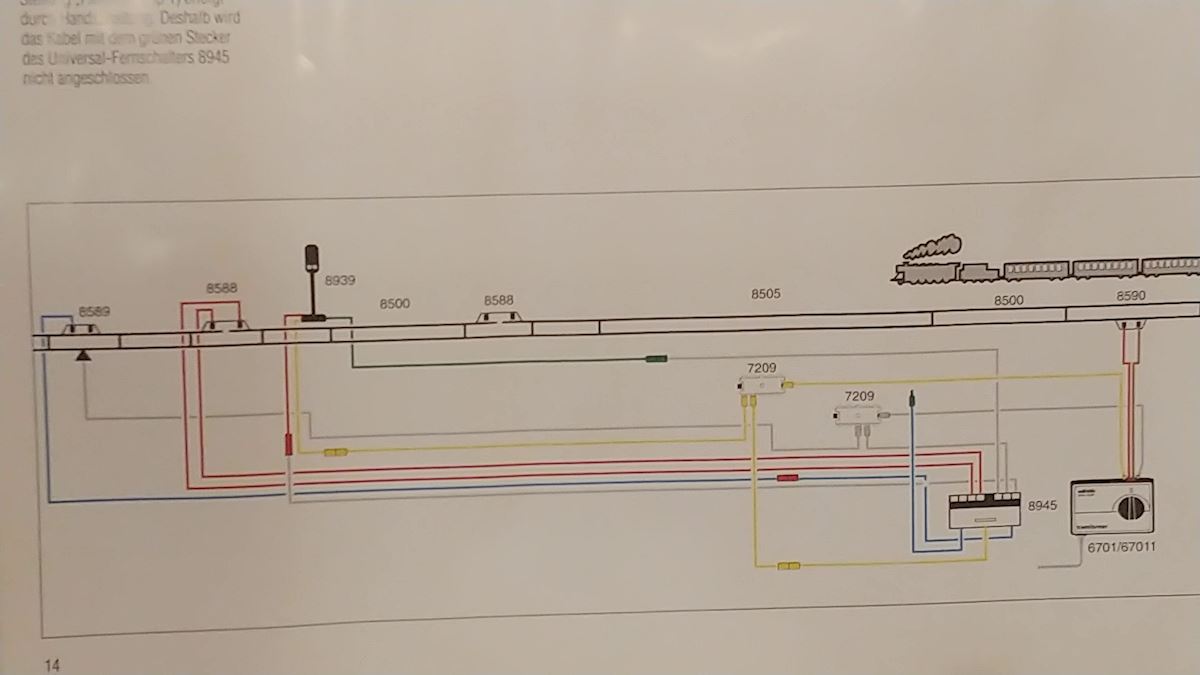

Joined: 22/01/2014(UTC) Posts: 186 Location: CALIFORNIA, Irvine		From 0294 track planning book use the 8939 wiring as it is the same signal ... Note train direction is right to left Also on my product page i have an alternate updated wiring diagram and it's rotated 180d from the 0294 diagram (train moving left to right). And Märklin Germany informed me that 8945 should slot in same as 7244 as shown in this diagram (meaning 8945 uses 67014 or 67271 accessory voltage to run 89391) https://zscalehobo.com/marklin/89391.html What is missing from this that is still holding you back from finishing?
		Frank Daniels Owner - z.scale.hobo A Noch "Top Dealer" Marklin Dealer and Z Locomotive Service Irvine, California, USA www.zscalehobo.com
		WWW
1 user liked this useful post by zscalehobo		wildstix
User Profile View All Posts by User View Thanks

nickbeat09		#3 Posted : 29 September 2019 18:25:41(UTC) Retweet
Joined: 04/09/2019(UTC) Posts: 4 Location: Florida, St. Petersburg		Originally Posted by: zscalehobo From 0294 track planning book use the 8939 wiring as it is the same signal ... Note train direction is right to left Also on my product page i have an alternate updated wiring diagram and it's rotated 180d from the 0294 diagram (train moving left to right). And Märklin Germany informed me that 8945 should slot in same as 7244 as shown in this diagram (meaning 8945 uses 67014 or 67271 accessory voltage to run 89391) https://zscalehobo.com/marklin/89391.html What is missing from this that is still holding you back from finishing? That should definitely do it, Frank. Thanks, as always.

1 user liked this useful post by nickbeat09		wildstix
User Profile View All Posts by User View Thanks
