Hi I looking for wiring diagram for f800 loco with telex uncoupler
Offline Markus Schild
#2 Posted : 13 February 2019 08:37:42(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi,

Welcome to the forum,

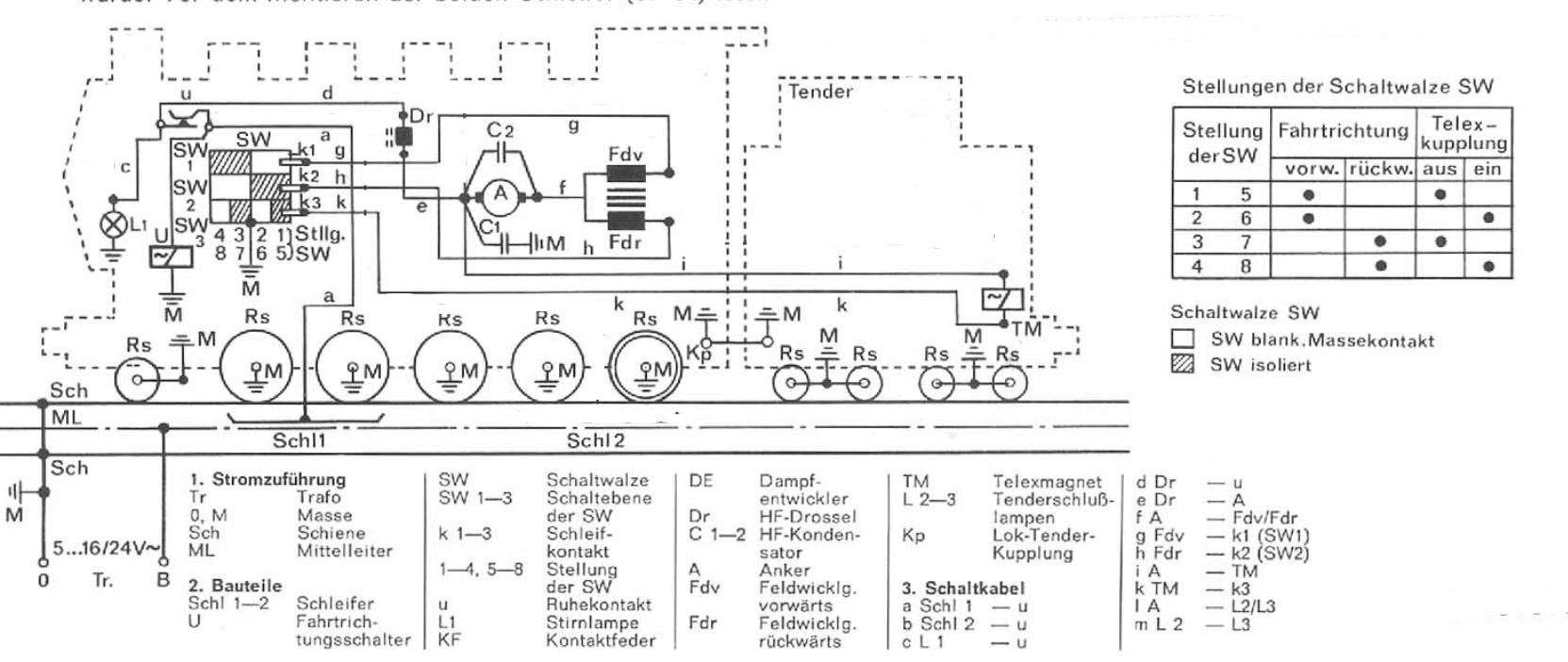

This sketch was originally published for the class 44 (3047) steamer. I modified it to fit the 3026 (F800 with Telex). I hope it is understandable. If necessary I could translate some of the description:


Regards

Markus
thanks 2 users liked this useful post by Markus Schild
Offline Crazy Harry
#3 Posted : 13 February 2019 17:37:28(UTC)
Crazy Harry

Canada
Joined: 18/11/2008(UTC)
Posts: 476
Location: Oakville, Ontario
Markus,

Where did that diagram come from? Are there others available?

Thanks,

Harold.
Offline Markus Schild
#4 Posted : 13 February 2019 18:04:35(UTC)
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi Harold,

That diagram was published in the Märklin-Magazin 1/1977. Märklin published these with the instructions how to assemble the spare-part kits which were offered during the 1970s. In this case for the 3047. Other were published for the 3001/02 (E63), 3011/12/13/14 (E44 based models), 3023/24 (E18) and for 3048 (BR 01). Less detailed sketches can be also found on the spare-parts lists from the 1970s and 1980s.

Regards

Markus
thanks 1 user liked this useful post by Markus Schild
Offline Crazy Harry
#5 Posted : 13 February 2019 18:25:27(UTC)
Crazy Harry

Canada
Joined: 18/11/2008(UTC)
Posts: 476
Location: Oakville, Ontario
Thanks Markus!

I have the 3047, and have printed the diagram and drew the second slider and smoke generator back in. I don't have any of the other locos you've listed. I've seen the sketches on the spare-parts lists and find them sufficient for my purposes.

I did replace the analogue reverser in the 3047 once by trial and error. That diagram would have been helpful at that time to see the connections to the cam operated switches.

Cheers,

Harold.

>>End of thread hijack - Sorry!<<
Offline wally45
#6 Posted : 15 February 2019 17:47:05(UTC)
wally45

United Kingdom
Joined: 24/08/2017(UTC)
Posts: 8
Location: MIDDLESEX
Many thanks Marcus just what i needed Best regards Phil.
