39970 Catenary Railcar Coupling
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline cookee_nz
#1 Posted : 28 January 2019 05:39:24(UTC)
Retweet
cookee_nz

New Zealand
Joined: 31/12/2010(UTC)
Posts: 3,954
Location: Paremata, Wellington
Hi all,

I have this Railcar which I love by the way, but it's a bit lonely and I'd like to pull a couple of small maintenance wagons behind it.

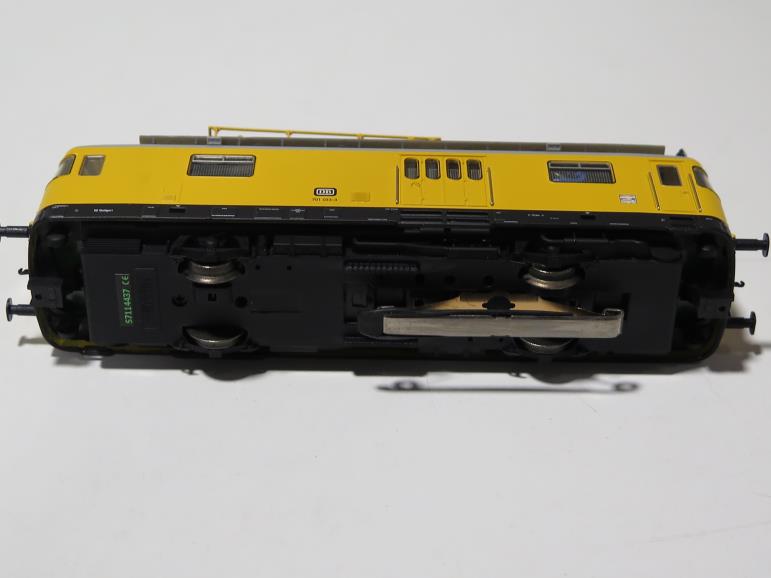

It has a coupling pocket but it sits a lot lower than others so if I put a coupling in of course it won't hook up.

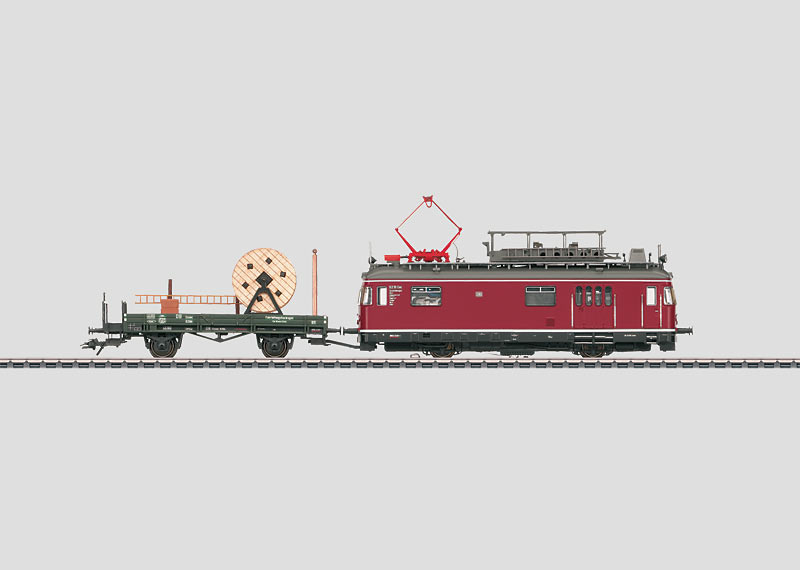

I see the variation 39971 that comes with a cable-wagon and it shows a connecting bar to hook it up. What I really want however is a clip in Relex coupler designed for the low-riding coupling pocket to raise the height to normal.

Has anyone done this? The exploded view for both locos shows only the coupling pocket, but not any connector.

Is it a standard part that can be purchased or would I have to go the angled bar path for the other model? See images below which should make it clear.

Thanks in advance

Cookee



Cookee
Wellington
NZ image
Back to top
WWW Google+

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline xxup
#2 Posted : 28 January 2019 07:54:52(UTC)
Retweet
xxup

Australia
Joined: 15/03/2003(UTC)
Posts: 9,472
Location: Australia
I half read your post.. Blushing Yes you can buy the fixed drawbar as a spare part.. I posted the number on here some time ago.. If no one else can find it.. I will look for the part sometime this week and get the number..

I don't think that the relex coupler idea is possible unless you can 3D print something.

UPDATE: The drawbar part number is 192906
Adrian
UserPostedImage
Australia flag by abFlags.com
Back to top
Offline Markus Schild
#3 Posted : 28 January 2019 10:21:56(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi Cookee,

The drawbar which comes with 39971 is E138134 (pack of 2). E192906 is an electric coupling which is not suitable in this case.

UserPostedImage

Regards

Markus
Back to top
WWW
Offline river6109
#4 Posted : 28 January 2019 10:26:38(UTC)
Retweet
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 14,725
Location: On 1965 Märklin Boulevard just around from Roco Square
Originally Posted by: Markus Schild Go to Quoted Post
Hi Cookee,

The drawbar which comes with 39971 is E138134 (pack of 2). E192906 is an electric coupling which is not suitable in this case.

UserPostedImage

Regards

Markus


Markus, couldn't you remove the electrical part of it ?

https://www.youtube.com/river6109
https://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
Back to top
WWW
Offline Markus Schild
#5 Posted : 28 January 2019 10:37:19(UTC)
Retweet
Markus Schild

Germany
Joined: 14/01/2006(UTC)
Posts: 1,802
Location: Wurttemberg
Hi,

Surely you can remove the electrical parts. But I don't see how that should solve the problem. The fixed draw-bar should be the simplest way.

Regards

Markus
Back to top
WWW
thanks 1 user liked this useful post by Markus Schild
Offline Unholz
#6 Posted : 28 January 2019 11:07:26(UTC)
Retweet
Unholz

Switzerland
Joined: 29/07/2007(UTC)
Posts: 1,394
Location: Switzerland
Ebay seller "mobadapter" manufactures a large range of 3-D-printed coupler adapters for Marklin, HAG, etc. Who knows, either he already has something that might fit or perhaps he could make it on demand: https://www.ebay.de/sch/...p;_trksid=p2047675.l2562 The guy is very pleasant to deal with.
Back to top
WWW
Offline xxup
#7 Posted : 28 January 2019 11:29:00(UTC)
Retweet
xxup

Australia
Joined: 15/03/2003(UTC)
Posts: 9,472
Location: Australia
Originally Posted by: Markus Schild Go to Quoted Post
.. E192906 is an electric coupling which is not suitable in this case. ..



Yep.. It was the wrong number all right.. Those couplers are for my one of my railcars.. You have the correct number..

And here is the original post -> https://www.marklin-user...35475-Draw-bar-for-39972
Adrian
UserPostedImage
Australia flag by abFlags.com
Back to top
Offline JohnjeanB
#8 Posted : 28 January 2019 14:46:03(UTC)
Retweet
JohnjeanB

France
Joined: 04/02/2011(UTC)
Posts: 3,123
Location: Paris, France
Hi Cookee

I have also this railcar which I love.
Of course if you can order those parts it is great.
What I did on mine is to take a Märklin close coupling and remove the buckle and its S shaped pre-decoupling device
Then I bent the coupling head upward by approx 20°

On the wagon to hook I bent downwards the coupling head by 20° and also made sure the buckle would go down enough to catch the "up-facing" coupler and checking that the part to raise the buckle is not too low and catching on "Puckos"

The result is this

So it looks like a little "bricolage" but is costs nothing, can be decoupled and is very discreet
Cheers

Jean
My layout videos
latest vid
marshalling yard
My Layout
Back to top
thanks 3 users liked this useful post by JohnjeanB
