dpetersen		#1 Posted : 13 September 2018 16:46:10(UTC) Retweet

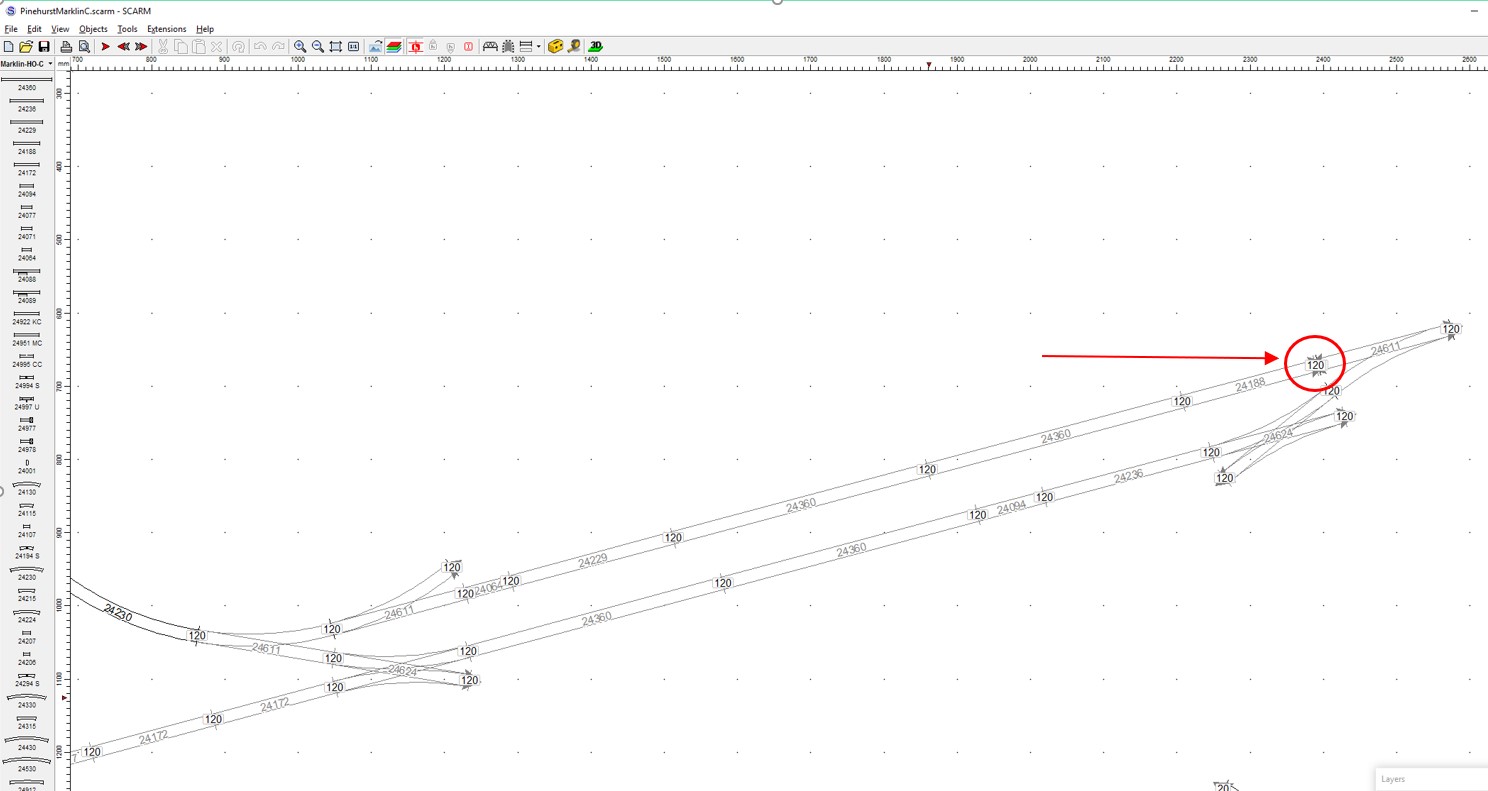

Joined: 11/05/2011(UTC) Posts: 110 Location: Minneapolis, Minnesota		Hello, I'm new to using SCARM and am stuck. I am trying to create this layout in SCARM 1.4, it is from Marklin Magazine 03/2018: http://streaming.maerklin.de/public-media/MM/03-2018/Downloaddatei_Gleisplaene_MM_03-2018_051618_NEU_cz.pdf I'm working on page 2, creating the station area. I can't seem to get two of tracks to connect in SCARM. It seem like there is a small space between them, hopefully you can see it in this picture: Is there a way in SCARM to force these to connect? I verified that the height of all track pieces is the same, 120. The magazine article said the layout was created in Wintrack, not sure why it would work in Wintrack but not SCARM. Thanks!
		Dave Petersen


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

PeFu		#2 Posted : 13 September 2018 16:52:23(UTC) Retweet
Joined: 30/08/2002(UTC) Posts: 1,209		In the top menu, there is an option where you may extend the tolerance for fitting track pieces. As I don’t have Scarm available right now, I can’t explain exactly where...
		Andreasburg-Mattiasberg Bahn is inspired by Swiss railways \|Forum Thread \|Track Plan \|Youtube \| C and K track \| CS2 \| TrainController Gold V10

1 user liked this useful post by PeFu		dpetersen
User Profile View All Posts by User View Thanks

dpetersen		#3 Posted : 13 September 2018 16:57:24(UTC) Retweet
Joined: 11/05/2011(UTC) Posts: 110 Location: Minneapolis, Minnesota		Originally Posted by: PeFu In the top menu, there is an option where you may extend the tolerance for fitting track pieces. As I don’t have Scarm available right now, I can’t explain exactly where... I found the setting, it's "Tools - Settings - Edit - Tolerances". I changed the "distance" from 2mm to 4mm, that seemed to work. Thank you
		Dave Petersen

3 users liked this useful post by dpetersen		PeFu, Webmaster, trainnut
