Ragarding M tracks with feeder wires
Share
Options
View
Go to last post in this topic Go to first unread post in this topic
Previous Topic Next Topic
Offline elig99
#1 Posted : 16 February 2013 09:32:07(UTC)
Retweet
elig99

Israel
Joined: 10/03/2012(UTC)
Posts: 12
Location: Tel Aviv

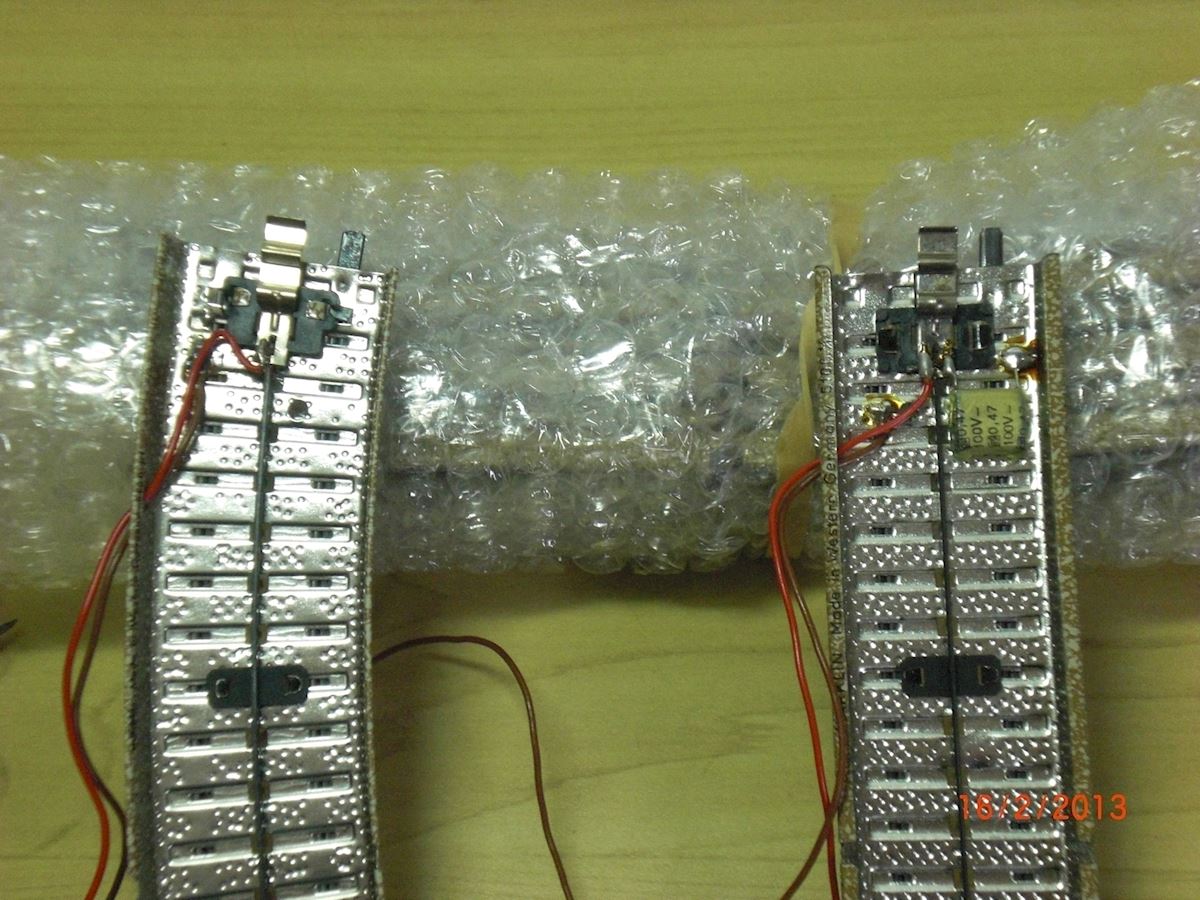

My original 5106 has an additional "cube" which is soldered to the right of the 3rd rail, as can be seen in the attached photo.
Recently I have received a 5100 with feeder wires (aka 5103) which is missing that addition. Should the lack of it be a concern?
elig99 attached the following image(s):
Back to top

Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook
Back to top
Offline RayF
#2 Posted : 16 February 2013 10:29:23(UTC)
Retweet
RayF

Gibraltar
Joined: 14/03/2005(UTC)
Posts: 15,840
Location: Gibraltar, Europe
Hi Eli,

The original one has a capacitor for RF interference suppression. This was done to minimise interference to radios and TV sets in the vicinity of the layout. The recent addition does not have it, but this is of no concern, as most locomotives have their own interference suppression built in. In fact, the capacitor can sometimes get in the way of digital signals and has to be removed when operating with some systems.
Ray
Mostly Marklin.Selection of different eras and European railways
Small C track layout, control by MS2, 100+ trains but run 4-5 at a time.
Back to top
Offline Bigdaddynz
#3 Posted : 16 February 2013 11:57:55(UTC)
Retweet
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 18,666
Location: New Zealand
Originally Posted by: RayF Go to Quoted Post
In fact, the capacitor can sometimes get in the way of digital signals and has to be removed when operating with some systems.


I'm not so sure about 'sometimes', Marklin always recommend that you remove the capacitors for use with digital systems.
Back to top
WWW BLOG
Offline elig99
#4 Posted : 16 February 2013 12:51:41(UTC)
Retweet
elig99

Israel
Joined: 10/03/2012(UTC)
Posts: 12
Location: Tel Aviv
Well, this is a vintage (can I call a 70's set "vintage"?) track set and I am not going to contaminate it with anything digital anyway :)
Back to top
Offline eroncelli
#5 Posted : 19 February 2013 11:05:25(UTC)
Retweet
eroncelli

Italy
Joined: 16/02/2011(UTC)
Posts: 124
Location: Bergamo - italy
As long as you don't have RF interference with your radio or TV set (and you shouldn't with modern equipment that are made according to the recent EM standards), don't bother with the problem on analog circuits.
