Which bulbs are best for vintage accessories ? Share  Email this topic  LinkBack Topic URL  Retweet this Topic  Share Topic on Google+  Like this Topic  Share on Facebook  Digg this Topic  Reddit this Topic  Share on Tumblr Options  Watch this topic  Print this topic View » Normal Threaded

Previous Topic Next Topic

20-VOLT-AC		#1 Posted : 11 May 2012 17:55:10(UTC) Retweet

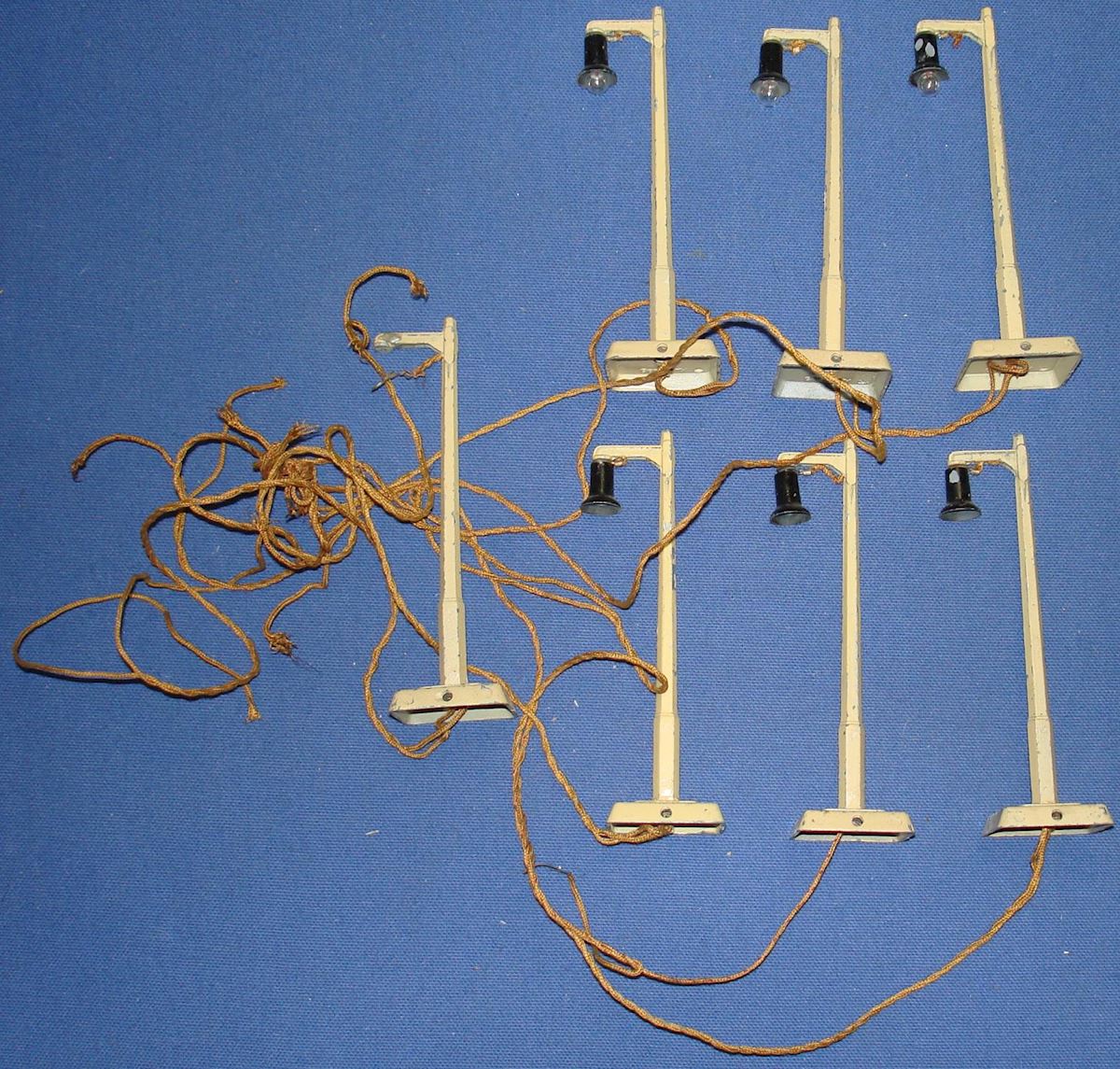

Joined: 27/01/2012(UTC) Posts: 250 Location: united kingdom		Hi Guys. With all these new screw type bulbs available from china & the far east which bulbs are best for me to use on a vintage 1950's layout ? For use in 418 station / 448 lamps / 424B canopy station ? Thanks Neil (UK) 20-VOLT-AC attached the following image(s):
		1950's Marklin Fan .
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

Markus Schild		#2 Posted : 11 May 2012 19:28:40(UTC) Retweet
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg		Hi Neil, These bulbs are still available from Märklin: Quote: E600100 - Glühlampe hell,19V- E5,5 10 pieces 15,00 € Recommended retail price(VPE: 10) Regards Markus
		WWW
2 users liked this useful post by Markus Schild		BrandonVA, 20-VOLT-AC
User Profile View All Posts by User View Thanks

BrandonVA		#3 Posted : 11 May 2012 21:43:30(UTC) Retweet
Joined: 09/12/2011(UTC) Posts: 2,533 Location: VA		Slightly off topic, and often mentioned before here...but still amazed that Marklin sells parts for things 50+ years old. I think it's great!
		My (new) layout progress - BrandonBahn III My previous layout - Brandonbahn II (click here)
User Profile View All Posts by User View Thanks

20-VOLT-AC		#4 Posted : 11 May 2012 21:57:40(UTC) Retweet
Joined: 27/01/2012(UTC) Posts: 250 Location: united kingdom		Originally Posted by: BrandonVA Slightly off topic, and often mentioned before here...but still amazed that Marklin sells parts for things 50+ years old. I think it's great! Hi Brandon. Yes i too am amazed that Marklin still has these 20 volt bulbs available, it is great . I prefer the old filament bulbs instead of the new LED type replacements that you can get now, the old types don't last as long i guess but are more original, they use more electric current though. Neil (UK)
		1950's Marklin Fan .
User Profile View All Posts by User View Thanks

LMS800		#5 Posted : 11 May 2012 22:41:06(UTC) Retweet
Joined: 02/05/2012(UTC) Posts: 162		Originally Posted by: BrandonVA Slightly off topic, and often mentioned before here...but still amazed that Marklin sells parts for things 50+ years old. I think it's great! Hello, but the bulbs Markus mentioned are not the original ones for lamp 448, the bulbs are different in size. The old bulbs (Märklin No 499 ) were 5mm in diameter ( screwing part, E 5) , the new bulbs are 5,5 mm (E 5,5). This very small difference is the reason, that the new bulbs don't fit with many old sockets. Best regards Wolf
1 user liked this useful post by LMS800		20-VOLT-AC
User Profile View All Posts by User View Thanks

Markus Schild		#6 Posted : 11 May 2012 23:18:56(UTC) Retweet
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg		Hi, I don't remember that I ever had such difficulties, but I mostly bought the bulbs from the BRAWA- assortment, they are cheaper at my dealer. Regards Marksu
		WWW
User Profile View All Posts by User View Thanks

H0		#7 Posted : 12 May 2012 00:00:04(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,491 Location: DE-NW		Originally Posted by: BrandonVA ...but still amazed that Marklin sells parts for things 50+ years old. Light bulb #600100 still appears on the 1997 version of the #3000 spare part list. I don't know when the last factory-installed #600100 was sold (maybe they still sell products with it). I'm amazed how long locos like #3000 and #3078 have been in the catalogue (but with changing motor brushes and light bulbs).
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

20-VOLT-AC		#8 Posted : 12 May 2012 16:21:59(UTC) Retweet

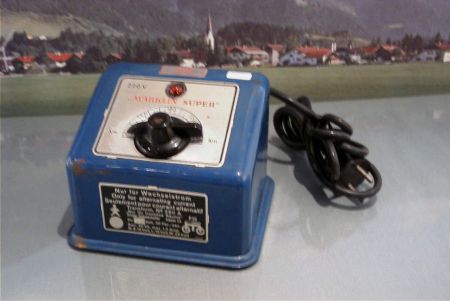

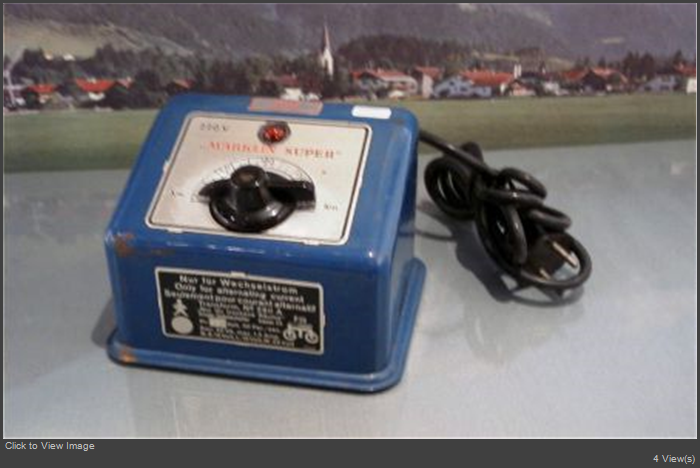

Joined: 27/01/2012(UTC) Posts: 250 Location: united kingdom		Hi Guy's. Thanks for the knowledge on bulbs, how many standard bulbs can i run off one Marklin 30 VA transformer ? I was thinking of having one transformer for lighting and power for electric points and another transformer for just running the LOKS. Neil (UK) 20-VOLT-AC attached the following image(s):
		1950's Marklin Fan .
User Profile View All Posts by User View Thanks

LMS800		#9 Posted : 12 May 2012 17:52:09(UTC) Retweet
Joined: 02/05/2012(UTC) Posts: 162		Originally Posted by: 20-VOLT-AC Hi Guy's. Thanks for the knowledge on bulbs, how many standard bulbs can i run off one Marklin 30 VA transformer ? I was thinking of having one transformer for lighting and power for electric points and another transformer for just running the LOKS. Neil (UK) Hello Neil, I count 1 VA for each bulb ( also suggested by Märklin), thus 30 bulbs for one transformer 30 VA. A loco needs - on average - 10 VA, therefor take one transformer for lightning and switching points / signals. Best regards Wolf
1 user liked this useful post by LMS800		20-VOLT-AC
User Profile View All Posts by User View Thanks

20-VOLT-AC		#10 Posted : 13 May 2012 22:23:52(UTC) Retweet
Joined: 27/01/2012(UTC) Posts: 250 Location: united kingdom		Originally Posted by: LMS800 Originally Posted by: 20-VOLT-AC Hi Guy's. Thanks for the knowledge on bulbs, how many standard bulbs can i run off one Marklin 30 VA transformer ? I was thinking of having one transformer for lighting and power for electric points and another transformer for just running the LOKS. Neil (UK) Hello Neil, I count 1 VA for each bulb ( also suggested by Märklin), thus 30 bulbs for one transformer 30 VA. A loco needs - on average - 10 VA, therefor take one transformer for lightning and switching points / signals. Best regards Wolf Hello Wolf. Thank you for your helpful advice on this topic, i think your vintage H0 layouts are FantasticO !! Regards Neil (UK)
		1950's Marklin Fan .
User Profile View All Posts by User View Thanks

BrandonVA		#11 Posted : 14 May 2012 16:06:39(UTC) Retweet
Joined: 09/12/2011(UTC) Posts: 2,533 Location: VA		Originally Posted by: 20-VOLT-AC Hi Brandon. Yes i too am amazed that Marklin still has these 20 volt bulbs available, it is great . I prefer the old filament bulbs instead of the new LED type replacements that you can get now, the old types don't last as long i guess but are more original, they use more electric current though. Neil (UK) I agree, I just like the colour/quality of the light better. Even with "warm" LEDs it just dosn't look as good to me (subjective of course).
		My (new) layout progress - BrandonBahn III My previous layout - Brandonbahn II (click here)
1 user liked this useful post by BrandonVA		20-VOLT-AC
User Profile View All Posts by User View Thanks

20-VOLT-AC		#12 Posted : 14 May 2012 21:30:34(UTC) Retweet
Joined: 27/01/2012(UTC) Posts: 250 Location: united kingdom		Originally Posted by: BrandonVA Originally Posted by: 20-VOLT-AC Hi Brandon. Yes i too am amazed that Marklin still has these 20 volt bulbs available, it is great . I prefer the old filament bulbs instead of the new LED type replacements that you can get now, the old types don't last as long i guess but are more original, they use more electric current though. Neil (UK) I agree, I just like the colour/quality of the light better. Even with "warm" LEDs it just dosn't look as good to me (subjective of course). Hi Brandon. Yes i am glad you agree with me that original type bulbs are better than LED's !! Regards Neil.
		1950's Marklin Fan .
User Profile View All Posts by User View Thanks

JohnjeanB		#13 Posted : 14 May 2012 22:08:42(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,636 Location: Paris, France		Hello One type of bulb is sometimes difficult to purchase: the white color. It was used until mid 1950. Unlike transparent bulb its glass is not glossy but with a matte finish. They are easy to make yourself by using fine abrasive paper on the bulbe itself. It becomes white. Cheers Jean
		My layout videos latest vid marshalling yard My Layout
1 user liked this useful post by JohnjeanB		20-VOLT-AC
User Profile View All Posts by User View Thanks
