Disassembly diagrams occasionally wrong for Locos?

Welcome Guest! To enable all features please Login or Register.

Notification

Error

Disassembly diagrams occasionally wrong for Locos? - Seems this one had some missing screws in the diagram....

Options

View

Previous Topic Next Topic

Minok		#1 Posted : 23 March 2023 21:10:53(UTC) Retweet

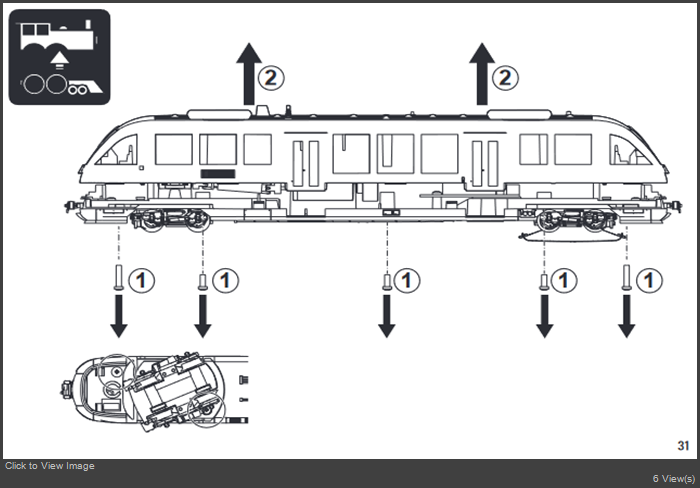

Joined: 15/10/2006(UTC) Posts: 2,311 Location: Washington, Pacific Northwest		Apologies if this has already been addressed at some time in the past. I was recently pulling the top off of a loco (powered rail car to be correct), to take some readings of the signal to the motor. I figured, as it was handy and the simple startup railcar BR 640 (36640) , might as well use that. Flipping to the back where the diagram is to show how to disassemble, I see the diagram that indicates to remove 3 screws - one each under the wheel trucks and one in the center. Having removed the 3 screws depicted, I find that the top just will not come off. After much struggle I manage to pull the superstructure off, and discover, crap I should not have pulled so hard as there really were 2 more screws that needed removing.. because the cab ends should have come up with the superstructure.. instead of being still secured to the frame. I was really puzzled in how the manual with the loco could have made such a mistake. I added the missing info to my manual pages myself, which is now as seen in this photo (the 2 on the ends and the note that there are 5x screws is my addition - the red circles just to highlight in this photo) Just now checking what Maerklin has for the model on its website, I see they have a corrected and updated PDF manual for the loco: This has me thinking, how many other printed manuals that came with locomotives might have the incorrect disassembly instructions with the loco? Has anyone else encountered these sorts of discrepancies with respect to the instruction manual and what the model really requires? I don't think I damaged anything, as I got the model back together after futzing around with the headlight/taillight pipes and snapping the cab structures in where they should sit. But it would have irritated me greatly if I'd damaged something.
