mancsaint		#1 Posted : 05 October 2013 00:50:17(UTC) Retweet

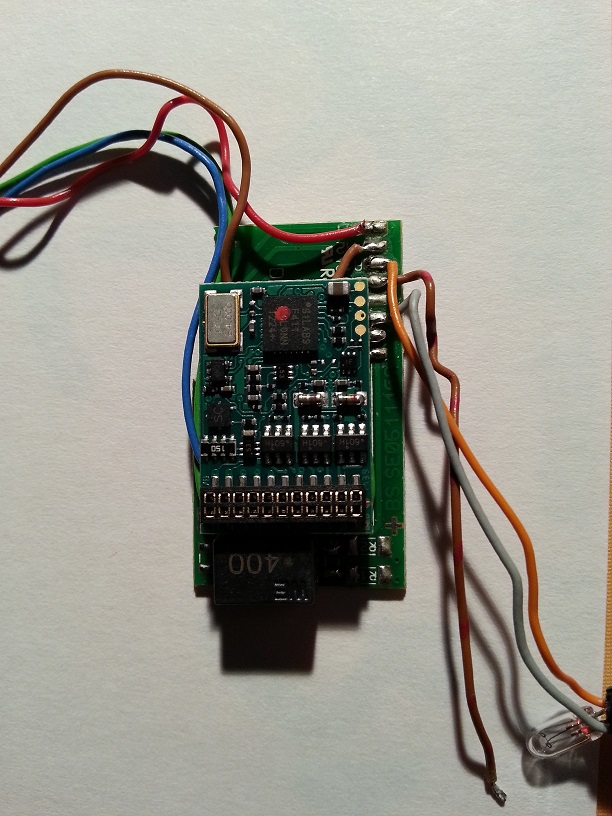

Joined: 24/03/2009(UTC) Posts: 137 Location: London, UK		I bought a 21pin Mfx decoder, on EBay, from a Marklin 30080 (BR01) and want to know what the Marklin part number is for it. I can the download the manual for it. I've attached a photo to help. Thanks in advance. Mancsaint Edited by user 05 October 2013 12:08:12(UTC)  | Reason: Not specified mancsaint attached the following image(s):
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

Markus Schild		#2 Posted : 05 October 2013 01:09:23(UTC) Retweet
Joined: 14/01/2006(UTC) Posts: 1,802 Location: Wurttemberg		Hi, You are looking for this one: Code: http://medienpdb.maerklin.de/product_files/1/pdf/60942_betrieb.pdf Regards Markus
		WWW
User Profile View All Posts by User View Thanks

H0		#3 Posted : 05 October 2013 01:28:05(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,451 Location: DE-NW		Hi! The decoder is a crippled 60942 (see Markus's post for a link to the manual). The decoder does not support DCC and not everything described in the manual will work with that decoder.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
1 user liked this useful post by H0		foumaro
User Profile View All Posts by User View Thanks

mancsaint		#4 Posted : 05 October 2013 02:01:24(UTC) Retweet
Joined: 24/03/2009(UTC) Posts: 137 Location: London, UK		The seller sent me the manual for the 30080 and yes the functions are limited to lights,smoke generator and ABV. As usual Marklin only say Mfx and the parts listed do not even mention the decoder. Thanks for your help. Mancsaint
User Profile View All Posts by User View Thanks

H0		#5 Posted : 05 October 2013 09:44:19(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,451 Location: DE-NW		Originally Posted by: mancsaint The seller sent me the manual for the 30080 and yes the functions are limited to lights,smoke generator and ABV. As usual Marklin only say Mfx and the parts listed do not even mention the decoder. The decoder has function outputs AUX1 through AUX4 and lights and you can use F0 through F15 as you like. Forget the 30080 manual, the 60942 manual is a better source of information. But because DCC is missing, you will need a Central Station or ECoS for any advanced setting.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
1 user liked this useful post by H0		foumaro
User Profile View All Posts by User View Thanks

mancsaint		#6 Posted : 05 October 2013 10:14:50(UTC) Retweet
Joined: 24/03/2009(UTC) Posts: 137 Location: London, UK		Thanks Tom, You mention CS and ECoS, what about the IB1(with v2 software) that I have? Cheers Mancsaint
User Profile View All Posts by User View Thanks

H0		#7 Posted : 05 October 2013 11:55:47(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,451 Location: DE-NW		The "uncrippled" 60942 supports DCC and a lot of settings can be changed with an IB using DCC. The "crippled" decoder from 30080 does not support DCC and only few settings can be changed with an IB using MM protocol.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

mancsaint		#8 Posted : 05 October 2013 12:07:43(UTC) Retweet
Joined: 24/03/2009(UTC) Posts: 137 Location: London, UK		Thank you Tom, Looks like my decoder was removed to be replaced with an "uncrippled" decoder. Mancsaint
User Profile View All Posts by User View Thanks

biedmatt		#9 Posted : 05 October 2013 13:54:05(UTC) Retweet
Joined: 09/04/2012(UTC) Posts: 1,343 Location: Southwest Ohio		Originally Posted by: mancsaint Thank you Tom, Looks like my decoder was removed to be replaced with an "uncrippled" decoder. Mancsaint I'm not sure why the decoder was removed. Perhaps they were parting out a new loko. The HEP motor sells for $65 US, so you can do well if you have a buyer for all the pieces. If they were just replacing the decoder, I would have left the 21 pin adapter board and plugged a new decoder into that. I plugged an ESU V4 LoPi into mine. No need to rewire it then either.
		Matt Era 3 DB lokos, coaches and freight cars from across Europe But I do have the obligatory (six) SBB Krocs ECoS 50200, all FX and MFX decoders replaced with ESU V4s, operated in DCC-RailCom+ with ABC brake control. With the exception of the passenger wagens with Marklin current conducting couplers, all close couplers have been replaced with Roco 40397.
User Profile View All Posts by User View Thanks

mancsaint		#10 Posted : 05 October 2013 14:22:15(UTC) Retweet
Joined: 24/03/2009(UTC) Posts: 137 Location: London, UK		Didn't think that through did I? Mancsaint
User Profile View All Posts by User View Thanks

H0		#11 Posted : 05 October 2013 15:07:53(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,451 Location: DE-NW		Maybe someone wanted sound and also replaced the board, maybe someone needed certain parts to fix an old 3008 - maybe there's a completely different explanation.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

biedmatt		#12 Posted : 05 October 2013 15:42:02(UTC) Retweet
Joined: 09/04/2012(UTC) Posts: 1,343 Location: Southwest Ohio		Even with a sound upgrade you will need the adapter board. Makes no sense to remove that unless you like to redo factory wiring and solder connections performed by a person with countless hours of experience we as hobbyists could never come close to. Parting out a new loko never came to me either until I saw it at ebay.de.
		Matt Era 3 DB lokos, coaches and freight cars from across Europe But I do have the obligatory (six) SBB Krocs ECoS 50200, all FX and MFX decoders replaced with ESU V4s, operated in DCC-RailCom+ with ABC brake control. With the exception of the passenger wagens with Marklin current conducting couplers, all close couplers have been replaced with Roco 40397.
User Profile View All Posts by User View Thanks

H0		#13 Posted : 05 October 2013 16:07:53(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,451 Location: DE-NW		Originally Posted by: biedmatt Even with a sound upgrade you will need the adapter board. The sound decoder may have come with a new board that already had a socket for the speaker. Somebody who doesn't know how to connect the speaker to the old board may prefer to replace the board. Just speculation. If you can get a loco cheaply, if may work to take her apart and sell the pieces separately.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
