Pre 1945 HO Train set/Transformer - Advice Please

Options

View

Previous Topic Next Topic

rbat		#1 Posted : 16 January 2024 20:58:21(UTC) Retweet
Joined: 16/01/2024(UTC) Posts: 4 Location: England, London		I have a very old ( probably pre 1945 ) Marklin HO 3 rail train set. It is powered by an also very old Marklin 270A transformer. It has not been used for many, many years but I recently set it up again and although power gets through to the track, the engine I used , a 1962ish tank engine, model number 3000, only lights up and moves an inch or two then stops. I am unclear whether it is the transformer which is the problem or the engine. Also as the transformer is very old it may be better to get a new one but I don't know what would be compatible. Any advice or suggestions would be gratefully received. Thanks

1 user liked this useful post by rbat		marklinist5999
User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

marklinist5999		#2 Posted : 16 January 2024 22:39:03(UTC) Retweet
Joined: 10/02/2021(UTC) Posts: 3,139 Location: Michigan, Troy		If you have another loco., try it. The longer they are dormant, the oil solidifies and they either won't move, or run sluggish. Clean the gears, wheels, and check the commutator and armature for dirt and grease. Clean and relube as needed. Old 3000s have sponge oil pockets for the motor. If the tracks are rusty or dirty, clean them as well.


User Profile View All Posts by User View Thanks

rbat		#3 Posted : 16 January 2024 22:45:34(UTC) Retweet
Joined: 16/01/2024(UTC) Posts: 4 Location: England, London		Thank you, I'll try that.

1 user liked this useful post by rbat		marklinist5999
User Profile View All Posts by User View Thanks

Michael4		#4 Posted : 16 January 2024 23:25:49(UTC) Retweet
Joined: 02/02/2017(UTC) Posts: 642 Location: England, South Coast		I would be very wary of the transformer. Is it one of those black ones with a knob and separate red button for reversing the loco? Whatever it is if it is as old as you say the insulation of the power cord both externally and internally is probably breaking down, making it dangerous. The transformers that can normally be considered to be safe are plastic either blue or white (newer). Anything old enough to be metal should be seen as being risky though a competent electrician can most likely make them safe by rewiring etc.. A photo would help identify it.

2 users liked this useful post by Michael4		dickinsonj, marklinist5999
User Profile View All Posts by User View Thanks

kiwiAlan		#5 Posted : 17 January 2024 00:56:39(UTC) Retweet
Joined: 23/07/2014(UTC) Posts: 8,109 Location: ENGLAND, Didcot		Originally Posted by: rbat I have a very old ( probably pre 1945 ) Marklin HO 3 rail train set. ... the engine I used , a 1962ish tank engine, model number 3000, only lights up and moves an inch or two then stops. I doubt that the set is pre 1945, it is more likely post 1945, and as the loco is designated as a 3000, which is from late 50s onwards, that is probably the age of the set. Does the track have solid centre rail (like Hornby Dublo) or is it center studs? As others have noted be very wary of the transformer, the power leads on the old transformers perish, and the internal wiring may also be doubtful. Also as noted, the problem is most likely that the engine needs some cleaning and lubrication. See the Marklin Service Manual about half way down this post for instructions and other information to help with this. Again some photos will help identify the units. If there is a label on the box (you mentioned it is a set, is it a set, or a collection of items in a box?) then that will help identify its age. To attach photos use the paperclip in the edit bar when writing a post, and follow the instructions.

1 user liked this useful post by kiwiAlan		marklinist5999
User Profile View All Posts by User View Thanks

rbat		#6 Posted : 17 January 2024 16:48:54(UTC) Retweet
Joined: 16/01/2024(UTC) Posts: 4 Location: England, London		Thank you, I think you are right about the transformer. I'm not going to use it, for interest I attach a couple of photos. What would be really helpful is you could recommend a model of transformer which basically does the same job but that is easily available now Not sure I've attached the photos, can't see what else to do. Originally Posted by: Michael4 I would be very wary of the transformer. Is it one of those black ones with a knob and separate red button for reversing the loco? Whatever it is if it is as old as you say the insulation of the power cord both externally and internally is probably breaking down, making it dangerous. The transformers that can normally be considered to be safe are plastic either blue or white (newer). Anything old enough to be metal should be seen as being risky though a competent electrician can most likely make them safe by rewiring etc.. A photo would help identify it.

1 user liked this useful post by rbat		marklinist5999
User Profile View All Posts by User View Thanks

marklinist5999		#7 Posted : 17 January 2024 16:56:15(UTC) Retweet
Joined: 10/02/2021(UTC) Posts: 3,139 Location: Michigan, Troy		I'm not familiar with that one.


User Profile View All Posts by User View Thanks

rbat		#8 Posted : 17 January 2024 17:02:07(UTC) Retweet

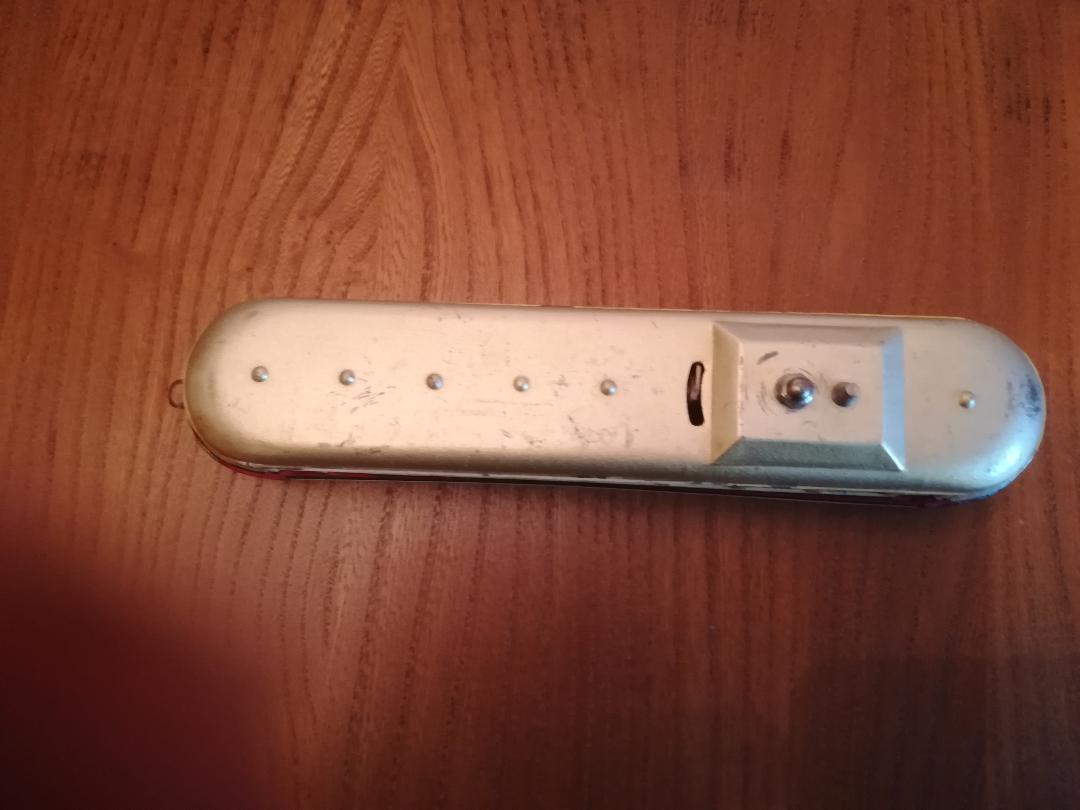

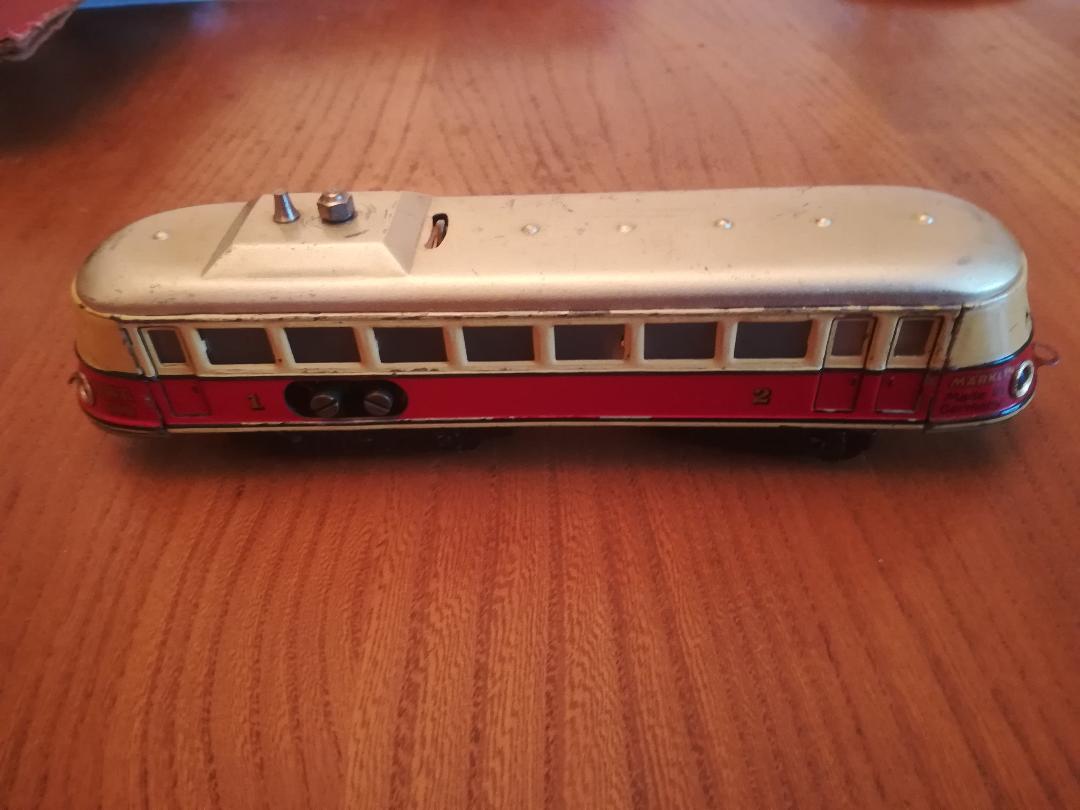

Joined: 16/01/2024(UTC) Posts: 4 Location: England, London		Thanks very much for your response. I'm afraid I didn't fully explain. I was given various pre-WW2 locos, pullman cars, rolling stock, track and points by my late father. So its really a collection of items. This track has a solid rail. I added to these items some new track (which has centre studs) and the 3000 loco in the mid 60s. Yes I am very doubtful about the transformer and wont be using it, but would be interested in knowing what a suitable modern, available equivalent might be. I attach a few photos of the original pre 1945 stuff and the transformer. Originally Posted by: kiwiAlan Originally Posted by: rbat I have a very old ( probably pre 1945 ) Marklin HO 3 rail train set. ... the engine I used , a 1962ish tank engine, model number 3000, only lights up and moves an inch or two then stops. I doubt that the set is pre 1945, it is more likely post 1945, and as the loco is designated as a 3000, which is from late 50s onwards, that is probably the age of the set. Does the track have solid centre rail (like Hornby Dublo) or is it center studs? As others have noted be very wary of the transformer, the power leads on the old transformers perish, and the internal wiring may also be doubtful. Also as noted, the problem is most likely that the engine needs some cleaning and lubrication. See the Marklin Service Manual about half way down this post for instructions and other information to help with this. Again some photos will help identify the units. If there is a label on the box (you mentioned it is a set, is it a set, or a collection of items in a box?) then that will help identify its age. To attach photos use the paperclip in the edit bar when writing a post, and follow the instructions.

1 user liked this useful post by rbat		marklinist5999
User Profile View All Posts by User View Thanks

Michael4		#9 Posted : 17 January 2024 17:19:37(UTC) Retweet

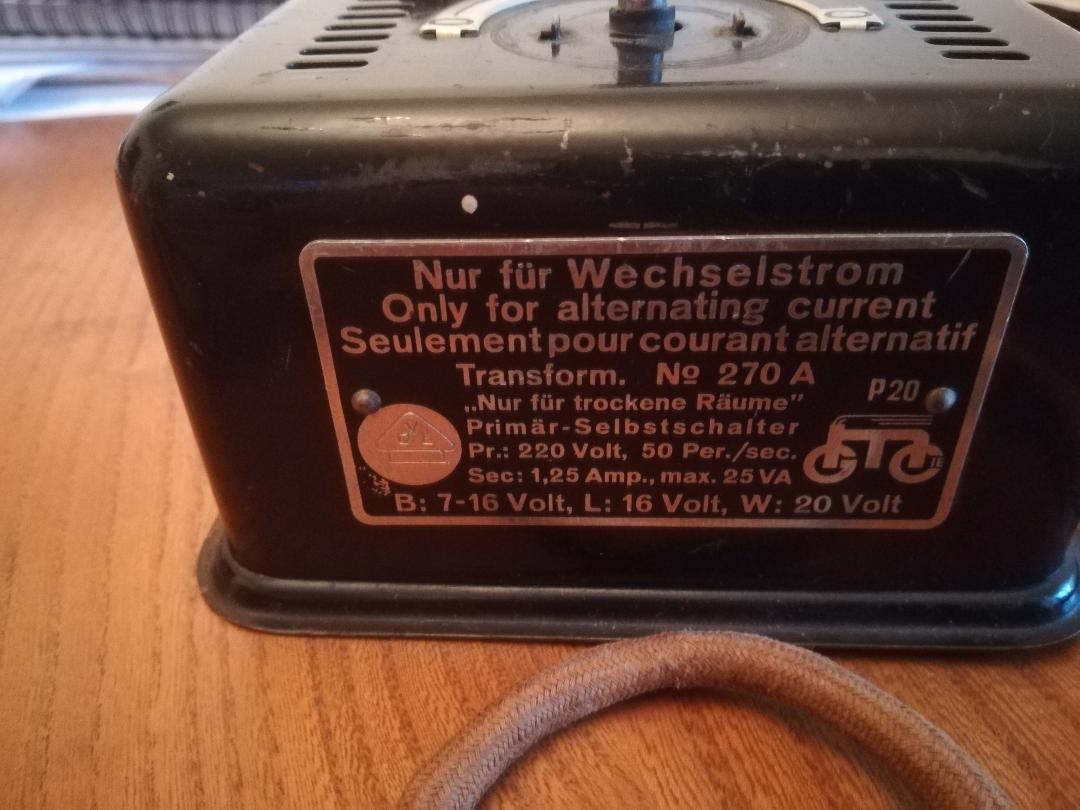

Joined: 02/02/2017(UTC) Posts: 642 Location: England, South Coast		Yup, I would keep well away from the black transformer, it predates metal blue ones and has a power wire that is cloth covered stuff that was once rubber! Remember, when looking for a transformer to check that it is OK for UK voltage For old 'analogue' use two numbers spring to mind, one is 6631 which is blue plastic and 6647 which is a significantly newer white one. Both 30VA. Others are available, you may only need a smaller one. There are a couple of 6631 on Ebay UK at the moment, no idea about the vendors etc. They are quite heavy for postage.
