MALAVIKA		#1 Posted : 20 March 2025 08:31:44(UTC) Retweet
Joined: 06/01/2019(UTC) Posts: 30 Location: Maharashtra, Pune		IIcannot locate the lever/switch to change from Catenary to Mtrack rail. Please help. I am from India and age 82. Thank you, Kumar India
User Profile View All Posts by User View Thanks

	Wish to join the discussion?! Login to your marklin-users.net community | Forum accountor Register a new forum account. Or Connect via Facebook

JohnjeanB		#2 Posted : 20 March 2025 10:37:02(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,550 Location: Paris, France		Hello Malavika On my 3015 (Koll's version10) there is no manual lever for direction change. There probably has been on earlier models but around 1962, Märklin started to remove those levers for cost and detailling reasons. In case you are interested, here is the exploded view diagram by Märklin where I cannot see any lever https://www.maerklin.de/service/...r.php?artikelnummer=3015 Cheers Jean
		My layout videos latest vid marshalling yard My Layout
User Profile View All Posts by User View Thanks

H0		#3 Posted : 20 March 2025 12:07:06(UTC) Retweet
Joined: 16/02/2004(UTC) Posts: 15,432 Location: DE-NW		Originally Posted by: MALAVIKA IIcannot locate the lever/switch to change from Catenary to Mtrack rail. On the explosion diagram linked by Jean, look for #25 "Umschalter" close to the motor. I assume that's the switch that chooses between catenary and centre rail.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS
User Profile View All Posts by User View Thanks

Michael4		#4 Posted : 20 March 2025 23:26:31(UTC) Retweet
Joined: 02/02/2017(UTC) Posts: 694 Location: England, South Coast		You are correct but there is a vertical metal lever/bar that attaches to it and protrudes out of the bottom of the loco's body. On the diagram I think it is number 29. Marklin 208870 https://www.ebay.ph/itm/202659582218 I only know about it because it was missing on my 3015 which had been modified for catenary only use.
User Profile View All Posts by User View Thanks

scarfo		#5 Posted : 21 March 2025 04:32:48(UTC) Retweet
Joined: 06/09/2012(UTC) Posts: 54 Location: Goa/India		Hi Kumar As i said in my email, there should be a vertical bar that looks like a step painted red. I have not seen your loco in the flesh so maybe its missing if the previous owner removed it as they only wanted catenary feed. Send me a picture of both sides of the loco and i will point it out if i can Regards Charles
User Profile View All Posts by User View Thanks

Br502362		#6 Posted : 21 March 2025 08:14:29(UTC) Retweet
Joined: 05/03/2014(UTC) Posts: 704 Location: Finland		Originally Posted by: H0 Originally Posted by: MALAVIKA IIcannot locate the lever/switch to change from Catenary to Mtrack rail. On the explosion diagram linked by Jean, look for #25 "Umschalter" close to the motor. I assume that's the switch that chooses between catenary and centre rail. And #29 is the lever which moves the #25. Cheers Åke
3 users liked this useful post by Br502362		marklinist5999, H0, scarfo
User Profile View All Posts by User View Thanks

ktsolias		#7 Posted : 22 March 2025 23:27:21(UTC) Retweet

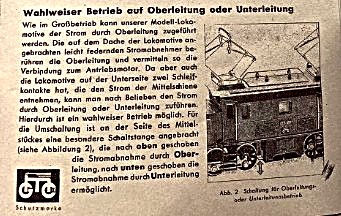

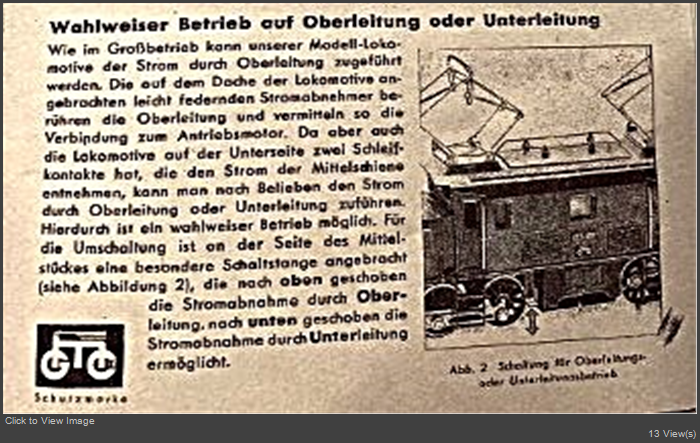

Joined: 01/05/2016(UTC) Posts: 623 Location: Athens		Hi here is a picture of the lever is no 29 in the plan Regards Costas
User Profile View All Posts by User View Thanks

Peter S		#8 Posted : 23 March 2025 15:18:11(UTC) Retweet
Joined: 28/07/2004(UTC) Posts: 9 Location: Westfield, MA		actually your picture is mirrored and the lever is on the left side.
		Peter
