einotuominen		#1 Posted : 31 October 2023 07:38:03(UTC) Retweet
Joined: 19/09/2022(UTC) Posts: 382 Location: Kaarina		Hi, I don’t know what’s up with my thinking, but I can’t get a single track to split in to four tracks using the normal 77,5mm spacing. Splitting to three is fine, but four I can’t figure out 🤣 Can someone please help? BR, Eino


User Profile View All Posts by User View Thanks


	Wish to join the discussion?! Login to your marklin-users.net community \| Forum account or Register a new forum account. Or Connect via Facebook

H0		#2 Posted : 31 October 2023 12:22:18(UTC) Retweet

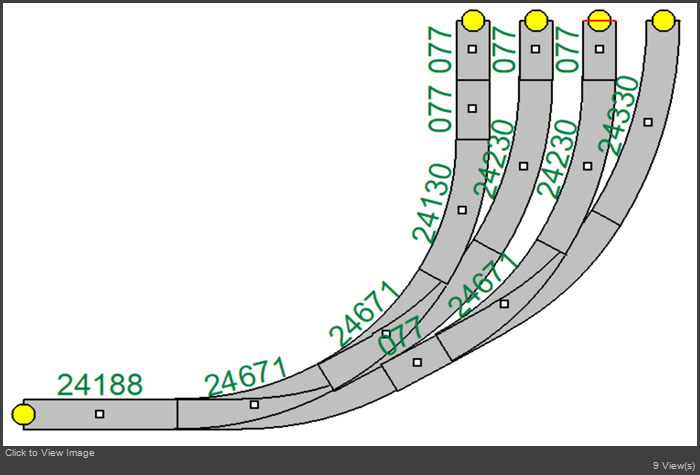

Joined: 16/02/2004(UTC) Posts: 15,267 Location: DE-NW		This works in WinTrack: Not tested with real track pieces.
		Regards Tom --- "In all of the gauges, we particularly emphasize a high level of quality, the best possible fidelity to the prototype, and absolute precision. You will see that in all of our products." (from Märklin New Items Brochure 2015, page 1) ROFLBTCUTS

5 users liked this useful post by H0		marklinist5999, mbarreto, BenP, hxmiesa, TrainIride
User Profile View All Posts by User View Thanks

JohnjeanB		#3 Posted : 31 October 2023 13:06:51(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,130 Location: Paris, France		Hi I believe this is theory but with excellent track design, especially for a shadow station. In practice the protuberance to host the lever and lantern on the red-circled switch bumps into the adjacent track (some surgery may be needed and the hand lever and lantern may have to go. Cheers Jean
		My layout videos latest vid marshalling yard My Layout

4 users liked this useful post by JohnjeanB		marklinist5999, Willem99, Bogenschütze, TrainIride
User Profile View All Posts by User View Thanks

Willem99		#4 Posted : 31 October 2023 16:09:22(UTC) Retweet
Joined: 18/11/2020(UTC) Posts: 61 Location: Georgia, Ball Ground		That is something I would like to use for the exit of my shadow station, but I am using M-track. I guess using the 5140 curved switches should work as well there ? Thanks Tim


User Profile View All Posts by User View Thanks

JohnjeanB		#5 Posted : 31 October 2023 16:33:11(UTC) Retweet
Joined: 04/02/2011(UTC) Posts: 3,130 Location: Paris, France		Hi Tim M track geometry is very similar to C track WHEN RELATED TO the 5140 switches. The big difference is you cannot practically saw (cut out) the extension because the solenoids and mechanism ARE NOT located under the track like on an C-Track switch. Here is the best that M track allows (extract of page 86 of the Märklin 0351 track plans (1961) The bottom 5200 track may be replaced with another 5140 but you will have to manage the track spacing and track length Cheers Jean
		My layout videos latest vid marshalling yard My Layout

4 users liked this useful post by JohnjeanB		Willem99, marklinist5999, BenP, TrainIride
User Profile View All Posts by User View Thanks

einotuominen		#6 Posted : 31 October 2023 18:21:05(UTC) Retweet
Joined: 19/09/2022(UTC) Posts: 382 Location: Kaarina		Thanks guys! Just got a confirmation from a friend who actually have these tracks, that everything fits nicely together. No surgery needed. -Eino

2 users liked this useful post by einotuominen		kimballthurlow, TrainIride
User Profile View All Posts by User View Thanks
