Would anyone be able to guide me in how to wireup the 21 pin M21 adapter plate to this loco.

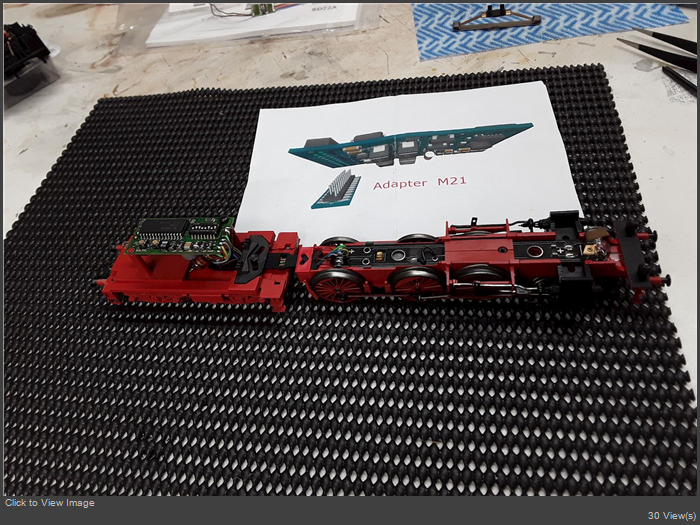

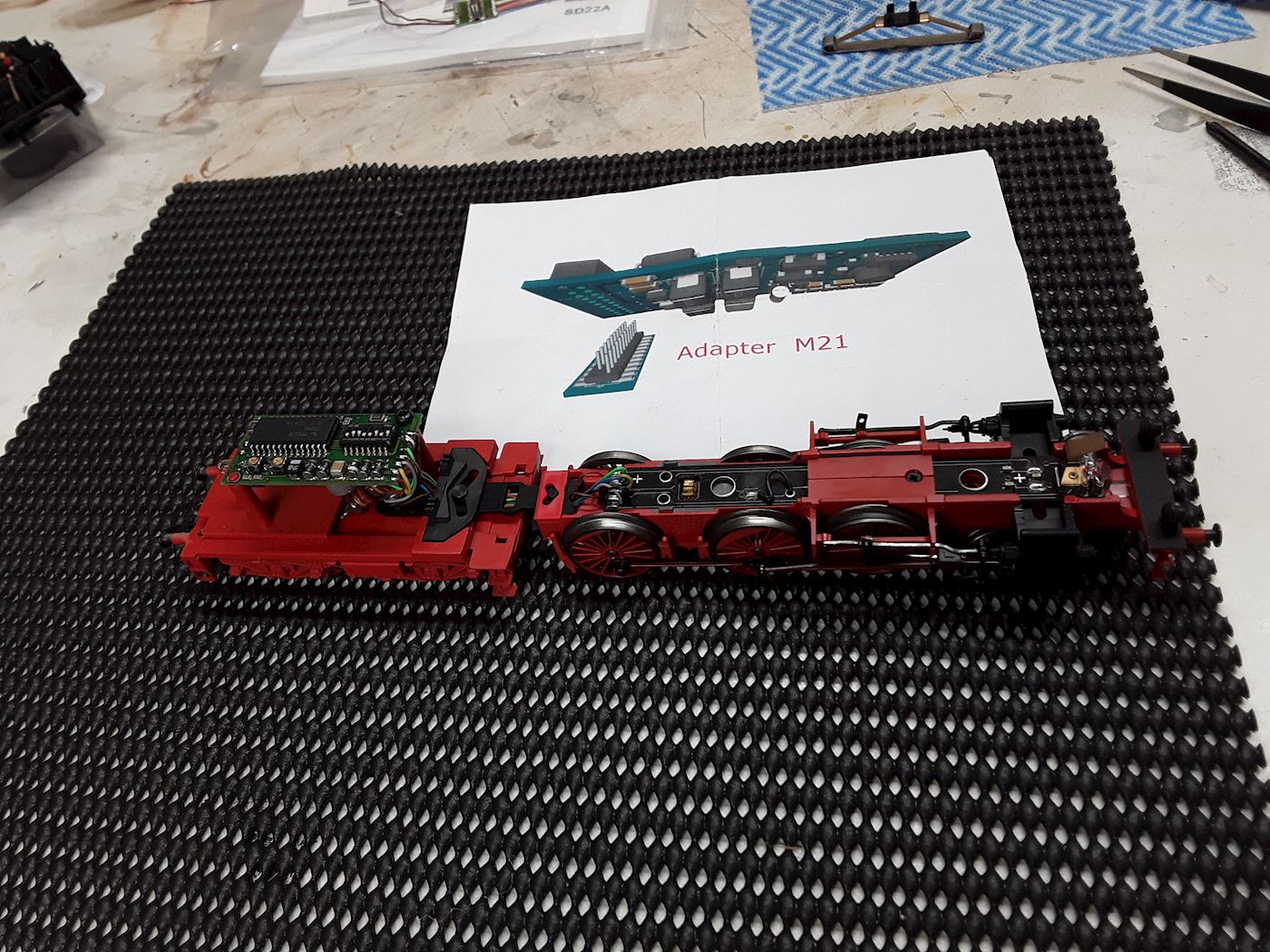

I have fitted several decoders to older locs before but never to one with a circuit board like the one in this loco.20210214_111921.jpg
A wiring diagram would be nice but even a list of which wires go to what on the circuit board would be helpfull.
Rob.
Offline river6109
#2 Posted : 14 February 2021 05:20:50(UTC)
river6109

Australia
Joined: 22/01/2009(UTC)
Posts: 13,569
Location: On 1965 Märklin Boulevard just around from Roco Square
https://www.youtube.com/river6109
https://www.youtube.com/6109river
5 years in Destruction mode
50 years in Repairing mode
thanks 1 user liked this useful post by river6109
Offline Dave Banks
#3 Posted : 14 February 2021 06:53:41(UTC)
Dave Banks

Australia
Joined: 08/03/2006(UTC)
Posts: 1,022
Location: Gold Coast, Australia.
D.A.Banks
Offline db216
#4 Posted : 14 February 2021 08:31:42(UTC)
db216

Australia
Joined: 27/05/2003(UTC)
Posts: 41
Location: , Victoria
Thanks for the replies so far.🙂
Offline Bigdaddynz
#5 Posted : 14 February 2021 14:57:24(UTC)
Bigdaddynz

New Zealand
Joined: 17/09/2006(UTC)
Posts: 17,824
Location: New Zealand
Which loco is it?
Offline foumaro
#6 Posted : 14 February 2021 17:04:30(UTC)
foumaro

Greece
Joined: 08/12/2004(UTC)
Posts: 4,342
Location: Attiki Athens Greece
Marklin 37030 BR38 era III.
Offline bph
#7 Posted : 14 February 2021 17:18:19(UTC)
bph

Norway
Joined: 04/08/2018(UTC)
Posts: 335

37030 wiring instructions can be found here:
https://moba-hgh.de/modellbahn/digital/decoder-traegerplatinen/fuer-lokomotiven/maerklin/digital/6090x-c90x/sonderbauweisen/2252-37030-br-38-ex-p8-der-db#pl%C3%A4ne-2
But to be sure, do a double-check with a multimeter, moba-hgh.de is not always correct.
